Description

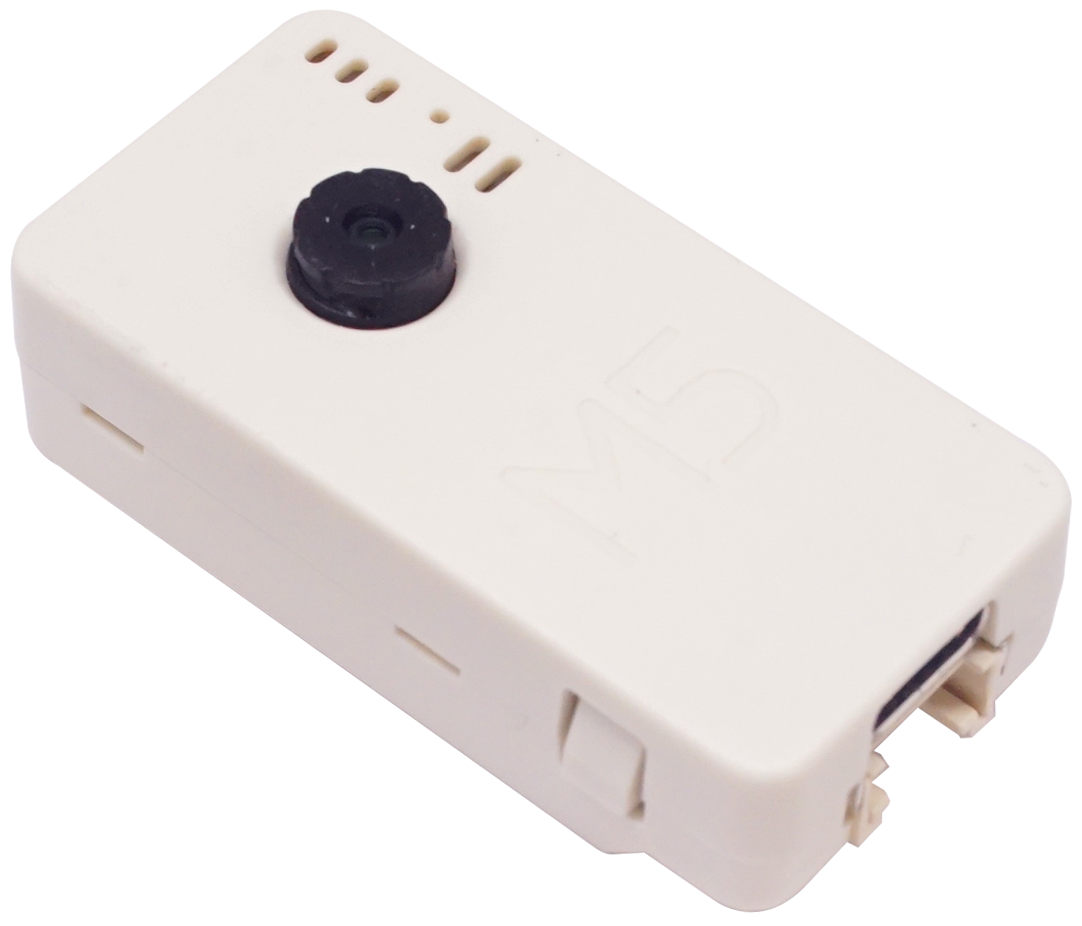

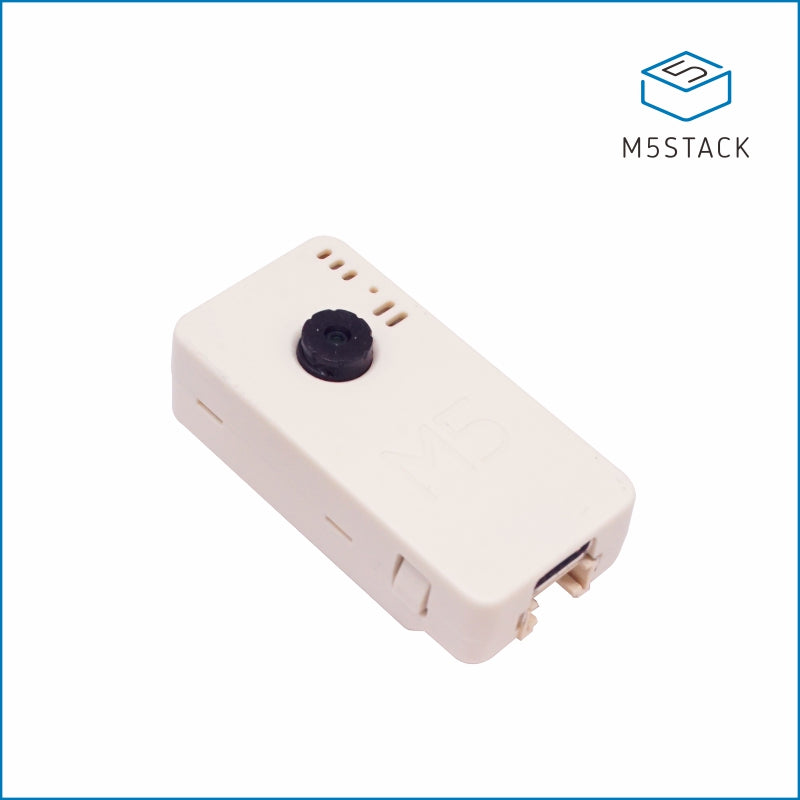

M5Camera-X is an image recognition development board that integrates the ESP32 (4M Flash + 520K RAM + 4M PSRAM) chip and a 2MP camera (OV2640). It supports Wi-Fi image transmission and USB port debugging.
The hardware comes preloaded with firmware, developed using ESP-IDF programming, running a Wi-Fi camera application. The default program outputs an image size of 600 x 800, but you can optimize the program to output larger sizes.
How to use this program?
- Turn on the phone's Wi-Fi and scan to connect to an AP hotspot with a name starting with "m5stack-".
- Open the phone browser and visit 192.168.4.1 to enter the monitoring page and retrieve the live video.
- The video frame rate is about 5-6 frames per second.
Since the module can generate a Wi-Fi hotspot (AP), you can use a phone, PC, or other devices to wirelessly obtain camera images via Wi-Fi, or use the HY2.0-4P interface of the module to get camera images via a wired connection. It currently supports functions such as network camera, color recognition, and face recognition.
Features
- Designed based on ESP32
- Wi-Fi image transmission
- CP2104 USB TTL

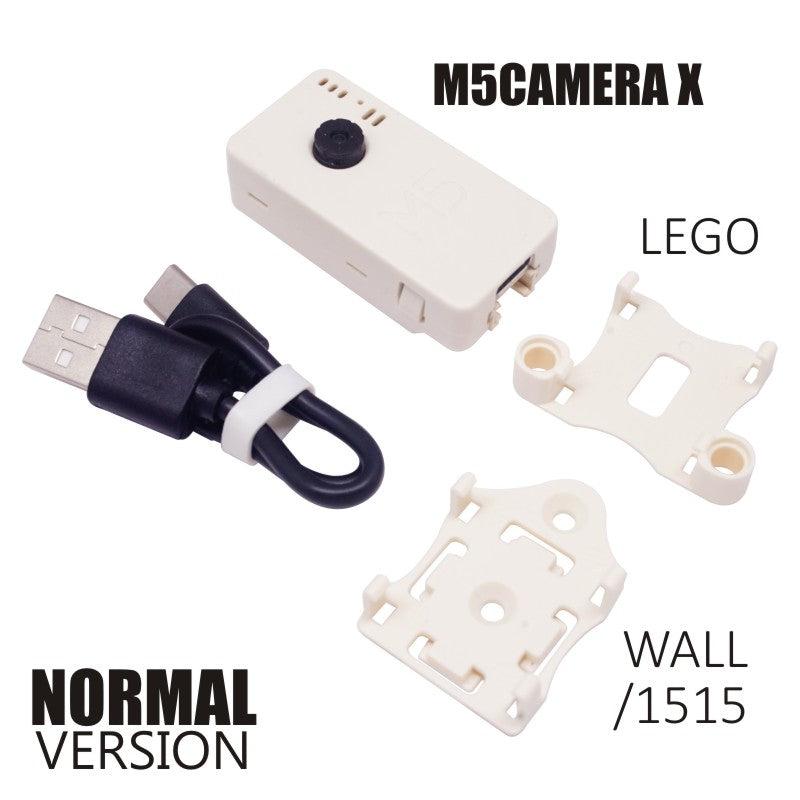

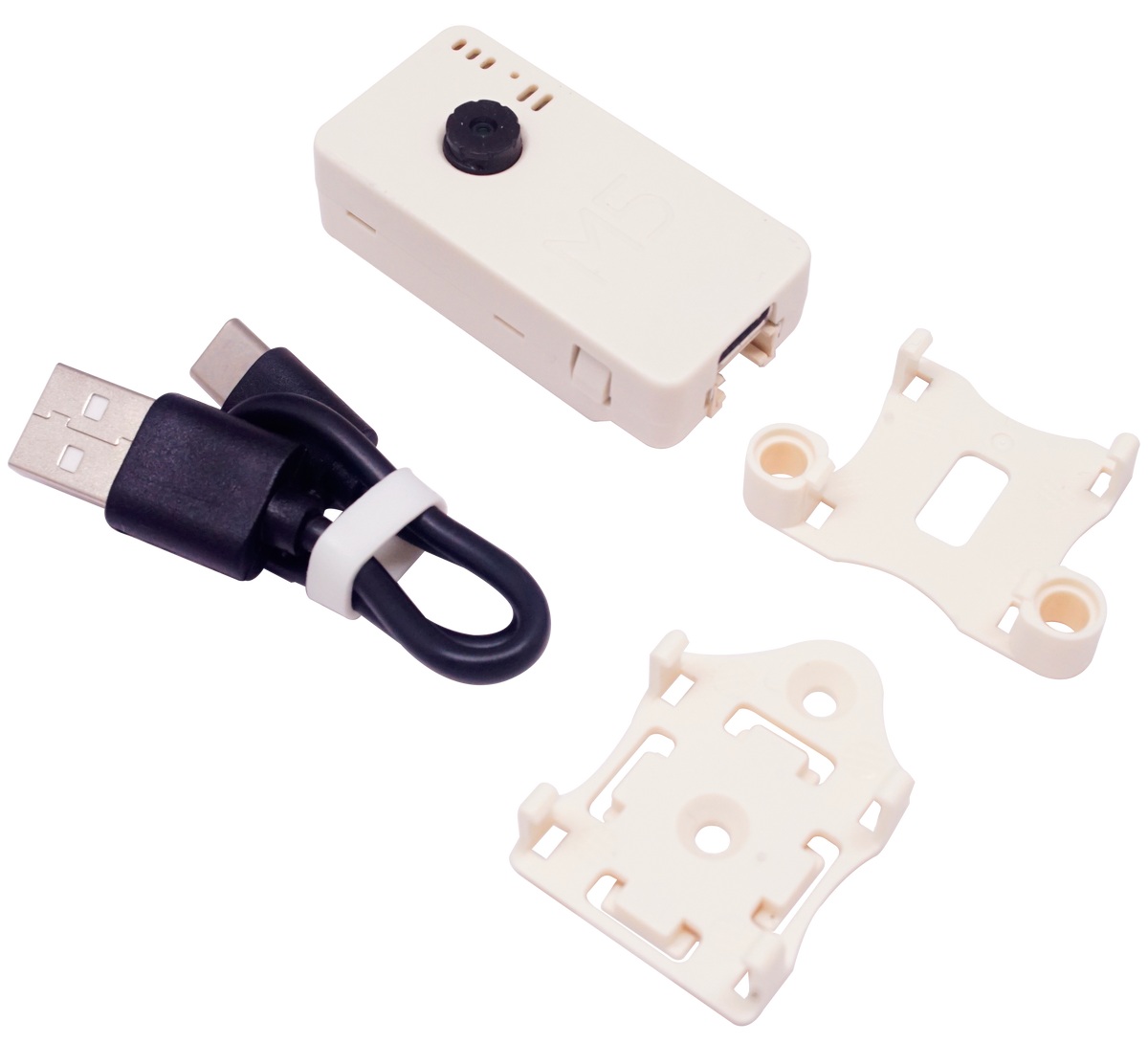

Includes
- 1 x M5Camera-X
- 1 x LEGO-compatible back clip
- 1 x Wall-1515
- 1 x USB Type-C Cable (20cm)
Specifications
| Specification | Parameter |
|---|---|
| RAM | 4MB |
| Flash | 4M |
| Image Sensor | OV2640 |
| Max Resolution | 2MP |
| Output Format | YUV (422/420) / YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data |
| Field of View | 65° |
| Product Weight | 14g |
| Gross Weight | 38g |
| Product Size | 24 x 48 x 13mm |
| Package Size | 75 x 45 x 30mm |
