Description

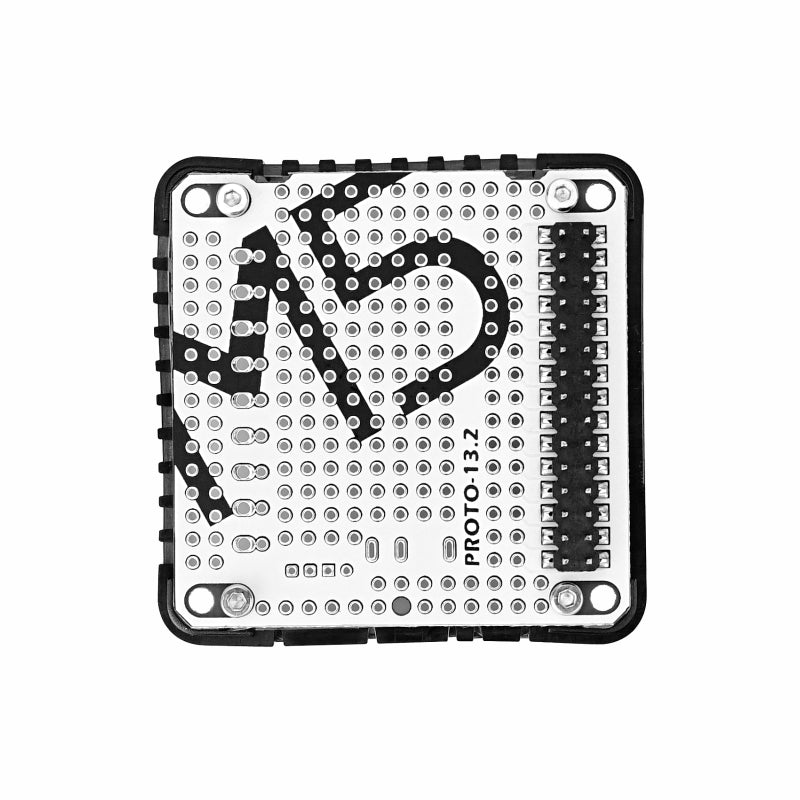

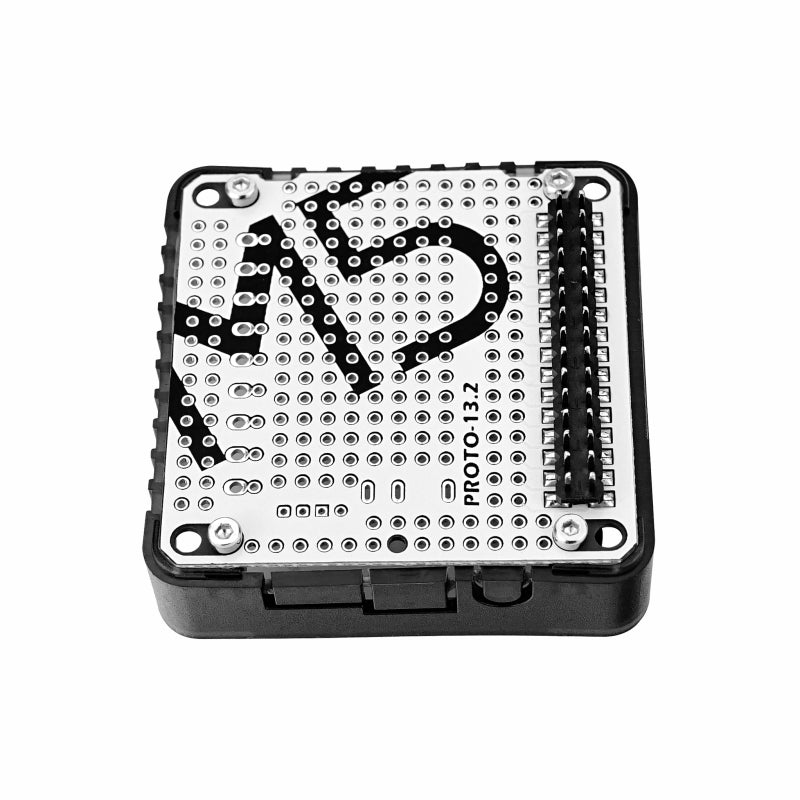

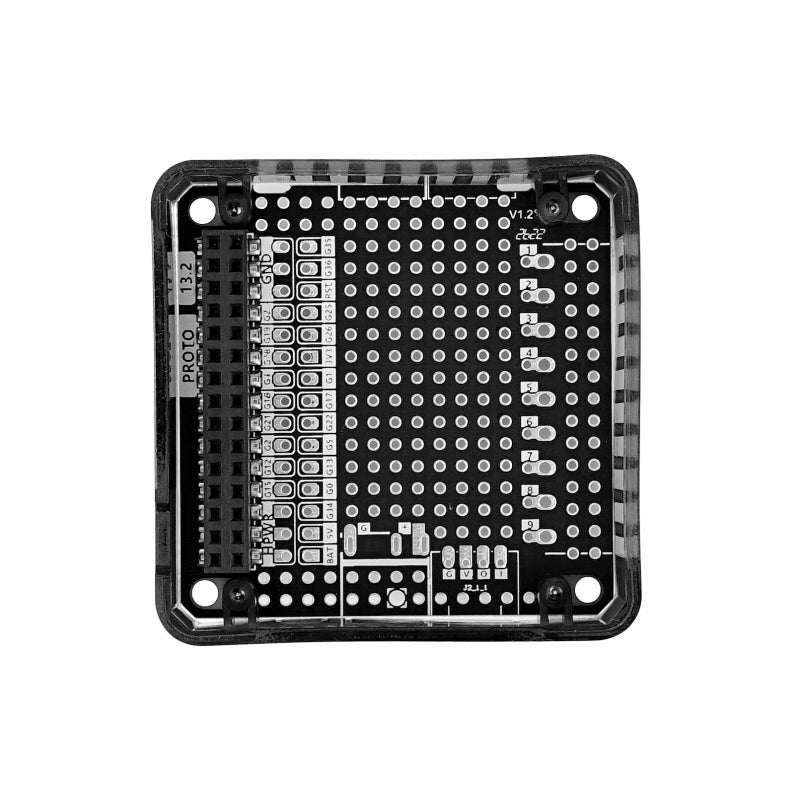

Module13.2 Proto is a versatile DIY Proto module in the M5Stack stackable module series, designed with a height of 13.2mm. This module allows for easy circuit construction, giving you complete freedom to design and build prototype circuits according to your needs, and interact with the top-layer M5Core via M5-Bus. The board features pre-drilled holes for commonly used components such as HY2.0-4P, DC power socket, and HT3.96, making it very simple to use.
Features
- Main hole size: 0.039" 1mm (CNC drilled)
- Spacing: 2.54 mm
- Number of board holes: 169

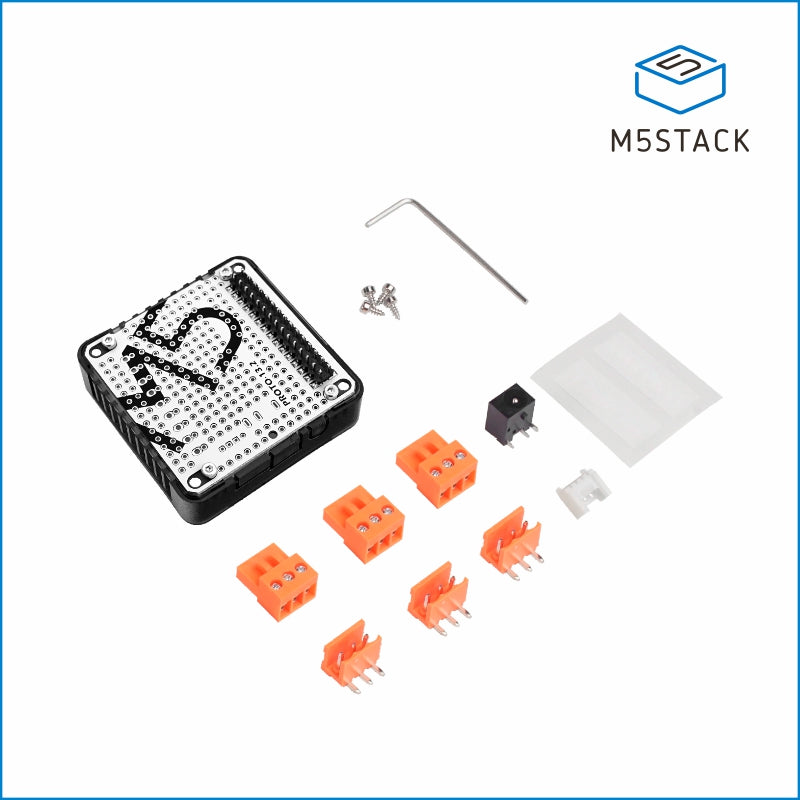

Includes
- 1 x Module13.2 Proto
- 3 x HT3.96-3P terminals
- 3 x HT3.96-3P sockets
- 1 x HY2.0-4P socket
- 1 x DC 5V power socket
- 4 x M2*5mm self-tapping screws
- 1 x M2 hex key
- 1 x Sticker
Specifications
| Specification | Parameter |
|---|---|
| Net weight | 24g |
| Gross weight | 49g |
| Product size | 54.2 x 54.2 x 13.2mm |
| Package size | 93 x 64 x 20mm |
