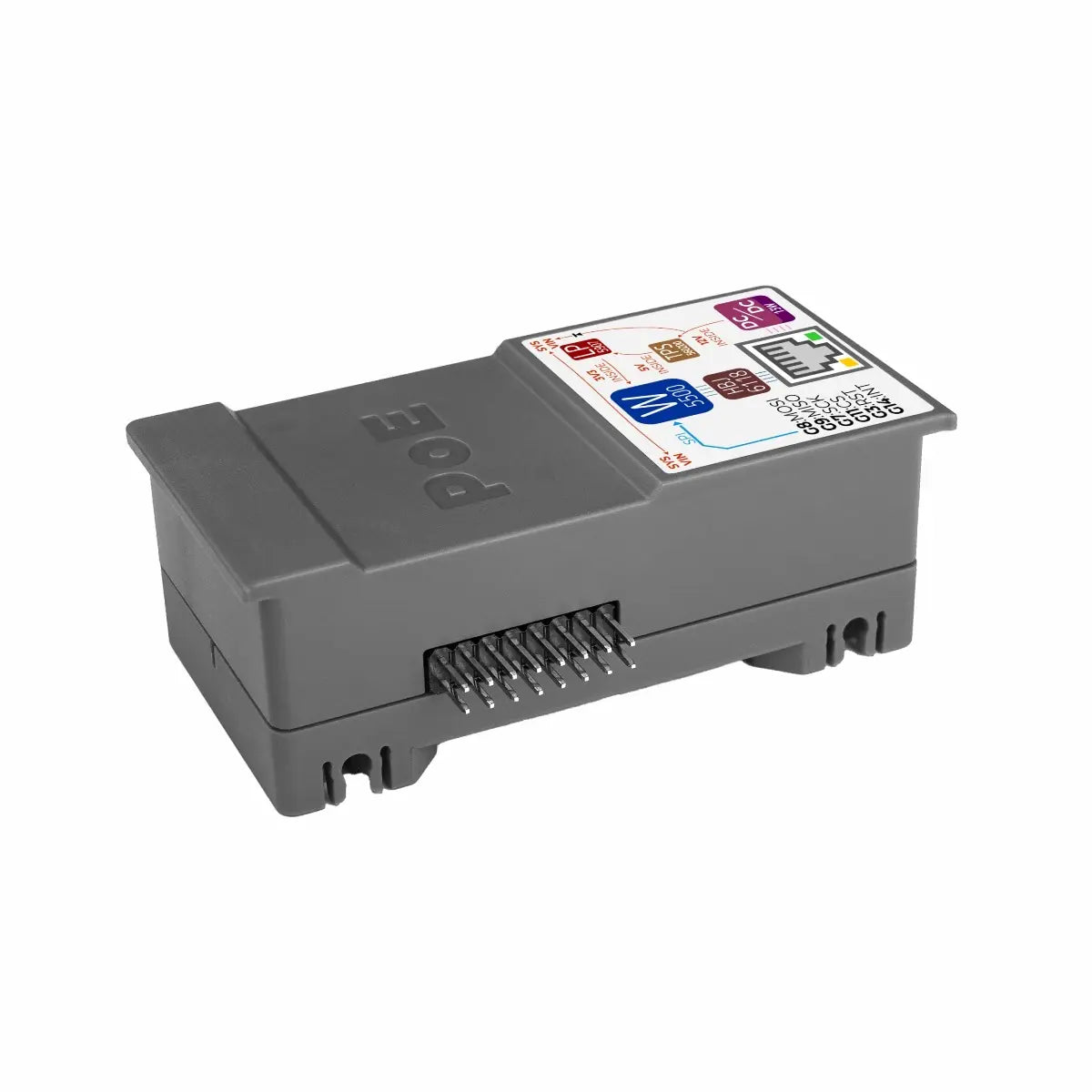

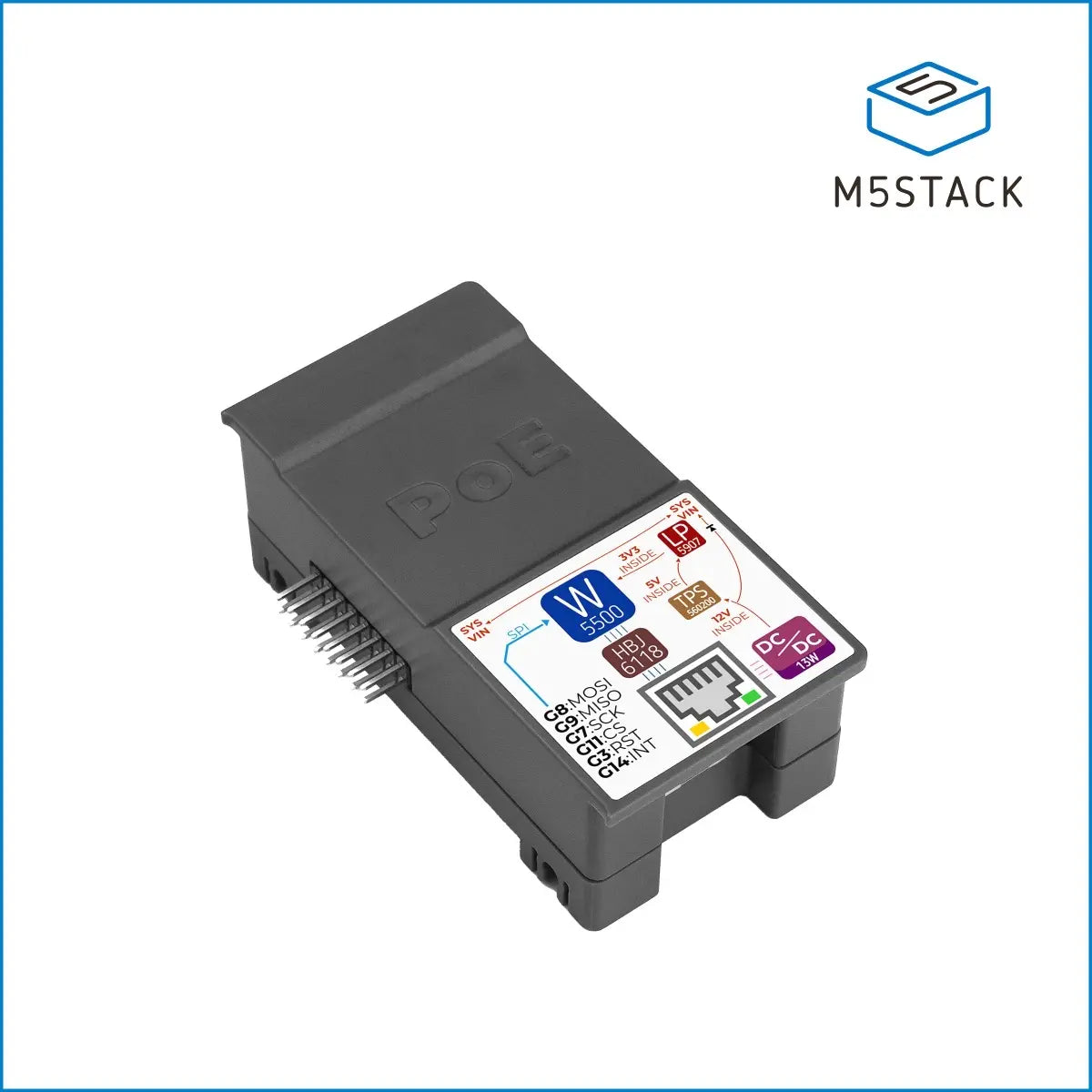

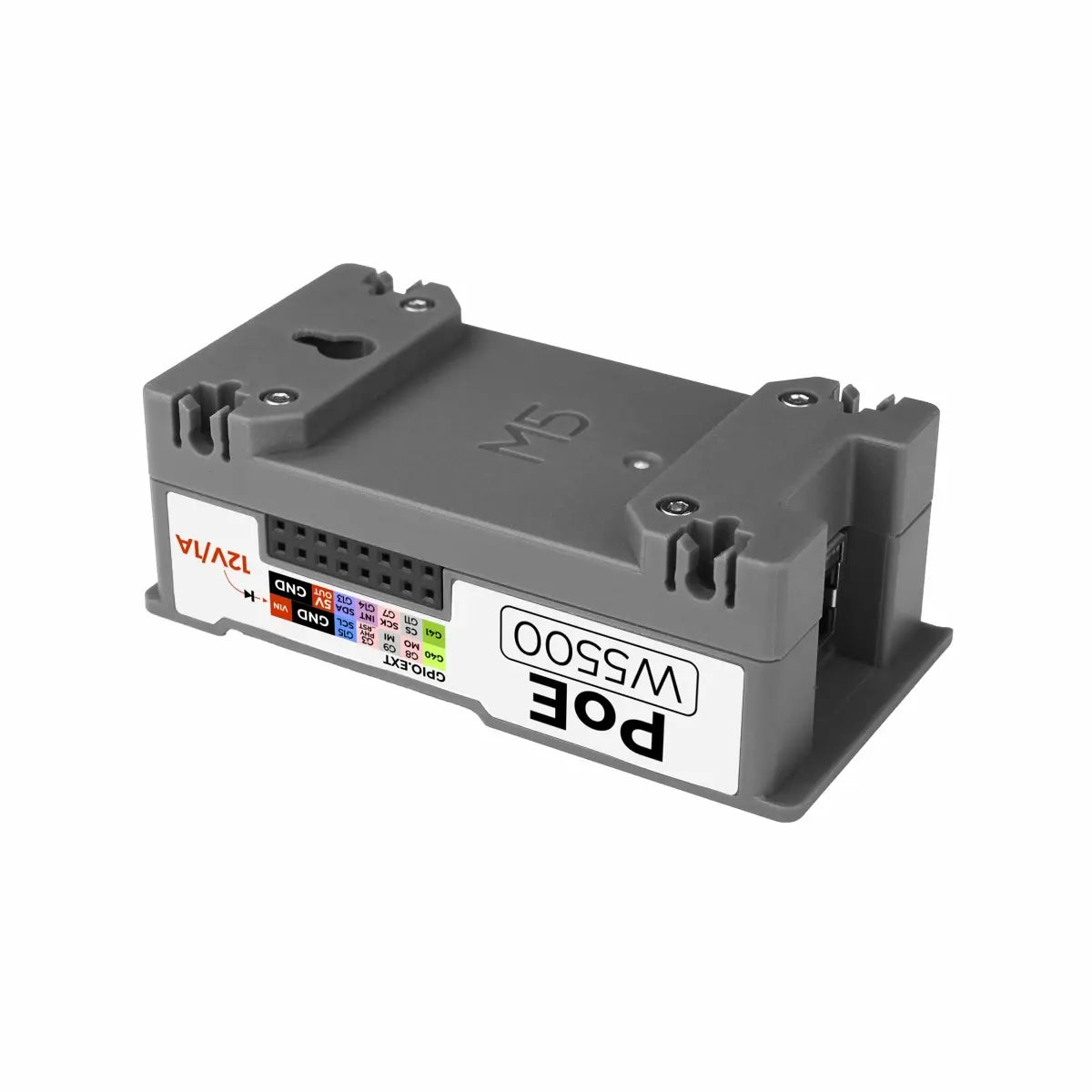

PoE Module for StamPLC (W5500)

Description

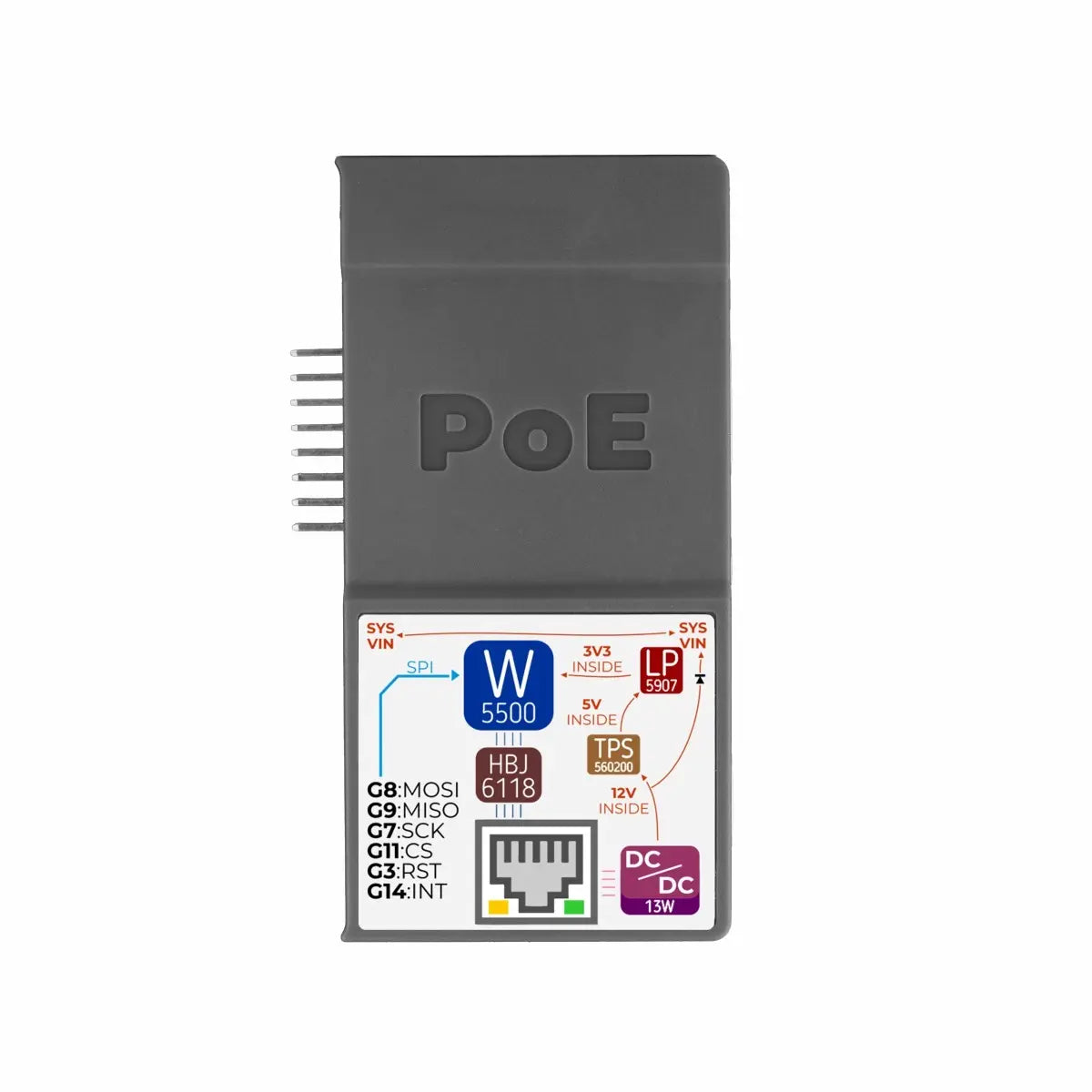

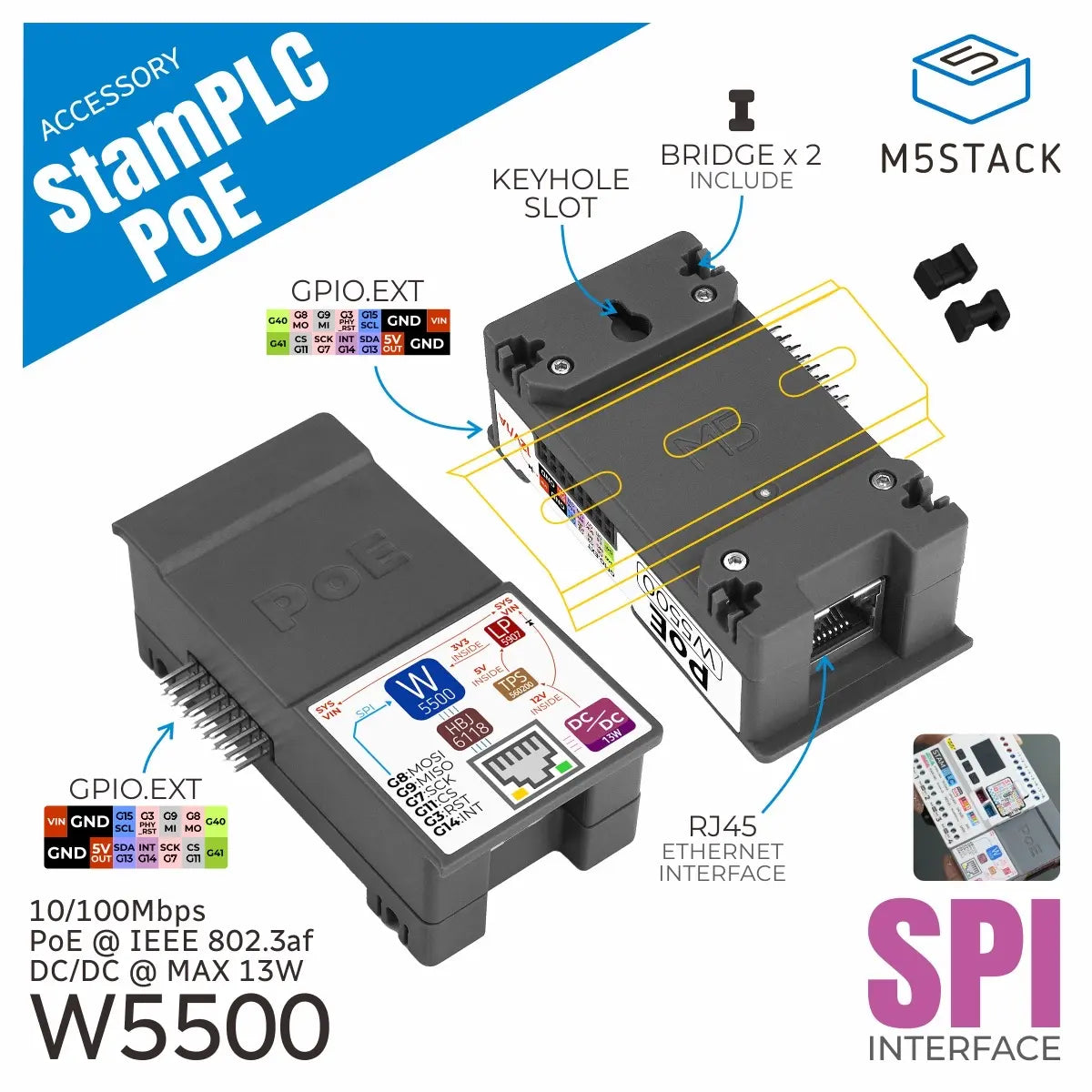

StamPLC PoE is an Ethernet control module designed for the StamPLC host. It supports PoE (Power over Ethernet) technology, enabling both data transmission and power supply through a single Ethernet cable. The module integrates a W5500 embedded Ethernet controller with a built-in TCP/IP protocol stack, providing 8 independent hardware sockets, a 10/100M Ethernet data link layer (MAC), and physical layer (PHY). It supports mainstream network communication methods such as UDP and TCP. The module connects to the network via an RJ45 Ethernet interface and communicates with the StamPLC host through an SPI interface. It is suitable for scenarios with high requirements for network stability and real-time performance, such as industrial automation production lines, centralized building control systems, energy and power distribution monitoring, and data center and communication equipment management in wired network access applications.

Features

• W5500 embedded Ethernet controller
• SPI protocol control
• Supports PoE (active Ethernet) power supply, enabling data and power over a single Ethernet cable
• Supports Ethernet Wake-on-LAN functionality via UDP
• Integrated TCP/IP protocol stack, supporting TCP / UDP / ICMP / IPv4 / ARP / IGMP / PPPoE protocols
• Supports up to 8 independent hardware sockets for concurrent communication
• Integrated 10/100M Ethernet MAC and PHY, supporting full-duplex / half-duplex operation modes
• Supports automatic network speed negotiation

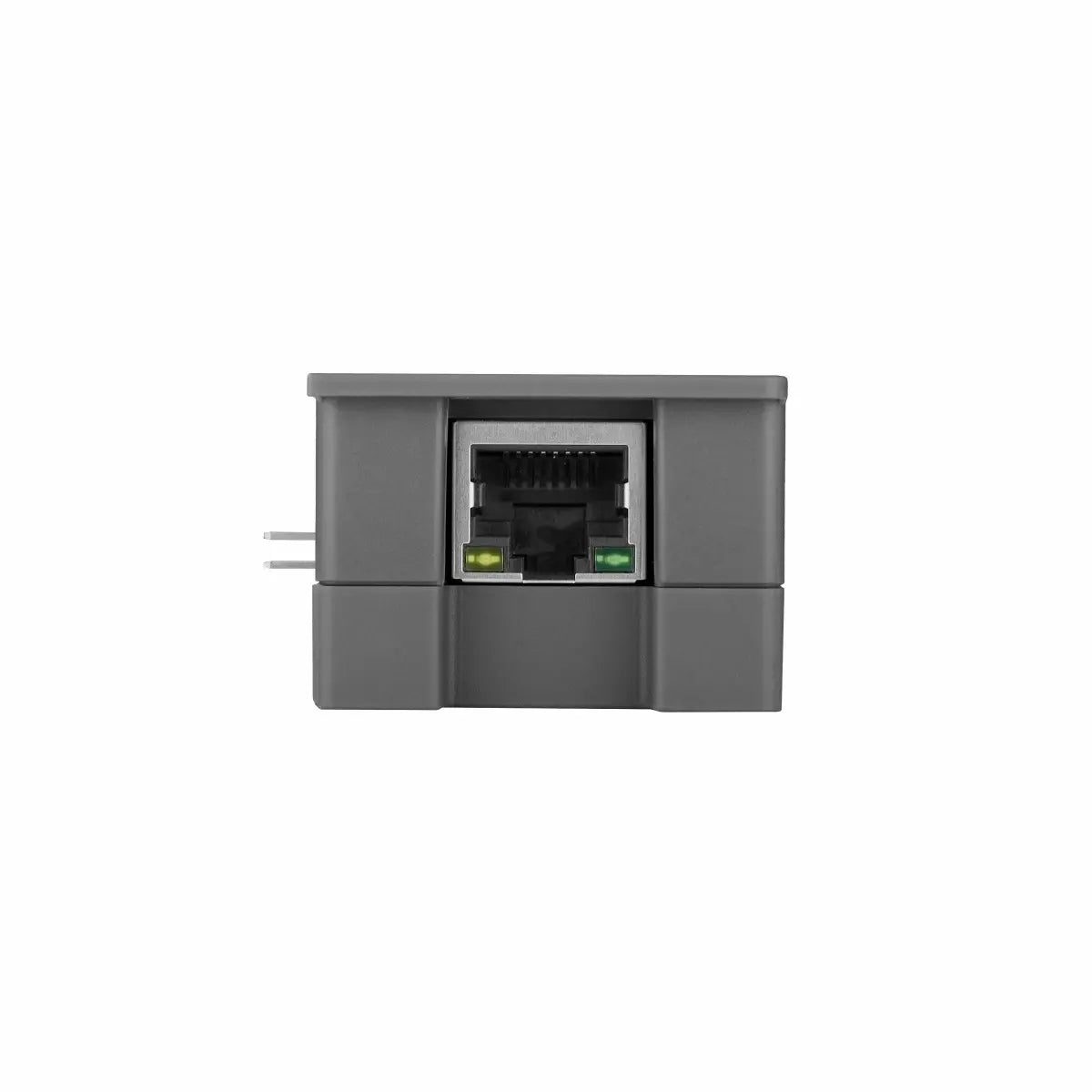

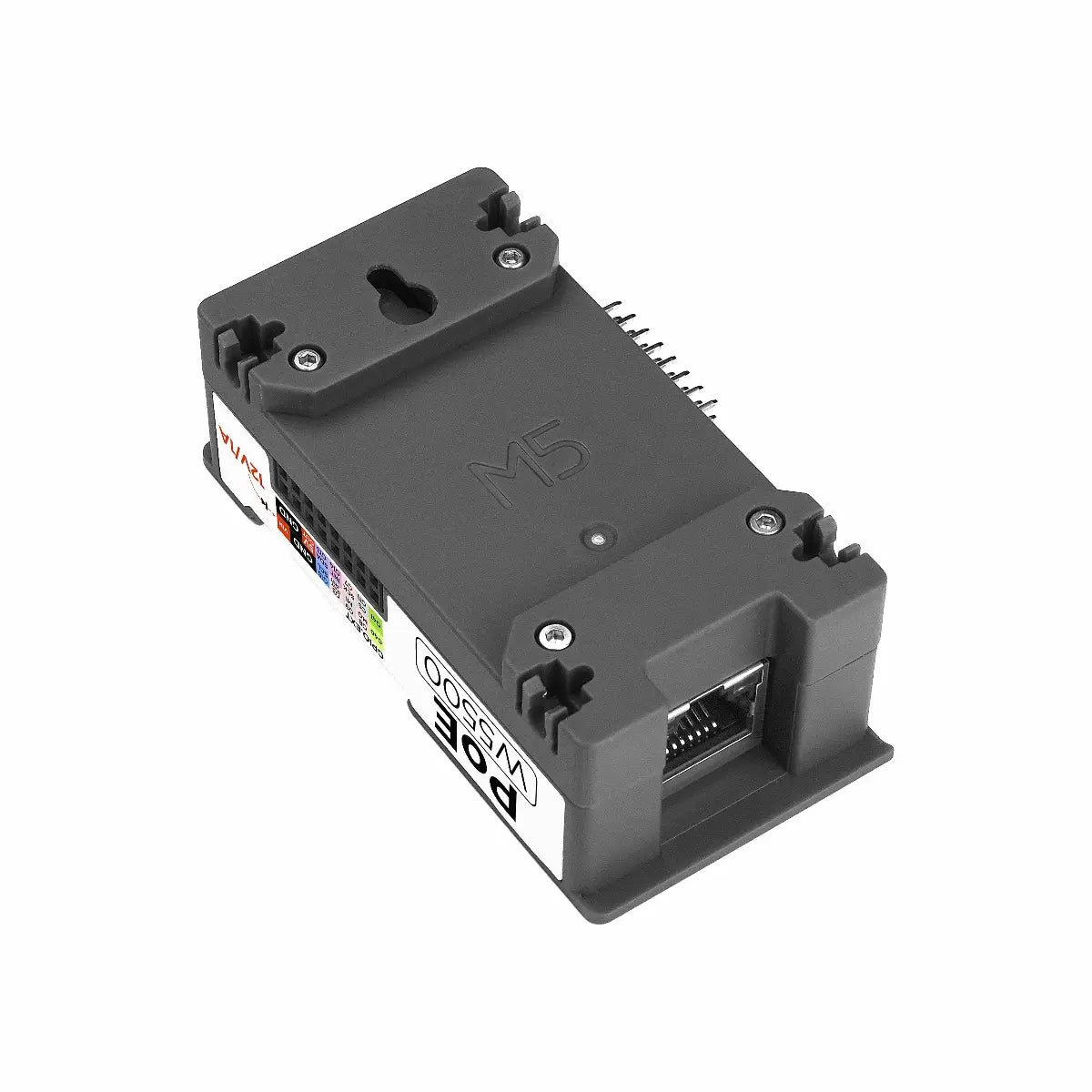

• Onboard RJ45 Ethernet interface

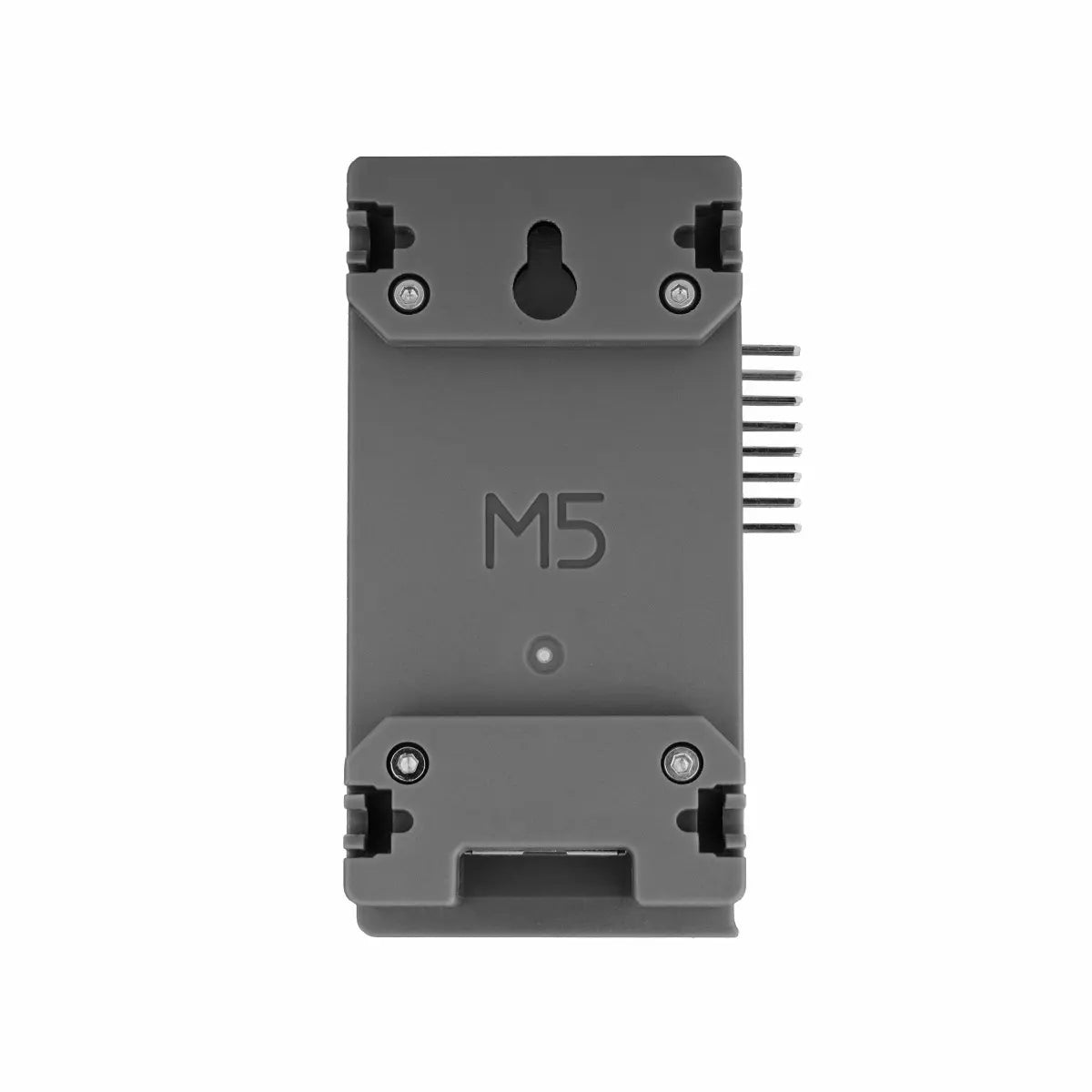

• DIN rail mounting / mounting holes
• Development Platform
  • Arduino
  • UiFlow2

Includes

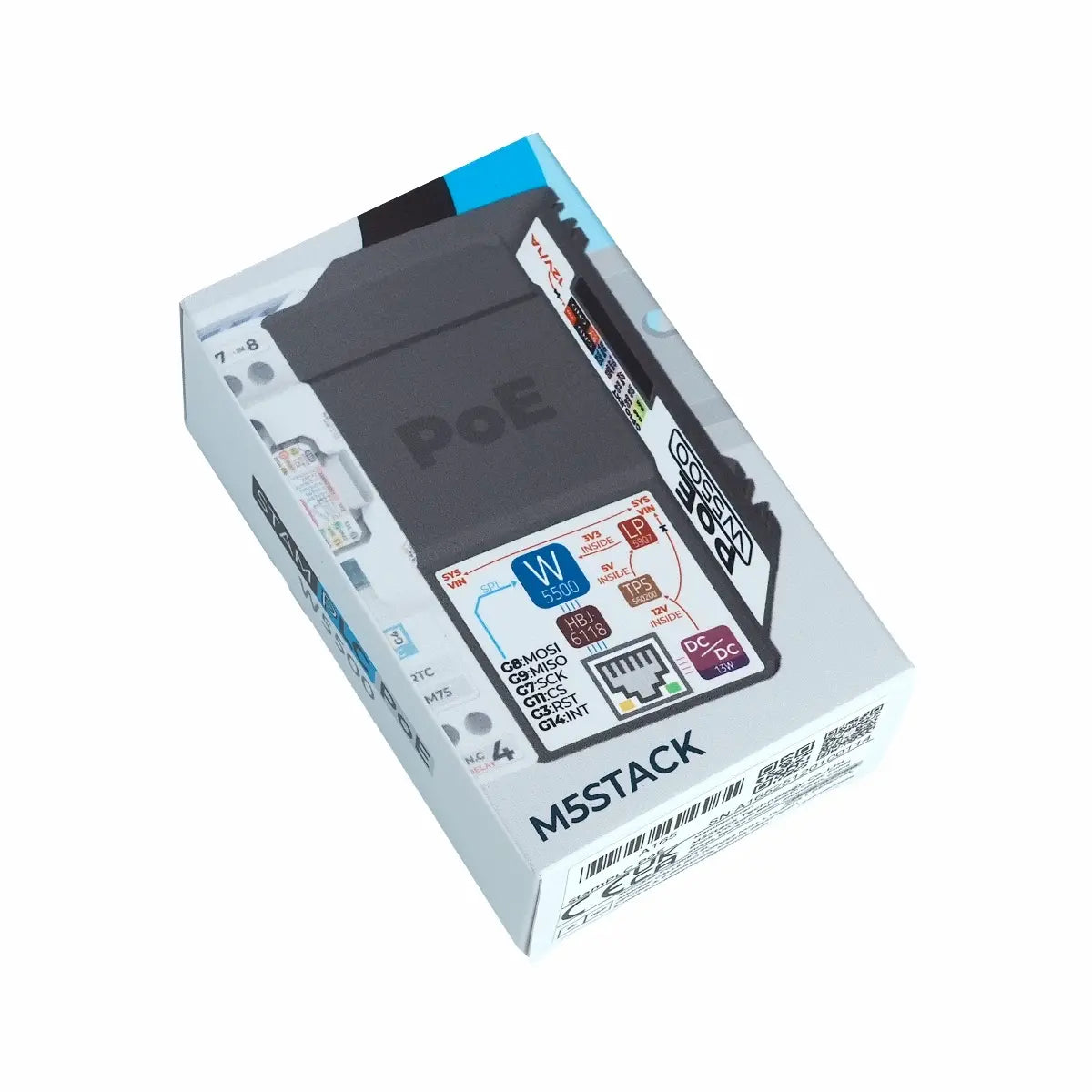

• 1 x StamPLC PoE
• 2 x Mounting connectors

Applications

• Automated production lines
• Centralized building control systems
• Energy and power distribution monitoring
• Data center and communication equipment management

Specifications
