![[EOL] PLUS Module Encoder Module with MEGA328P 500mAh Battery](http://shop.m5stack.com/cdn/shop/files/3_1_6775b861-cc18-4e22-b807-4beb0b33bf08_1200x1200.webp?v=1766483313)
This product is EOL.
Description

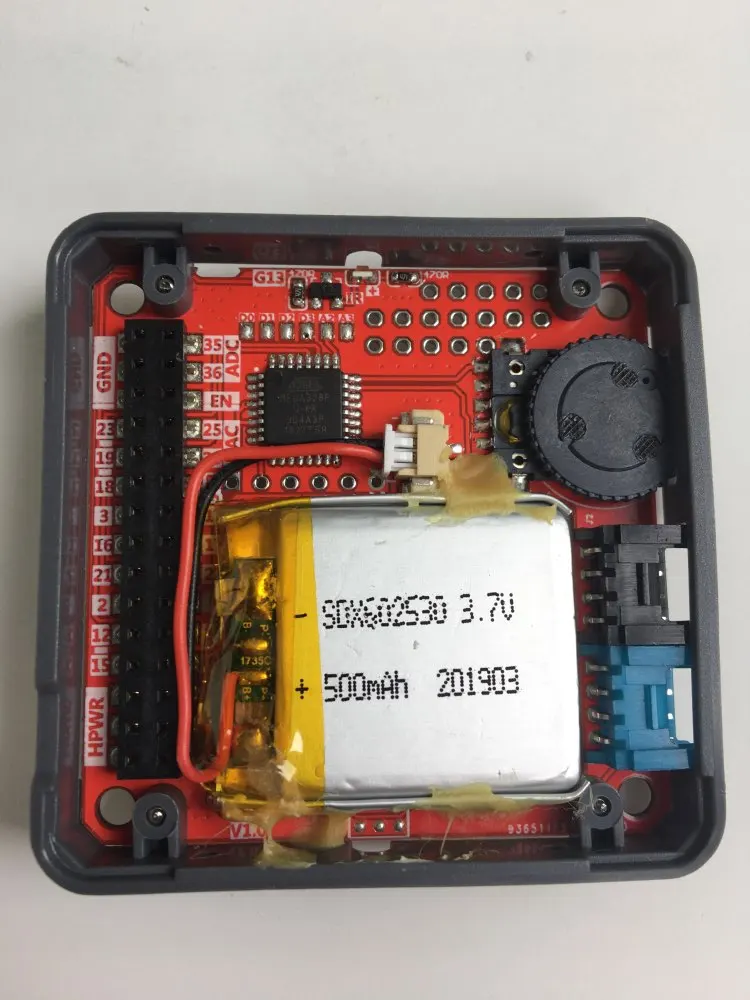

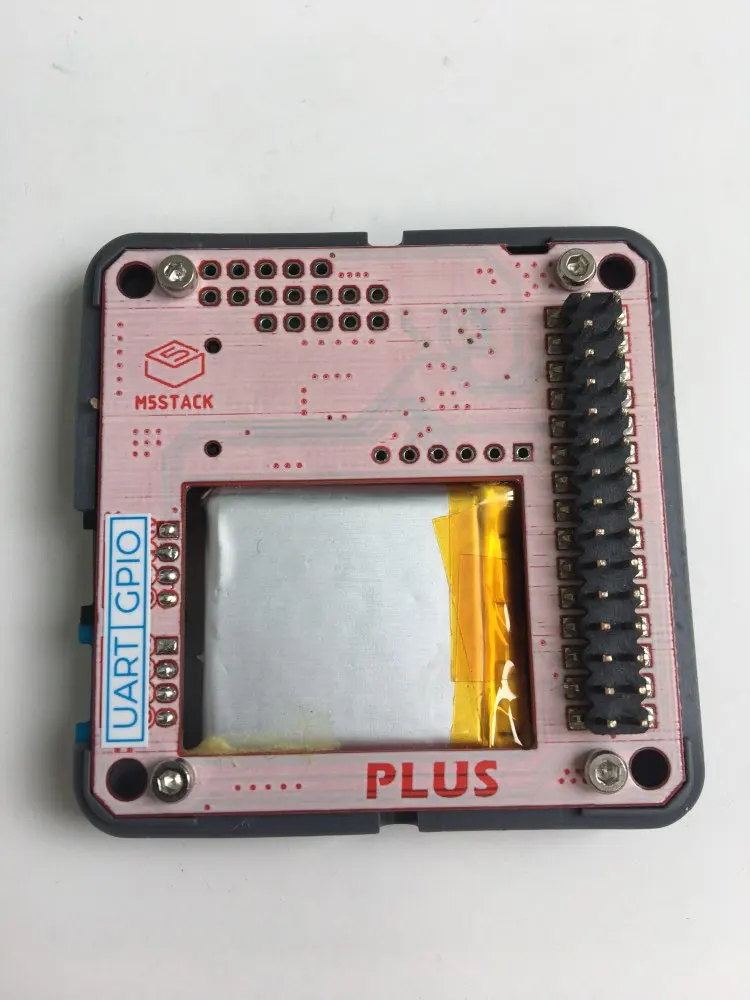

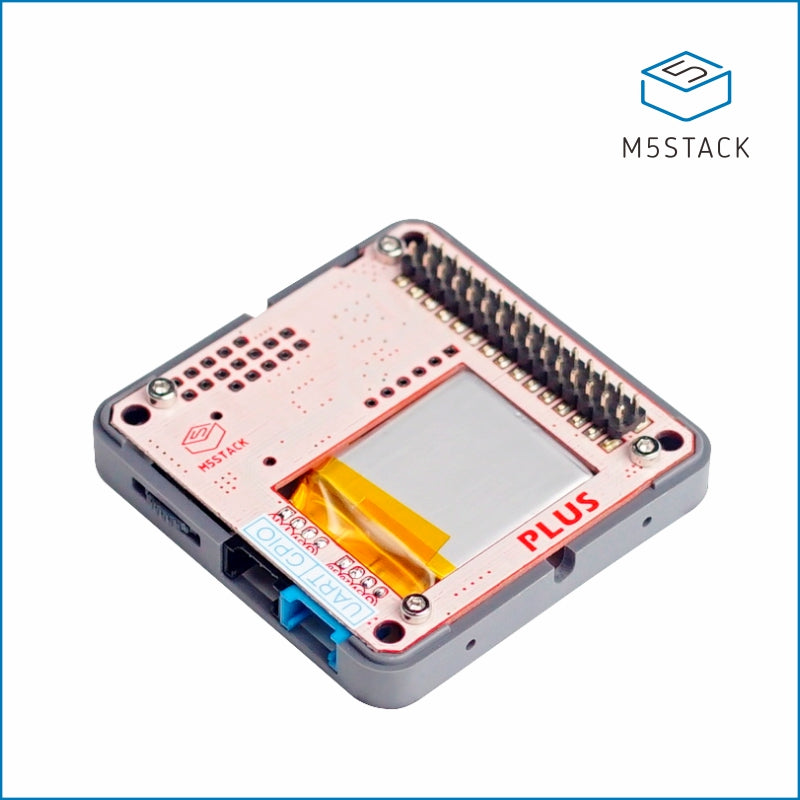

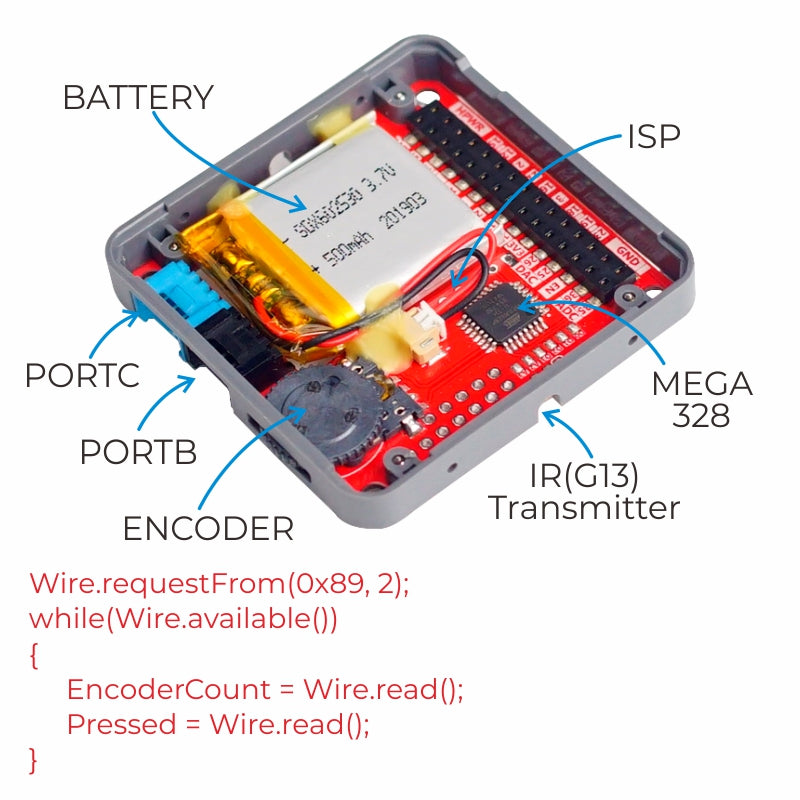

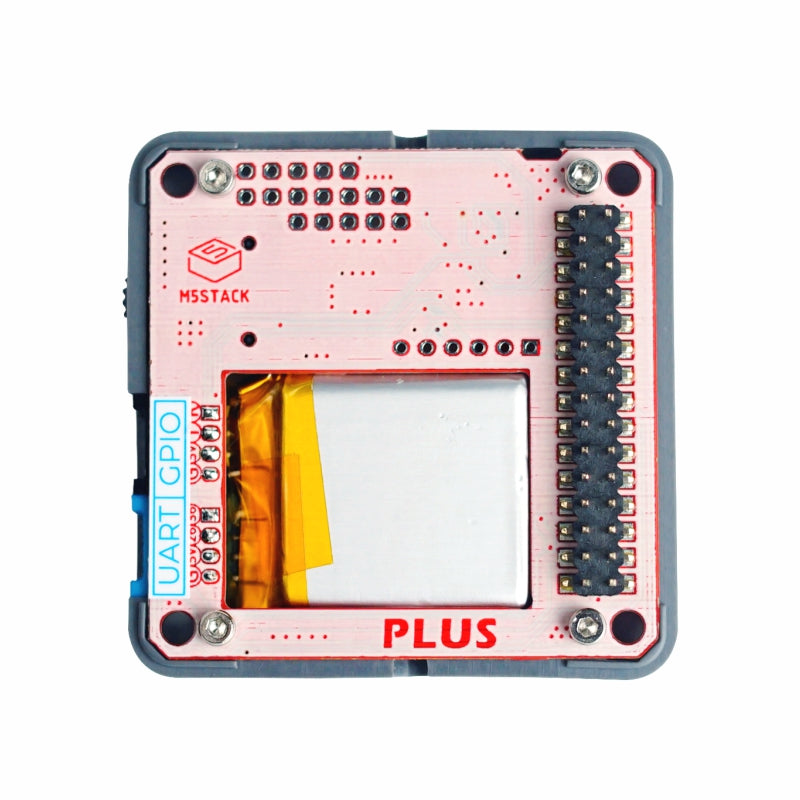

Module Plus is a feature-enhanced module in the M5Stack stackable module series. The module is equipped with a lithium battery (500mAh), a gear potentiometer, and an infrared emitter. It integrates the MEGA328, provides a microphone interface pad, and extends the ports PORT.B (GPIO) and PORT.C (UART) of the M5Core. Module Plus can upgrade your hardware resources and provide you with a better development experience.
Features
- 400mAh lithium battery
- Programmable gear potentiometer
- Infrared emitter
- PORT B & PORT C
Includes
- 1 x Module Plus
Specifications
| Specification | Parameter |
|---|---|
| Communication Interface | I2C Communication @0x62 |
| Product Size | 64.3 x 24.0 x 8.0mm |
| Product Weight | 20.0g |
| Package Size | 62.0 x 58.0 x 17.0mm |
| Gross Weight | 30.0g |
