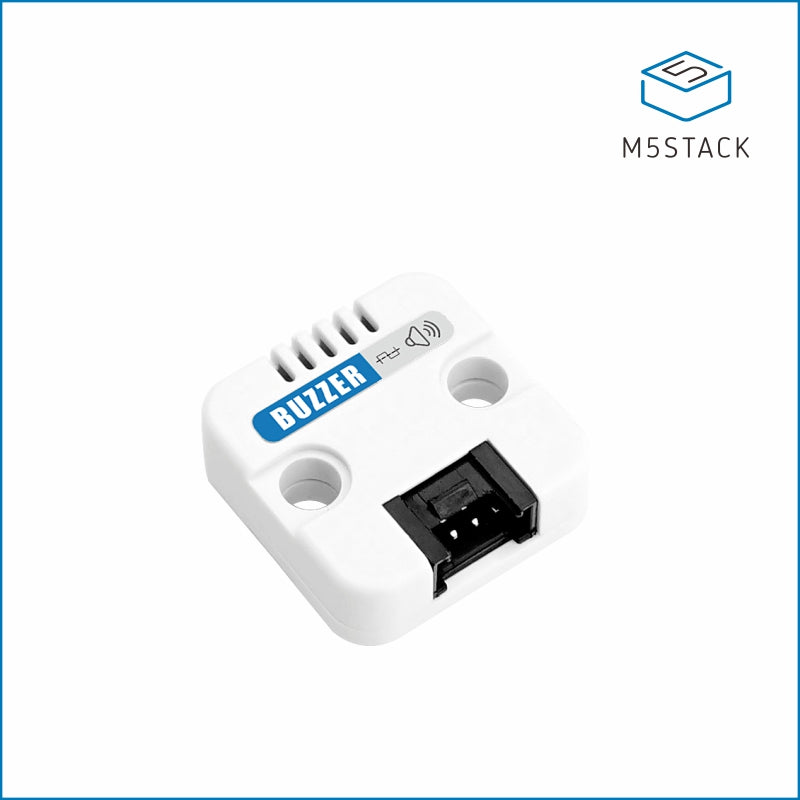

Passive Buzzer Unit

SKU:U132

Sale price $3.60 Regular price

$4.50

10+ In Stock

Shipping calculated at checkout.

Description

Buzzer Unit is a mini passive buzzer unit, drived by 4KHz signal, that sounds up to 72dB within 10cm distance under rating input power. With the feature of compact size, low-power consumption, awesome audio performance, and a protective housing. Applied for varied buzzer alarm scenario.

Product Features

  • Drive signal:
    • 4KHz oscillation frequency
    • Up to 72dB (within 10cm, at rating power)

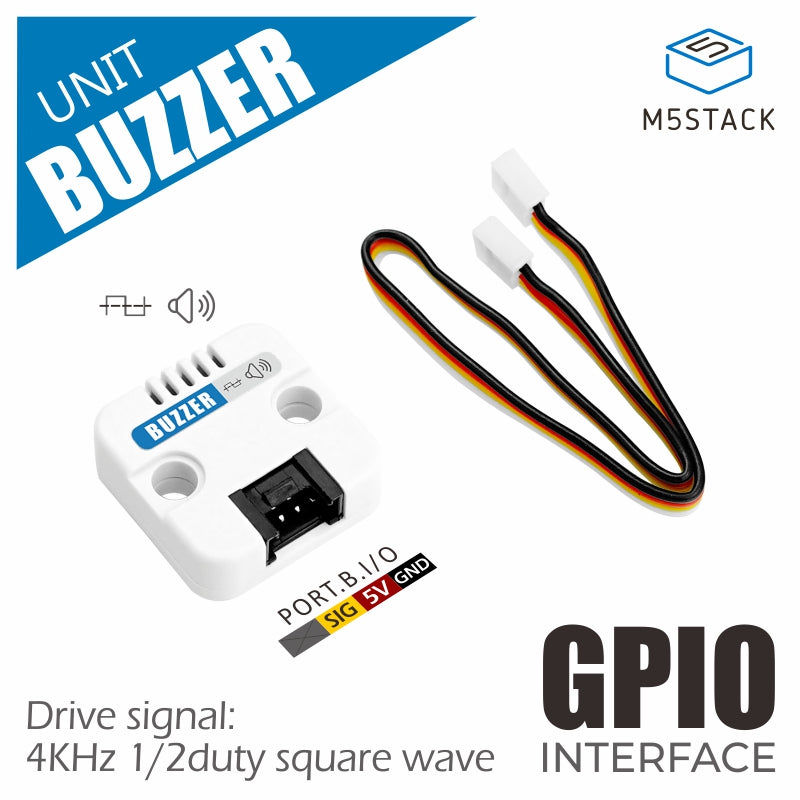

    • Drive signal: 4KHz 1/2duty square wave

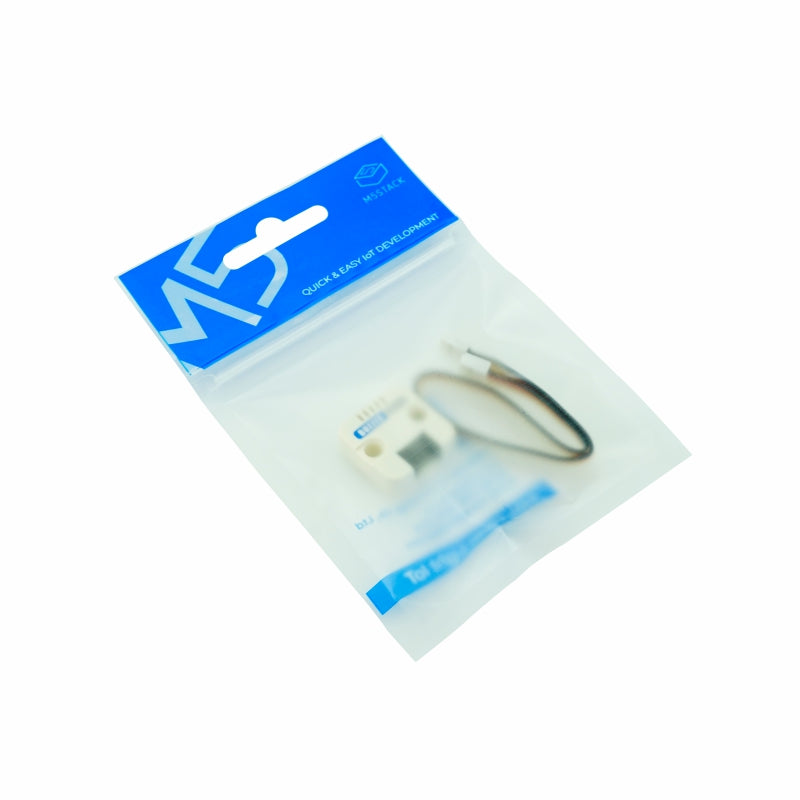

Include

  • 1x BUZZER Unit
  • 1x HY2.0-4P cable (20cm)

Applications

  • Buzzer/reminder

Specification

Specifications Parameters
Drive frequency 4KHz 1/2duty square wave
Power consumption 5V@86mA
Net weight 3.5g
Gross weight 8.5g
Product size 24 * 24 * 8mm
Packing size 93 * 138mm
