I2C Hub 1 to 6 Expansion Unit (TCA9548A)

SKU:U040

Regular price $4.50
Shipping calculated at checkout.

10+ In Stock

Description

PaHUB is an expander for the I2C GROVE PORTA (red port on M5Core) the PaHUB allows to extend the PORTA for up to 6 ports, it's still one PORTA but now with the ability to switch between different sensor connected to one single port.

If you want connect multiple I2C slave devices and some of them may sharing the same address, this unit can resolve I2C address conflicts.

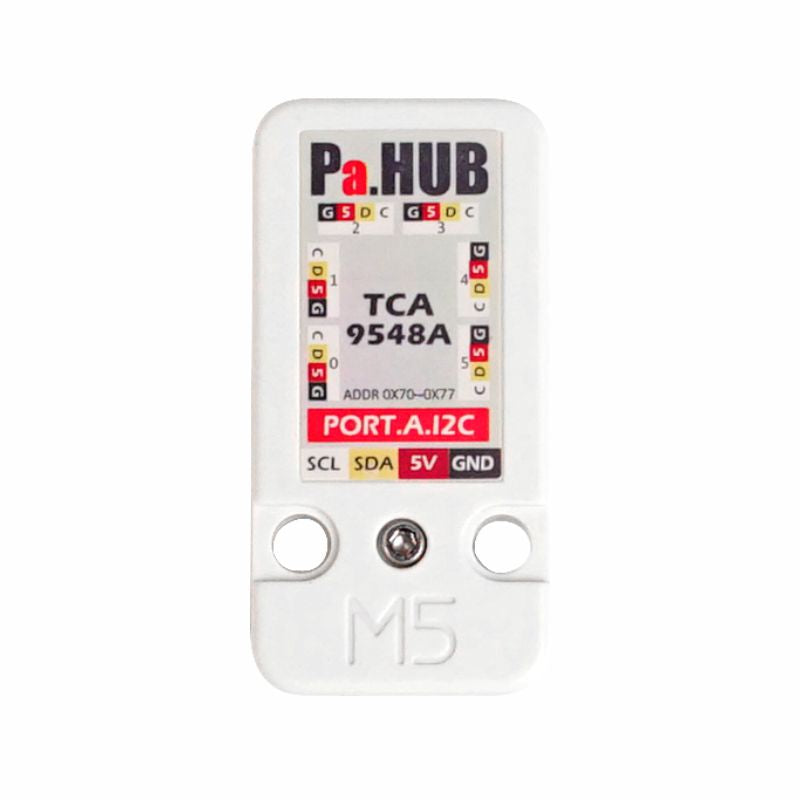

At the Unit PaHUB's heart is an TCA9548A produced by TI. The TCA9548A device has eight bidirectional translating switches that can be controlled through the I2C bus. The SCL/SDA upstream pair fans out to downstream pairs, or channels. Any individual SCn/SDn channel or combination of channels can bi-selected, determined by the contents of the programmable control register.

Technically this Unit allows multiple levels of nesting, for example you can wire PaHUBs to the root PaHUB to get more seats for your I2C slave devices, if you have 7 of them you can have up to 36 I2C GROVE ports, which makes it easier to get your project more organized.

The I2C address of this unit is 0x70 (can be changed by resistors).

Notice: Please pay attention to the channel order while programing

Product Features

  • I2C GROVE PORTA Expander
  • Two Lego-compatible holes
  • Nested allowed
  • 1-to-6

Include

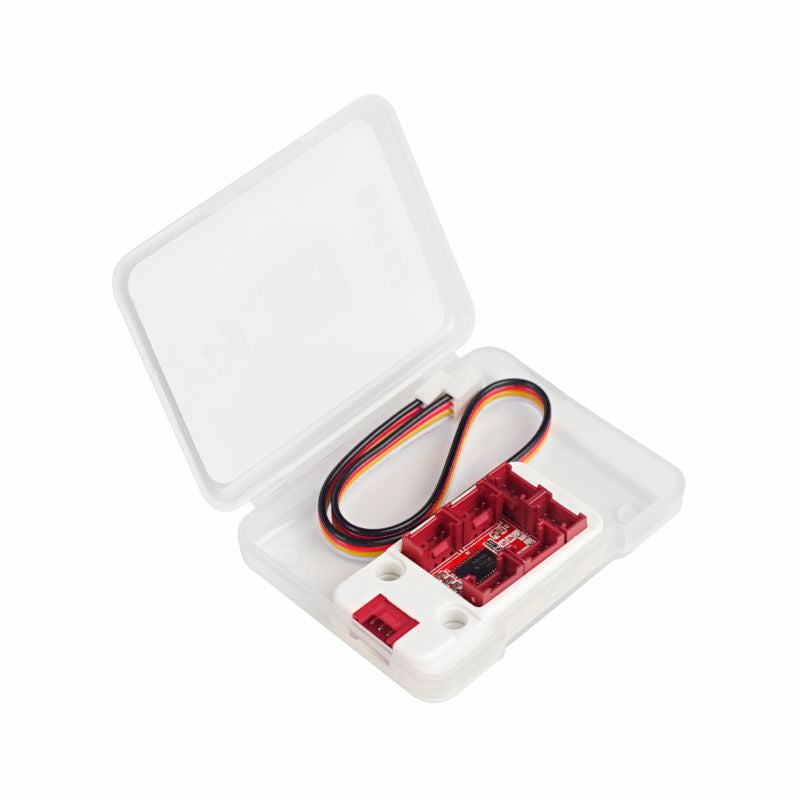

  • 1x PaHUB Unit
  • 1x Grove Cable

Specification

Resources Parameter
Communication protocol I2C: 0x70(can be modified by resistance A0, A1, A2)
Net weight 7g
Gross weight 19g
Product Size 48*24*12mm
Package Size 67*53*12mm
