Description

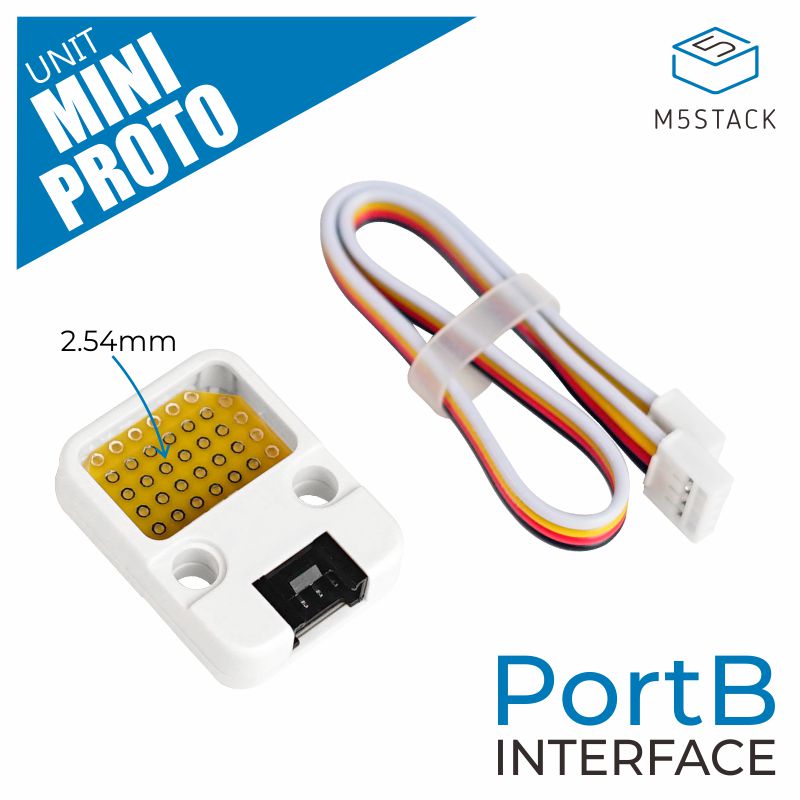

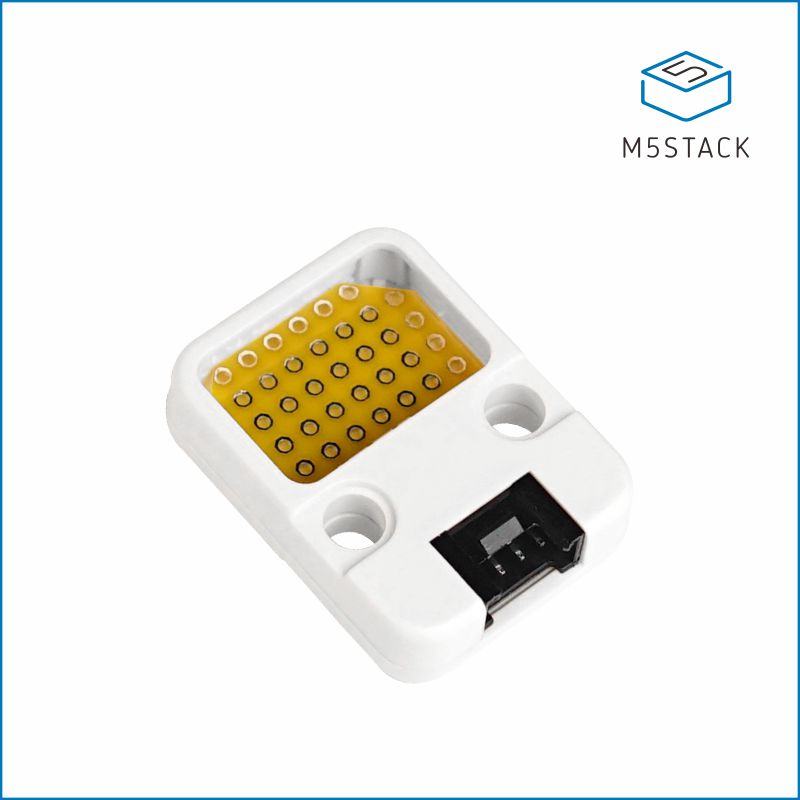

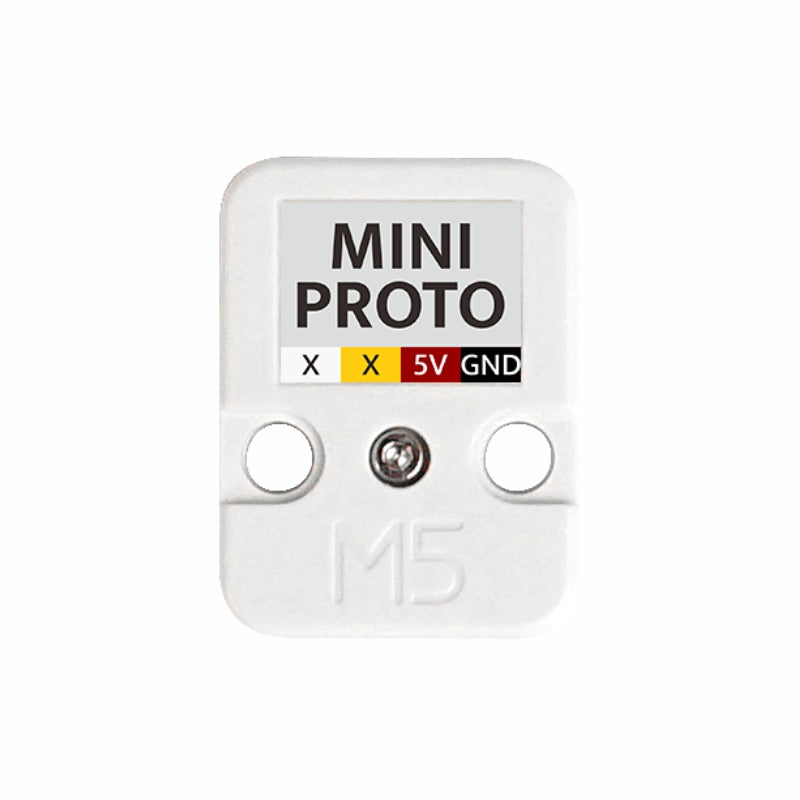

MINI-PROTO unit is a mini universal prototyping board unit. It allows you to freely design circuits on the board and connect it to the M5Stack controllers through the HY2.0-4P port. If you plan to add simple circuits to your design and provide it with reliable protection, the PROTO Unit is a great choice.
MINI-PROTO unit provides a convenient platform for creating custom circuits and expanding the functionality of your M5Stack controllers. It offers a grid of solderable through-holes where you can place and connect electronic components, sensors, and other circuit elements. This allows you to experiment, prototype, and integrate additional functionality into your projects.
Additionally, MINI-PROTO Unit provides a protective casing, giving your circuit a more secure and professional appearance. It helps to protect the components and ensure the integrity of your design.
Whether you are a hobbyist, maker, or professional, the MINI-PROTO and PROTO Unit offer flexibility and versatility for circuit design and customization, enabling you to create unique and tailored solutions for your specific needs.
For different CONNEXT ports, you will be able to interact with different pins that ported out from ESP32.
- PORTA: GPIO 21, 22
- PORTB: GPIO 36, 26
- PORTC: GPIO 16, 17
Product Features

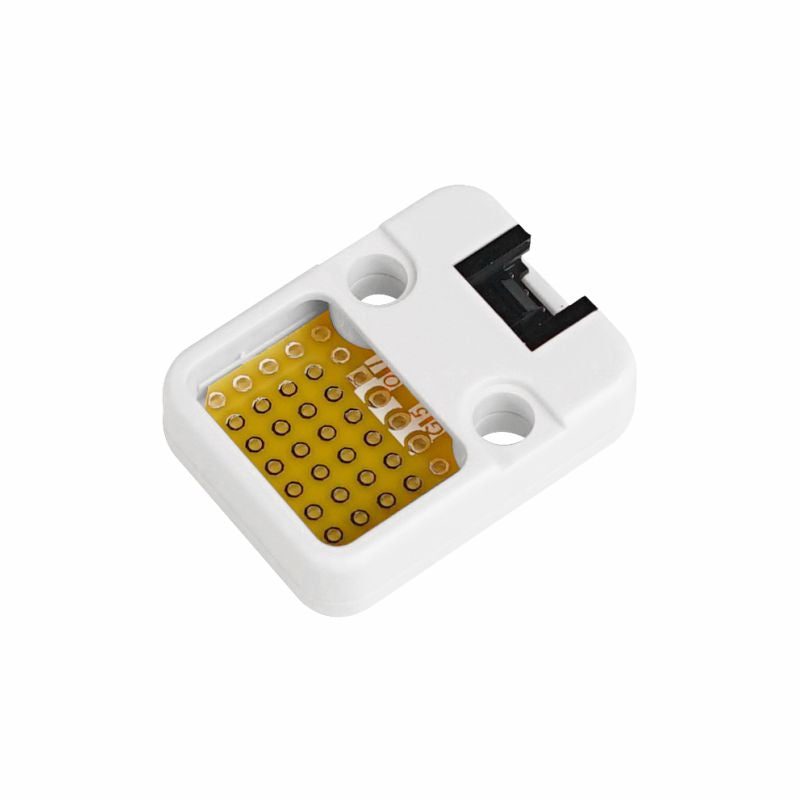

- Hole Size: 0.039" 1mm (CNC Drilled)
- Hole Pitch: 0.1 in - (2.54 mm)
- Entire Hole Quantity: 40 Holes
- Two Lego-compatible holes
Include
- 1x MINI PROTO unit
- 1x GROVE cable
Applications
- Prototyping
Specification
| Resources | Parameter |
|---|---|
| Net weight | 3g |
| Gross weight | 15g |

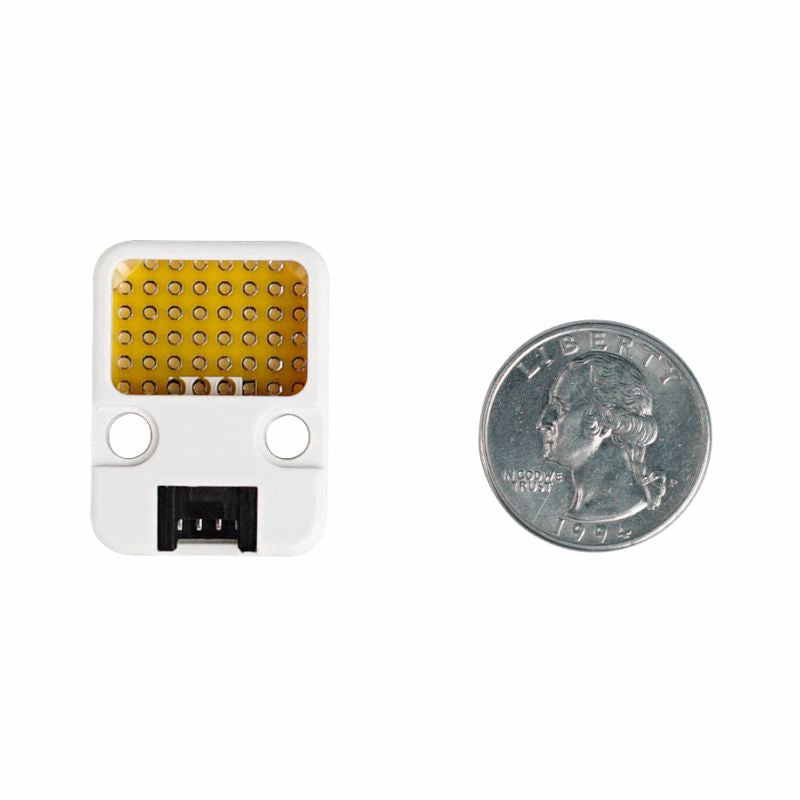

| Product Size | 32*24*8mm |
| Package Size | 68*52*12mm |
