NeoFlash Acrylic Light Board

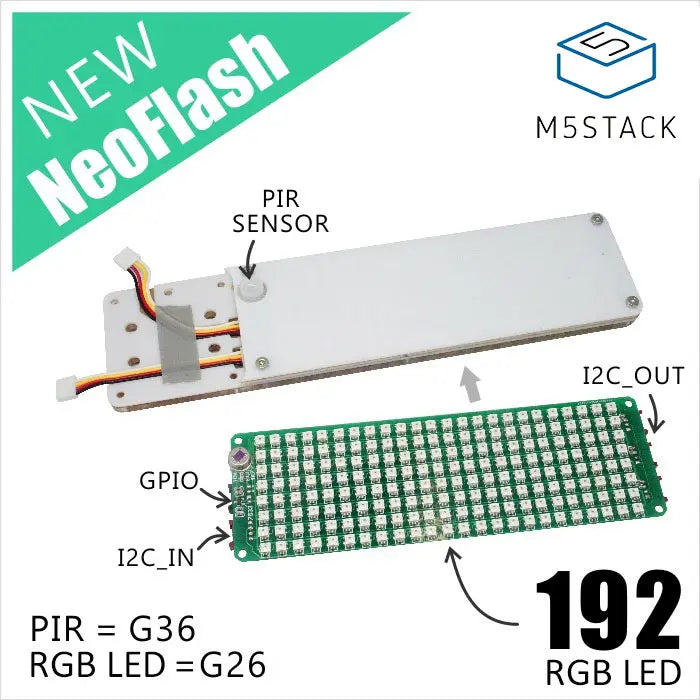

NEOFLASH is a RGB LED panel with 192 integrated LEDs and (WS2812C) RGB LED IC.
When you program this Unit, please pay attention to the sequence of the RGB LEDs. From top left (Where PIR placed) to right, and top to bottom.
Connect this unit with M5Core via GROVE PORTB Single-Bus.
We've added a magnet on the backside of the panel which means you can attach this to any metal surface. When you plug the GROVE PORTA into M5core, you have convert it into 3 extended GROVE A laid on the side.
- Total RGB leds quantity: 192
- PORTA extension(up to 3)
- Software Development Platform: Arduino, UIFlow (Blockly, Python)
- Two Lego-compatible holes
- 1x NeoFlash Unit
- 1x Grove Cable
|RGB LED||x 192|
|PORTA Interface||x 3|
|Number of holes||40|
Works nice with the demo, BUT were is the real-time clock example.
The link in example only a demo with few leds!
