Description

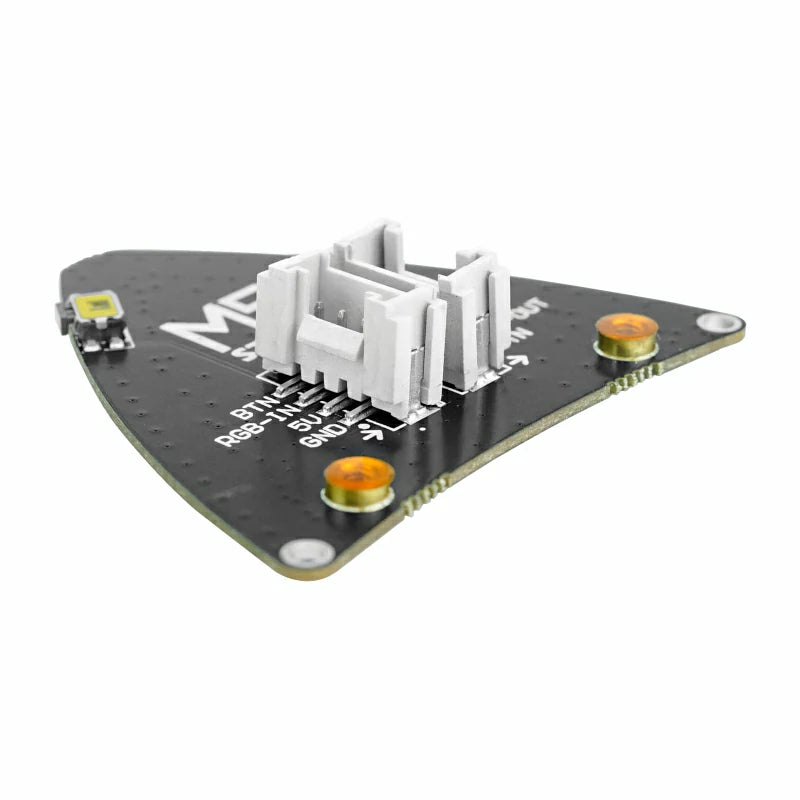

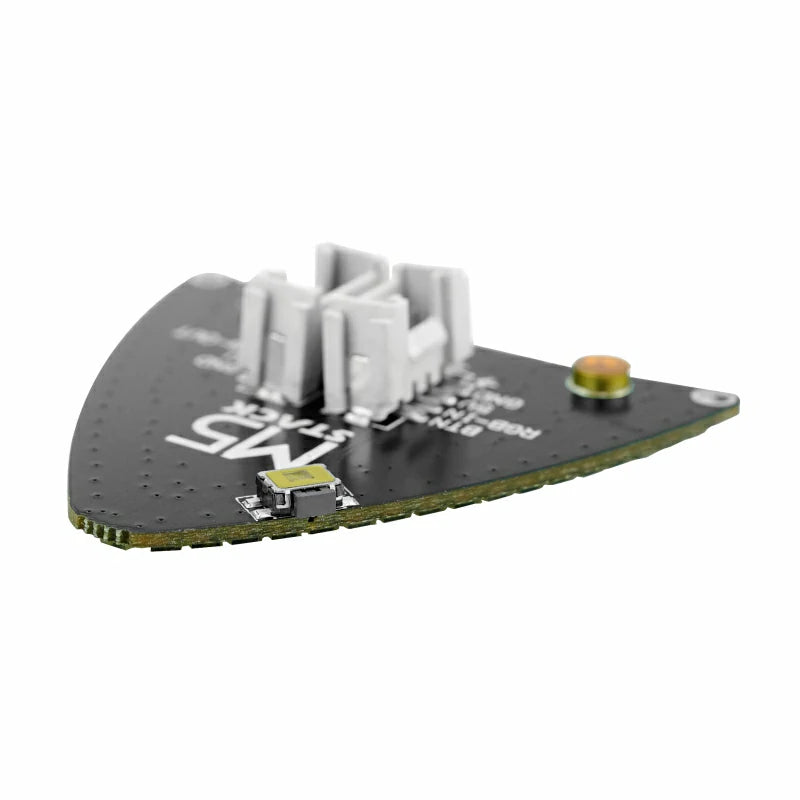

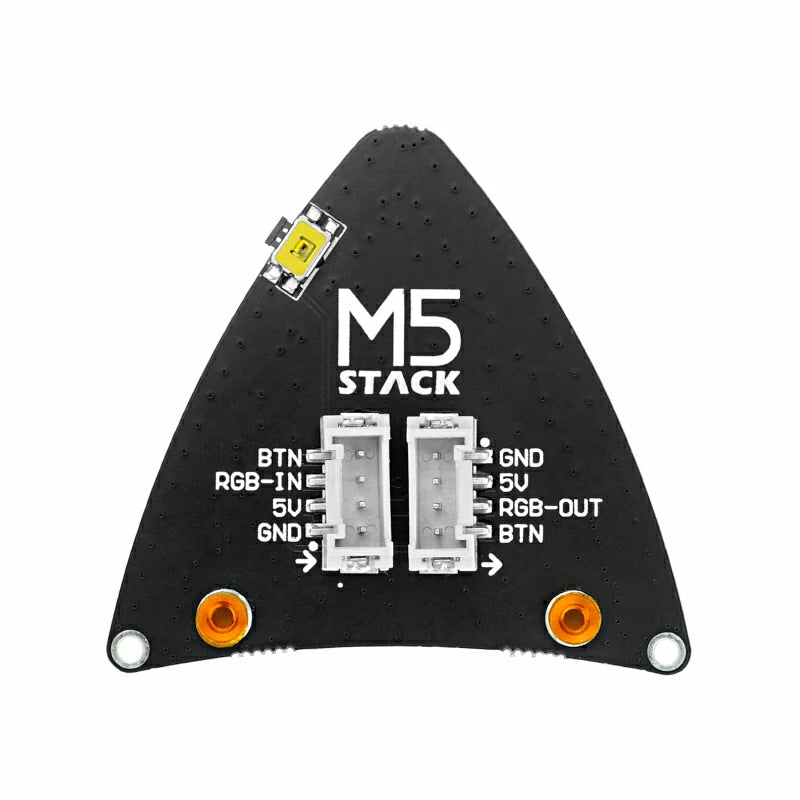

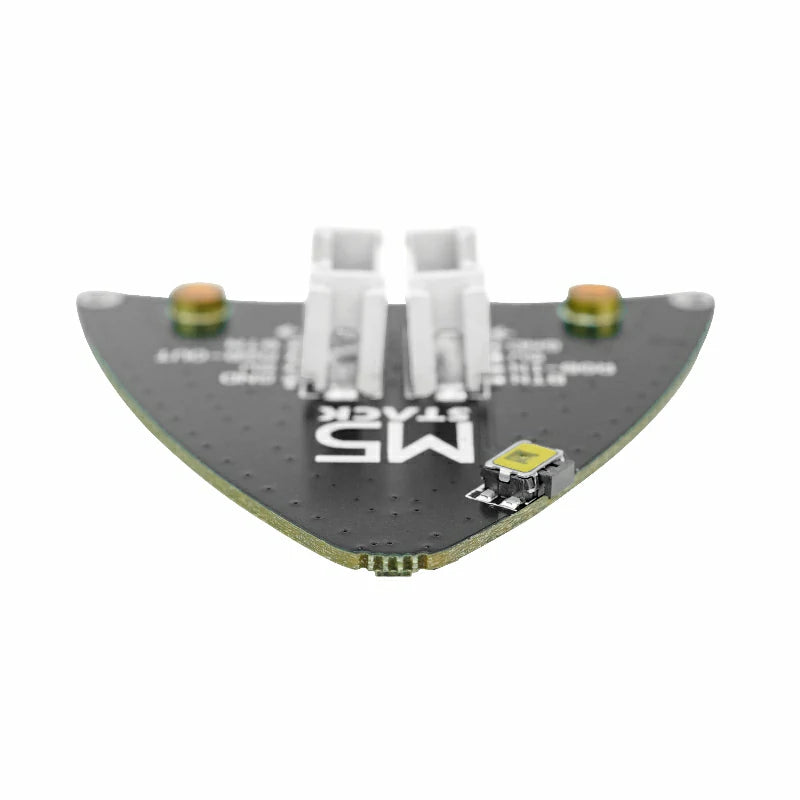

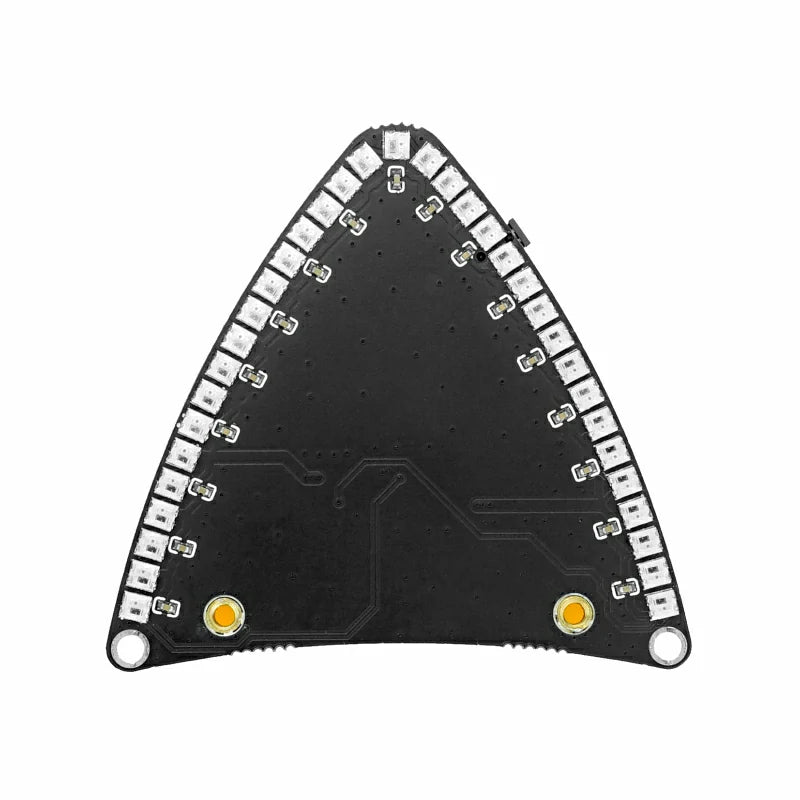

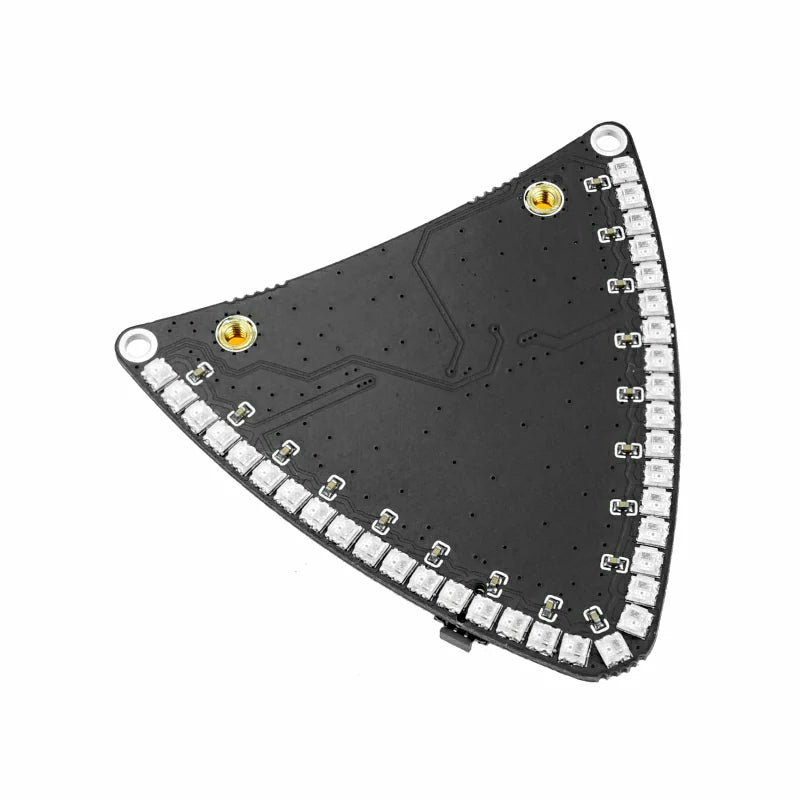

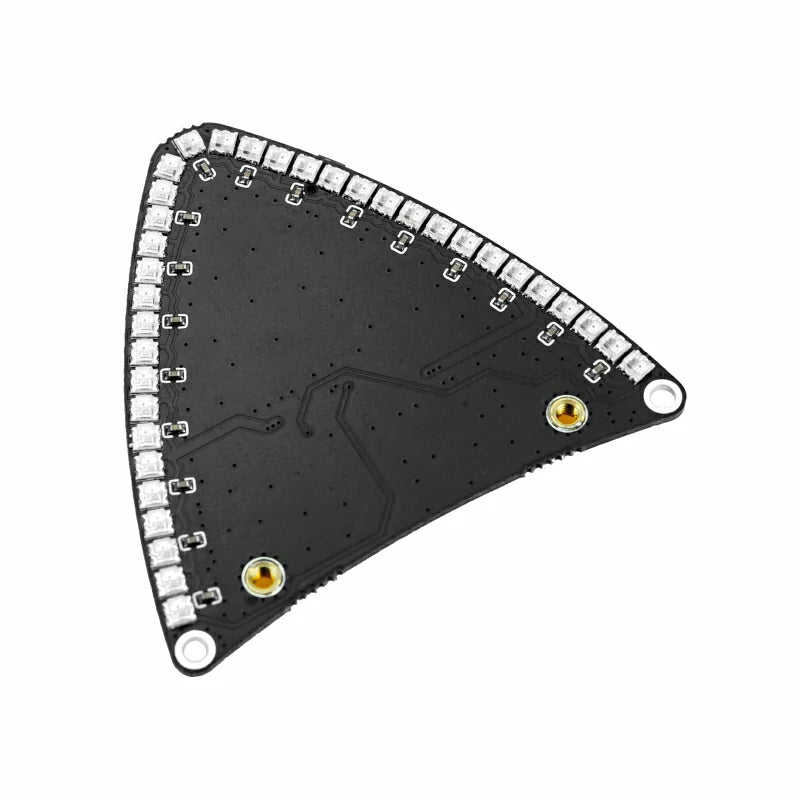

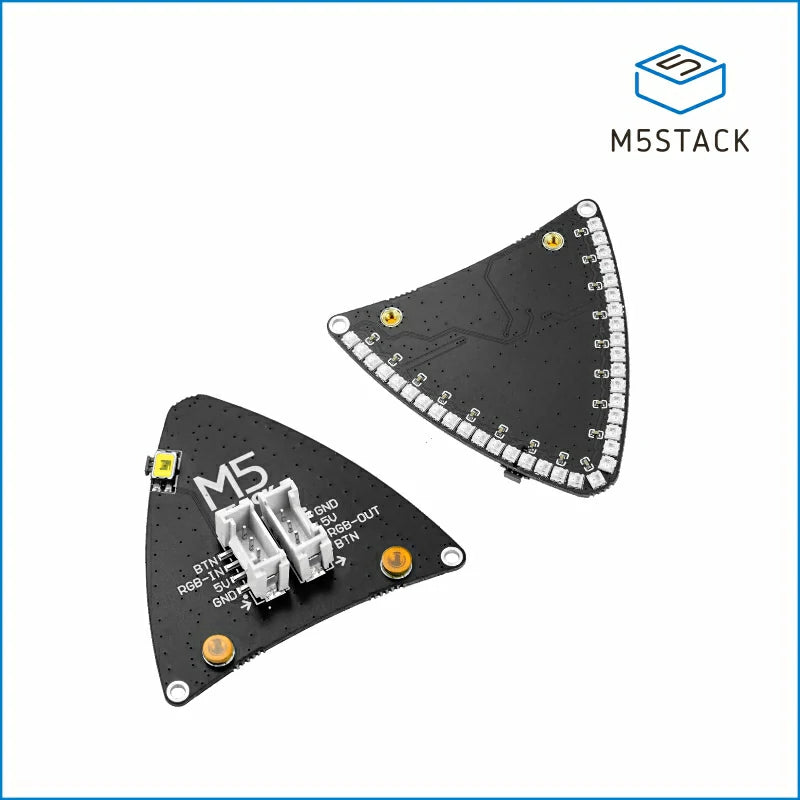

Unit Neco is an RGB lighting panel unit with a "cat ear" design, equipped with 35 WS2812C-2020 RGB LEDs. It features two 4-pin grove ports to connect to an M5 host device and expand more units. Additionally, it has a tactile button that allows interaction with the host to switch between various lighting effects. It is suitable for home decoration, party ambiance, stage performances, and more.
Note It is best not to keep it fully lit for long periods to avoid damaging the LEDs. A brightness setting around 20 is recommended.
Features
- WS2812C-2020 RGB
- HY2.0-4P
- Tactile switch
- Compatible with multiple development platforms:
- UIFlow
- Arduino

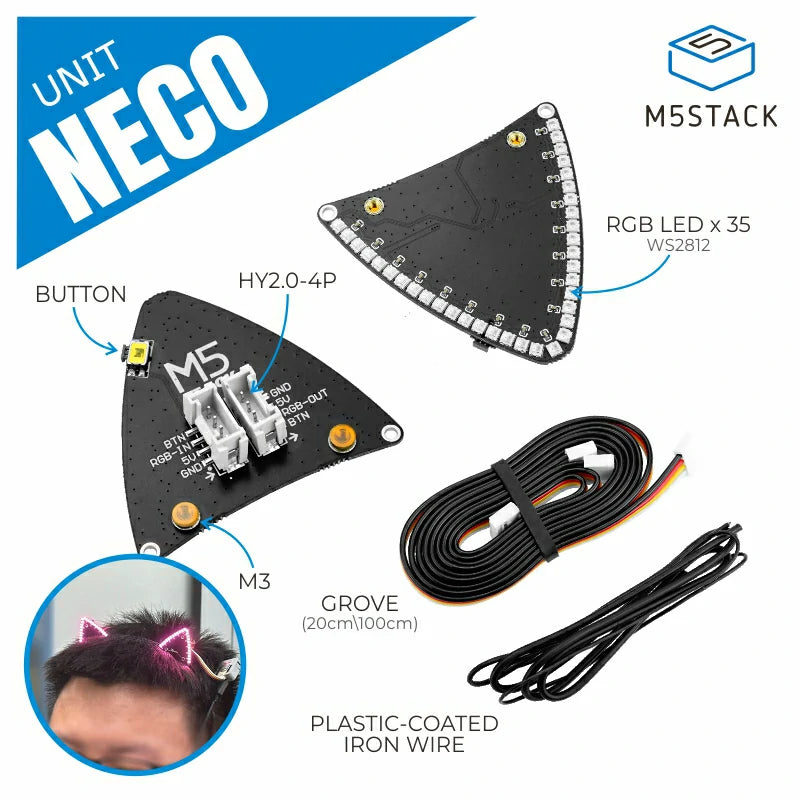

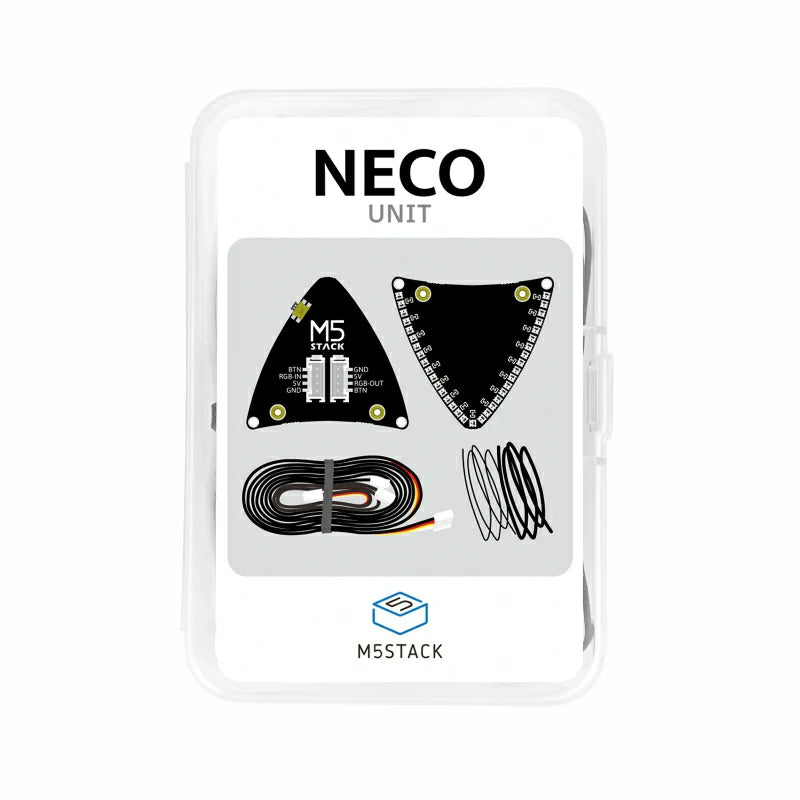

Includes
- 2 × Unit Neco
- 1 x HY2.0-4P Grove Cable (20cm)
- 1 x HY2.0-4P Grove Cable (1m)
- 2 × Plastic coated iron wires
Applications
- Home decoration
- Party ambiance
- Stage performance
Specifications
| Specification | Parameter |
|---|---|
| LED Model | WS2812C-2020 |
| Current per LED | 5mA |
| Brightness Levels | 256 levels |
| Connection Type | Serial cascading interface |
| Operating Temperature | 0-85°C |
| Number of Colors | 16,777,216 colors |
| Product Size | 44.6 x 43.0 x 10.1mm |
| Product Weight | 9.6g |
| Package Size | 99.0 x 66.0 x 27.0mm |
| Gross Weight | 52.8g |
