NCIR 2 Thermometer Unit (MLX90614)

SKU:U150

$21.90

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

Living through this pandemic has made contactless temperature sensing a must! The NCIR 2 Thermometer Unit utilizes the MLX90614 temperature sensor, and take ambient and object temperature readings with No Contact. Great for socially-distant reality.

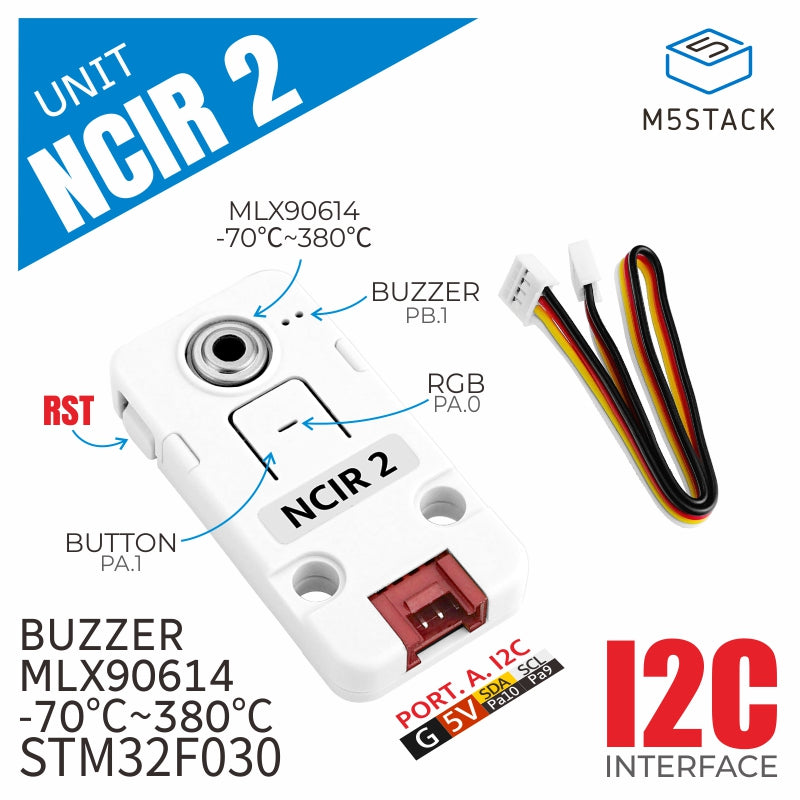

The MLX90614 sensor is factory calibrated in wide temperature range, -40 to 125 ˚C for the ambient temperature and -70 to 380 ˚C for the object temperature. The embedded MCU - STM32 can process the data to achieve high/low temperature alert function. There are also buzzer, RGB LED, function button and reset button on board.

This Unit can either work with M5Core through I2C protocol, or work alone. Suitable for medical, environmental monitoring and home automation applications.

Features

  • STM32F030F4P6
  • MLX90614 IR Sensor
  • HY2.0-4P Connector (I2C)
  • Program platform: Arduino, UIFlow
  • Two brick-compatible holes

Includes

  • 1x NCIR 2 Unit
  • 1x HY2.0-4P Cable (20cm)

Applications

  • High-precision non-contact temperature measurement
  • Motion detection
  • Home Automation

Specification

Resources Parameters
MCU STM32F030F4P6
Sensor MLX90614ESF-BAA
Object Measurement Temperature Range -70°C ~ 380°C
Calibrated Sensor Temperature -40°C ~ 125˚C
Unit Operation Temperature 0°C ~ 40°C
Accuracy ±0.5°C
Program Platform Arduino, UIFlow
I2C Address 0x5A
Product Size 48mm × 24mm ×8mm
Package Size 136mm × 92mm × 13mm
Product Weight 7.3g
Package Weight 12.8g

LEARN AND DOCUMENTS

  • DOCUMENTS

    • Customer Reviews

    Based on 2 reviews
    0%
    (0)
    0%
    (0)
    100%
    (2)
    0%
    (0)
    0%
    (0)
    A
    Alvaro Ballesteros
    Nice added features, meassuring distance range could be improved

    Hi,
    This was a nice improvement over the NCIR thermometer with the additional buzzer, RGB and button, however the wide Field Of View range (90°?) forces that the object measured needs to be very close to the thermometer (impractical in certain applications). For example if I put my hand or forehead, I only get an accurate reading if it is 20 cm or less, beyond that distance, the temperature reading is not useful for my project. You might consider to offer a version that instead of using the MLX90614ESF-BAA use a MLX90614ESF-DCL. This last one has a Field Of View of only 5° allowing to increase significantly the distance to measure the temperature of objects (I tried and 60 cm without any issue), for sure is more expensive, but I need these larger sensing distances. For some other projects where you can have the sensor closer to what you want to meassure it is a great choice.

    P
    Private
    Didn't work out for me (nothing against the sensor)

    I really hoped I would be able to get this to integrate into home assistant over I2C using ESP Home and an Atom Lite as I had success with a stand alone MLX90614 previously (but wanted the build quality and grove connection of m5 stack (which is AMAZING) but it wouldn't work and I couldn't find anyone else who had done it. I bought the NCIR MLX90614 and that worked perfectly. So if you're wanting this for Home Assistant, get the NCIR not the NCIR 2.
