Mini Scales Unit (HX711)

SKU:U177

Regular price $6.95

10+ In Stock

Shipping calculated at checkout.

Description

Mini Scales Unit is an integrated mini weighing unit that combines a 5kg weighing sensor, an ADC acquisition chip (HX711), and a protocol conversion MCU to directly output weighing results. The product is equipped with an STM32F030F4P6 microcontroller, uses the I2C communication protocol for external communication, and supports multiple modules working together.

Additionally, it features an SK6812 RGB programmable LED indicator light and a function button, allowing users to easily perform zero calibration and tare adjustment. The product also provides additional installation options with a reserved M3 nut fixing hole on the top. Mini Scales Unit is suitable for various fields such as scientific experiments and industrial production, where precise weighing is required.

Features

  • STM32F030F4P6@32 bit ARM Cortex-M0 processor
  • I2C communication, multiple devices can be used in parallel at the same time
  • SK6812 RGB
  • Press key to clear and tare
  • Weighing up to 5KG
  • Programming platform: Arduino, UIFlow, python, etc

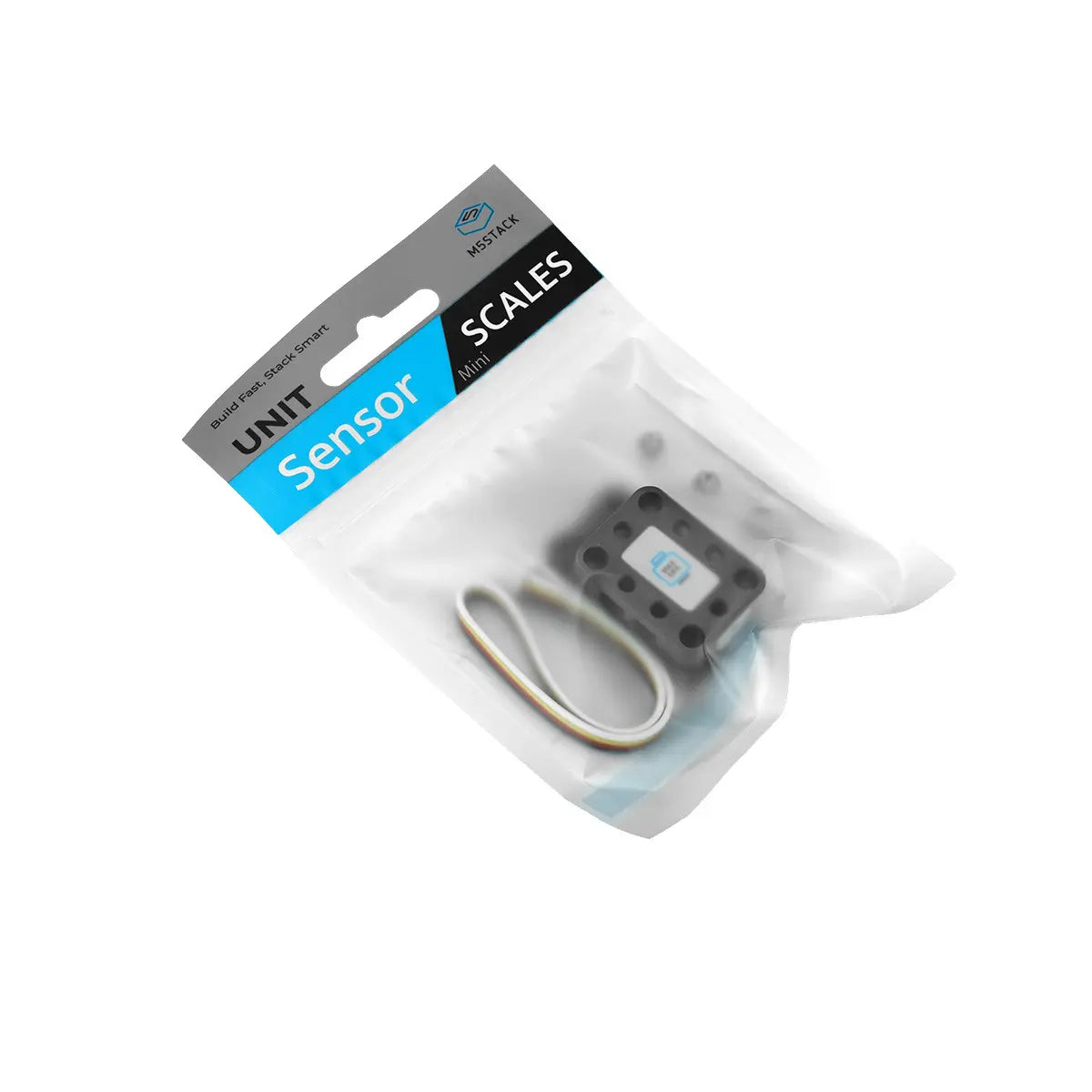

Includes

  • 1x MiniScales Unit
  • 4x Nut M3 (hexagonal 6*2.25mm)
  • 1x HY2.0-4P Cable(20cm)
schematics

Install the weighing plate on the Mini Scales Unit for weighing.

Applications

  • Science Experiment
  • Industrial Production

Specification

Resources Parameters
Sensor ADC Detection Chip HX711
MCU STM32F030F4P6@32 bit ARM Cortex-M0 processor
I2C Address 0x26
LED SK6812 RGB可编程
Button For zero calibration and peeling adjustment
Range 5KG
Bottom fixing nut specifications M3
Product Size 40*24*18mm
Package Size 136*92*24mm
Product Weight 15.3g
Package Weight 22g

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    M
    Marc Plano-Lesay
    Okay, but with some limitations

    I don't really understand the choice of putting a button behind an I2C chip - this means no interrupt available, and makes working with that button quite awkward at best.

    In terms of the load cell itself - my unit had a significant amount of drift initially. We're talking over 40g over the course of an hour - basically forcing to go through the calibration process every time I wanted to take a measurement, which isn't exactly amazing. Since then, I took the unit apart and found an explanation - the upper part was pretty loose to the load cell itself, and tightening this screw made the drift much, much lower (it's still drifting by a few grams, but 1% accuracy on a 5kg load cell this cheap isn't too bad).

    The enclosure itself is a bit odd - two of the four mounting points are seemingly blocked by its upper half. Two is enough in my use-case, so that's fine, but definitely a bit odd.

    Overall, the idea of providing some logic over I2C to compute the weight is pretty good and well implemented, but I feel like going for M5Stack's Unit-Weight I2C and your own load cell and mounting/casing would be a better option - it seems to be everything that's good about this Mini Scales Unit, without the odd parts.

    A
    Aidan Byrne
    Nicely built unit

    A very nicely constructed unit.
    Very easy to operate with the Core2 using Blocky!
