Mini Fan Unit - N20 Magnetic Motor with Propellers

Name: Mini Fan Unit - N20 Magnetic Motor with Propellers
Brand: m5stack-store
SKU: U063
Price: 4.95 USD
Availability: InStock

SKU:U063

$4.95

10+ In Stock

Quantity

Shipping calculated at checkout.

Description

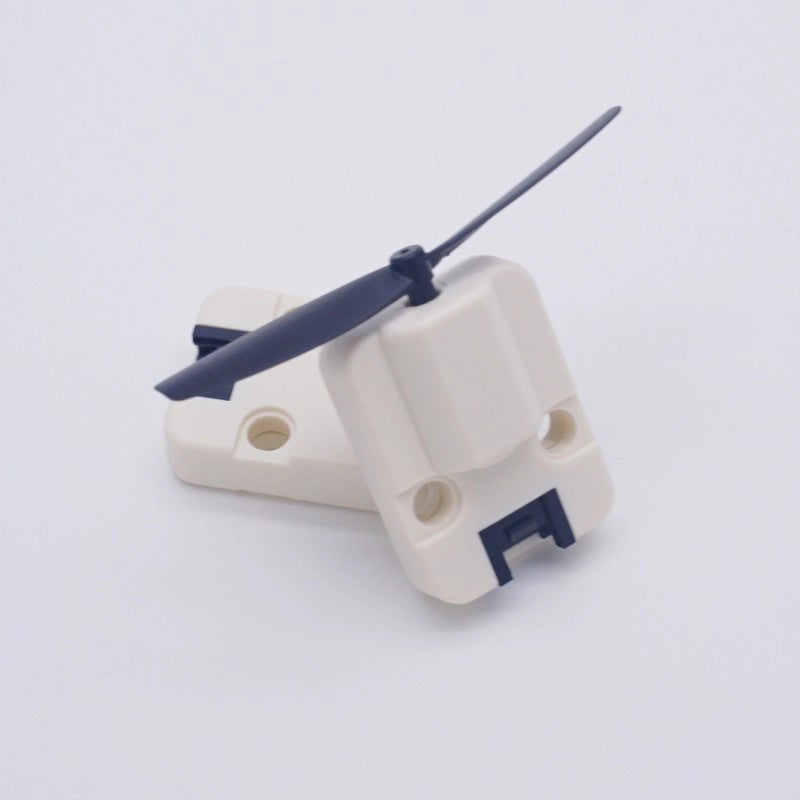

Unit Fan is a DC motor Unit, made with an N20 DC motor, with an output shaft speed of 8800 RPM (no load). Utilizing its unidirectional rotation feature, it can be used as a power source in structures that require motion control, such as controlling wheel rotation.

Features

Unidirectional rotation
DC 5V power supply

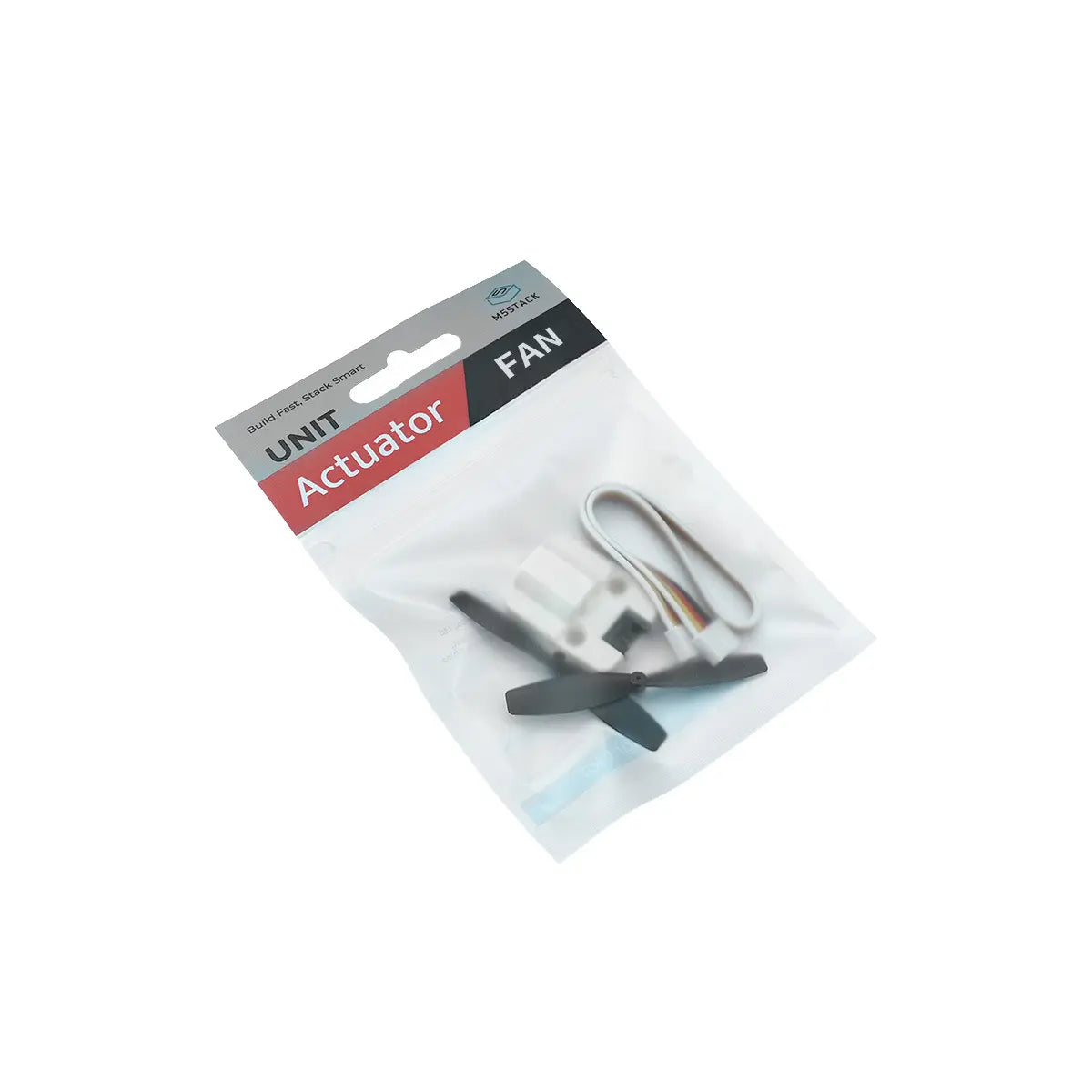

Includes

1 x Unit Fan
1 x HY2.0-4P Grove cable (20cm)
2 x Propellers

Applications

Motion control

Specifications

Specification	Parameter
Product Size	32.0 x 24.0 x 12.2mm
Product Weight	9.3g
Package Size	138.0 x 93.0 x 13.2mm
Gross Weight	15.2g

LEARN AND DOCUMENTS

DOCUMENTS

I like it tbh

it's fast, cool, does the job, no problems at all :)

Really nice product.

It's very well made, and comes with the only cable it needs and two propellers, forward and reverse.

The motor is very strong - given the N20 neodymium magnets in it. In fact, just rotating the propeller by hand lets you feel the magnets resisting your finger!

There's an example program on the product page showing how to control its speed too - so getting started is as simple as uploading the code to the M5Stack system in Arduino and plugging the motor in.

It's directly driven by an IO pin of the grove connector - so this little device needs a pin all of its own for each motor added? Perhaps a new version may come with IC2 support, so a bunch of motors can be connected?

Either way - it's a fun device to see some "real world" influences the M5Stack system can have! A++ =)
