Description
Description
ENV is a environmental sensor, can be used for temperature, humidity, and atmospheric pressure measurement.
The ENV sensor integrates DHT12 and BMP280 sensors.
DHT12 is an upgraded version of DHT11 humidity temperature sensor: complete downward compatibility, higher precision and added I2C interface.
BMP280 is an absolute barometric pressure sensor especially designed for mobile applications, offers highest flexibility to optimize the device regarding power consumption, resolution and filter performance.
I2C address:DHT12(0x5C)、BMP280(0x76)
This product is EOL now, we've released the updated version ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988) which is fully compatible with this product.
Product Features

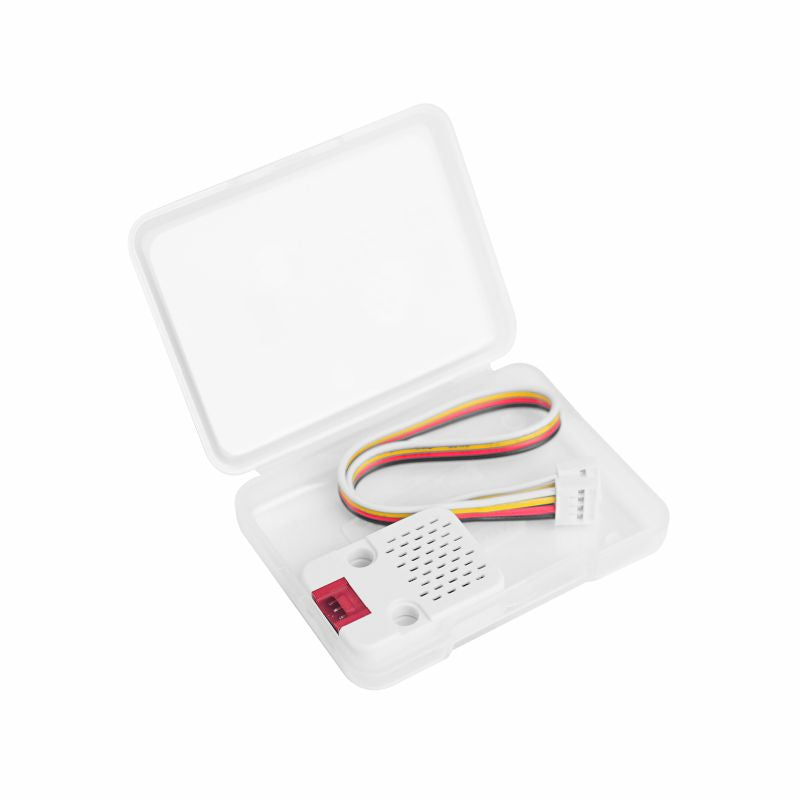

Include
- 1x ENV Unit
- 1x Grove Cable
Specification
| Resources | Parameter |
| Temperature measuring range/resolution | -20 ~ 60 ℃ / ±0.2℃ |
| Humidity measuring range/resolution | 20 ~ 95 %RH / ±0.1% |
| Air pressure measuring range/resolution | 300 ~ 1100hPa / ±1hPa |
| communication protocol | I2C：DHT12(0x5C),BMP280(0x76) |
| Operating temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Net weight | 4g |
| Gross weight | 17g |

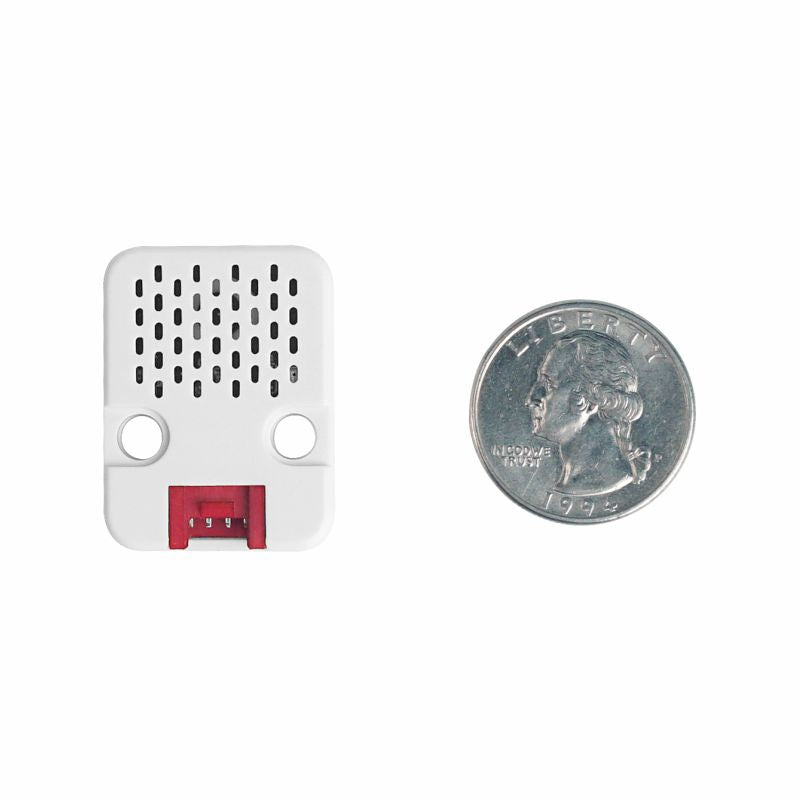

| Product Size | 24.2*32.2*8.1mm |
| Package Size | 67*53*12mm |
| Material | Plastic(PC) |
