Mini Button Unit

SKU:U027

Regular price $2.25

Out Of Stock

Shipping calculated at checkout.

Description

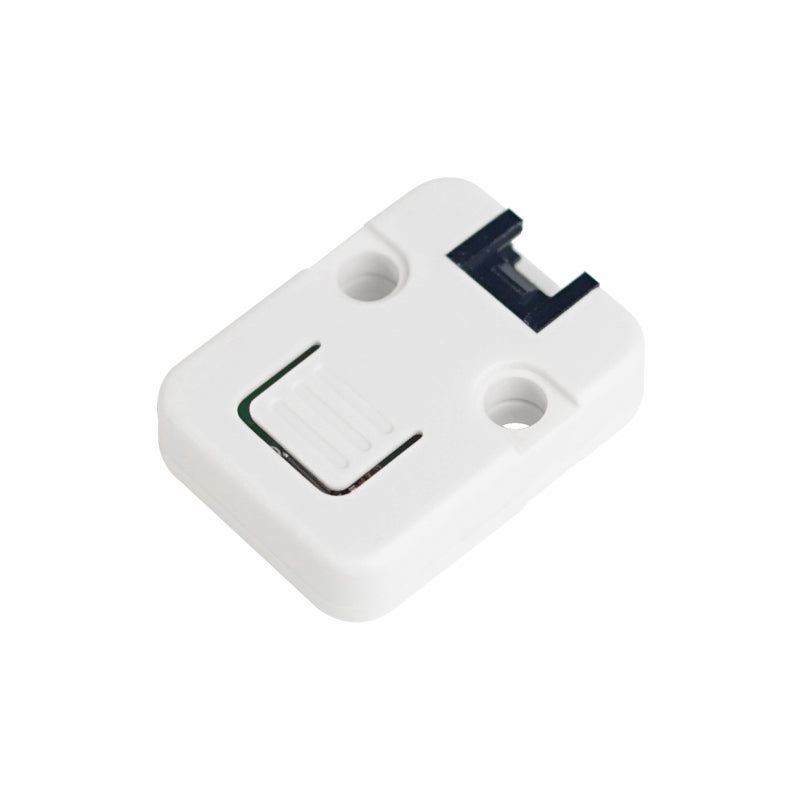

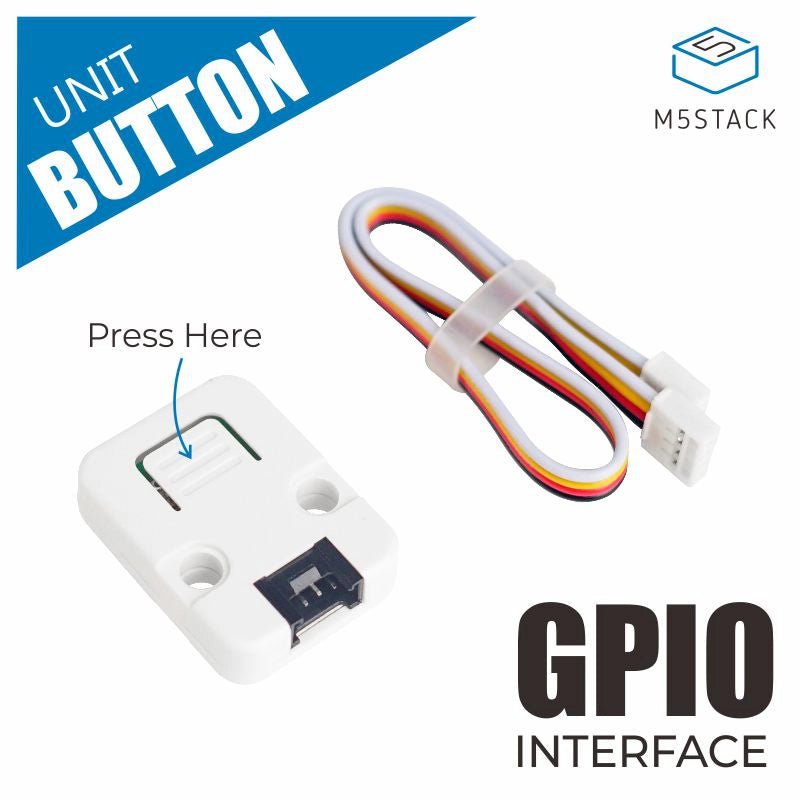

BUTTON is a single button Unit. The button status can be detected by the input pin by simply capturing the high/low electrical level. If the button is pressed, the signal level will be high if the button is released, the signal level will be low.

As shown in the figure below:

Output status:

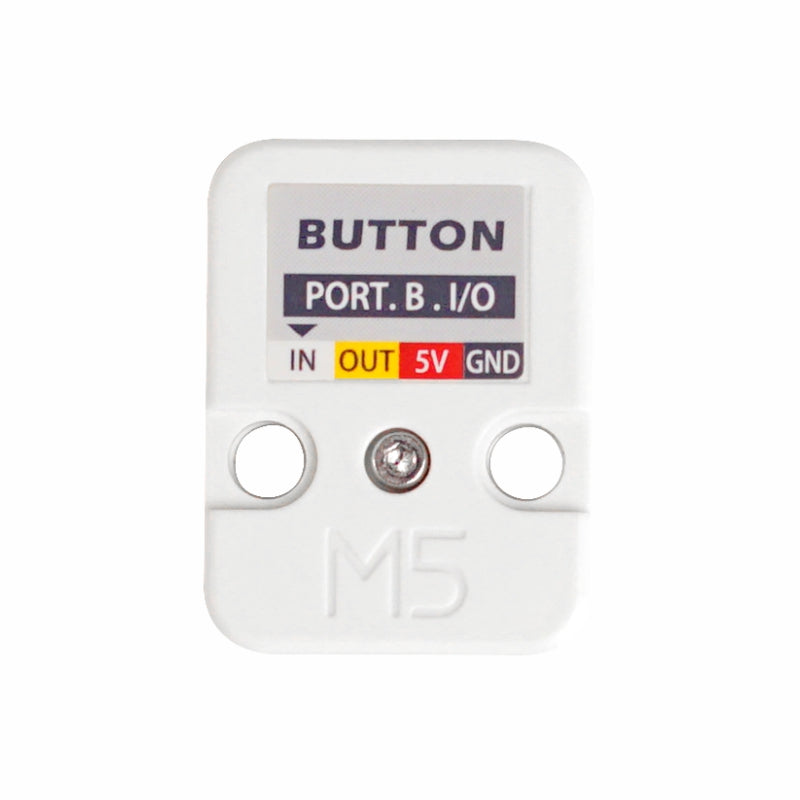

This unit communicates with M5Core through GROVE B port.

Product Features

Include

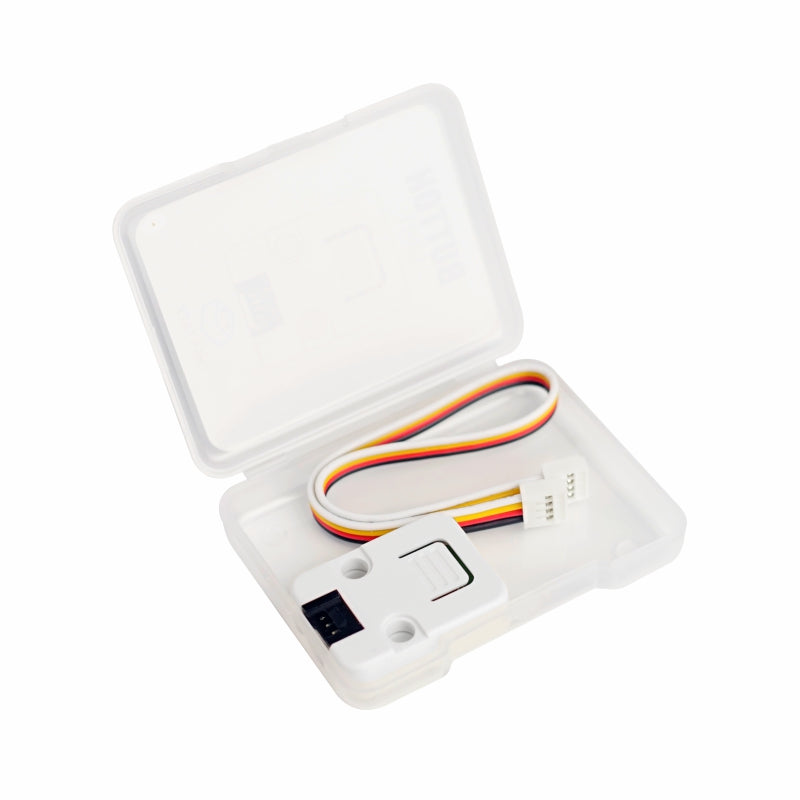

  • 1x BUTTON Unit
  • 1x Grove Cable

Applications

  • Lamp holder switch
  • Remote control switch

Specification

Resources Parameter
Net weight 4g
Gross weight 16g

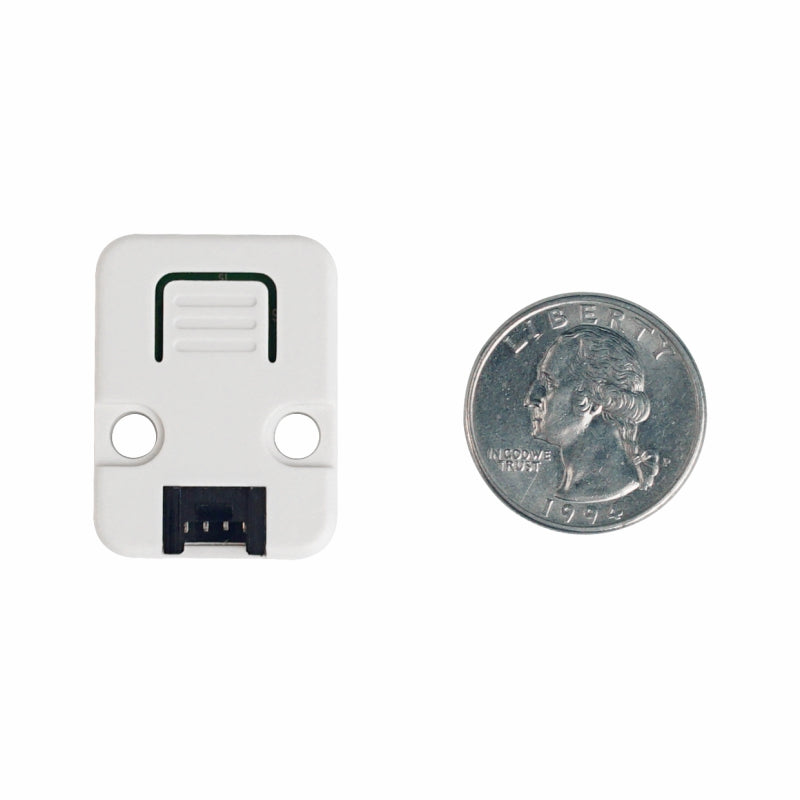

Product Size 32*24*8mm

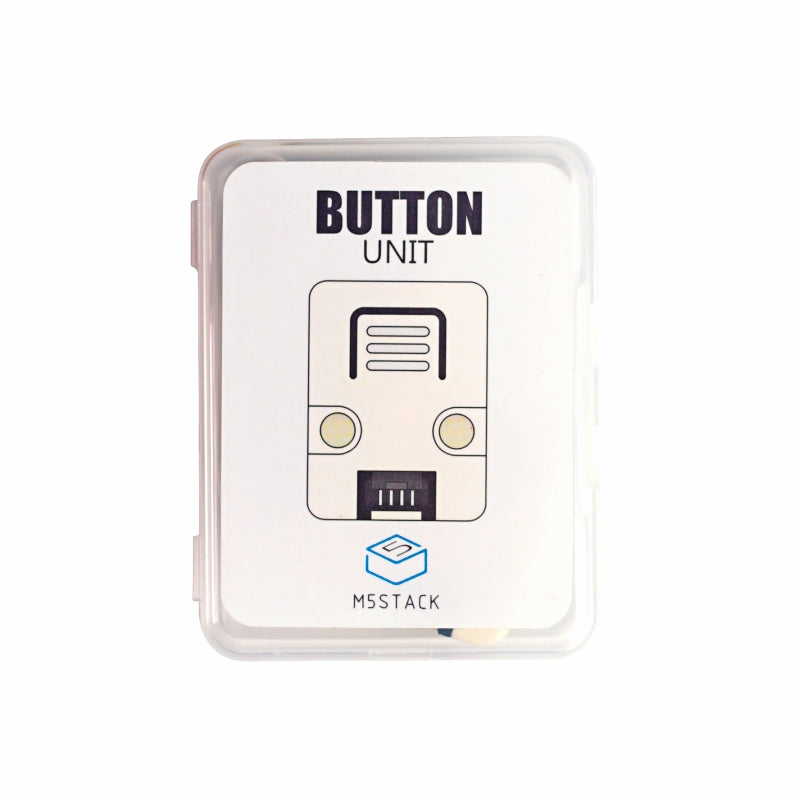

Package Size 67*53*12mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • DIY Camera with Thermal Printer DIY Camera with Thermal Printer A DIY project conduct with a thermal printer and M5Camera.
