Mini 3A Relay Unit

SKU:U023

Regular price $3.50

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

RELAY is a relay unit that allows you to control the on/off state of circuits operating at the DC/3A-30V or AC/3A-220V levels. It functions as an automatic switch, where a small current controls the operation of a larger current. In electrical circuits, relays play a role in automatic regulation, safety protection, and circuit switching.

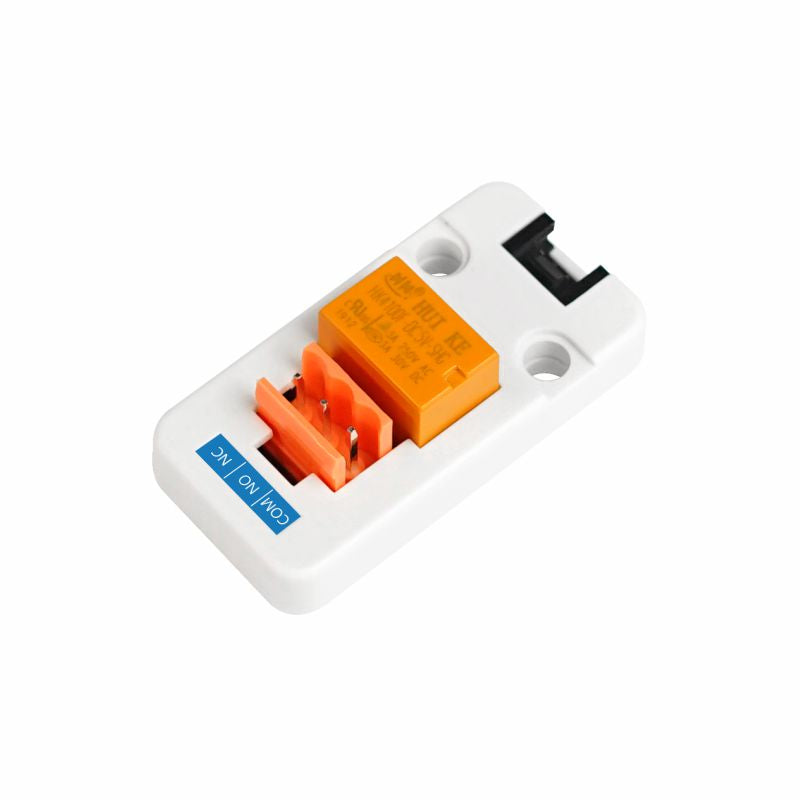

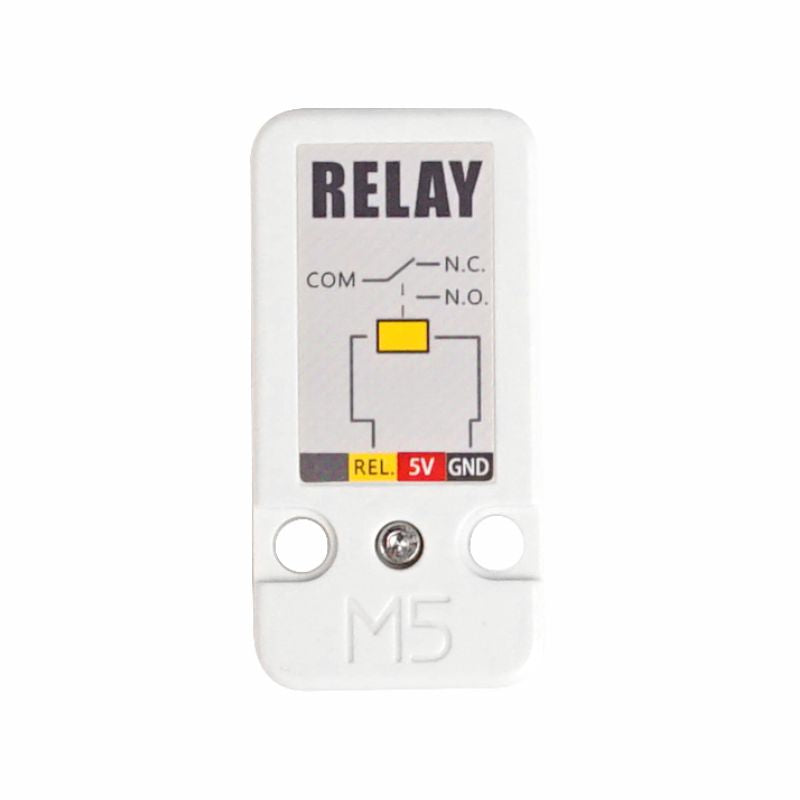

The RELAY unit provides three pins: ON, OFF, and COM. By programming the GPIO (General Purpose Input/Output) pins of your microcontroller or device to output high or low voltage levels, you can control the relay. The common terminal, COM, is connected to either the ON or OFF terminal to control the circuit's state.

RELAY units are commonly used in applications where there is a need to control higher power loads or switch between different electrical systems. By using the RELAY unit, you can automate the control of circuits and ensure the safety and efficiency of your electrical projects.

Product Features

  • Single-BUS control
  • Up to 3A @ 30 V DC or 220 V AC
  • Software Development Platform: Arduino, UIFlow (Blockly, Python)
  • Two Lego-compatible holes

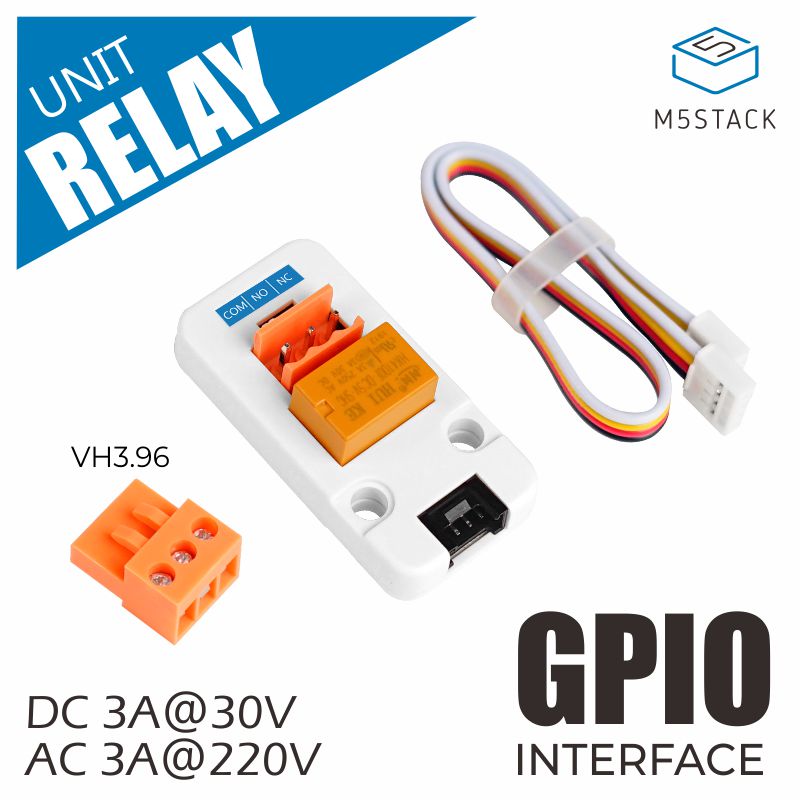

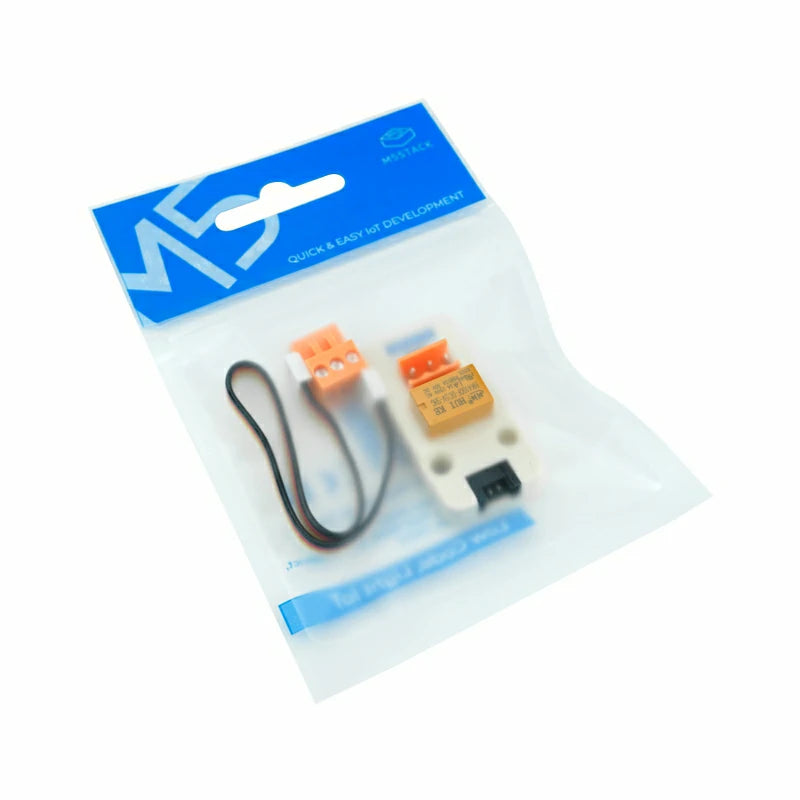

Include

  • 1x RELAY Unit
  • 1x Grove Cable
  • 1x 3.96 socket

Applications

  • Remote control of high-power appliances, such as refrigerators, air conditioners, TVs, etc.

Specification

Resources Parameter
Net weight 12g
Gross weight 26g
Product Size 48*24*21mm
Package Size 60*57*17mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • It is possible to turn a lamp or fan on and off through an SMS message.
    Control IKEA Bekant Desk sit/stand height with M5Stack M5Paper using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
    Control IKEA Bekant Desk sit/stand height with M5Stack Core2 using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
    Atom Lite control device with Alexa. In my house, Amazon echo is located in every room, and the lighting of living room is controlled by Alex
    Using the M5StickC, we developed a product that allows you to wash your hands without touching the device.
    The mechanism is simple to monitor the value of the water temperature sensor with the M5Stack, and heater power is controlled by the relay
