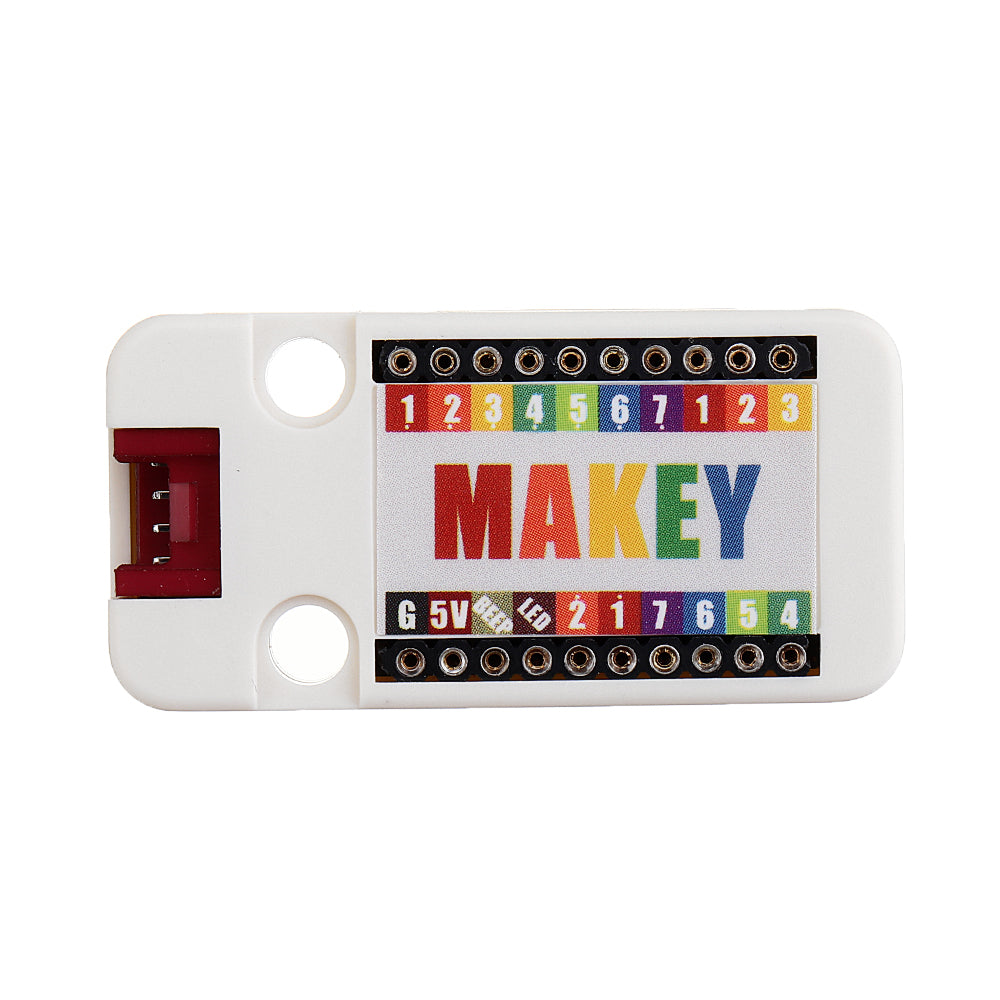

[EOL] 16-Key Capacitive Touch Unit (MEGA328P)

SKU:U026

Regular price $4.95

EOL

Shipping calculated at checkout.
Description

Description

16-Key Capacitive Touch Unit Unit is inspired by an Invention kit called Makey Makey which brings the concept that users can connect everyday objects to computer programs.

Using a circuit board, alligator clips, and a USB cable, the circuit uses closed loop electrical signals to send the microprocessor either a keyboard stroke or mouse click signal.

We've tried connect a bunch of fruits, one for each key, to this Unit.

When you touch the apple, you make a connection, and MaKey sends the processor a keyboard message. The buzzer inside or speaker on M5core will exhibit the key value, so instead of using a keyboard, you can make a fruit piano.

This Unit communicates with the M5Core via the GROVE A I2C(0x51).

Instructions:

1)Use the buzzer on the unit to exhibit sounds:

Take a Dupont wire(male to male), one end plug into GND, hold the other end to your hand. Take another Dupont wire(male to male), one end plug into different key holes, the other end hold by the other hand. Make it a close circult. Plug into different key tones the buzzer will emit the corresponding tones.

2)Use the speaker on the M5core to exhibit sounds: connect MAKEY with M5Core via Grove A Download this example.

Repeat the same operation as above. you will see this sound much better.

Product Features

  • Arduino Mega328p Controller
  • Buzzer inside
  • Up to 16 keys
  • Software Development Platform: Arduino, UIFlow (Blockly, Python)
  • Two Lego-compatible holes

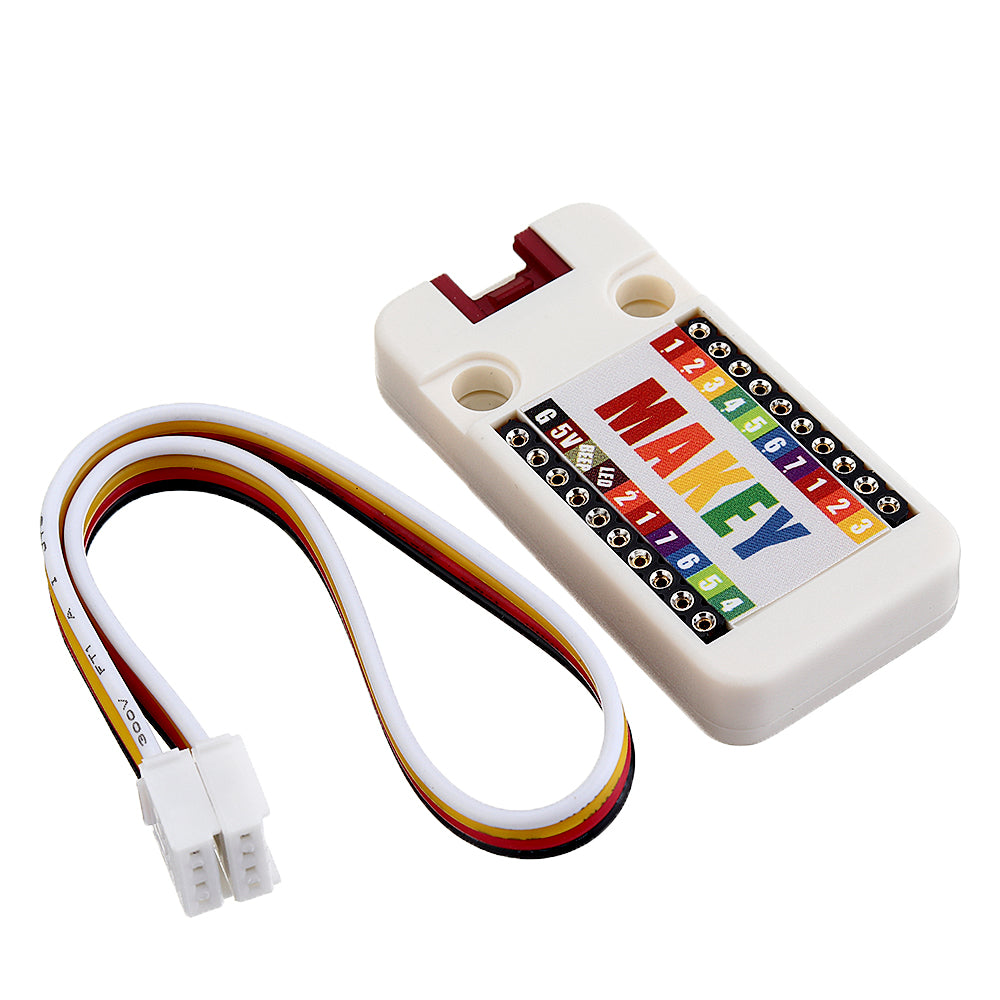

Include

  • 1x MAKEY unit
  • 1x GROVE Cable

Applications

  • Fruit piano

Specification

Resources Parameter
Communication protocol I2C:0x51
Net weight 7g
Gross weight 19g
Product Size 32*24*8mm
Package Size 67*53*12mm
Document
