Description

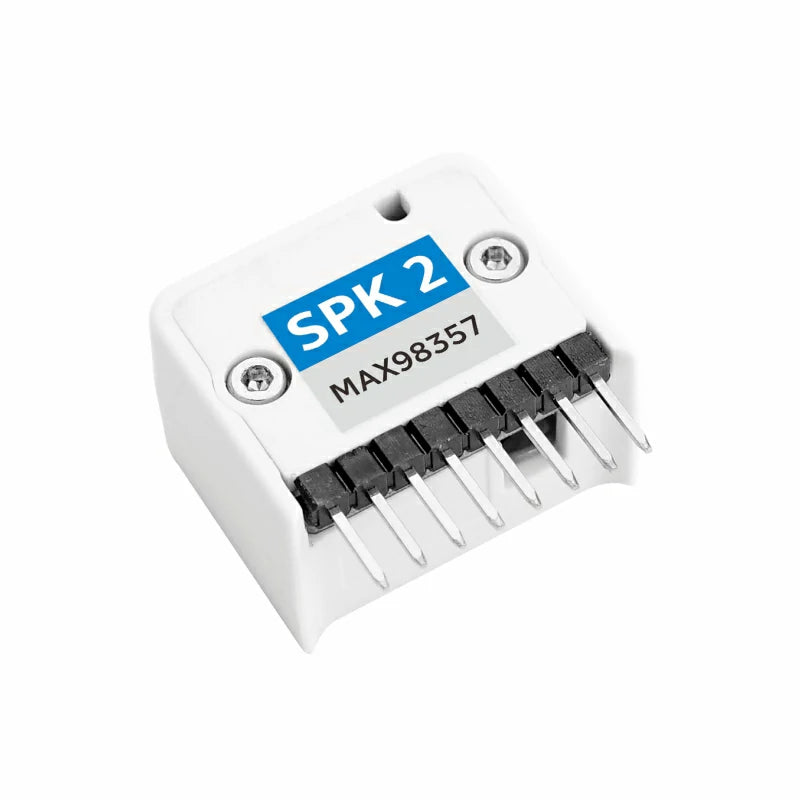

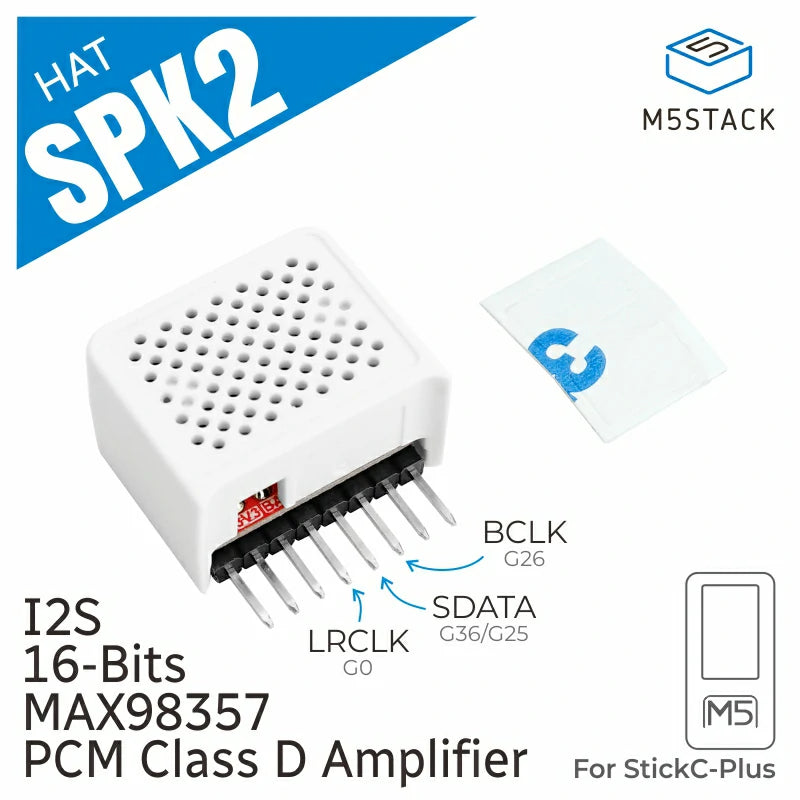

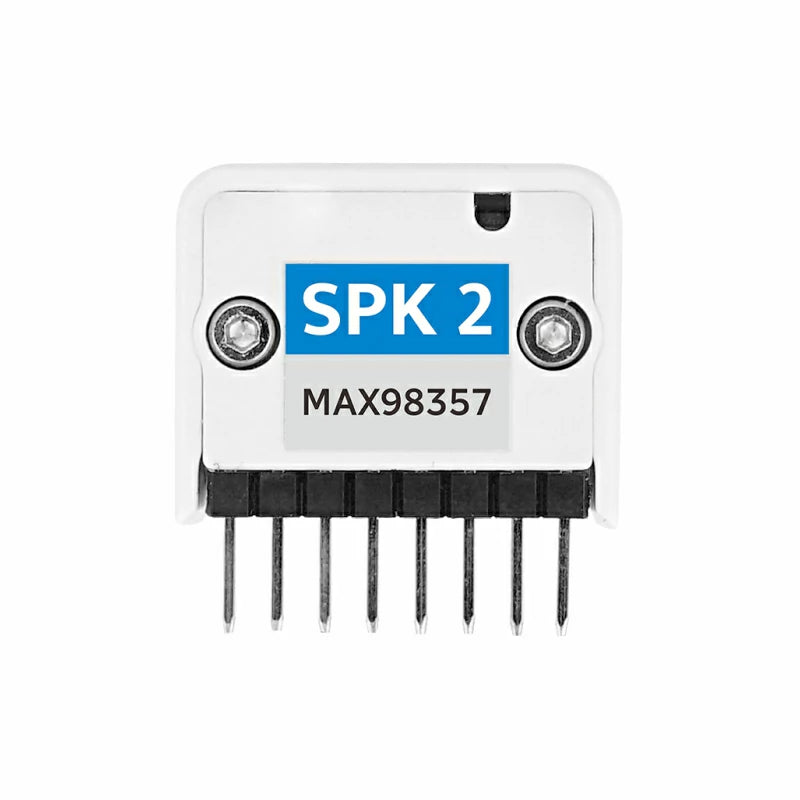

HAT-SPK2 is a speaker designed specifically for the M5SticKC PLUS platform. It features a built-in MAX98357 digital audio I2S amplifier IC and a 1W speaker, providing high-quality audio output. The speaker supports audio input with a sample rate ranging from 16-bit, 32kHz to 192kHz, ensuring excellent audio reproduction.
HAT-SPK2 is equipped with built-in short circuit protection, which safeguards the speaker and the connected devices in case of a short circuit. Additionally, it includes over-temperature protection, preventing overheating and ensuring safe operation even during extended use.
This speaker module is suitable for a wide range of audio applications. Whether you're building a portable music player, a sound effects generator, or any other project that requires clear and amplified audio output, the HAT-SPK2 provides a reliable and convenient solution.
Features
- HIGH-QUALITY AUDIO OUTPUT: SUPPORTS 16-BIT, 32KHZ TO 192KHZ SAMPLE RATE AUDIO INPUT
- Multiple output modes: including mono and stereo, as well as audio input formats such as I2S, left-justified, and right-justified
- Stability and reliability: Built-in short-circuit protection and over-temperature protection
- Programming platforms: Arduino, uiflow
Includes
- 1x HAT-SPK2
Applications
- Audio speakers
- television set
- Car audio
- Smart speakers
Specification
Resources | Parameters |
---|---|
Power output | Maximum 20W |
Signal-to-noise ratio | 103dB |
Distortion rate | 0.1% |
Supply voltage | 4.5v-5.5v |
Operating temperature range | 0-40°C |
Enter the audio format | I2S, left-aligned, right-aligned |
Sample rate | 32kHz to 192kHz |
Control interface | I2C、SPI、GPIO |

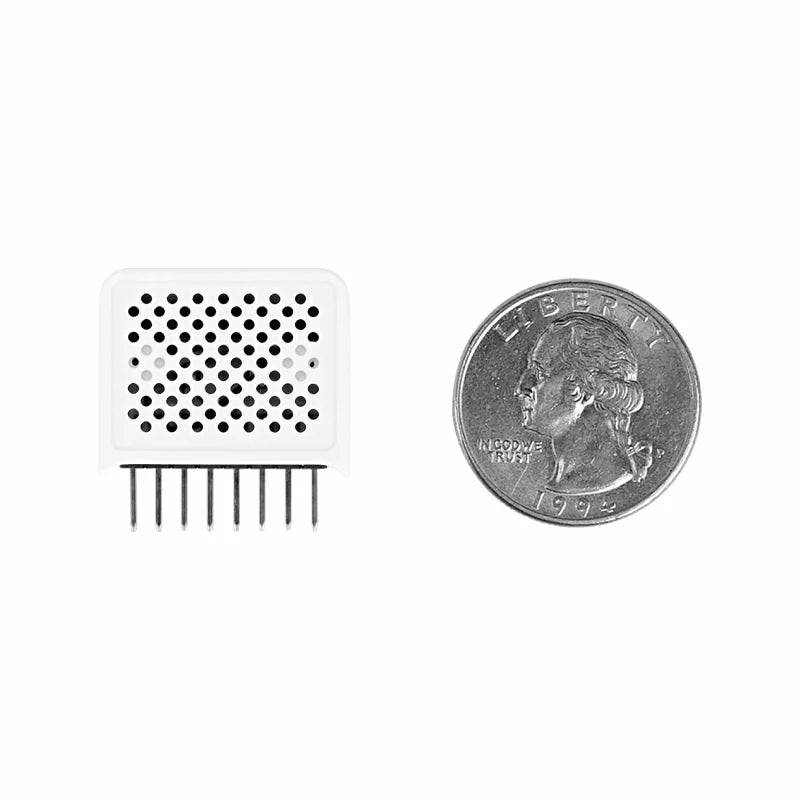

Product Size | 24mm × 18.6mm ×13.7mm |
Package Size | 136mm × 92mm ×13mm |
Product Weight | 4.6g |
Package Weight | 8.1g |
![](https://cdn.shopifycdn.net/s/files/1/0056/7689/2250/files/2_b5acc256-73a6-4eb3-9c1f-61b9b661dae2_600x600.jpg?v=1677835207)
Related Link
Module Size
![module size](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/img-8b4c1482-36ca-4a2f-9203-53a4818f3975.png)
Examples
Arduino
![](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/arduinoCase-1677816143602M5PPT.png)
UIFlow
![](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/uiflowCase-1677557785246image.png)
UIFlow Blocks
- Play local WAV file
![image](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/blockIntro-18b34609-9b7f-43ae-8b95-a53e2fcfae7b.png)
- Play local WAV file
![image](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/blockIntro-0ab372fb-38bf-4e55-ad0b-d859c3342122.png)
- Play cloud WAV file
![image](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/blockIntro-95b4e611-35f4-4176-864b-fc08431e69a1.png)
- Play tone
![image](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/blockIntro-fcd6d207-55da-440f-827a-f2c67bdcc392.png)
- Play tone
![image](https://static-cdn.m5stack.com/resource/docs/products/hat/Hat-SPK2/blockIntro-7ad148d4-888a-4756-b6a0-94c37133bc60.png)
