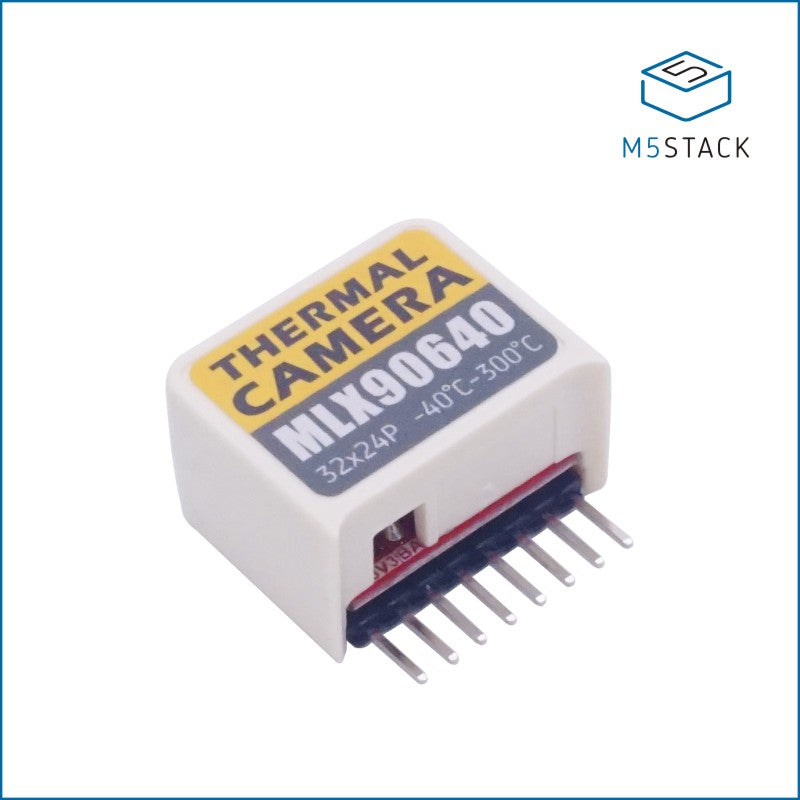

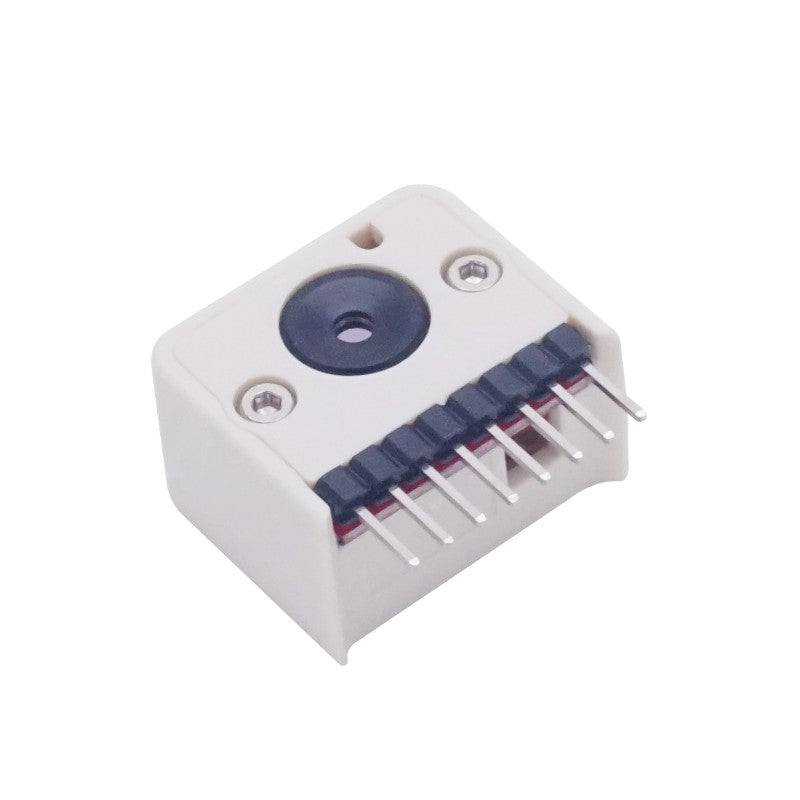

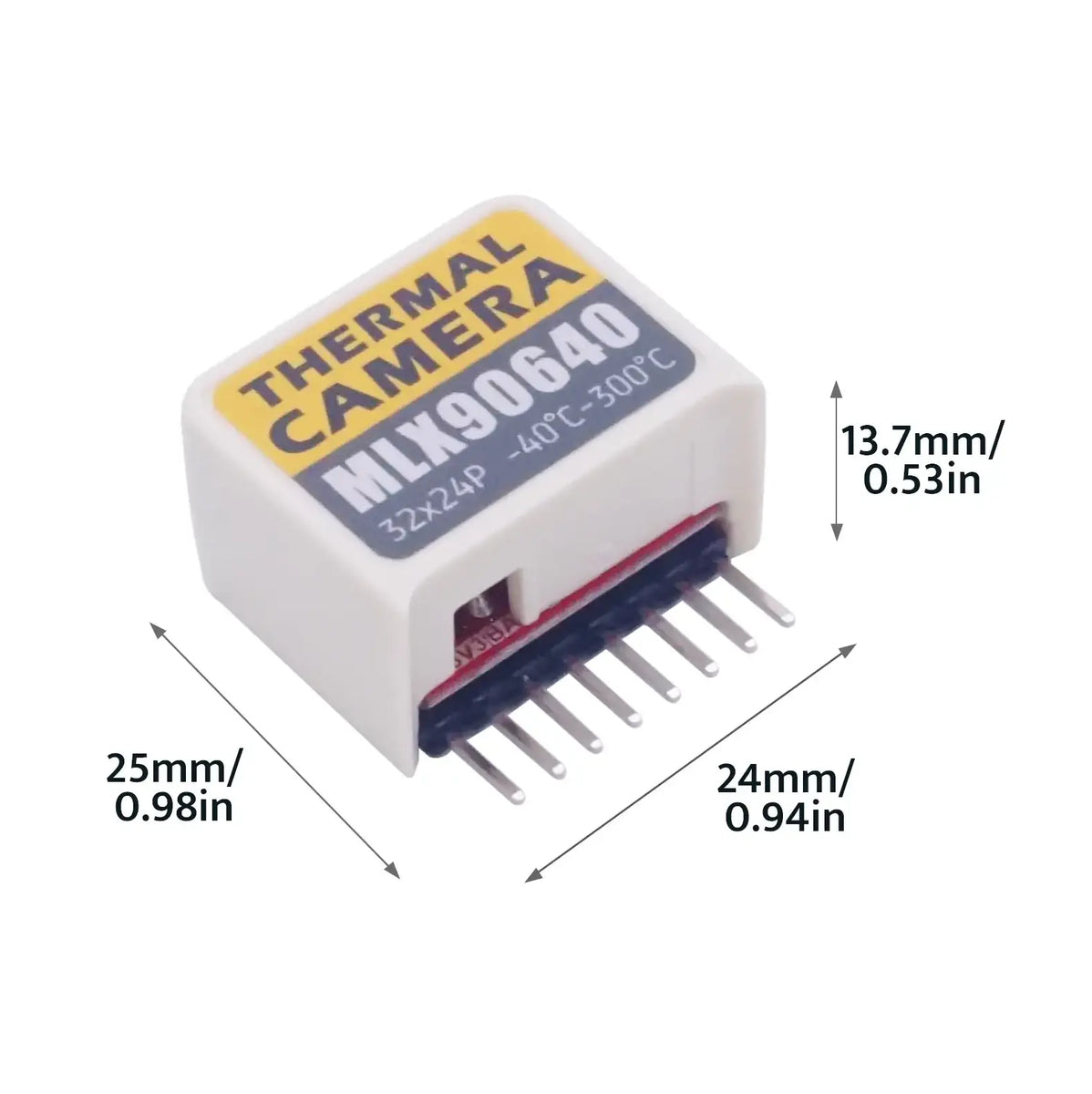

M5StickC Thermal Camera Hat(MLX90640)

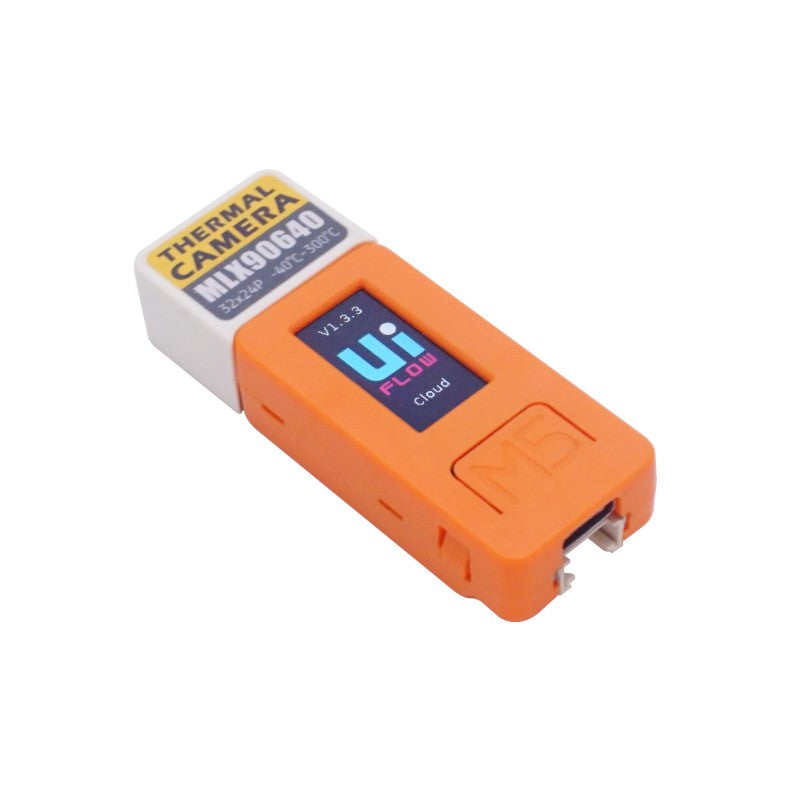

THERMAL HAT is an M5StickC-compatible human infrared thermal imaging. Built-in MLX90640 thermopile sensor that measures the surface temperature of an object and generates a thermal image through a temperature gradient formed by the surface temperature. Resolution is 32 x 24)
MLX90640 Infrared (IR) sensor arrays offer high resolution and the ability to work reliably in harsh environments. Compared to expensive high-end thermal imaging cameras, Hat-Thermal is a cost-effective alternative. Relatively general Micro-bolometer, the advantage of this sensor is that it does not require frequent re-calibration, thus ensuring continuity of detection and reducing system maintenance costs. The field of view provides a wide-angle version (110 ° × 75 °).
The I2C address is 0x33. (GOIO 0/26)
- Operating Voltage: 3V ~ 3.6V
- Current Consumption: 23mA
- Field of View: 110°x75°
- Measurement Range: -40°C ~ 300°C
- Resolution: ±1.5°C
- Refresh Rate: 0.5Hz-64Hz
- Operating temperature: -40°C ~ 85°C
- 1x THERMAL CAMERA HAT
- High precision non-contact temperature measurements
- Intrusion / Movement detection
- Visual IR thermometers
Works as expected. What a neat device and use it in my lab to detect heat from my circuit board components.
