Description

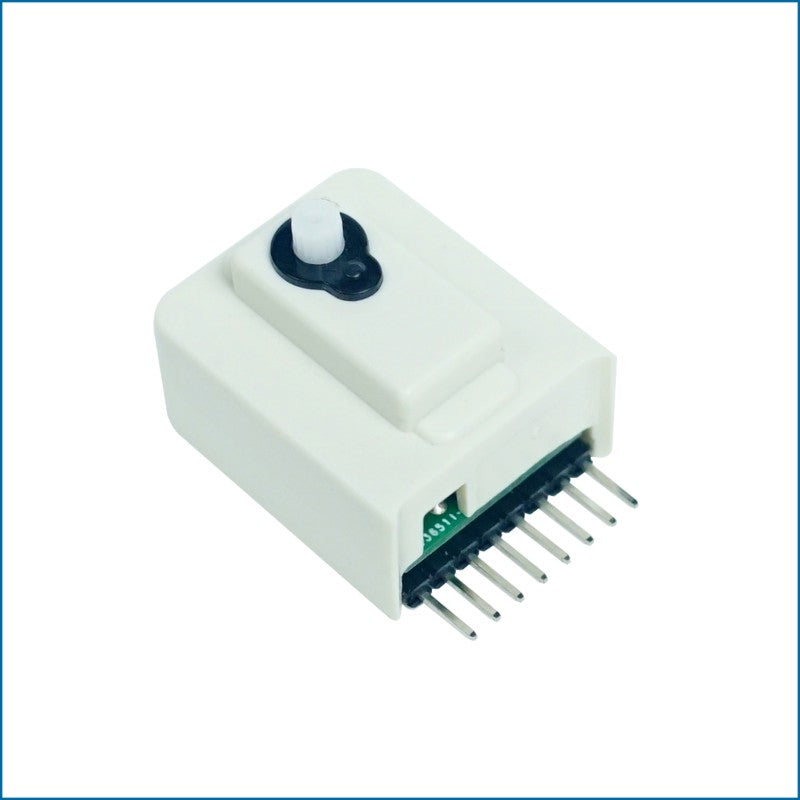

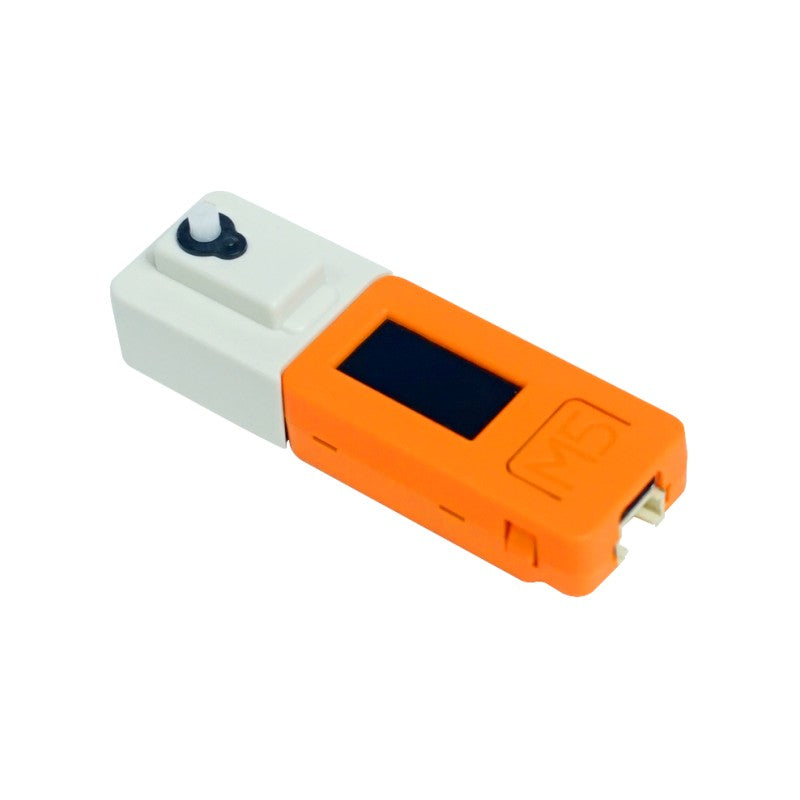

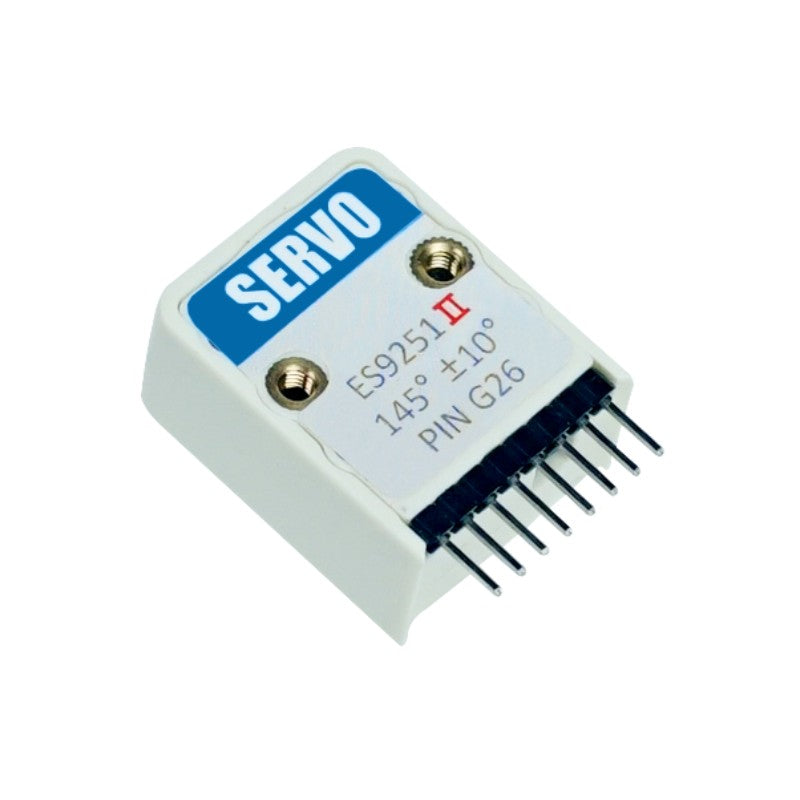

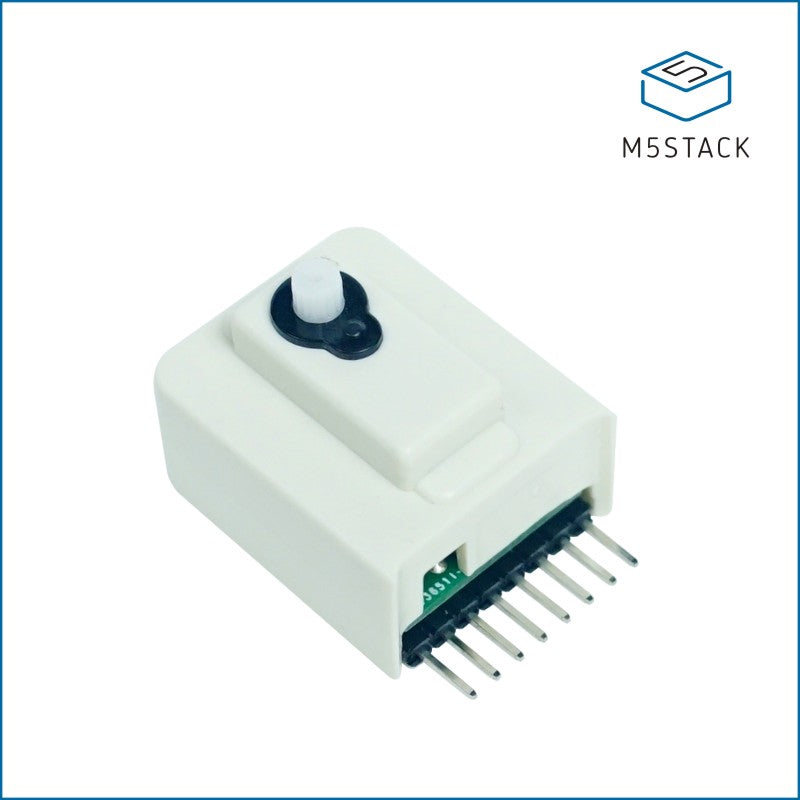

Hat Servo is a servo motor module designed for use with M5StickC. The servo model is ES9251II, with a movement angle of 145° ± 10°. It uses PWM control to adjust the rotation angle, with the signal port being G26.
Features
- Rotation Speed: 0.09sec/60°
- Gear Material: Plastic
- Weight: 2.5g
- Torque: 0.25Kgf.cm
- Torque: 3.5oz.in
- Operating Voltage: 5.0V±0.2V
- Dimensions: 24mm*29mm
- Weight: 9g

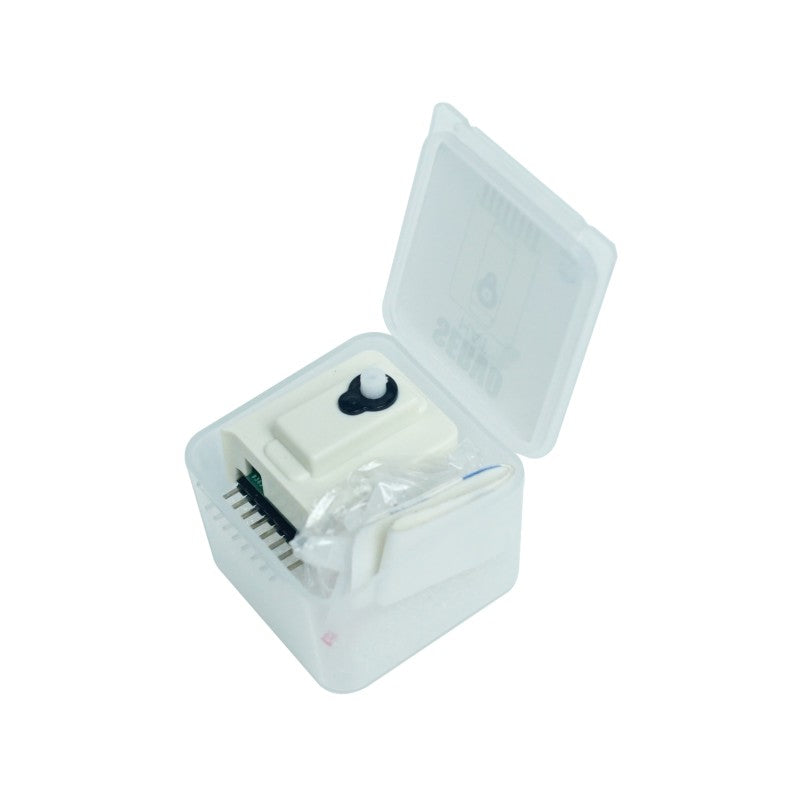

Includes
- 1 x Hat Servo
- 1 x Servo accessory kit
Applications
- Simulated Pointer
- Angle Control
- Servo Systems
Specifications
| Specification | Parameter |
|---|---|
| No-Load Speed | 0.12s/60° |
| No-Load Current | Maximum 65mA |
| Product Size | 35.0 x 24.0 x 22.0mm |
| Product Weight | 9.0g |
| Package Size | 136.0 x 92.0 x 22.0mm |
| Gross Weight | 19.0g |
