[EOL] M5StickC Proto Plus Hat

SKU:U060-B

Regular price $1.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

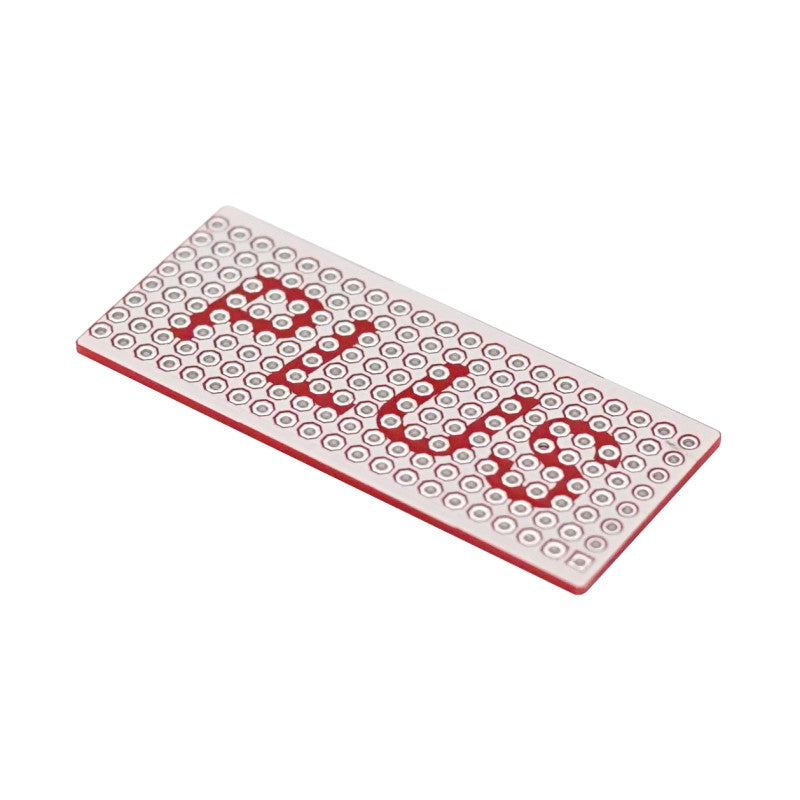

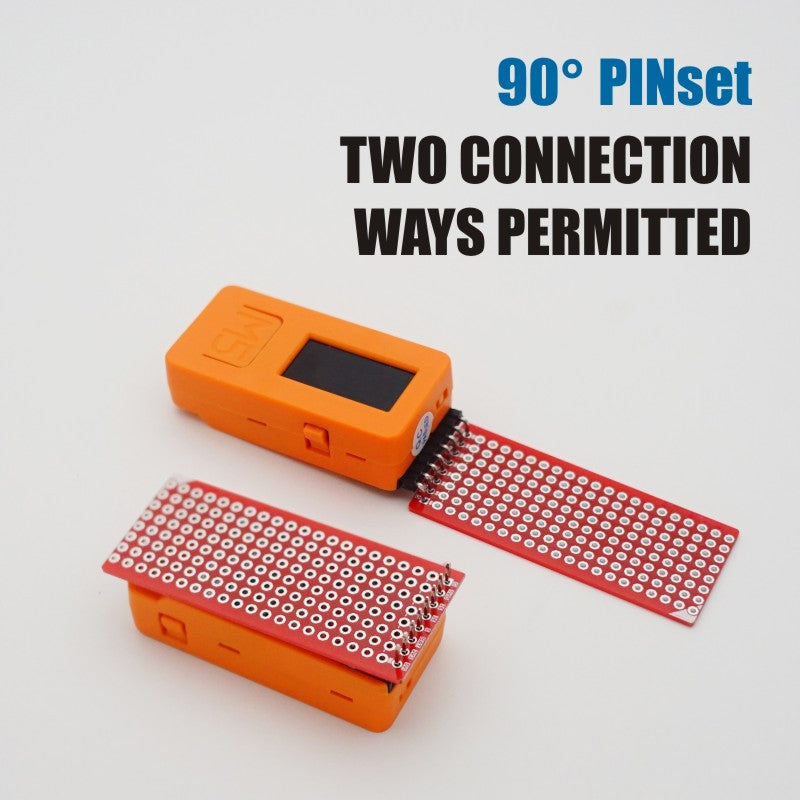

PROTO PLUS HAT is a universal proto board compatible with M5StickC. Compared to the previous PROTO HAT, "PLUS" is designed to provide a larger board area. Combined with the 8 pin header, you can have more add-ons for your M5StickC. The expansion interface is fully connected to the universal board, allowing the user to freely design the circuit on the board. The 90° pin header enables the proto board to be spliced with the M5StickC at various angles. If you plan to add circuit design to your project and hope to achieve space saving by changing the way the board is spliced, HAT PROTO PLUS will be a good choice.

This product is EOL now.

Product Features

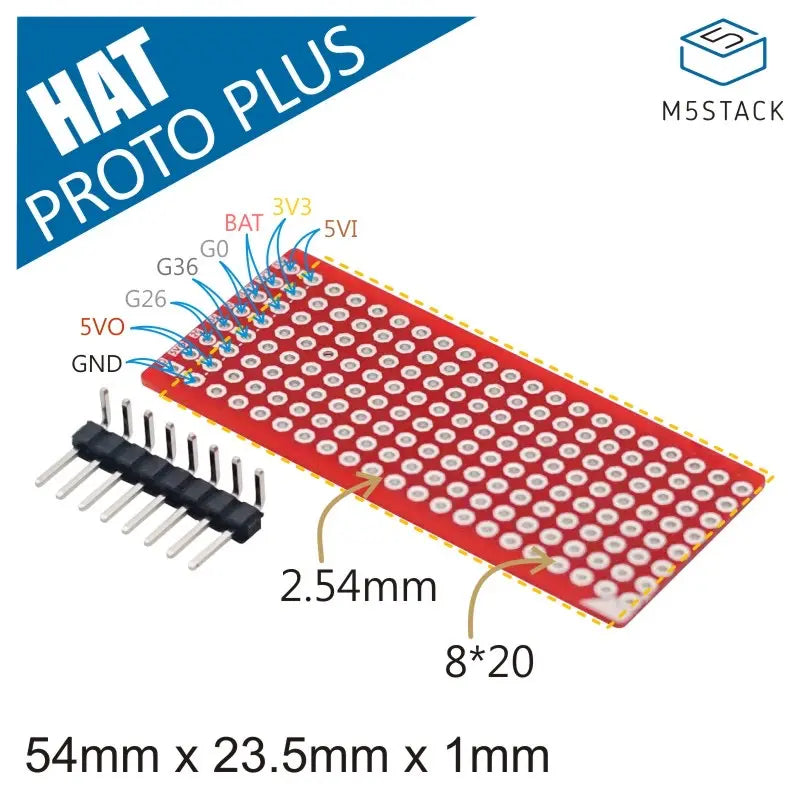

  • Hole Size: 0.039" 1mm (CNC Drilled)
  • Hole Pitch: 0.1 in - (2.54 mm)
  • Entire Hole Quantity: 168 Holes

Include

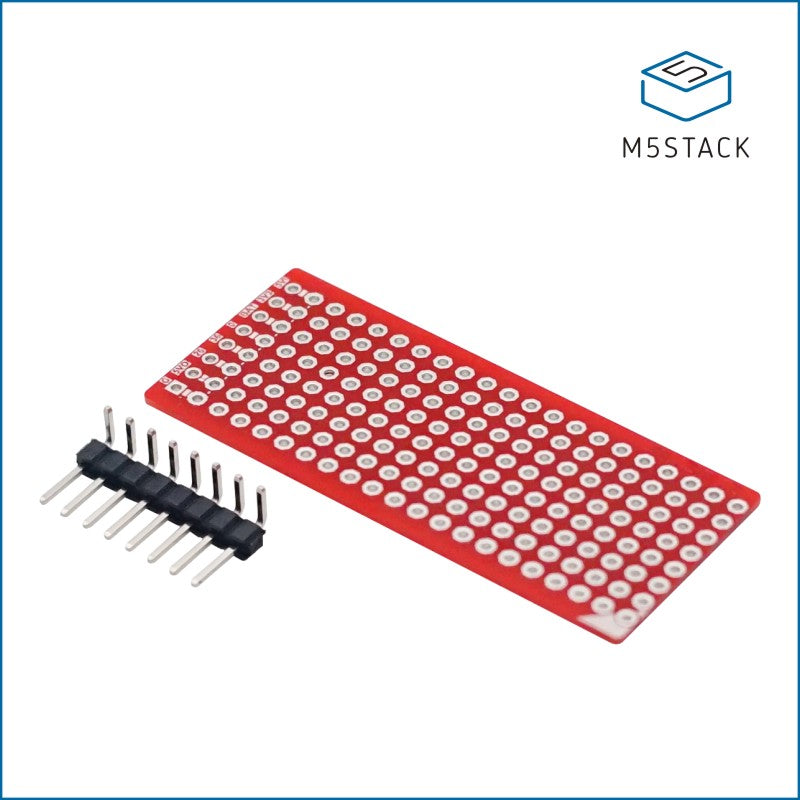

  • 1x PROTO PLUS HAT
  • 1x 8 pin header(90°)

Applications

  • Prototyping
  • Related work by M5 User: view

Specification

Resources Parameter
Net weight 2g
Gross weight 12g
Product Size 54*23.5*1mm
Package Size 68*53*12mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • A robot that standing with steel linear of motors.
