Description

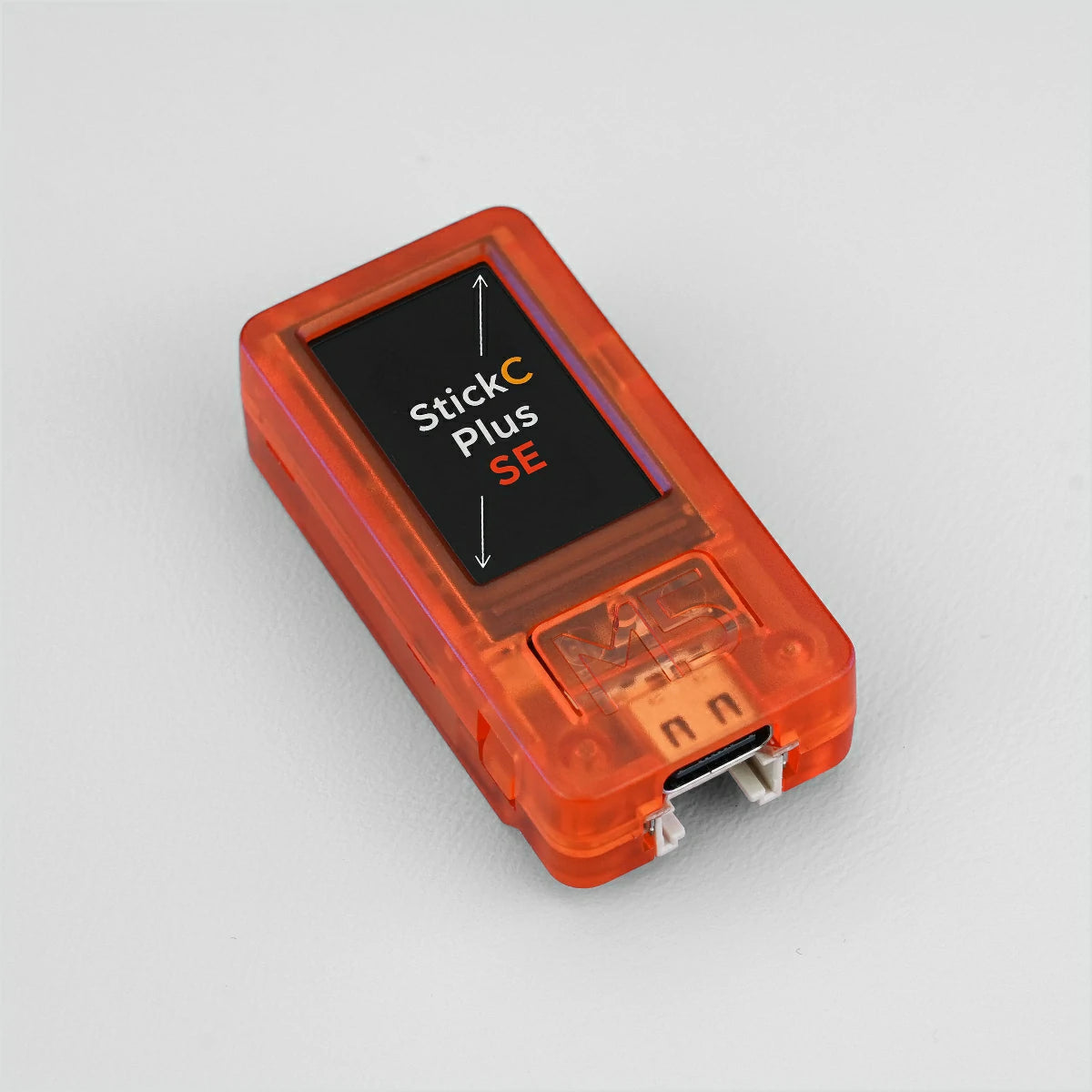

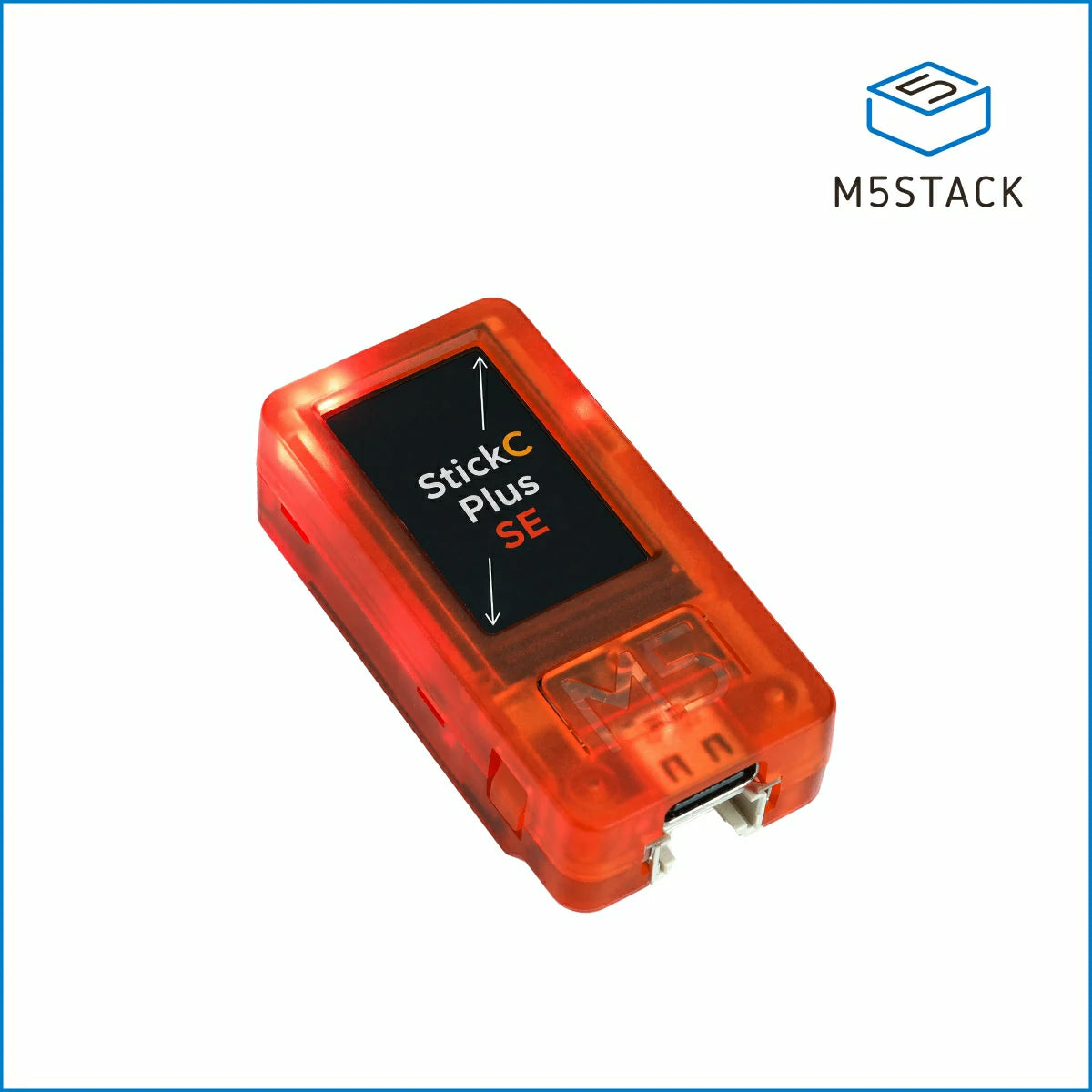

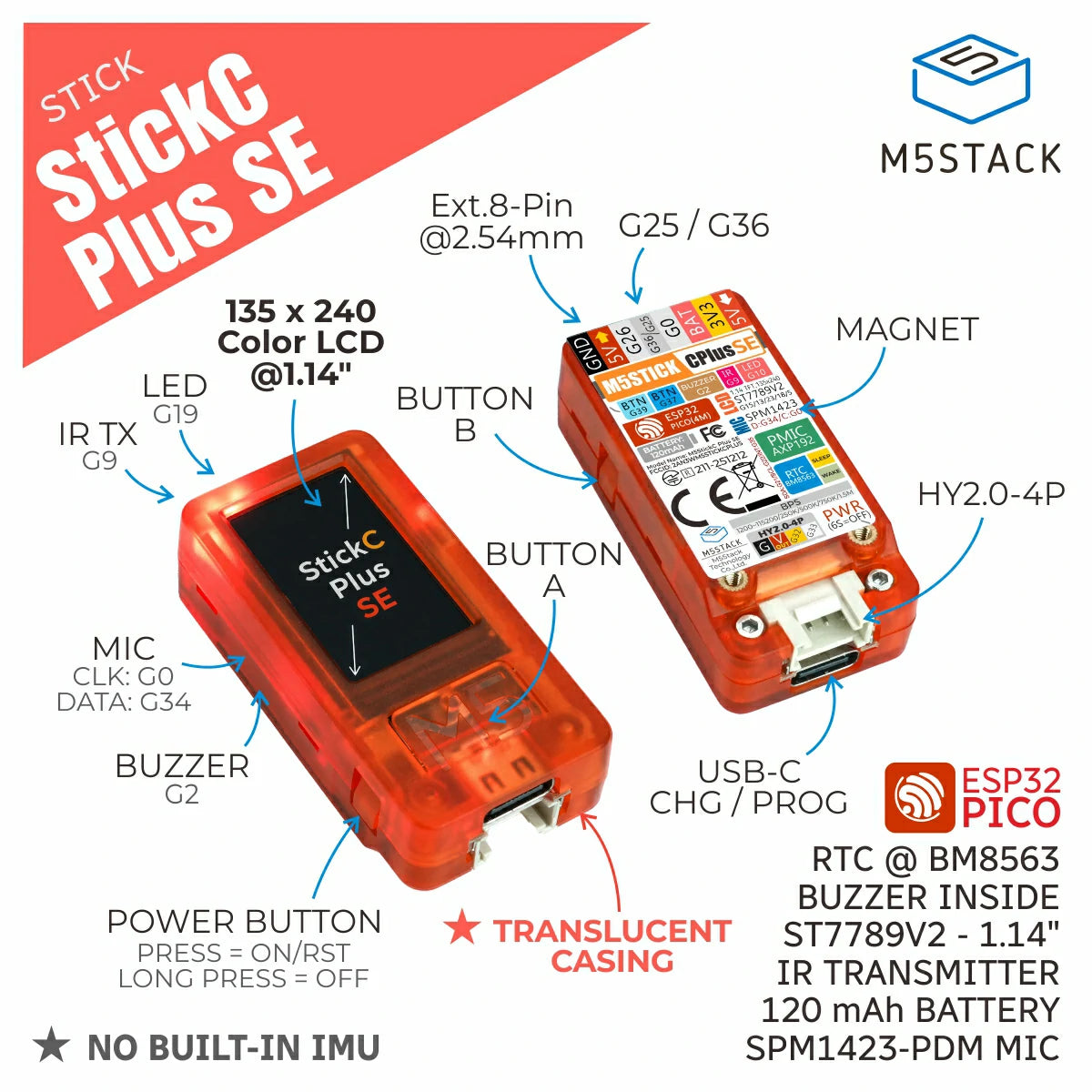

StickC-Plus SE is a lightweight version of StickC-Plus. It retains the core features while removing the onboard 6-axis IMU sensor, offering better cost efficiency. The enclosure features a new transparent orange design with a distinctive translucent appearance. Powered by the ESP32-PICO-D4 module, it supports 2.4 GHz Wi-Fi and integrates an infrared transmitter, RTC, onboard microphone, status indicator, customizable buttons, passive buzzer, and power management unit (PMU). It features a 1.14-inch color LCD with a 135 x 240 resolution for clear, detailed visuals. The built-in 120mAh battery and compatibility with Hat and Unit series expansion products provide flexible extensibility. This product is suitable for lightweight IoT development and simple creative projects that do not require motion sensing and prioritize cost efficiency.
Features
- ESP32-PICO-D4 main controller
- 4MB Flash
- 520KB SRAM
- 2.4 GHz Wi-Fi
- Onboard red status indicator
- Integrated infrared transmitter
- Built-in RTC module
- Onboard microphone
- Customizable buttons, LCD, power button, and reset button
- Built-in 120 mAh lithium battery
- Integrated passive buzzer
- Magnetic back; transparent orange enclosure
- Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
Applications
- Lightweight wearable devices
- IoT smart controllers
- Simple creative DIY projects
- Compact smart home control terminals
Specifications
| Specification |
Parameter |
| SoC |
ESP32-PICO-D4 @ Xtensa® 32-bit LX6 dual-core processor, clock frequency 240MHz |
| Flash |
4MB |
| SRAM |
520KB |
| Wi-Fi |
2.4 GHz Wi-Fi |
| Antenna |
2.4G 3D Antenna |
| Input Voltage |
5V@500mA |
| Battery |
Built-in 3.7V 120mAh lithium battery |
| Power Management |
AXP192 |
| Expansion Interface |
HY2.0-4P x 1, Hat-Bus 2.54-8P interface |
| LCD |
1.14-inch color TFT LCD, 135 x 240 resolution, ST7789v2 driver |
| Microphone |
SPM1423 |
| RTC |
BM8563 |
| IR |
Infrared transmission |
| Button |
Customizable button x 2 |
| LED |
Red LED x 1 |
| Buzzer |
Onboard passive buzzer |
| Operating Temperature |
0 ~ 60°C |
| Product Size |
48.0 x 24.0 x 8.4mm |
| Product Weight |
17.0g |
| Package Size |
104.4 x 65.0 x 18.0mm |
| Gross Weight |
25.3g |
