[EOL] M5StickC NeoFlash Hat

This product is EOL.

Description

Hat NeoFlash is a matrix RGB LED panel specifically designed for M5SticKC. This PCB board, with a size of only 58x23.5mm, embeds a total of 126 programmable RGB LEDs (WS2812), allowing users to freely set its color and brightness. Besides achieving cool colorful lighting effects, its 7x18 matrix design provides a good digital display experience. When using the panel for data display applications, the accompanying dark brown acrylic board can effectively enhance the display effect. With the included/default two 90° bent pin headers, Hat NeoFlash can be mounted on the M5StickC at two angles. If you plan to add a delicate and compact LED matrix screen to your project, Hat NeoFlash would be a great choice.

Features

• Three primary colors for a single pixel:
  • Achieves 0 ~ 256 levels of brightness display
  • Completes 16,777,216 colors of true color display
  • 24-bit RGB control data: 8 bits for each color
• Number of RGB LEDs: 126
• Hole pitch: 0.1 in - (2.54 mm)
• Hole size: 0.039" 1mm (CNC process)
• Mounting method: Close to the back (default)/horizontal splicing
• Product size: 58 x 23.5 x 1mm
• Product weight: 2g

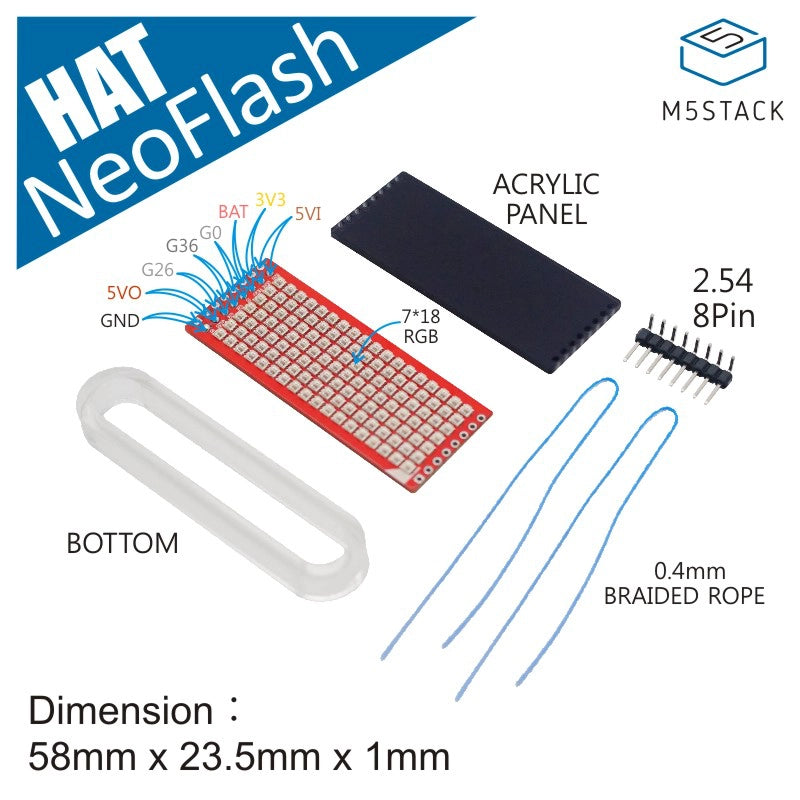

Includes

• 1 x Hat NeoFlash
• 2 x 2.54@8P bent pin headers (90°)
• 1 x 2mm dark brown acrylic board
• 2 x 15cm fixing wires (#71, 0.4mm)

Applications

• LED matrix display
• Digital clock
• Colorful light display

Specifications
