PRODUCT DETAILS
Description

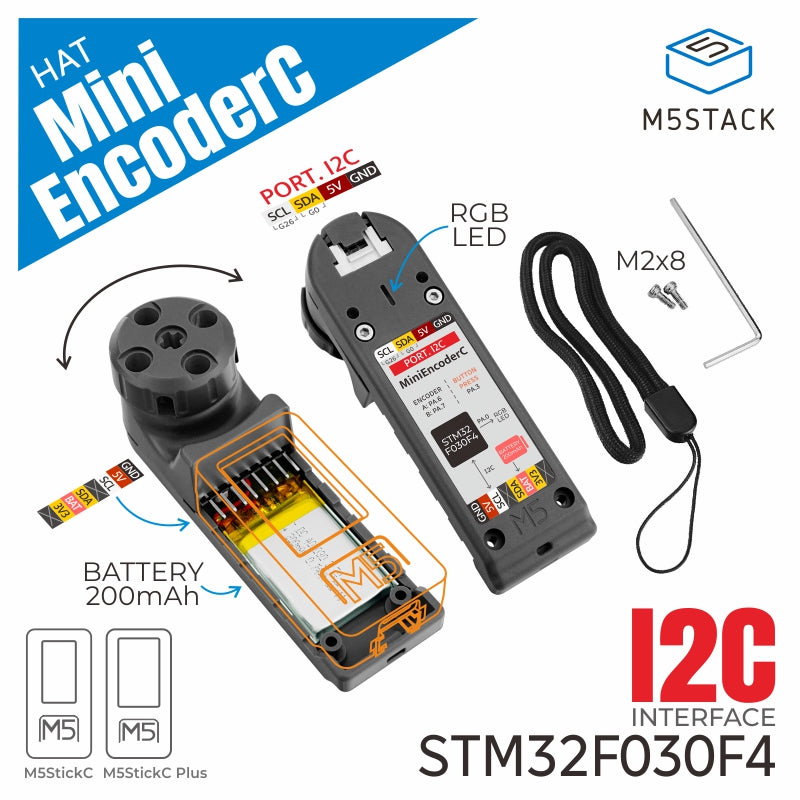

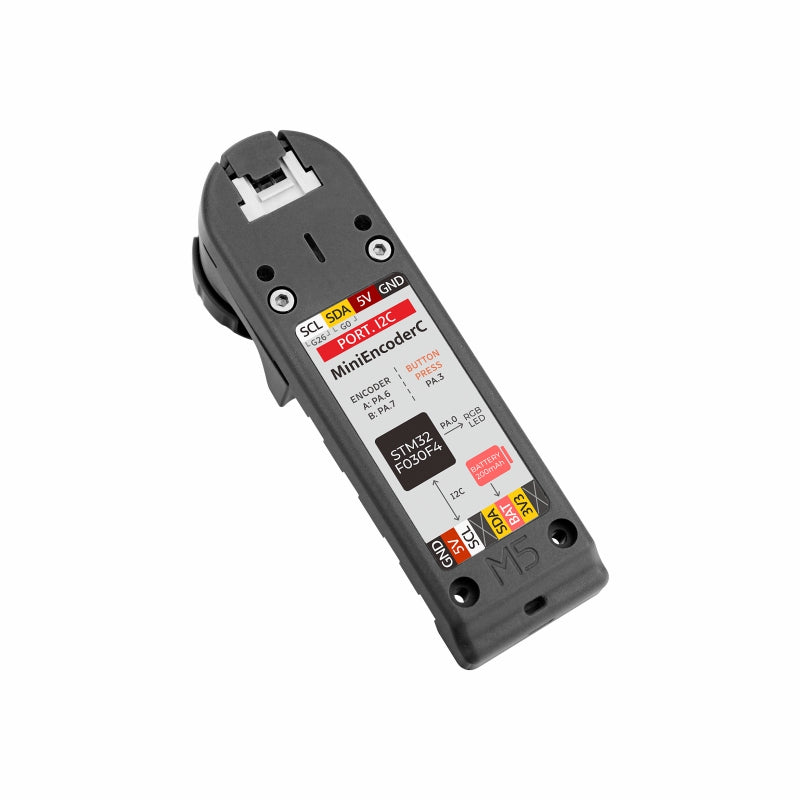

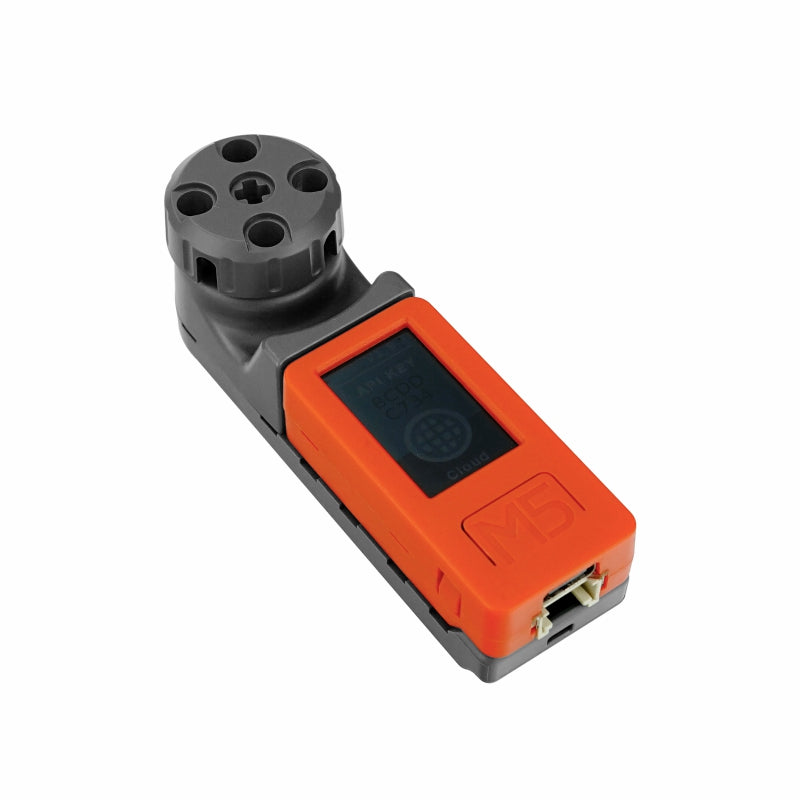

MiniEncoderC HAT is a rotary encoder extension base designed specifically for the M5StickC/C-Plus. It features a rotary AB encoder with a button function, allowing for precise and intuitive control. The HAT is equipped with a standard Lego hole, making it convenient for expanding with structural parts and accessories.

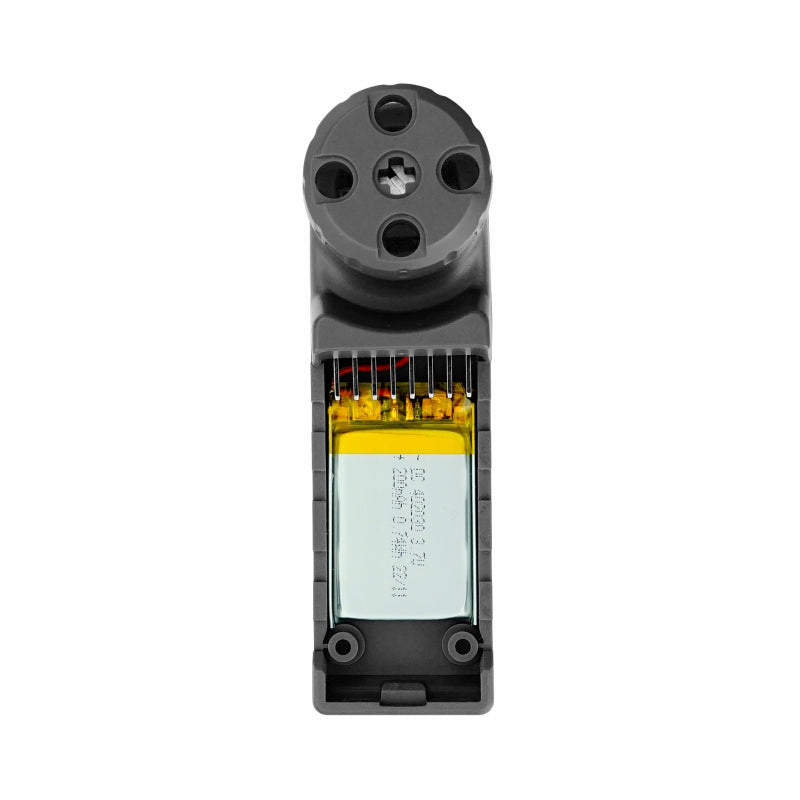

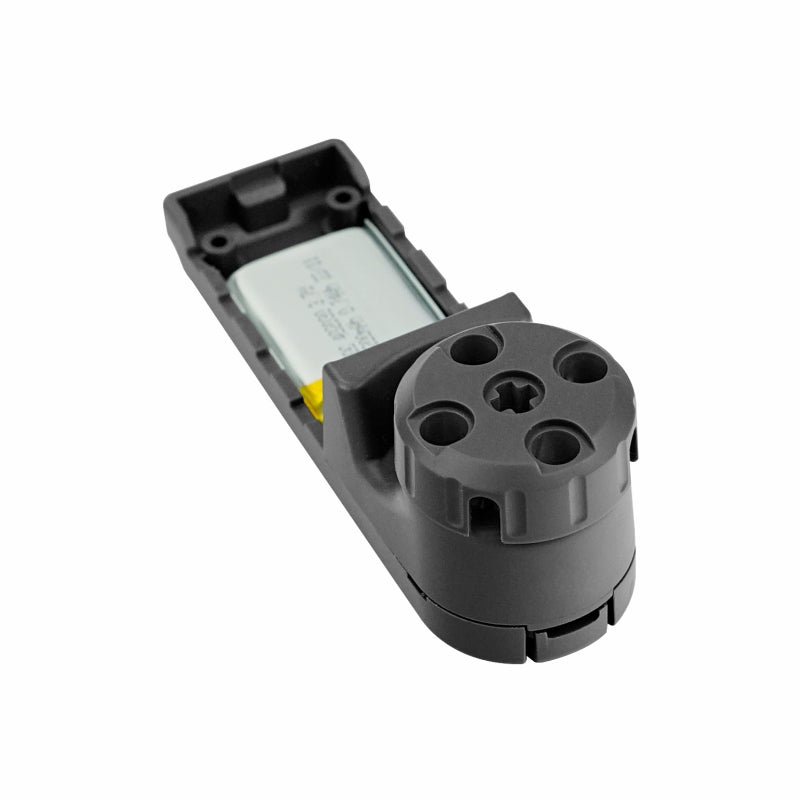

Included in the MiniEncoderC HAT is a 200mAh polymer lithium battery and an SK6812 RGB LED, providing additional functionality and visual feedback. This versatile product is well-suited for a range of applications, including remote adjustment of RGB lighting and remote control of robot joints.
With the MiniEncoderC HAT, users can easily fine-tune RGB lighting settings and control the movement of robot joints from a remote location. Its compact size and compatibility with the M5StickC/C-Plus make it an ideal choice for enhancing the functionality and interactivity of electronic projects.
Features
- 30-bit pulse coding knob (30 pulses per revolution)
- SK6812 programmable RGB LED
- Press the key input
- HY2.0-4P interface
- 4x LEGO connectors

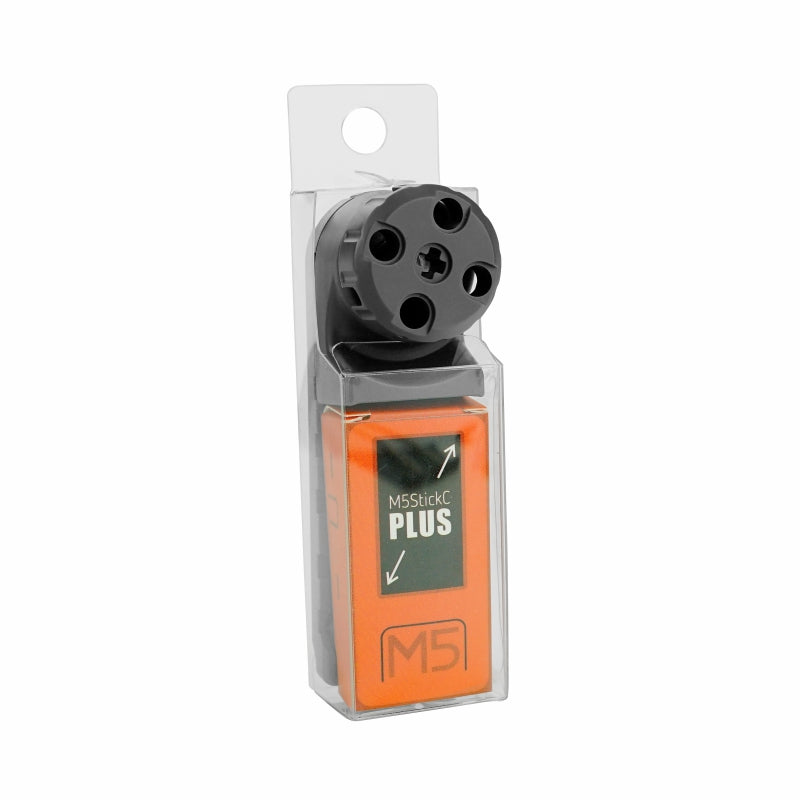

Includes
- 1x MiniEncoderC HAT
- 1x lanyard
Applications
- Adjust the lights remotely
- Remote control of robot joints

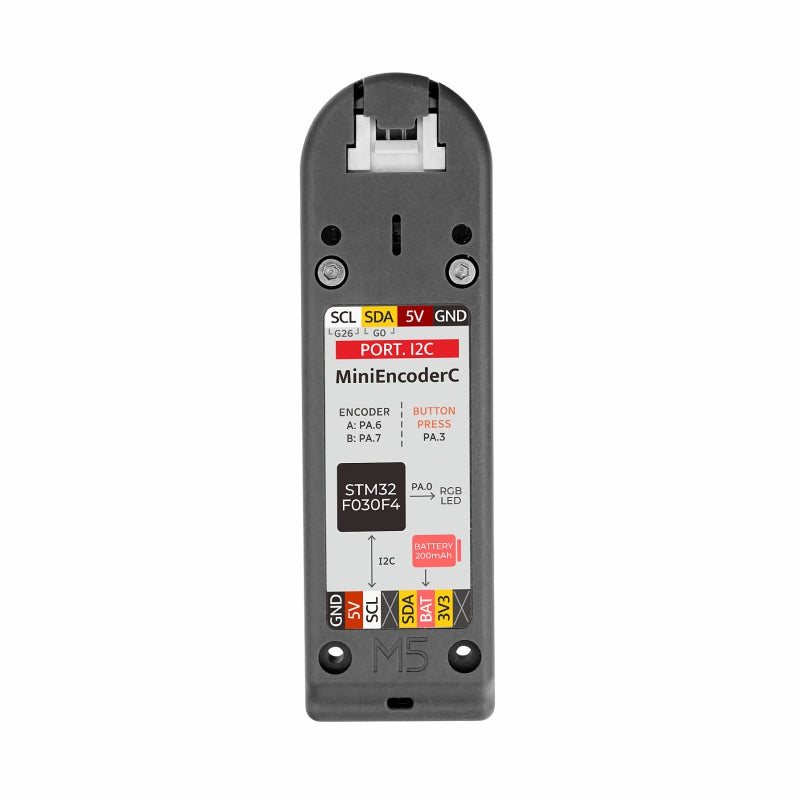

Specification
| Resources | Parameters |
|---|---|
| MCU | STM32F030F4P6 |
| support voltage | 3.3V |
| RGB | SK6812-3535 |
| Battery level | 200mAh |
| Product Size | 81.05mm × 29mm × 24mm |
| Package Size | 101mm × 27mm × 22mm |
| Product Weight | 19.3g |
| Package Weight | 24.5g |
