[EOL] M5StickC ENV Hat (DHT12, BMP280, BMM150)

SKU:U053

$5.95

EOL

Shipping calculated at checkout.

This product is EOL. Please order the new version Hat ENV-III

Description

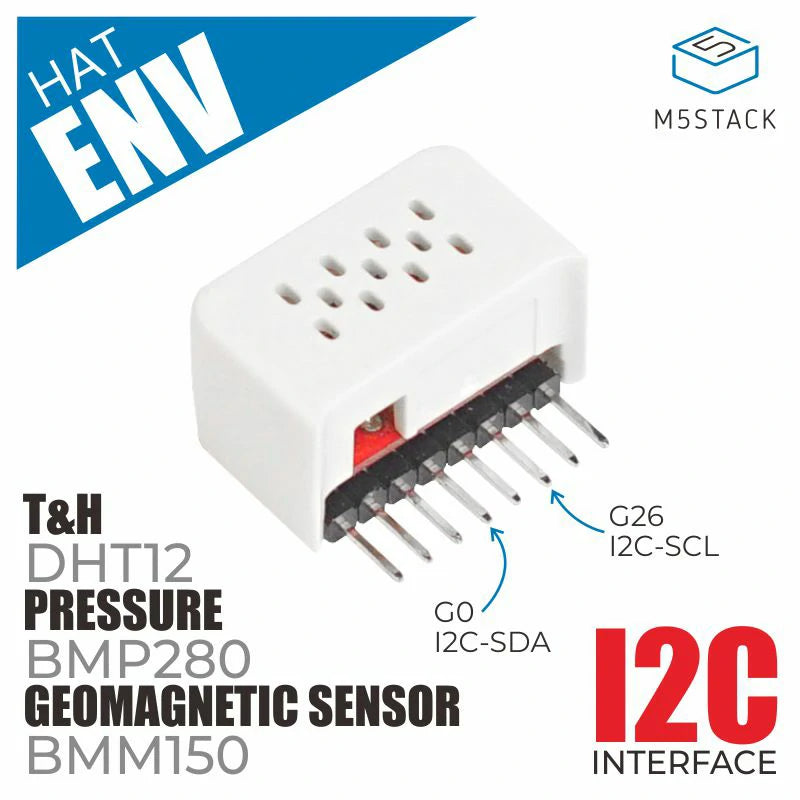

Hat ENV is a multifunctional environmental sensor compatible with M5StickC, integrating DHT12, BMP280, and BMM150 inside, capable of detecting temperature, humidity, atmospheric pressure, and triaxial magnetometer data. This module adopts a unified I2C protocol interface, which means minimal pin occupation. For projects that require both compact size and rich functionality, Hat ENV is a great choice.

Features

  • Temperature:
    • Measuring range: -20 ~ 60 ℃
  • Humidity:
    • Measuring range: 20 ~ 95 %RH
  • Atmospheric pressure:
    • Measuring range: 300 ~ 1100hPa
  • Typical magnetic field range:
    • ±1300μT (x,y axis), ±2500μT (z axis)
    • Magnetic field resolution is about 0.3μT

Includes

  • 1 x Hat ENV

Applications

  • Weather station
  • Compass

Specifications

Specification Parameter
Protocol I2C: DHT12 (0x5C), BMM150 (0x10)
Product Size 24.0 x 20.0 x 14.0mm
Product Weight 4.0g
Package Size 36.0 x 38.0 x 18.0mm
Gross Weight 8.0g
