[EOL] M5StickC ENV Hat II (SHT30, BMP280, BMM150)

SKU:U053-B

Regular price $10.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

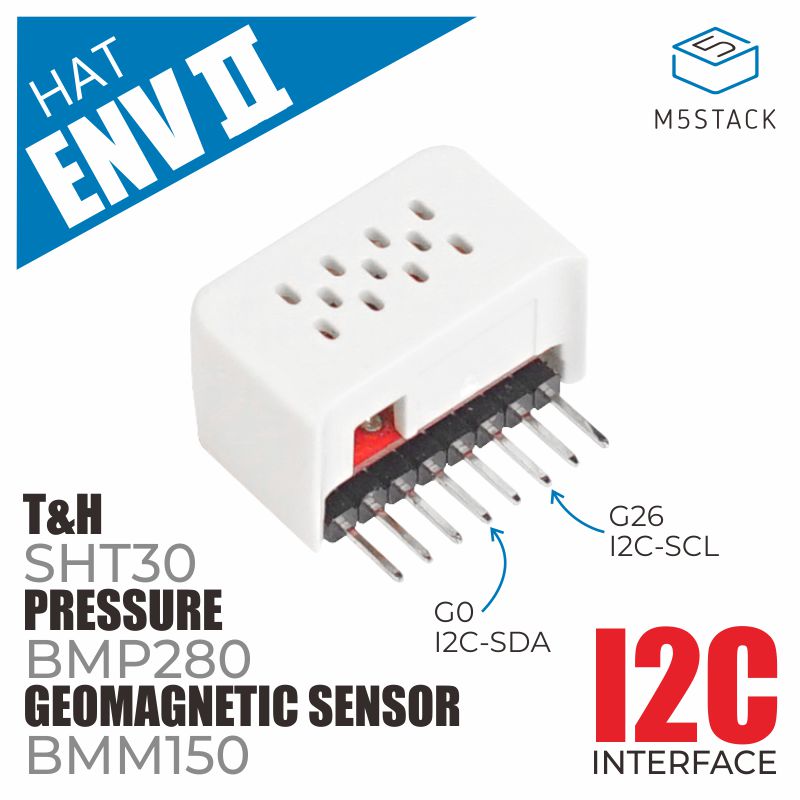

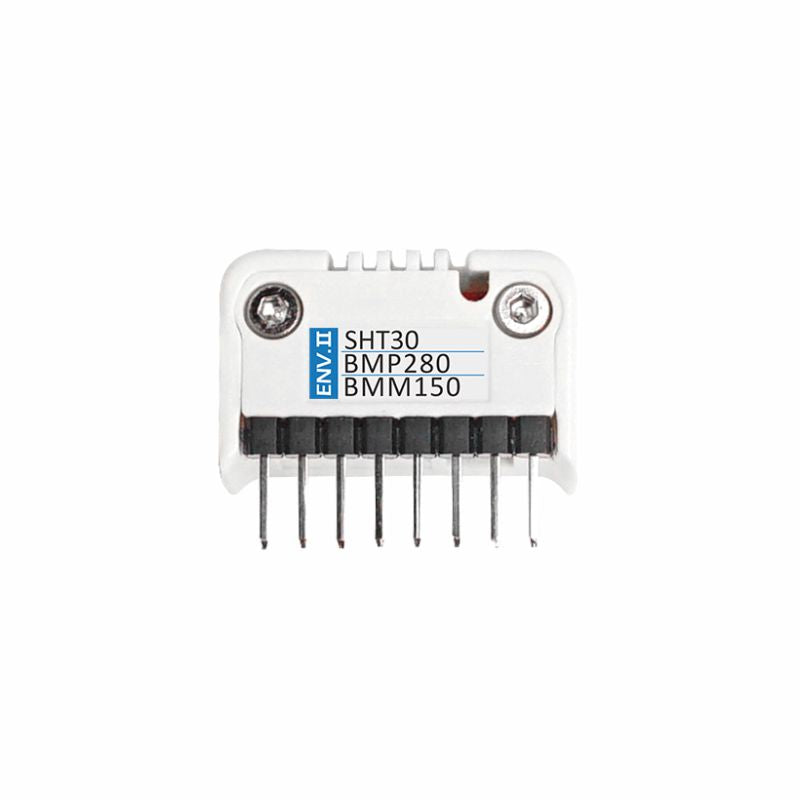

ENV II HAT is an environment sensor which can sense temperature, humidity and atmospheric pressure. It is built with SHT30, BMP280 and BMM150 sensors, it is programmed over I2C. SHT30 is a digital temperature and humidity sensor with high precision and low power consumption. BMP280 is an absolute barometric pressure sensor which is especially designed for mobile applications. BMM150 is a magnetometer, which can be used to monitor the change of magnetic field and the direction of magnetic field.It offers the highest flexibility to optimize the device regarding power consumption, resolution and filter performance.

Product Features

  • Measurement of temperature, humidity, air pressure and magnetic field
  • High reliability and long-term stability
  • High-precision

Include

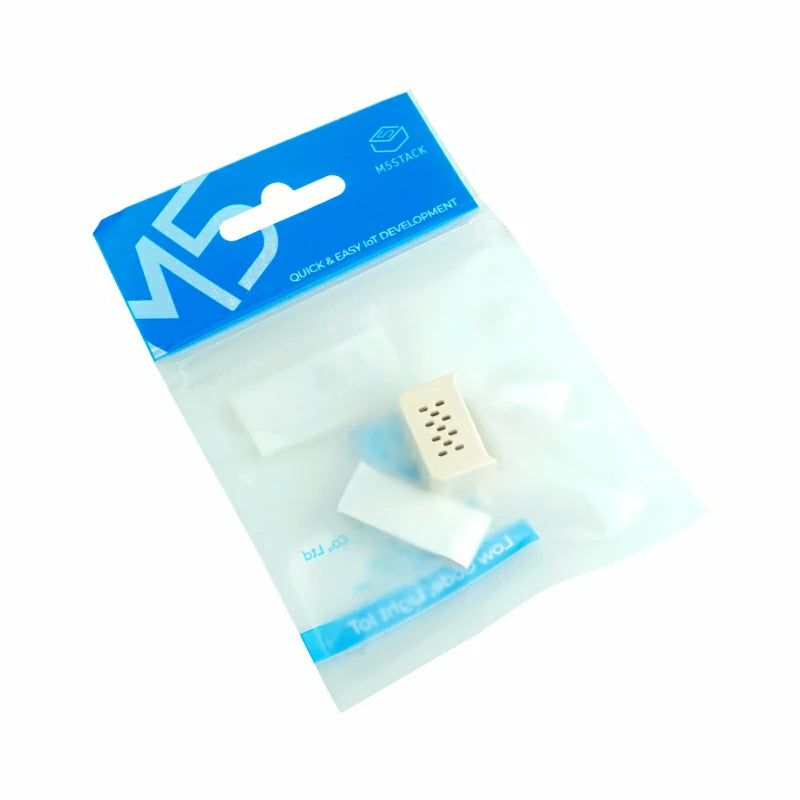

  • 1x ENV II HAT
  • 1x Double faced adhesive tape

Applications

  • Weather station
  • Storage barn environment monitoring

Specification

Resources Parameter
Max temperature measuring range -40 ~ 120 ℃
Typical temperature tolerance 0 ~ 60 ℃/±0.2℃
Humidity measuring range 10 ~ 90 %RH / ±2%
Air pressure measuring range 300 ~ 1100hPa / ±1hPa
Communication protocol I2C:SHT30(0x44),BMP280(0x76),BMM150(0x10)
Operating temperature range 0°C to 60°C
Magnetic field range typical ±1300μT (x, y-axis), ±2500μT (z-axis), resolution 0.3μT
Net weight 4g
Gross weight 8g
Product Size 15*24*14mm
Package Size 35*36*18mm
Case material Plastic ( PC )
