M5StickC DAC HAT MCP4725

SKU:U068

Regular price $4.95

Out Of Stock

Shipping calculated at checkout.

Description

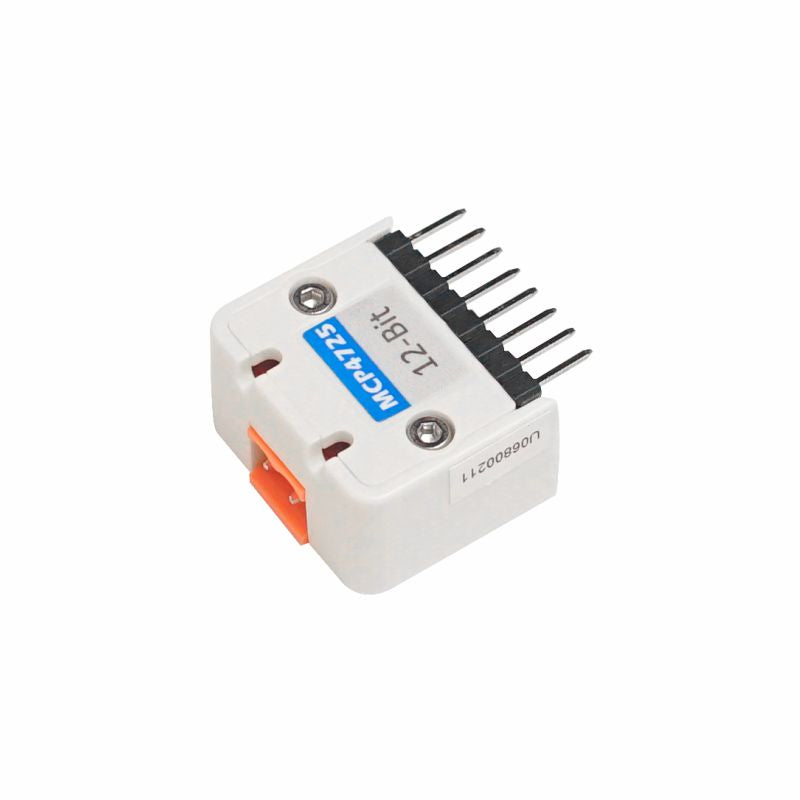

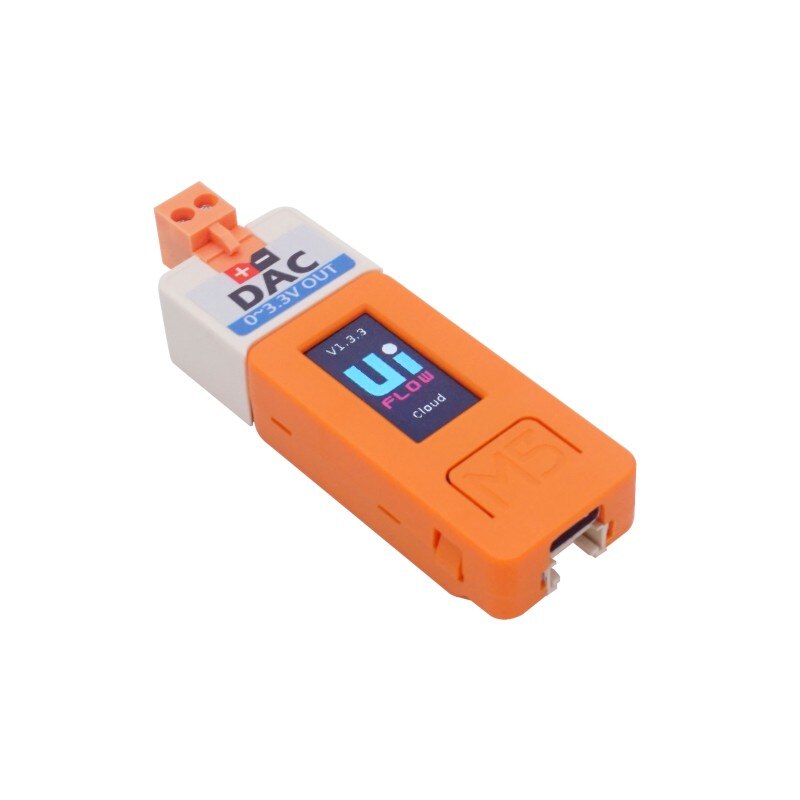

DAC Hat is a DA (digital-to-analog) conversion module compatible with M5StickC. It integrates the MCP4725 DAC conversion chip, offering low power consumption, high precision, a single channel, and a 12-bit buffered voltage output DAC. It also includes non-volatile memory (EEPROM) functionality.

The on-chip precision output amplifier allows for rail-to-rail analog output swing. Users can utilize the I2C interface commands to input DAC values and configure settings, which are then written to the non-volatile memory (EEPROM). This ensures that the DAC retains its settings even during power loss and can be used directly upon power-up. The I2C address for the DAC Hat is 0x60.

Product Features

  • Output: 0~3.3V
  • Software Development Platform: Arduino, UIFlow(Blockly, Python)

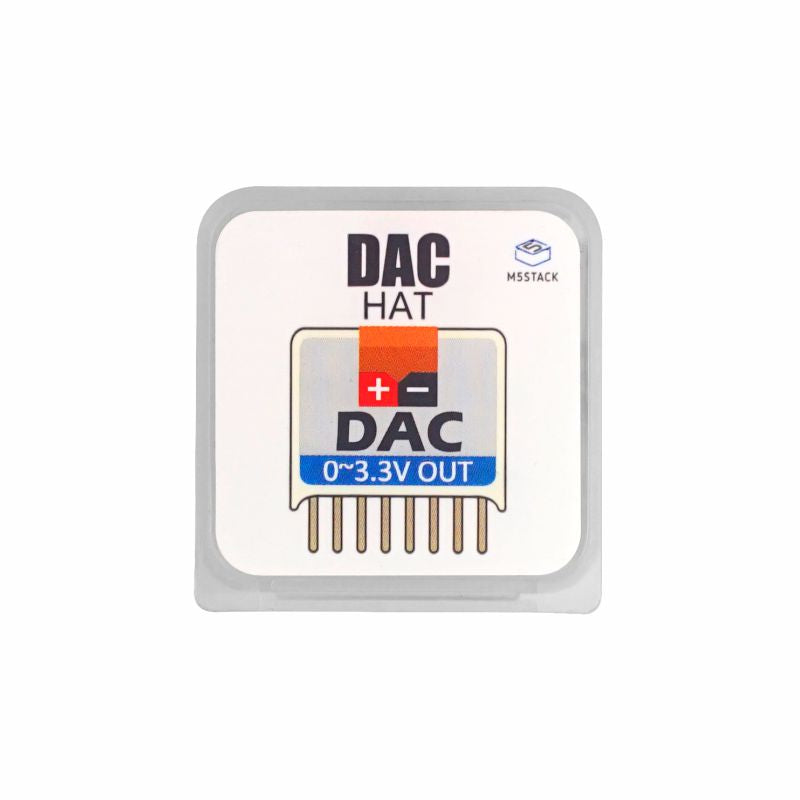

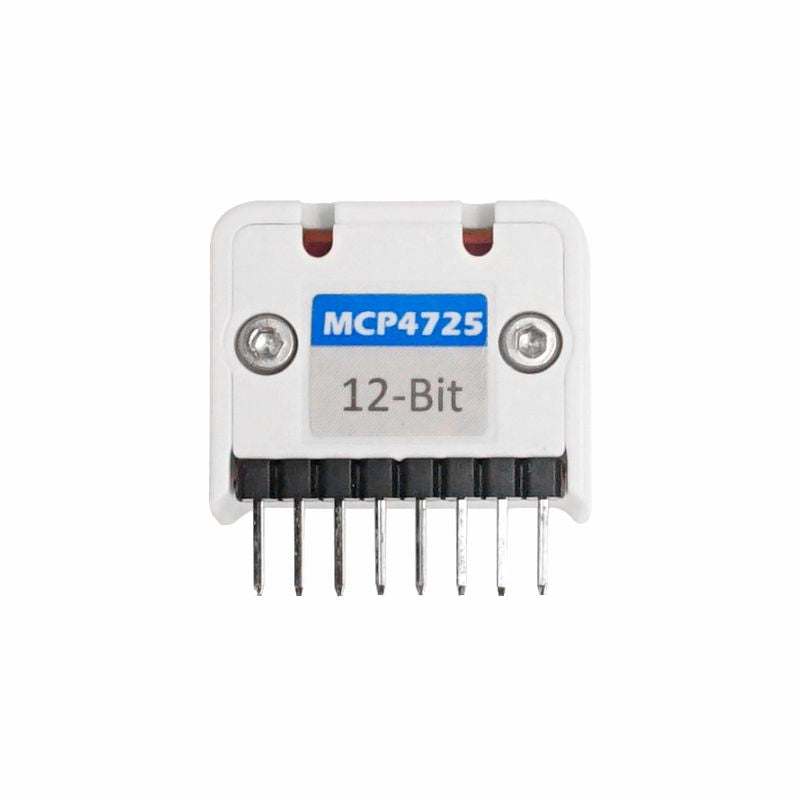

  • MCP4725
    • 12-BitResolution
    • External A0 Address Pin
    • Normal or Power-DownMode
    • Fast Settling Time of 6 μs (typical)
    • ExternalVoltageReference(VDD)
    • Rail-to-RailOutput
    • LowPowerConsumption
    • Single-SupplyOperation:2.7V to 5.5V

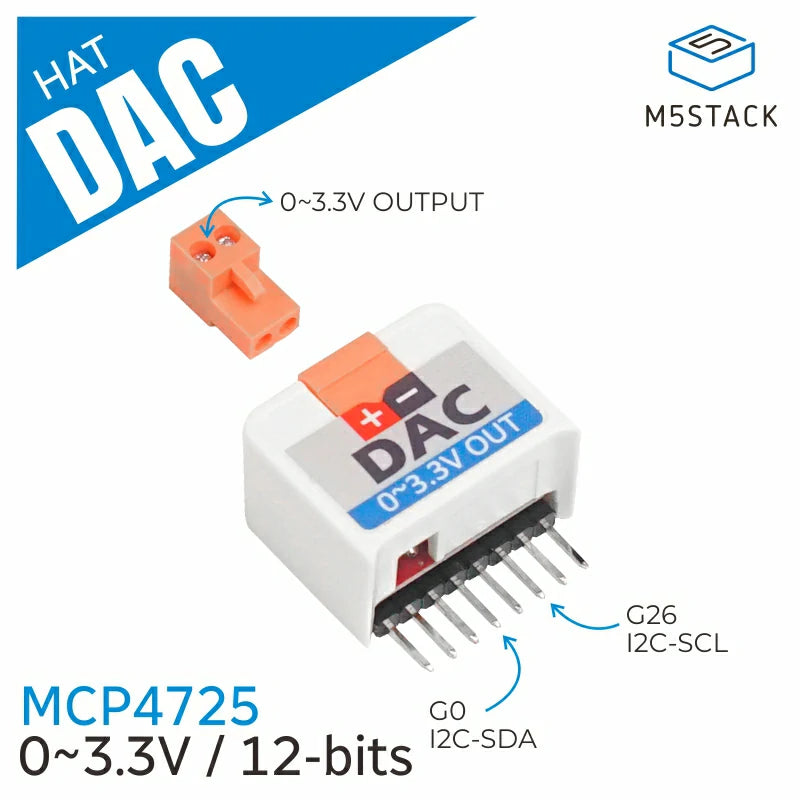

    • I2C Interface: address 0x60
    • ExtendedTemperatureRange:-40°Cto+125°C

Include

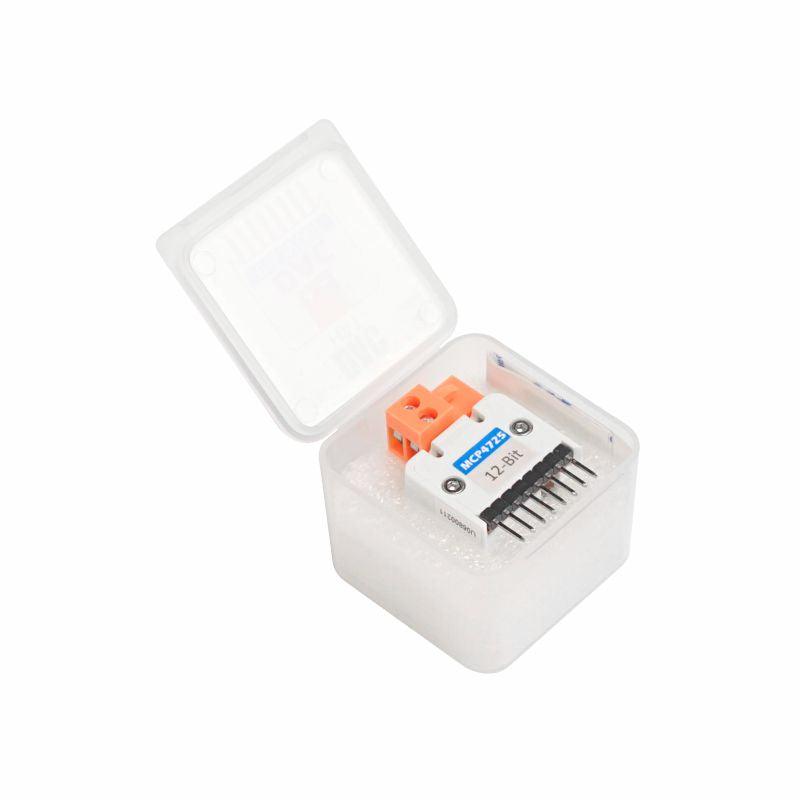

  • 1x DAC HAT

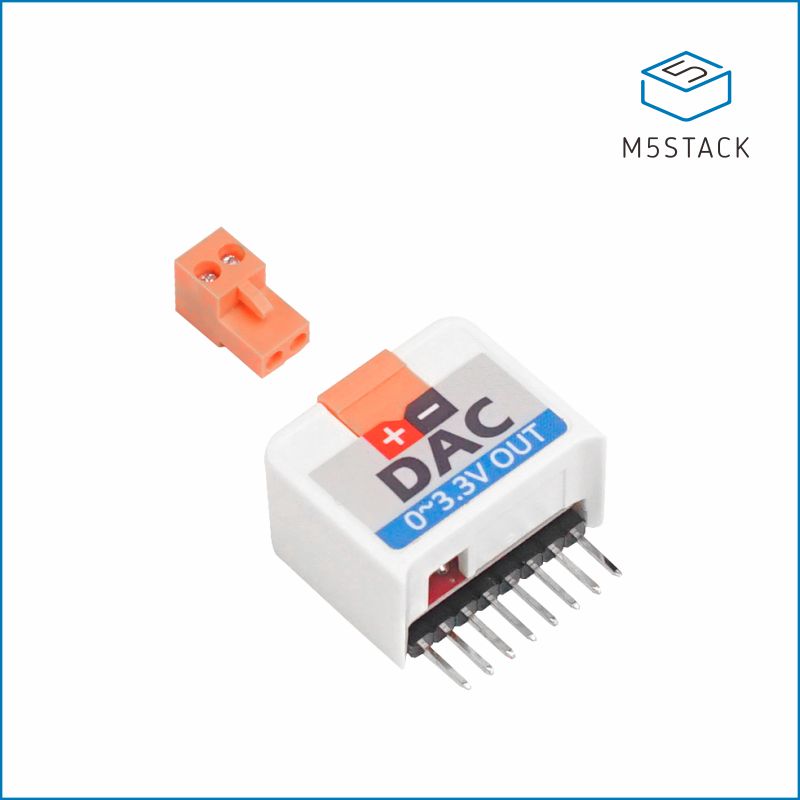

  • 1x 2 Pin 3.96 Pitch Terminal

Applications

  • SetPointerOffsetTrimming
  • SensorCalibration
  • Closed-LoopServoControl
  • LowPowerPortableInstrumentation • PCPeripherals
  • DataAcquisitionSystems

Specification

Resources Parameter
Net weight 6g
Gross weight 19g

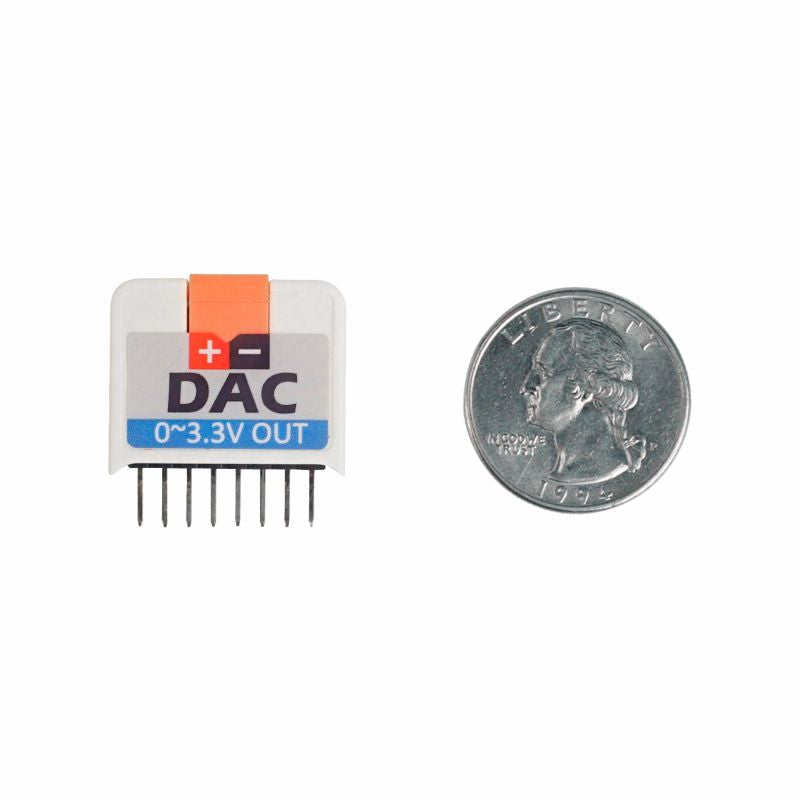

Product Size 24*25*13mm
Package Size 67*53*12mm
