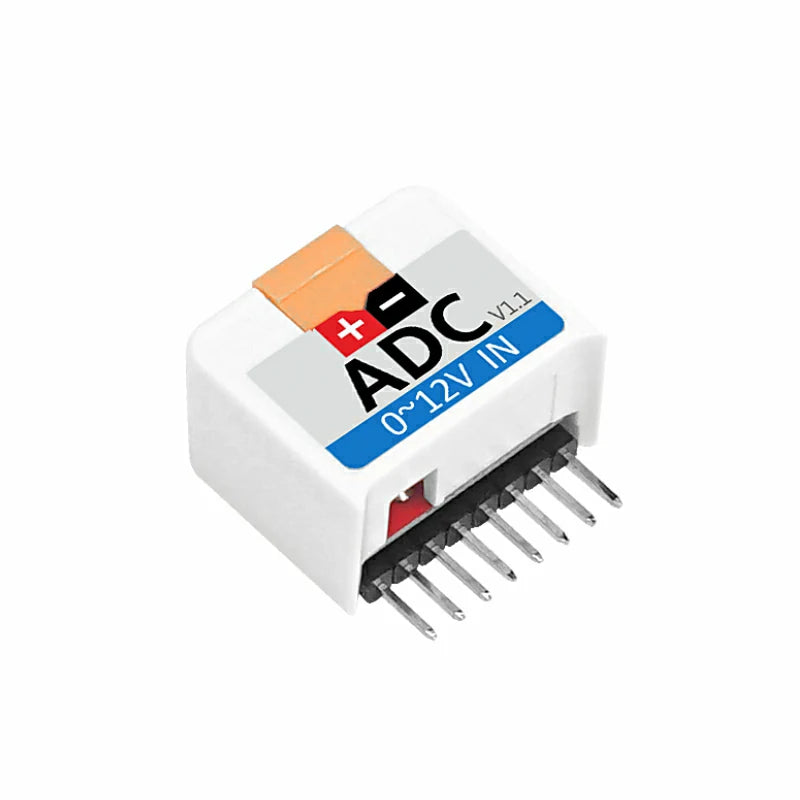

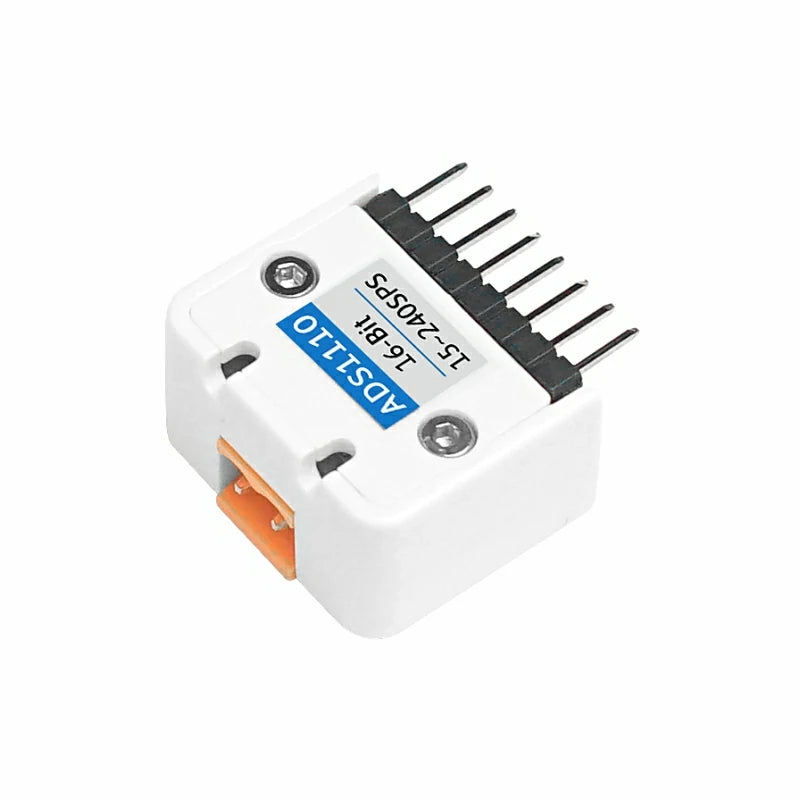

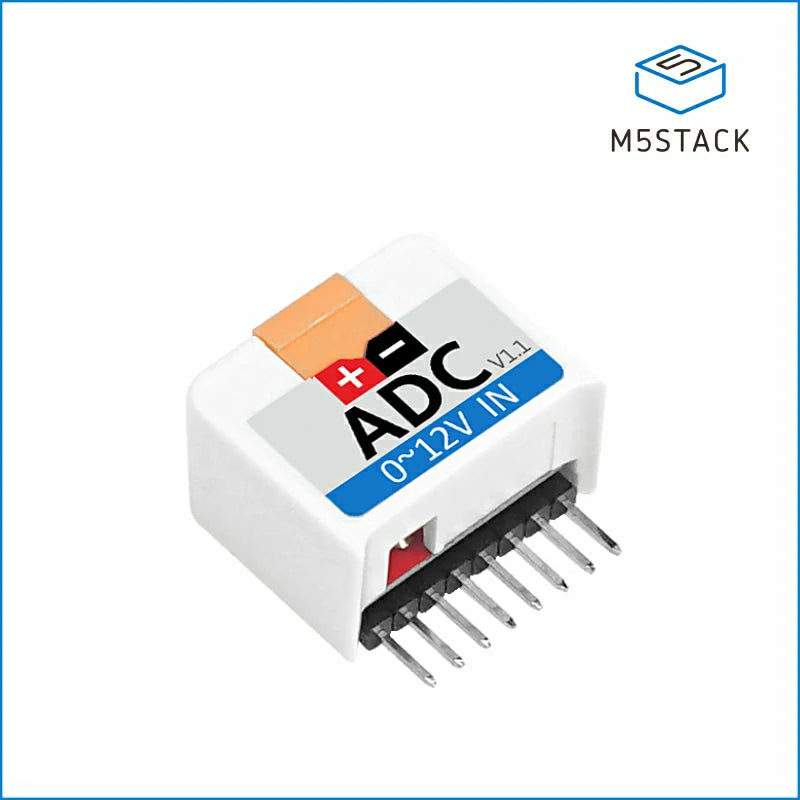

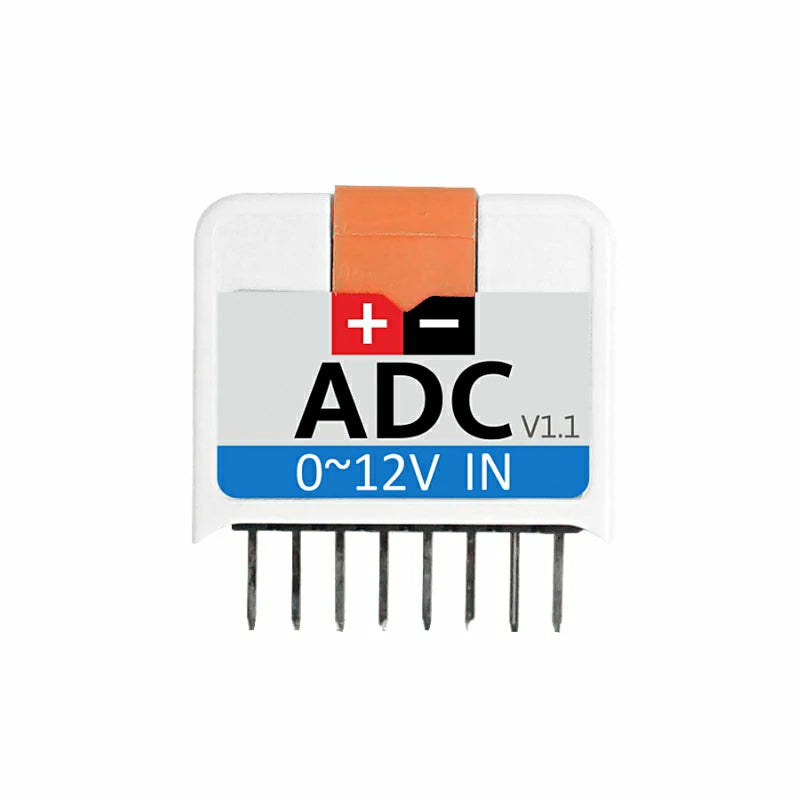

M5StickC ADC Hat ADS1110 V1.1

SKU:U069-V11

Regular price $10.95

10+ In Stock

Shipping calculated at checkout.

Description

ADC HAT V1.1 is another type of C-HAT specifically design for M5StickC controller. Same as ADC unit, this is an ADC converter component for stickc. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort.
The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface.
ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0~12V by adding on the peripheral circuit design of this IC.

Product Features

  • Input: 0-12V
  • Software Development Platform: Arduino, UIFlow(Blockly, Python)

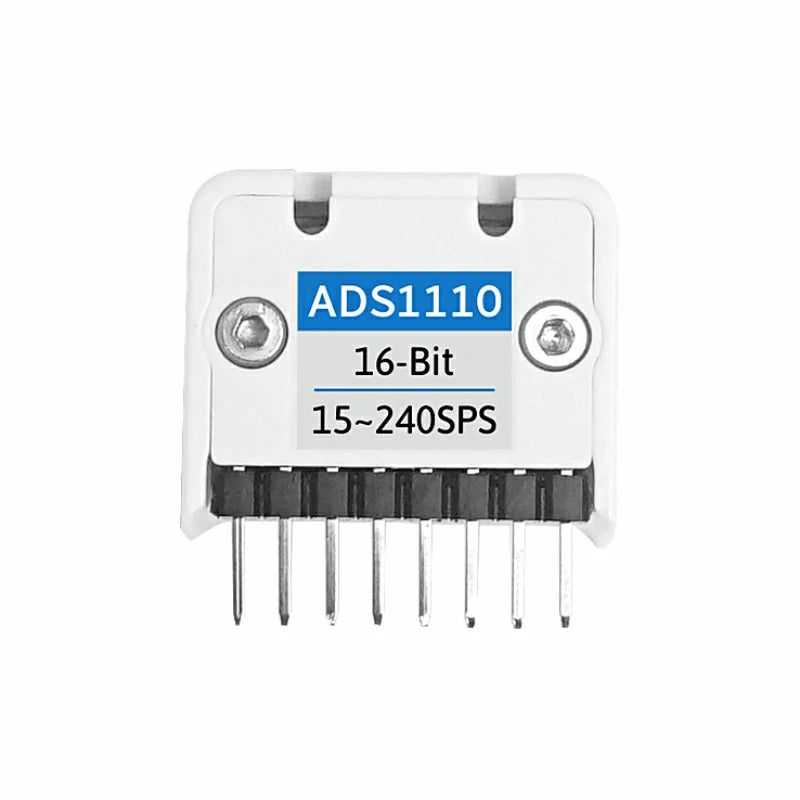

  • ADS1110
    • 16-bits Resolution
    • CONTINUOUS SELF-CALIBRATION
    • SINGLE-CYCLE CONVERSION
    • PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8
    • LOW NOISE: 4μVp-p
    • PROGRAMMABLE DATA RATE: 8SPS to 128SPS
    • INTERNAL SYSTEM CLOCK

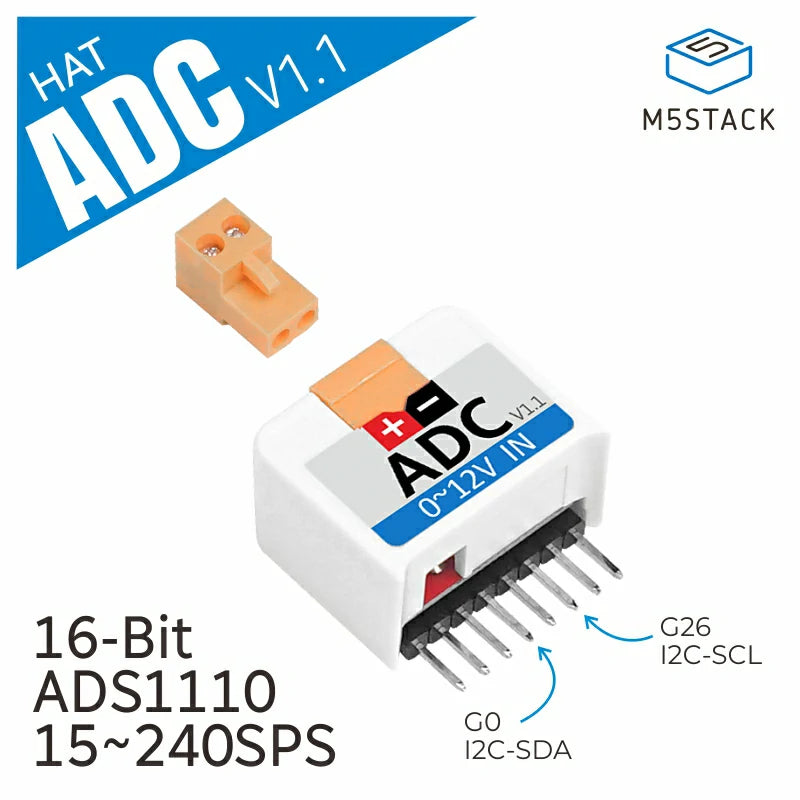

    • I2C INTERFACE: address 0x48

Include

  • 1x ADC HAT V11
  • 1x 2 Pin 3.96 Pitch Terminal

Applications

  • Analog Signal Capture

Specification

Resources Parameter
Net weight 6g
Gross weight 14g

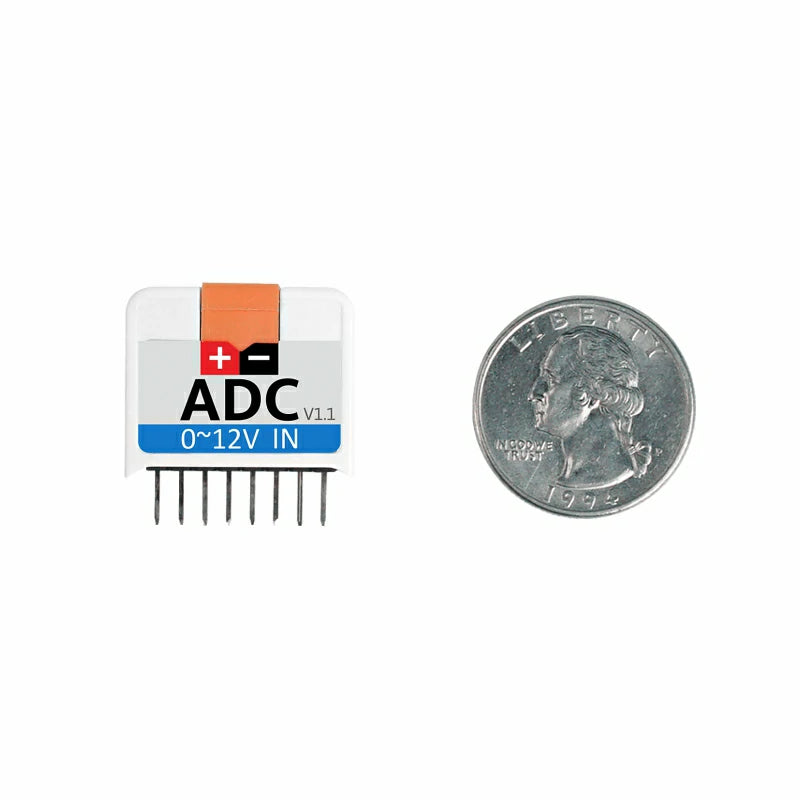

Product Size 24*25*13mm
Package Size 40*42*30mm
