M5StickC ADC HAT ADS1100

SKU:U069

Regular price $10.95

4 In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

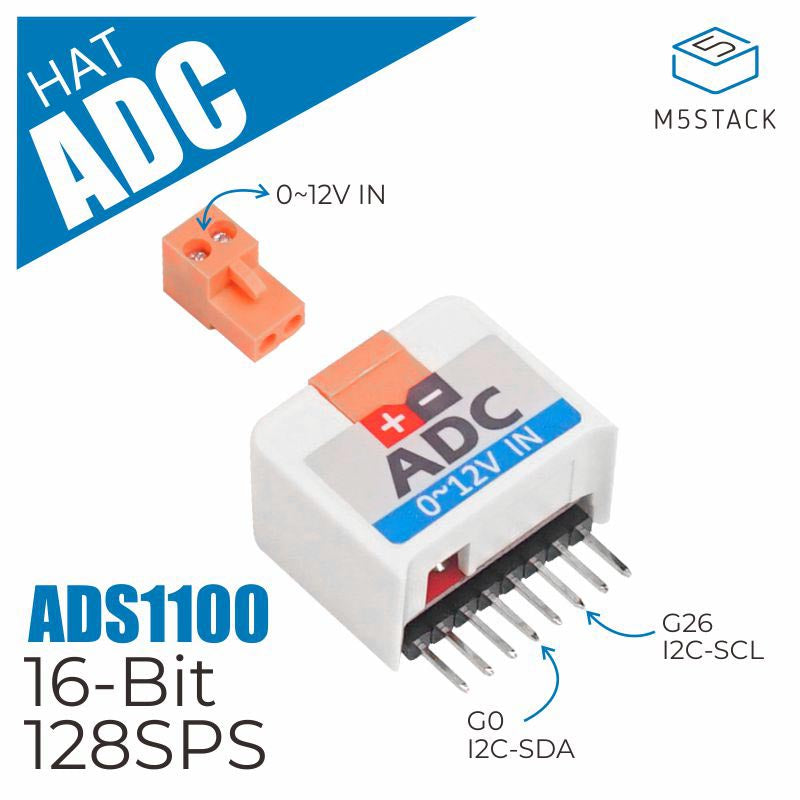

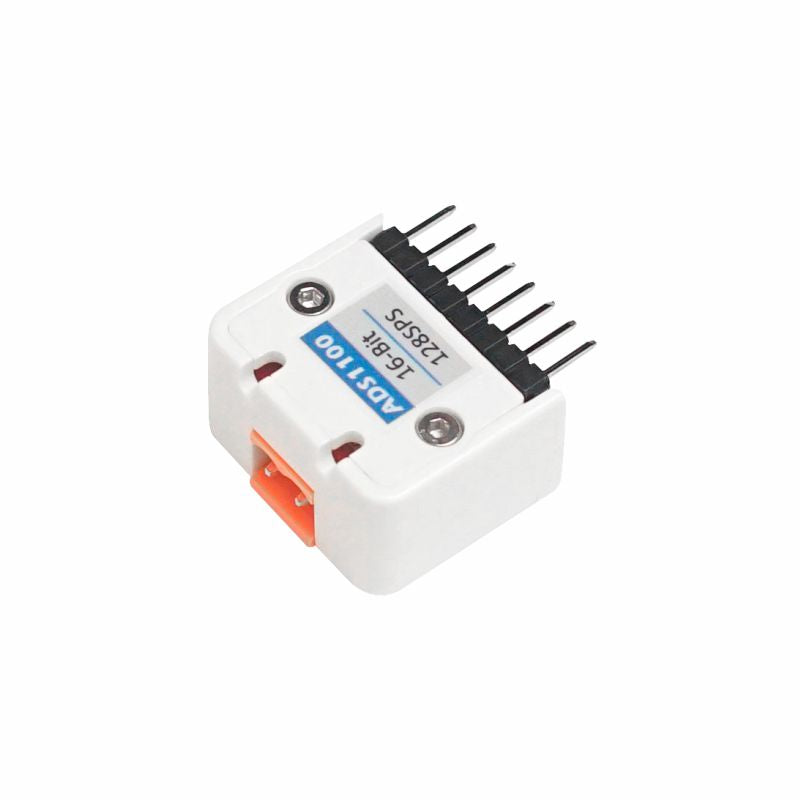

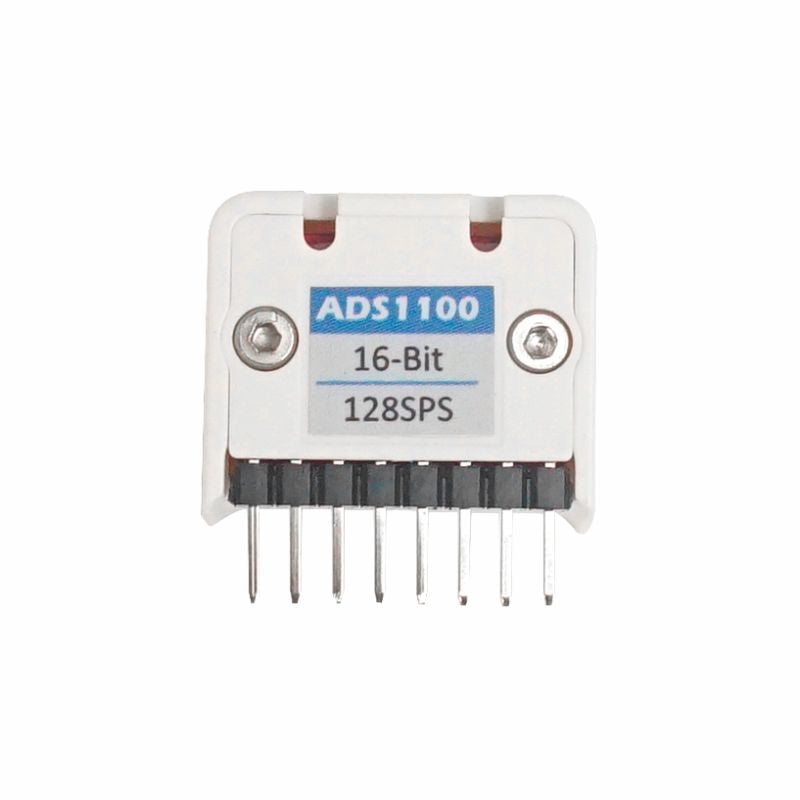

ADC Hat is an AD (analog-to-digital) conversion module compatible with M5StickC. It integrates the ADS1100 ADC conversion chip, which offers features such as fully differential, 16-bit resolution, self-calibration, and Δ-Σ modulation/demodulation for accurate measurement results.

The ADS1100 includes a Δ-Σ A/D converter core with adjustable gain, a clock generator, and an I2C interface. It allows for differential inputs ranging from -5V to +5V. However, through additional circuitry in the design of the module, the input range is limited to 0V to 12V.

With ADC Hat, users can easily obtain precise measurement results, thanks to its high-quality conversion capabilities and the flexibility of the M5StickC platform.

Product Features

  • Input: 0-12V
  • Software Development Platform: Arduino, UIFlow(Blockly, Python)
  • ADS1100
    • 16-bits Resolution
    • CONTINUOUS SELF-CALIBRATION
    • SINGLE-CYCLE CONVERSION
    • PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8
    • LOW NOISE: 4μVp-p
    • PROGRAMMABLE DATA RATE: 8SPS to 128SPS
    • INTERNAL SYSTEM CLOCK
    • I2C INTERFACE: address 0x48

Include

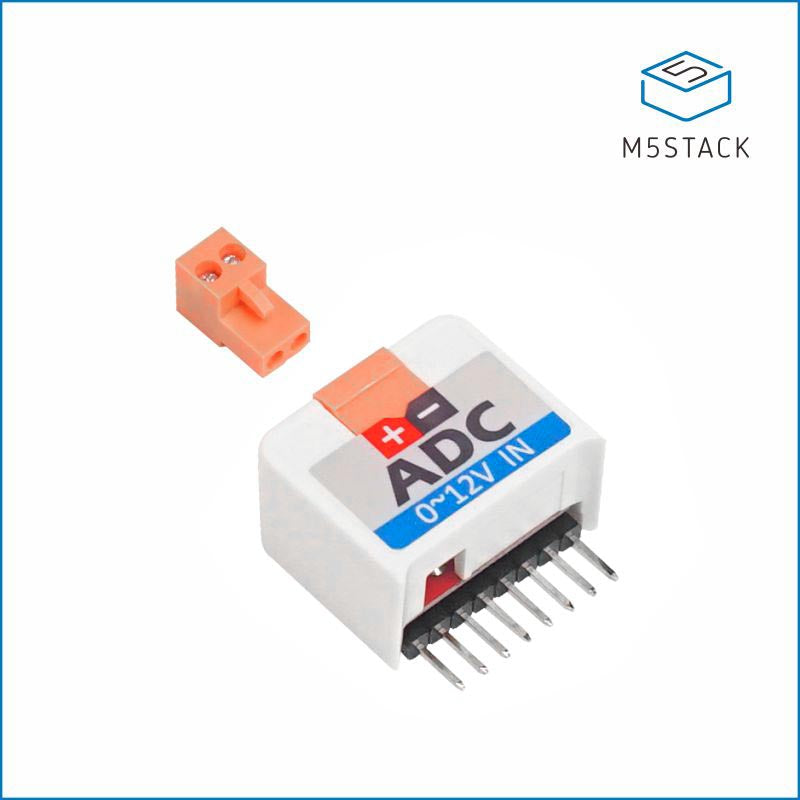

  • 1x ADC HAT
  • 1x 2 Pin 3.96 Pitch Terminal

Applications

  • Analog Signal Capture

Specification

Resources Parameter
Net weight 6g
Gross weight 14g

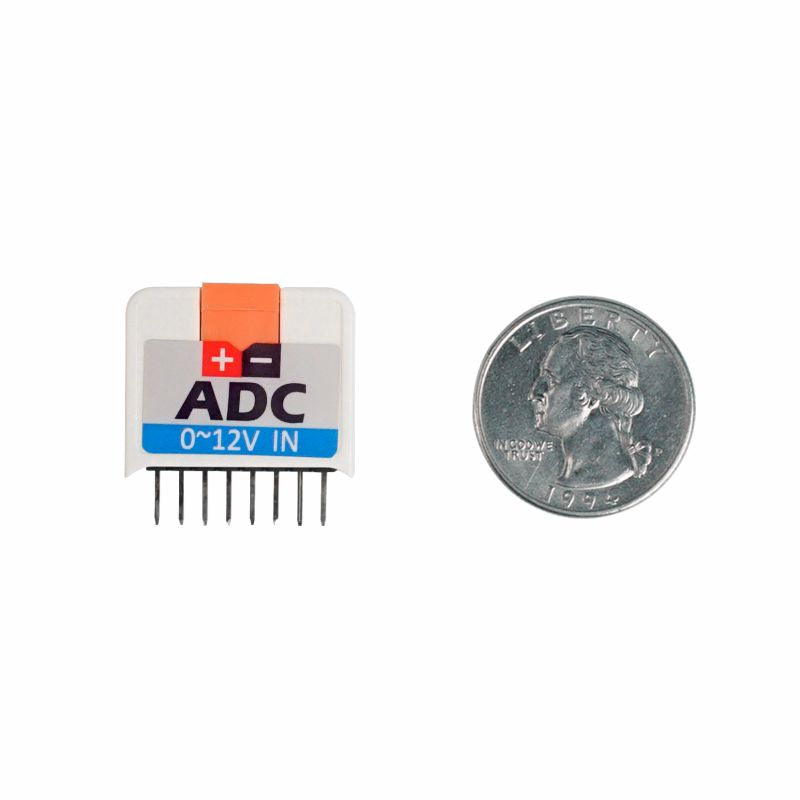

Product Size 24*25*13mm
Package Size 40*42*30mm
