[EOL] M5StickC 8Servos HAT

SKU:U076

Regular price $9.50

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

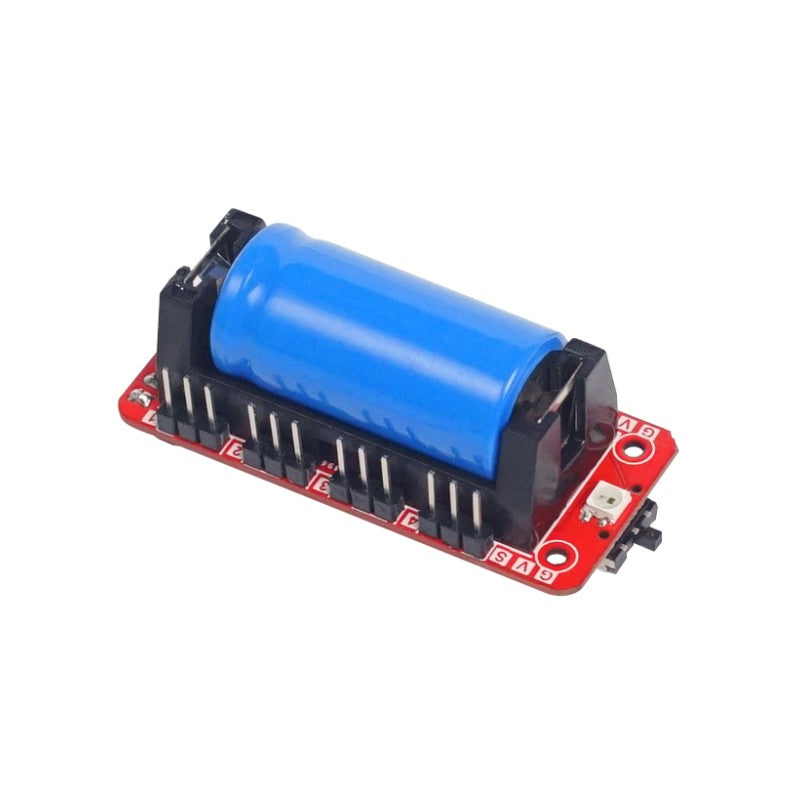

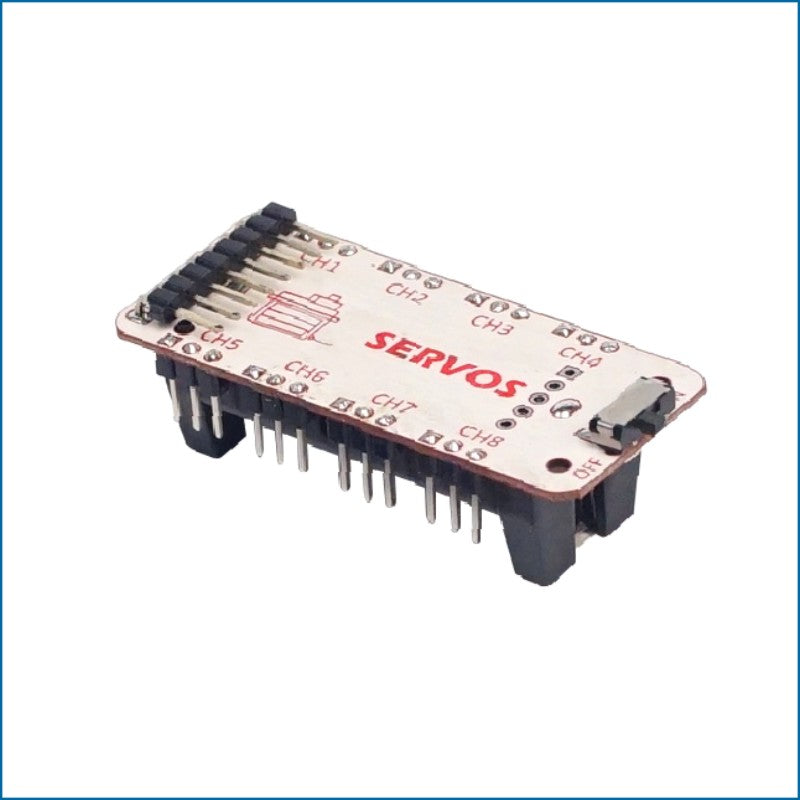

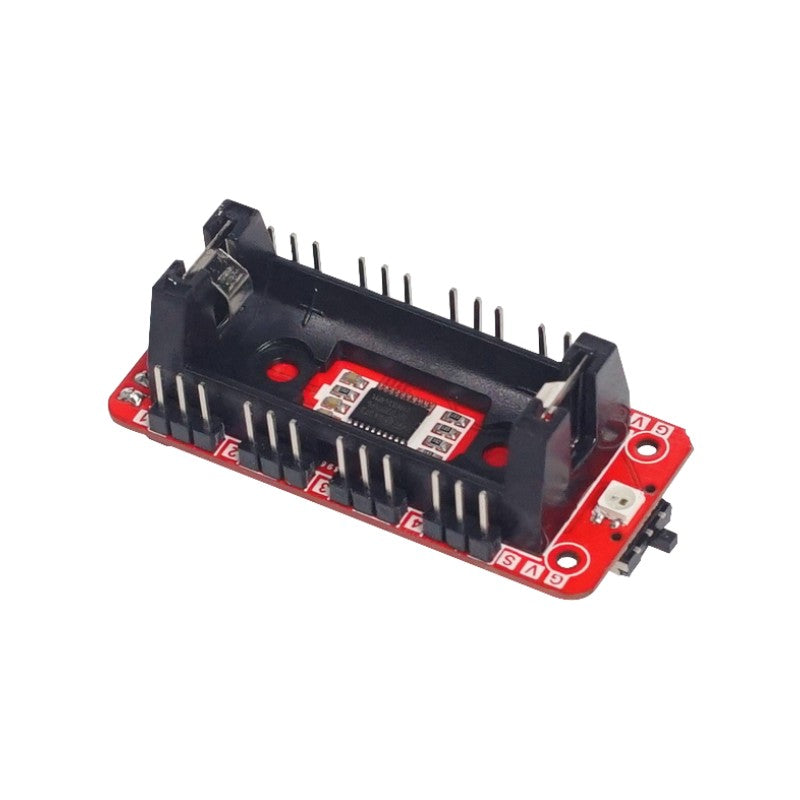

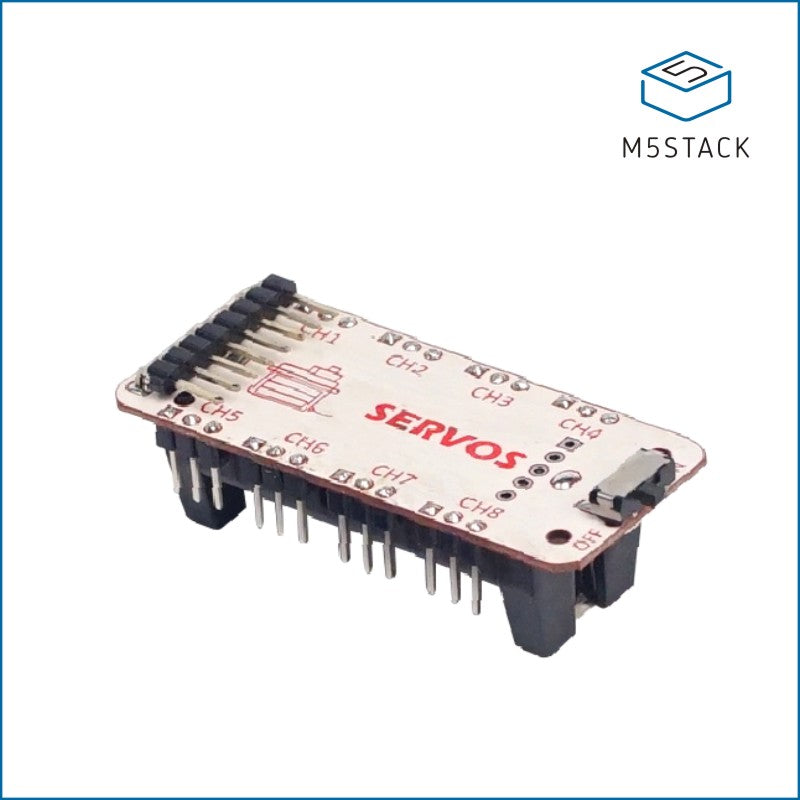

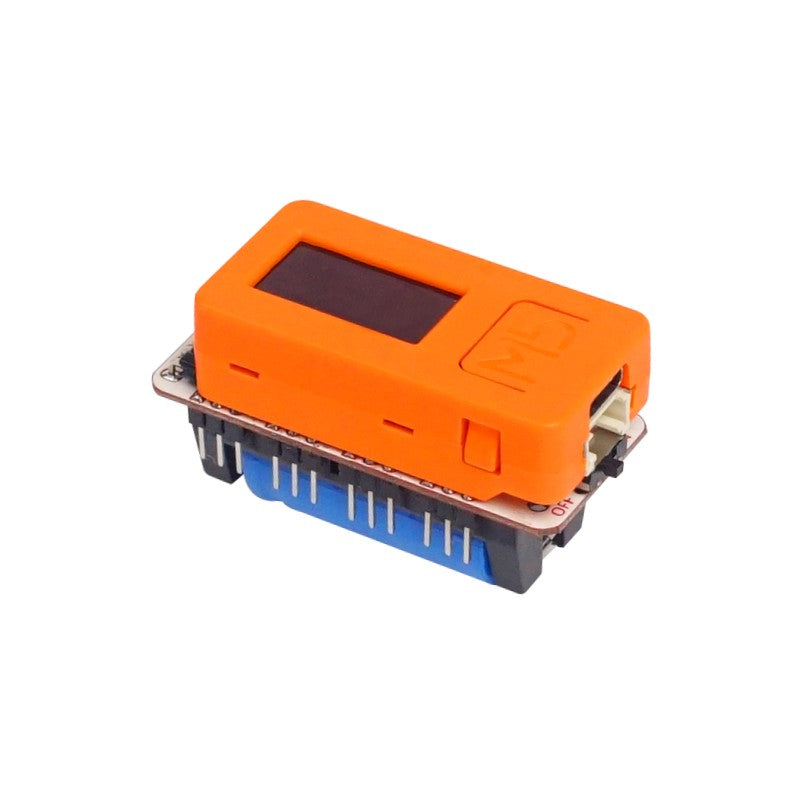

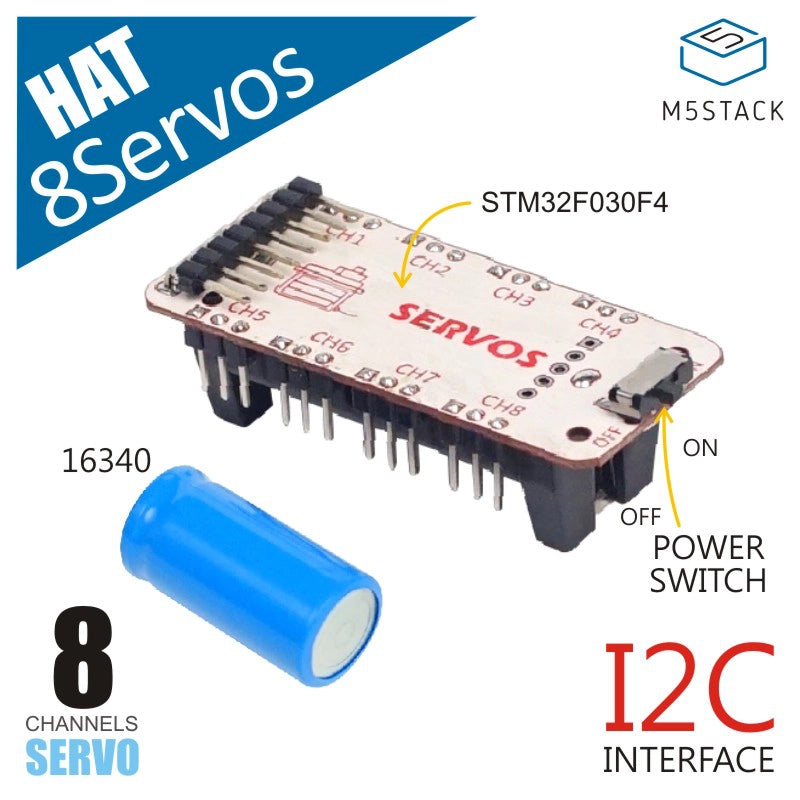

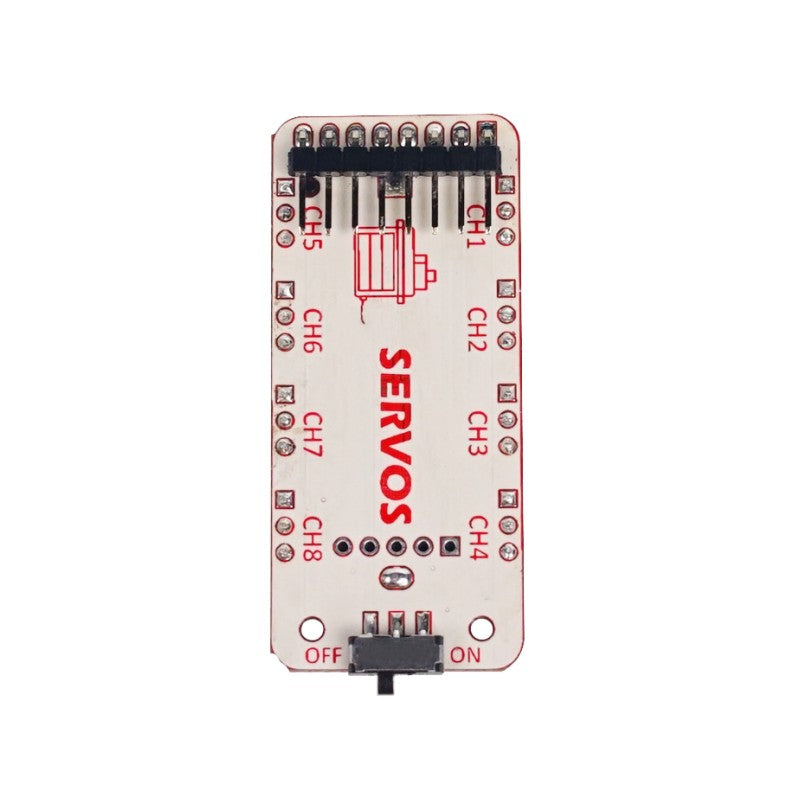

8Servos HAT is an 8-way servo control board compatible with M5StickC. The brains of the borad is the STM32F030F4 micro controller which communicates with M5StickC through I2C. In order to ensure that multiple servos can work at the same time, the HAT is equipped with a separate 16340 battery base for an external and independent power supply. A control switch and an RGB LED are also integrated with the HAT. The SG90 servos are a perfect fit for this HAT.

This product is EOL now.

Product Features

  • 8-way servo control
  • onboard RGB LED
  • 16340 battery base
  • I2C protocol for communication and control (0x38)

Include

  • 1x 8Servos-HAT
  • 1x 16340 battery(700mAh)

Applications

  • Multiple servo control
  • Robotic Arm
  • Biomimetic Robots
  • Smart and cognitive toys

Specification

Resources Parameter
Communication protocol I2C:0x38
Net weight 27g
Gross weight 38g
Product Size 54*24*20mm
Package Size 75*46*29mm
