Description

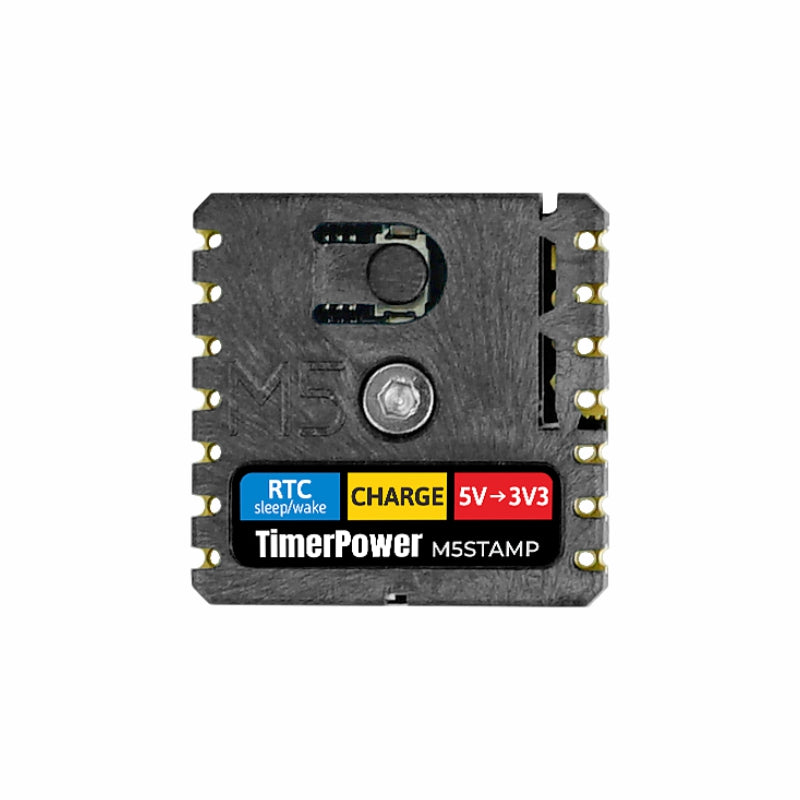

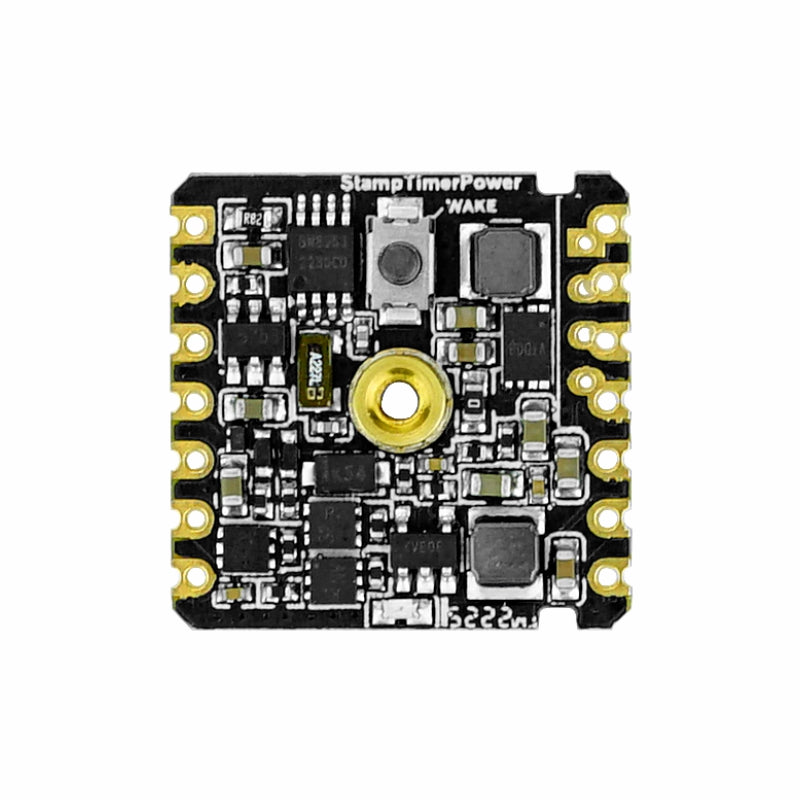

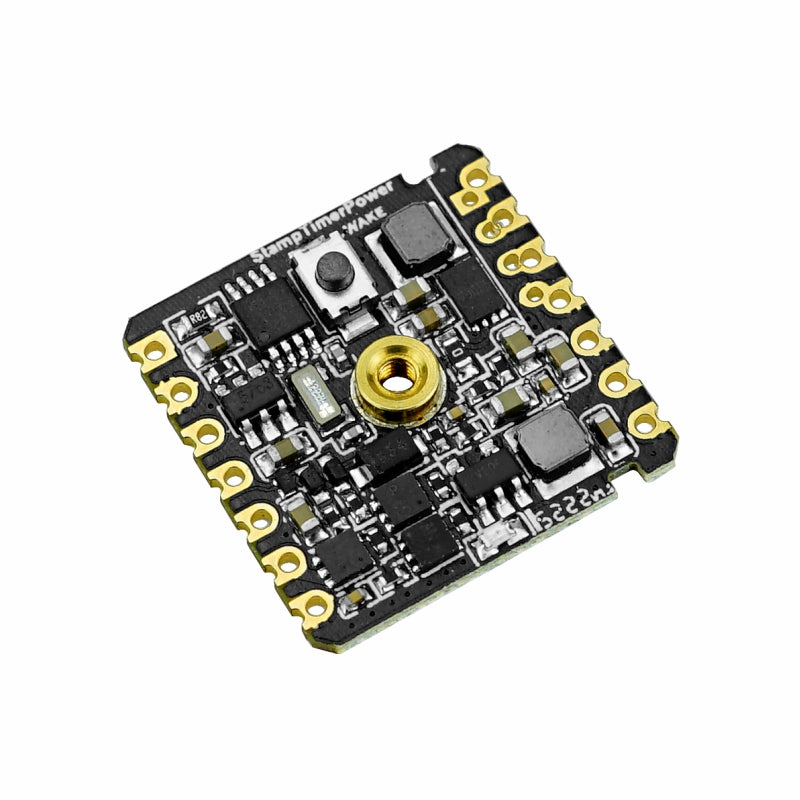

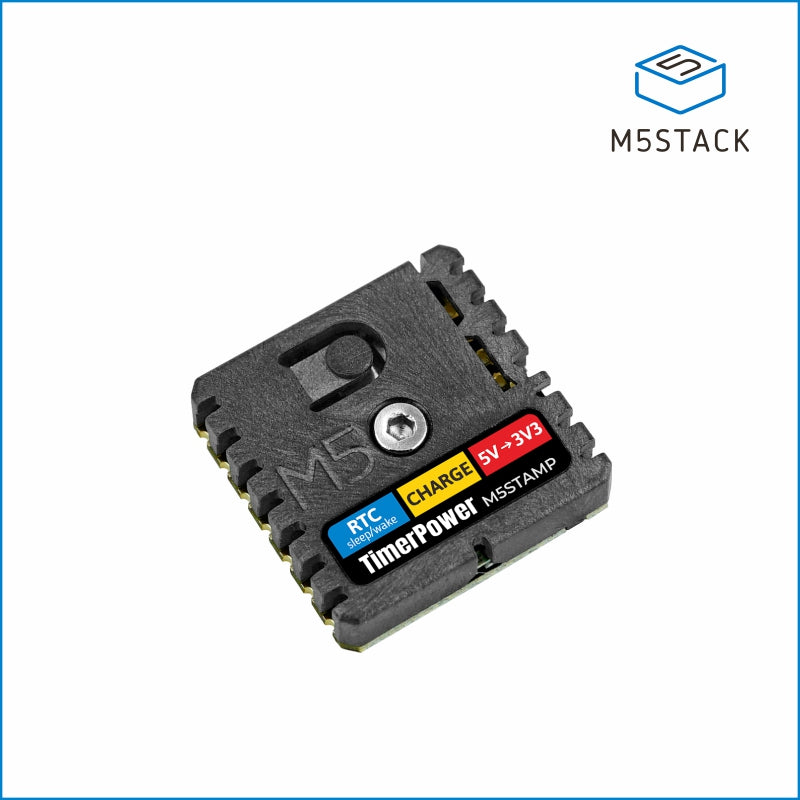

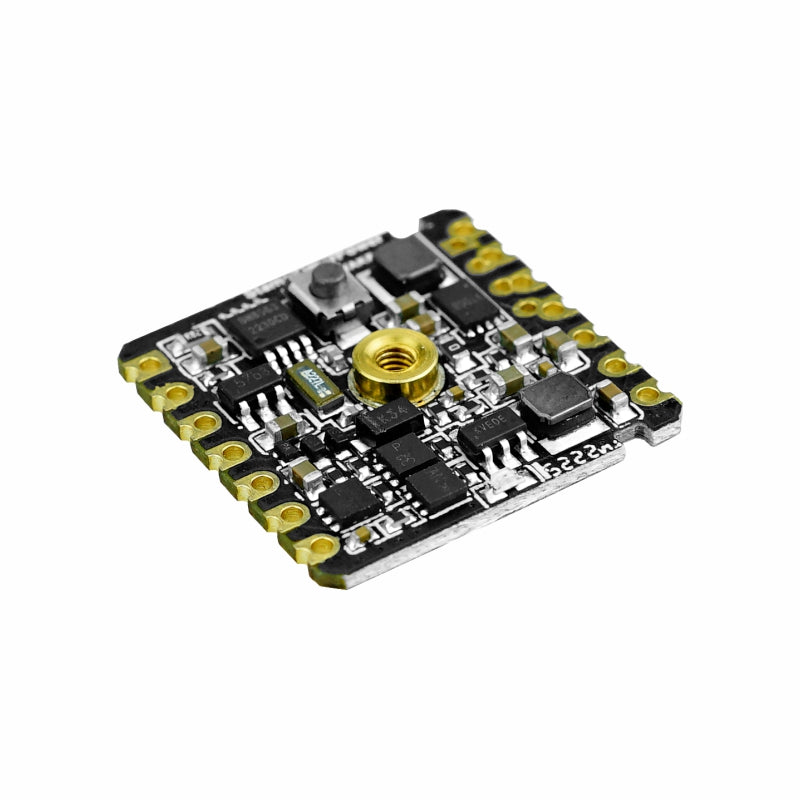

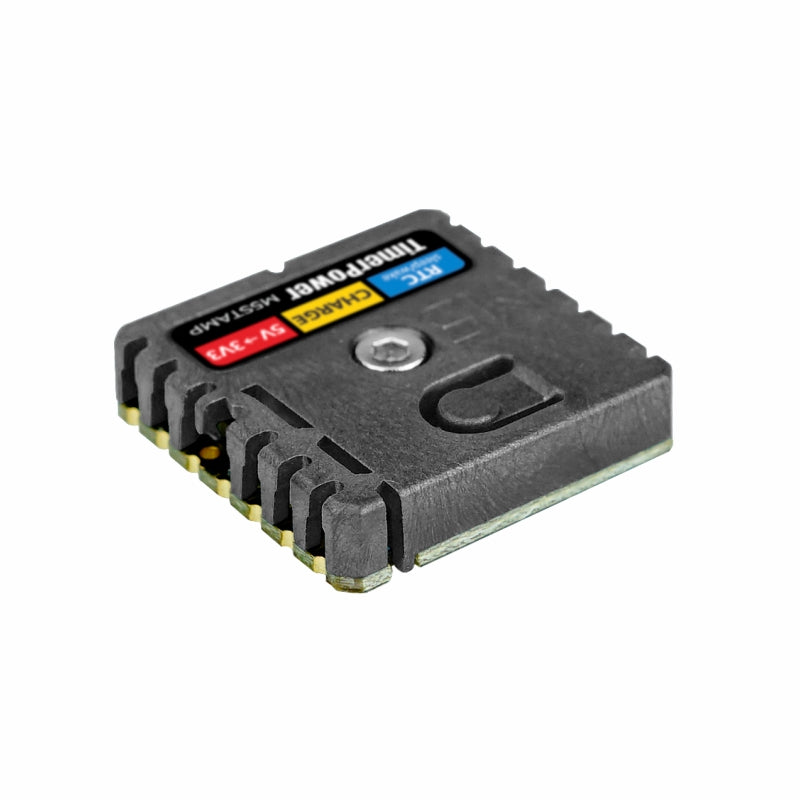

Stamp Timer Power is a low-power power control module with STAMP series packaging and built-in RTC wake-up functionality. It integrates manual wake-up, manual sleep, RTC timed wake-up, battery charging, 5V boost output, and 3.3V power output. The RTC uses the BM8563, which can set an overflow time to wake up the module and supply power. This module adopts the STAMP package and supports SMD, DIP, and flying-wire usage, making it suitable as the power section of low-power products.
Features

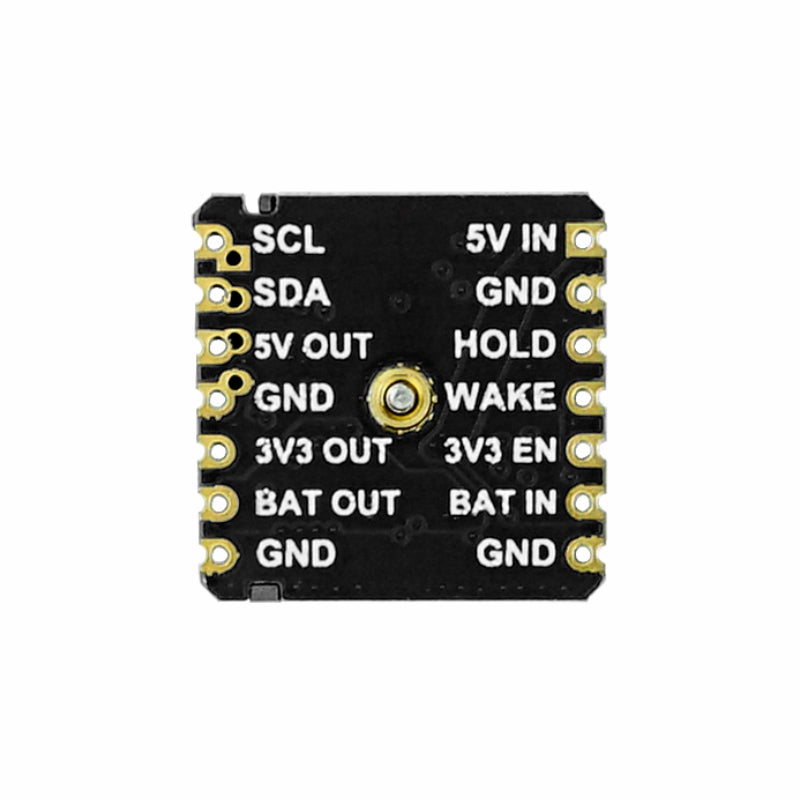

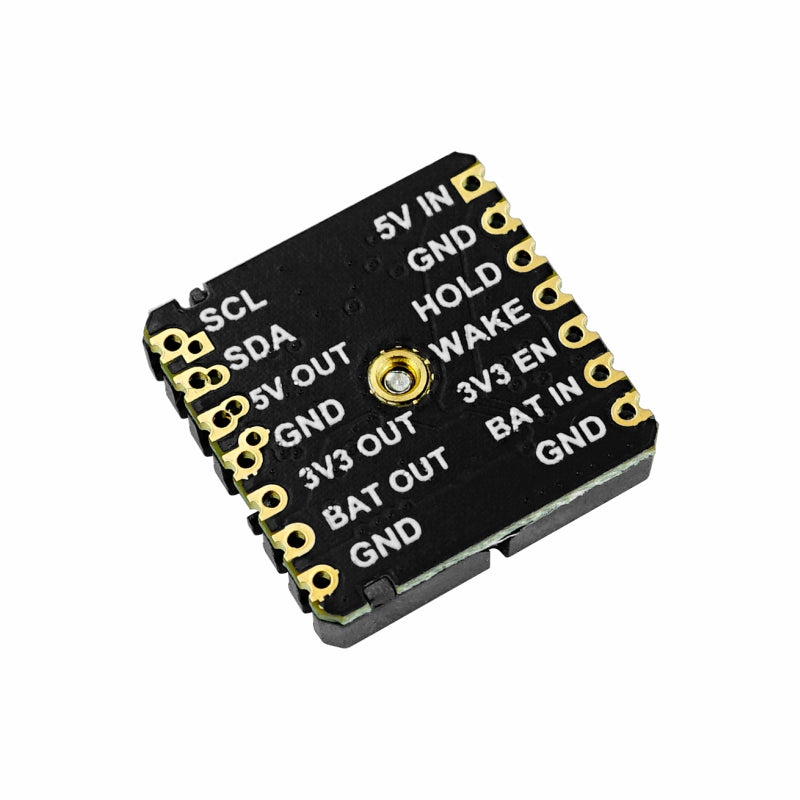

- Multiple IO breakouts, supporting various application forms (SMT, DIP, flying-wire)
- Manual or software-controlled timed wake-up or sleep
- Lithium battery charging and 5V boost
- 3.3V output DC-DC circuit

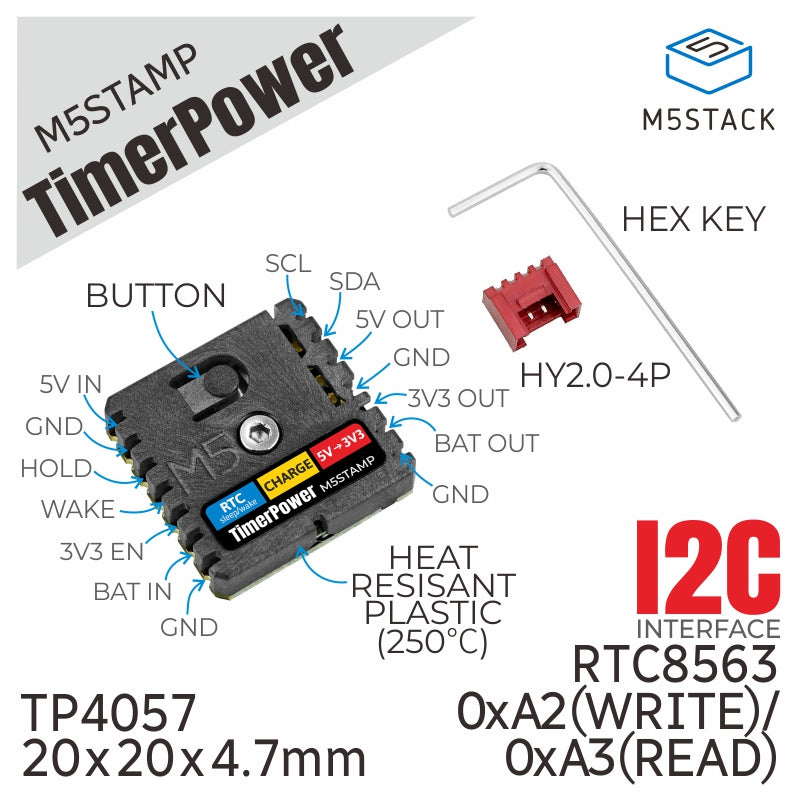

Includes
- 1 x Stamp Timer Power
- 1 x Hex Key L-Shape 2.0mm
- 1 x HY2.0-4P Terminal
Applications
- Power section for low-power products
- Low-power time-lapse photography
- Battery-powered doorbells
- Wearable devices
- Smart home
Specifications
| Specification | Parameter |
|---|---|
| RTC | BM8563 |
| Battery Management IC | TP4057 |
| RTC8563 Communication Interface | Default I2C @ 0x51 / 0xA2 (Write) / 0xA3 (Read) |
| IO Pin Pitch | 2.54mm |
| Mounting Screw Spec | M2 * 4 Countersunk Hex Socket Machine Screw |
| Operating Temperature | 0°C ~ 60°C |

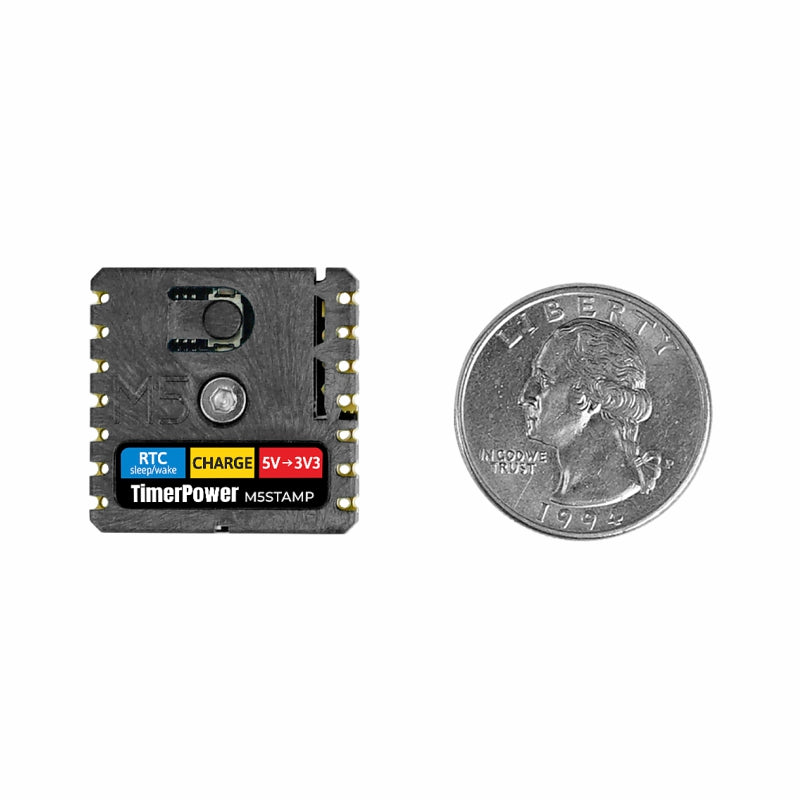

| Product Size | 20.0 x 20.0 x 5.0mm |
| Product Weight | 2.6g |
| Package Size | 136.0 x 92.0 x 13.0mm |
| Gross Weight | 5.8g |
