Description

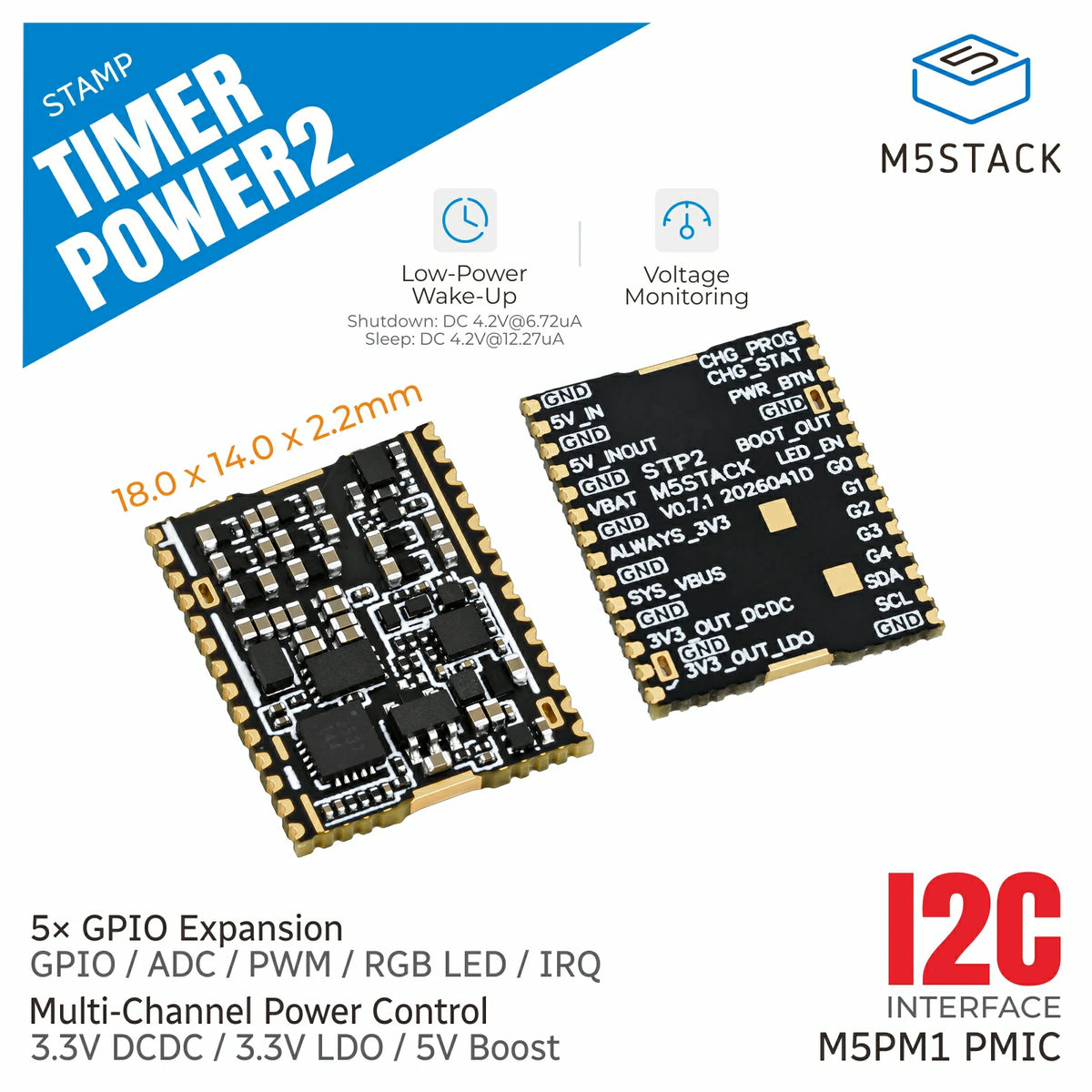

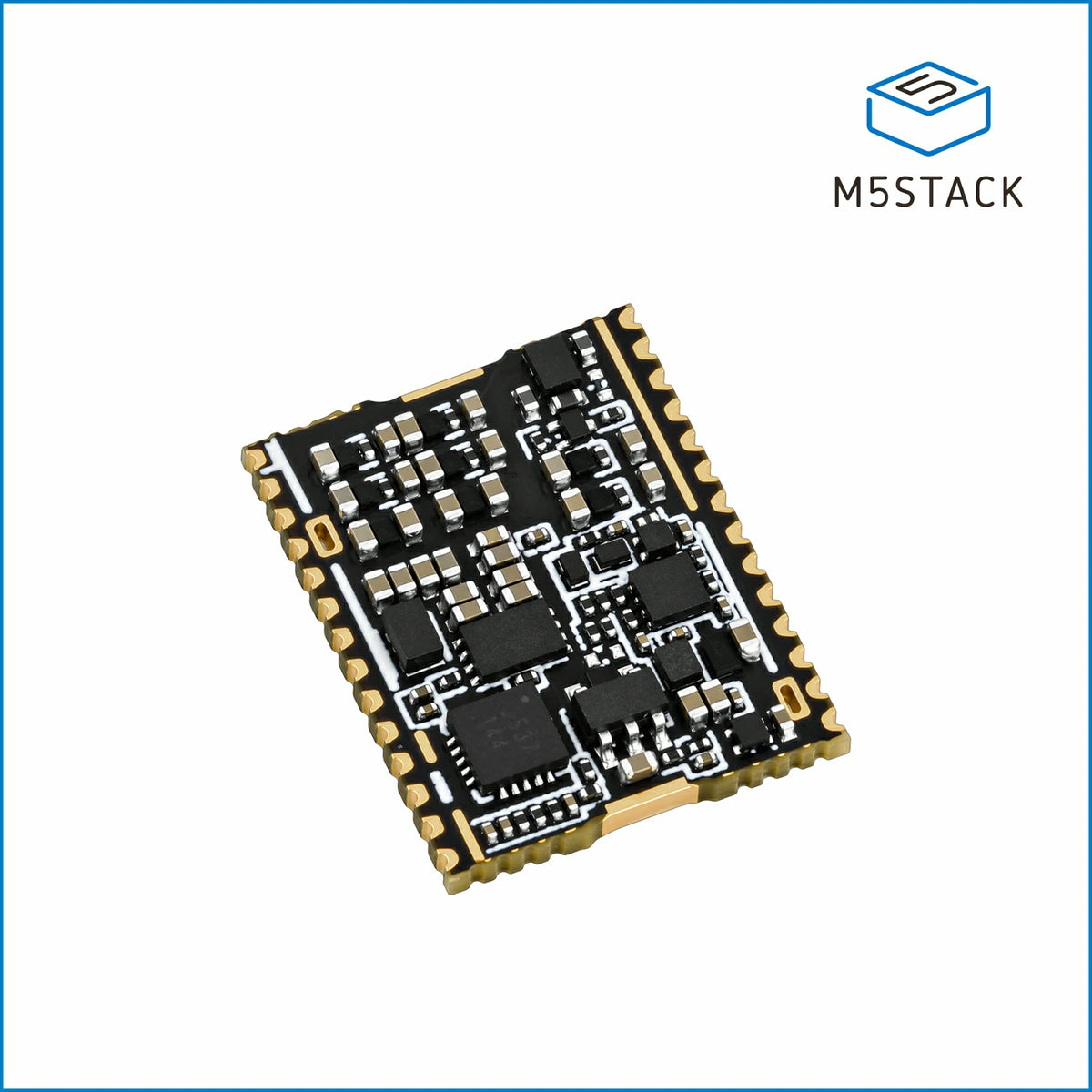

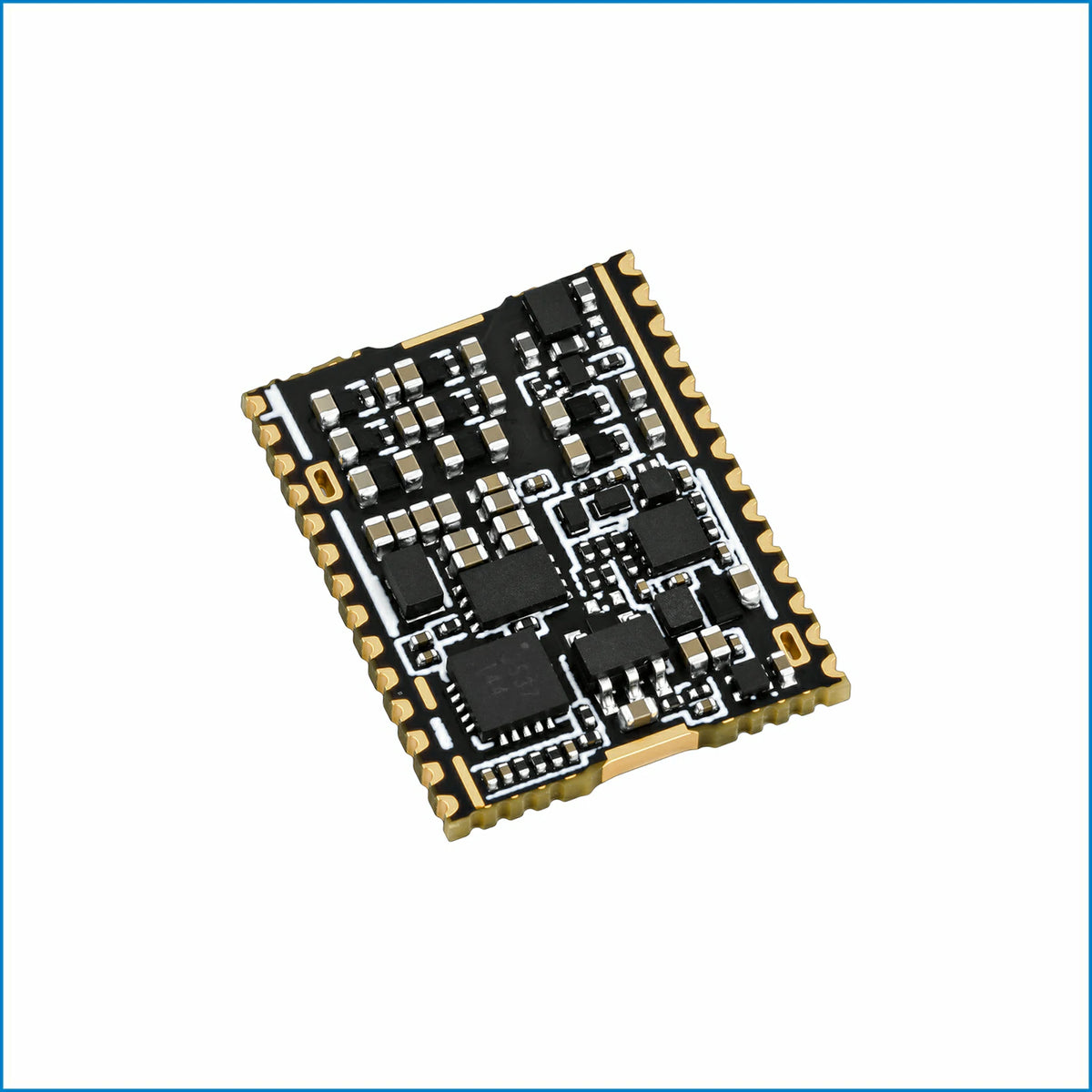

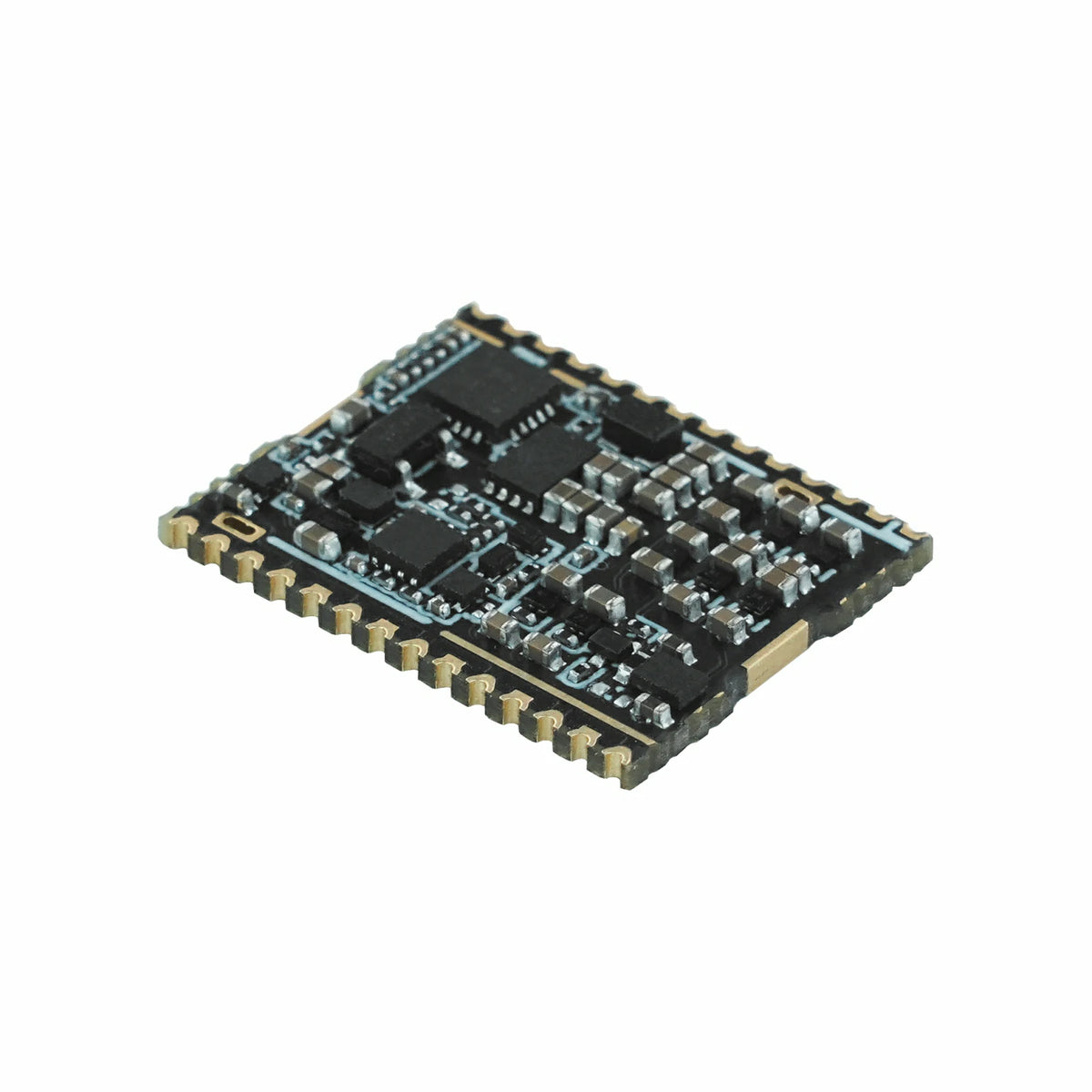

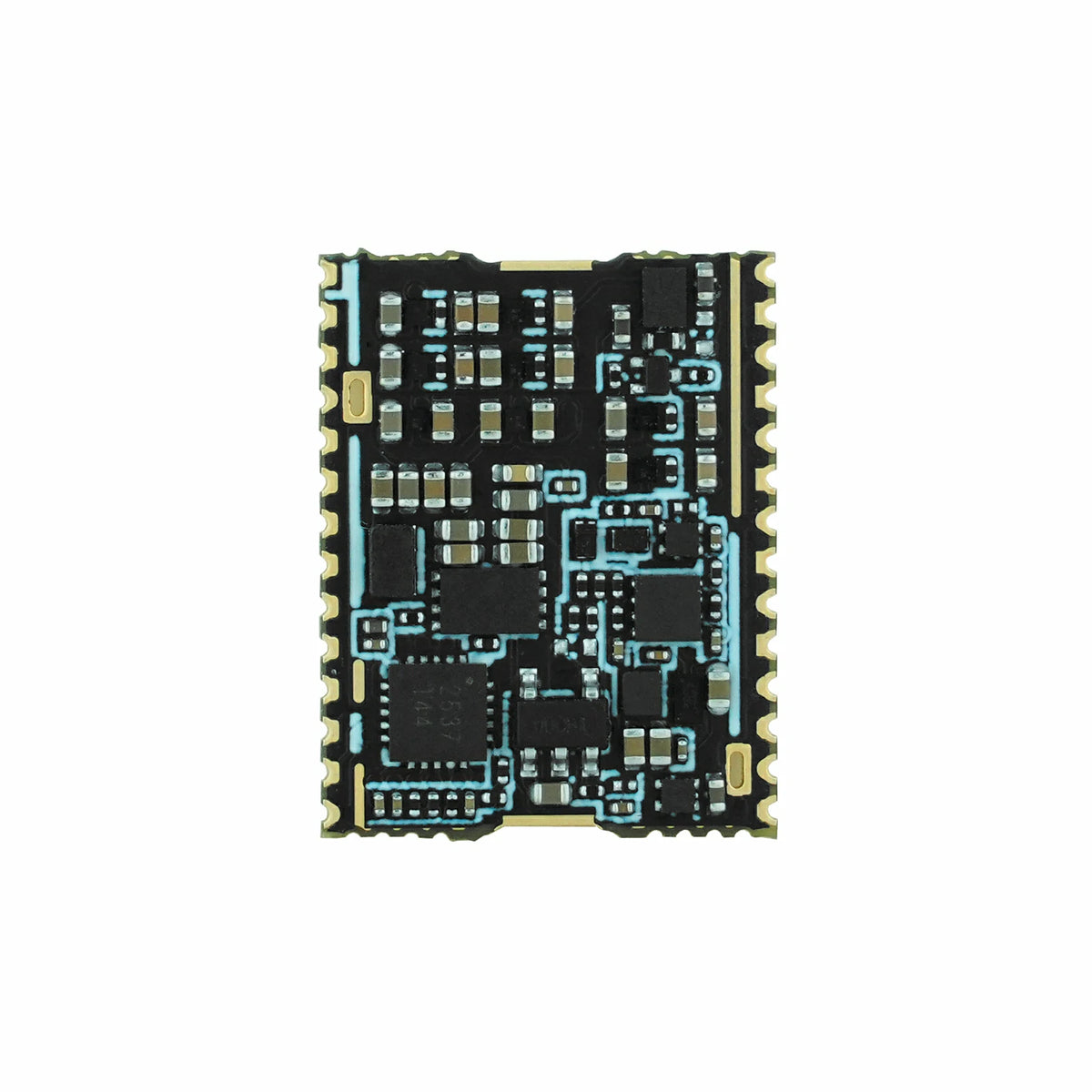

Stamp Timer Power2 is a power management module for low-power embedded devices. It integrates the M5PM1 power management IC and adopts a multi-stage power control architecture that enables power for the main controller and various peripherals on demand, effectively reducing overall standby power consumption and extending battery life. The module supports DC 5V input/output control, DC 3.7V lithium battery power supply, and input voltage detection. It also integrates a lithium battery charging circuit with two adjustable charging current levels. Featuring a 1.27mm castellated-hole package, the module provides 5 programmable IOs in addition to the basic power input/output control pins. These IOs can be configured as GPIO, ADC, PWM, RGB LED, IRQ, and other functions. The module also supports timed wake-up and external input interrupt wake-up, making it suitable for low-power systems with on-demand power-up, periodic operation, and event-triggered operation. It is well suited for embedded device power management, smart homes, and low-power IoT devices.
Features
- Built-in M5PM1 power management IC
- Built-in lithium battery charging IC with two adjustable charging current levels (650mA/180mA), suitable for different batteries
- 5x programmable expansion IO (GPIO / ADC / PWM / RGB LED / IRQ)
- Supports DC 5V / DC 3.7V battery input power
- I2C communication interface (0x6E)

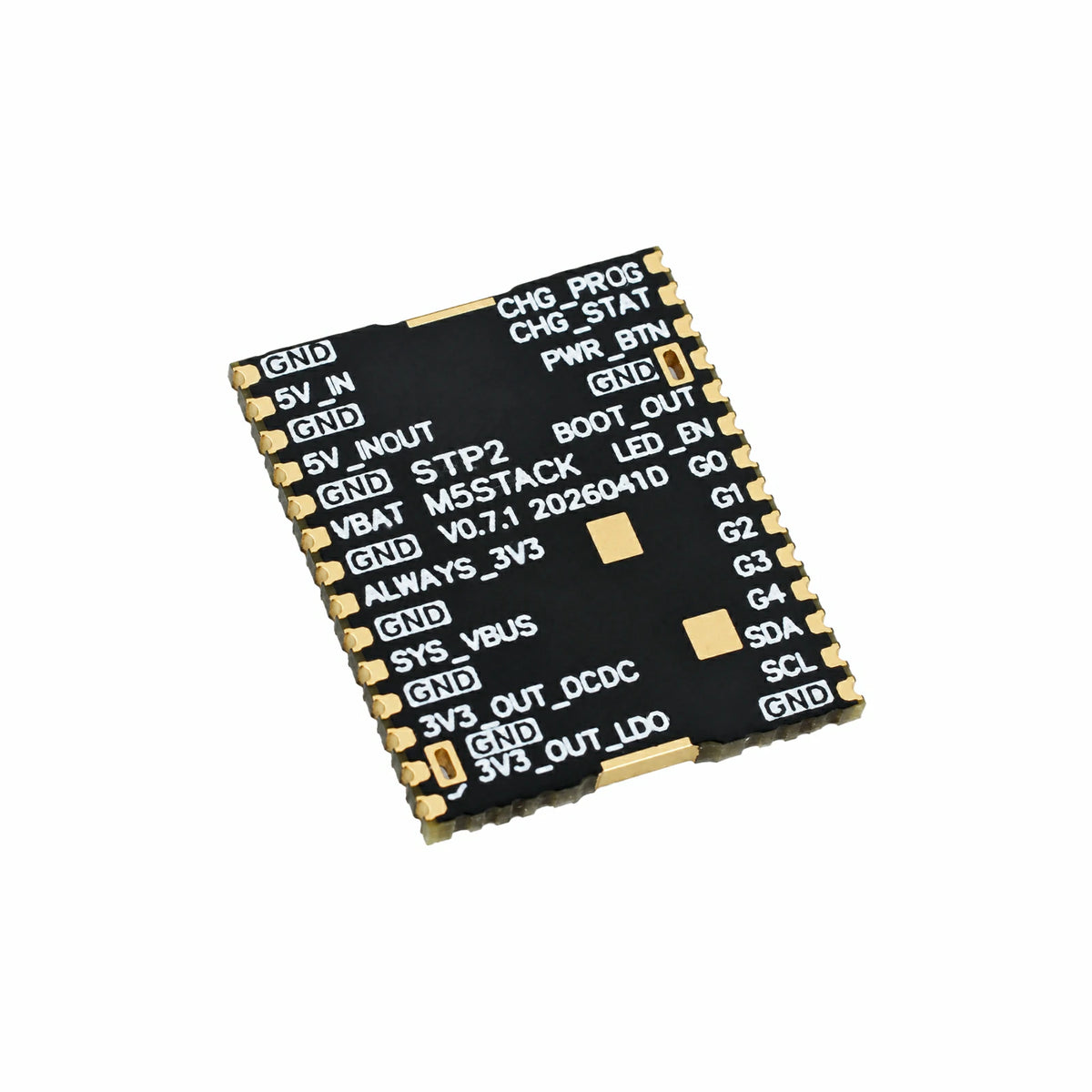

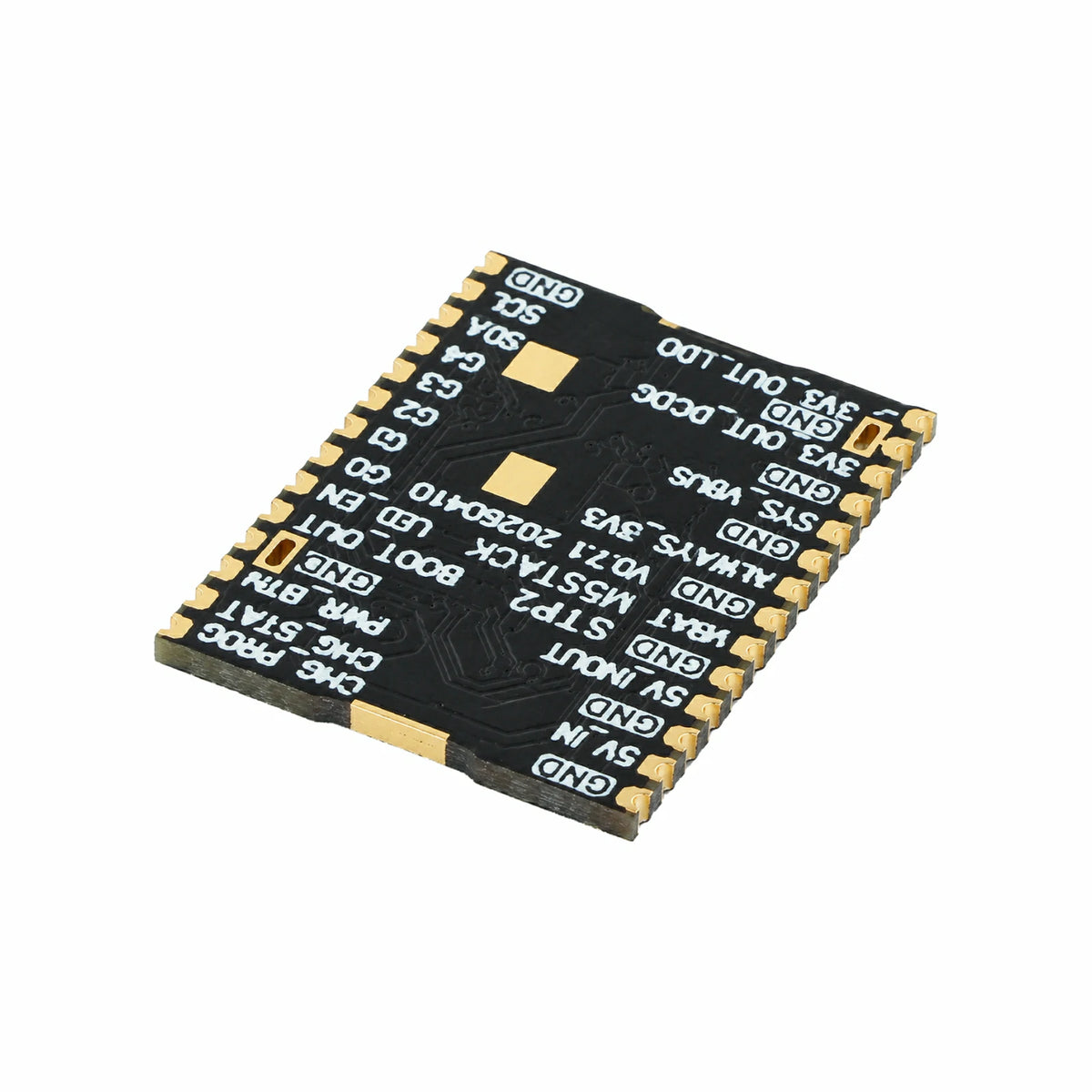

- 1.27mm-28Pin castellated-hole package
- Peripherals & Control
- Power button input signal interface
- Power indicator signal interface
- Boot control interface for MCU download mode control
Includes

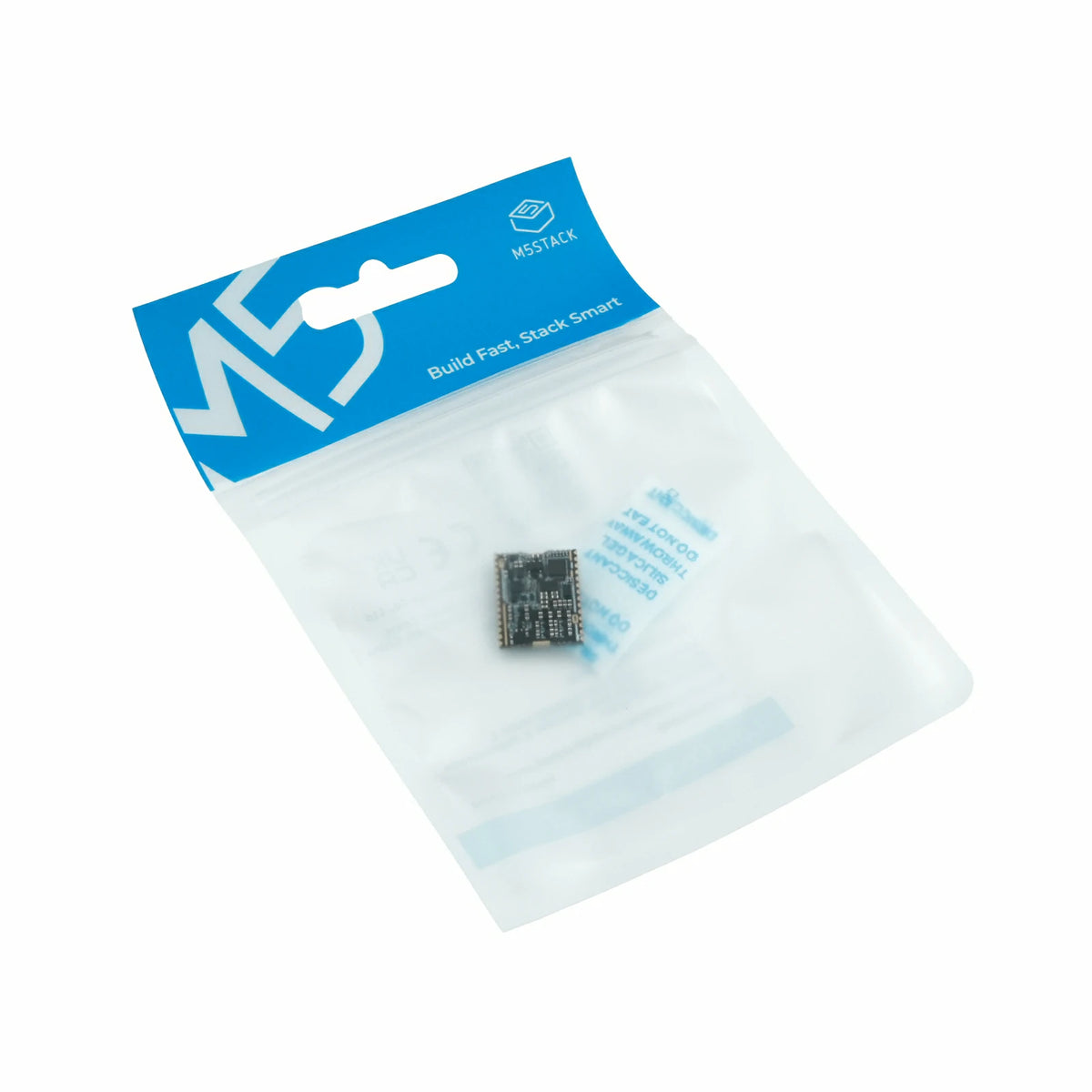

- 1 x Stamp Timer Power2
Applications
- Embedded device power management
- Smart home
- Low-power IoT devices
Specifications
| Specification | Parameter |
|---|---|
| Power Management IC | M5PM1 |
| Communication Interface | I2C @ 0x6E, supports 100 kHz (default) / 400 kHz |
| Power Consumption | Shutdown: DC 4.2V@6.72uA Low-power sleep: DC 4.2V@12.27uA |
| Battery Charging IC | LGS4056HDA, provides two adjustable charging current levels: DC 3.3V@650mA / DC 3.3V@180mA |
| Load Capacity | 3V3_DCDC_OUT: DC 3.3V@0.6A 3V3_LDO_OUT: DC 3.3V@0.4A PY_3V3: DC 3.3V@0.4A EXT_5V_INOUT: DC 5V@1A |
| Product Size | 18.0 x 14.0 x 2.2mm |
| Product Weight | 0.7g |
| Package Size | 138.0 x 93.0 x 5.0mm |
| Gross Weight | 3.8g |
