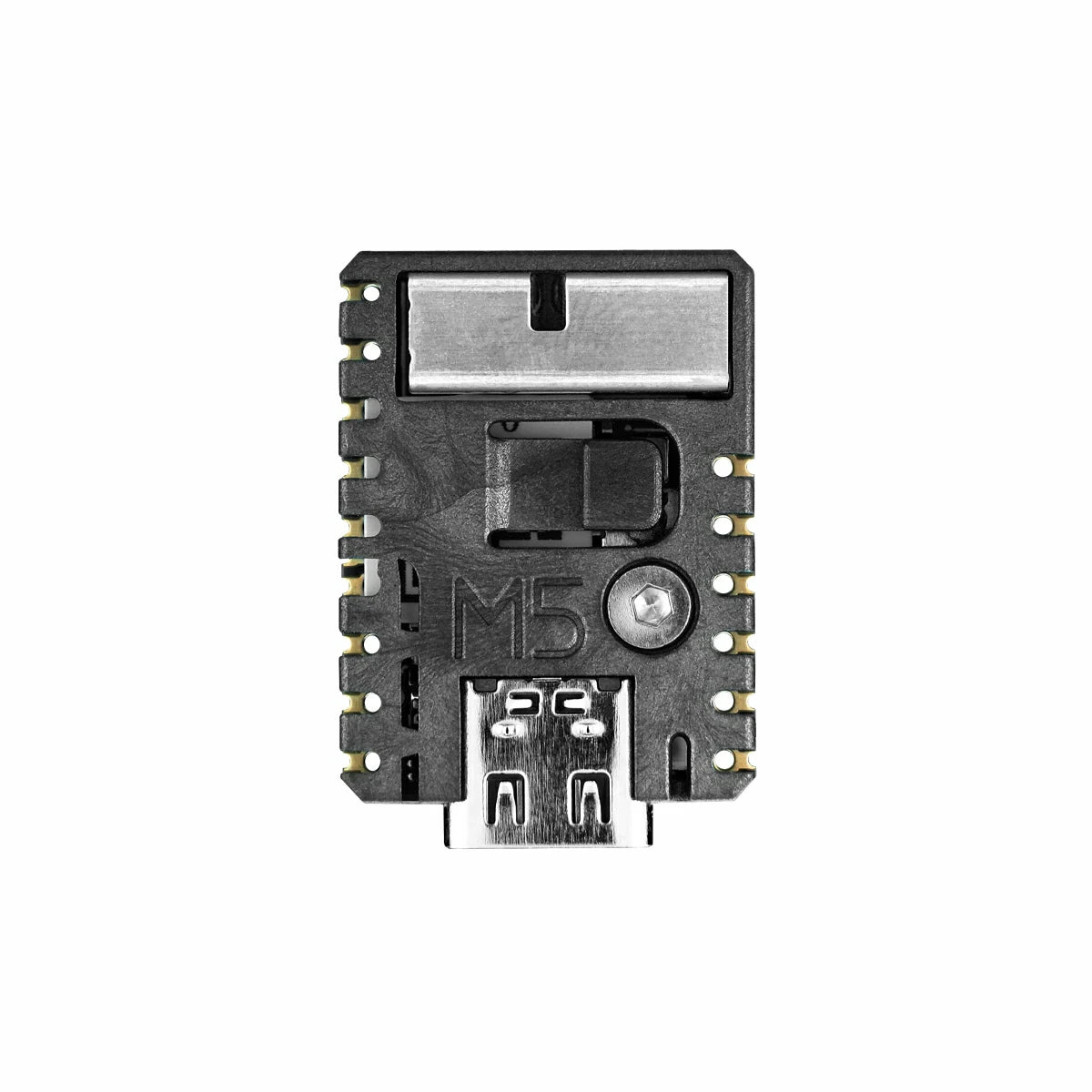

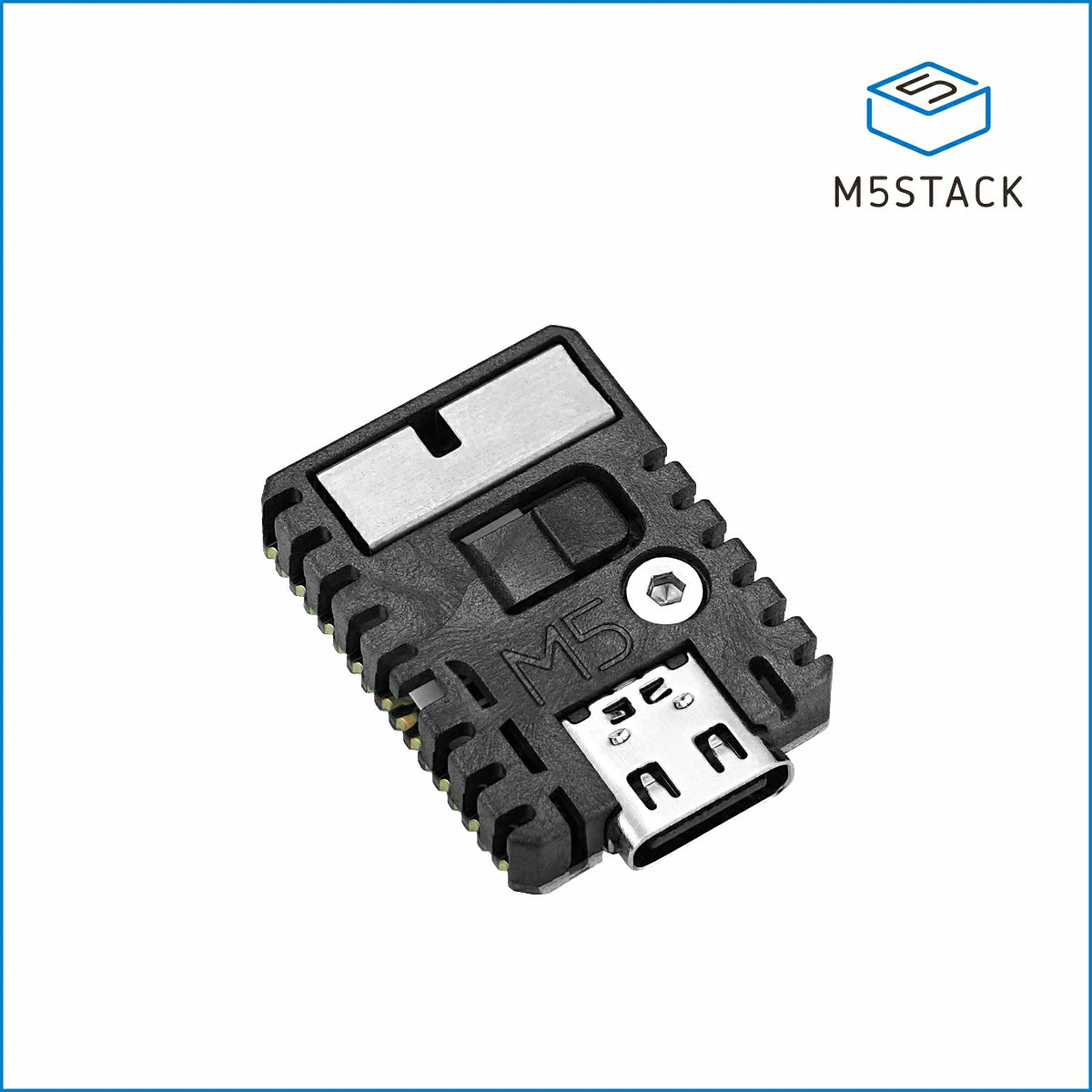

M5StampS3A ESP32S3 Module

SKU:S007-V033

Regular price $7.50

10+ In Stock

Shipping calculated at checkout.

Description

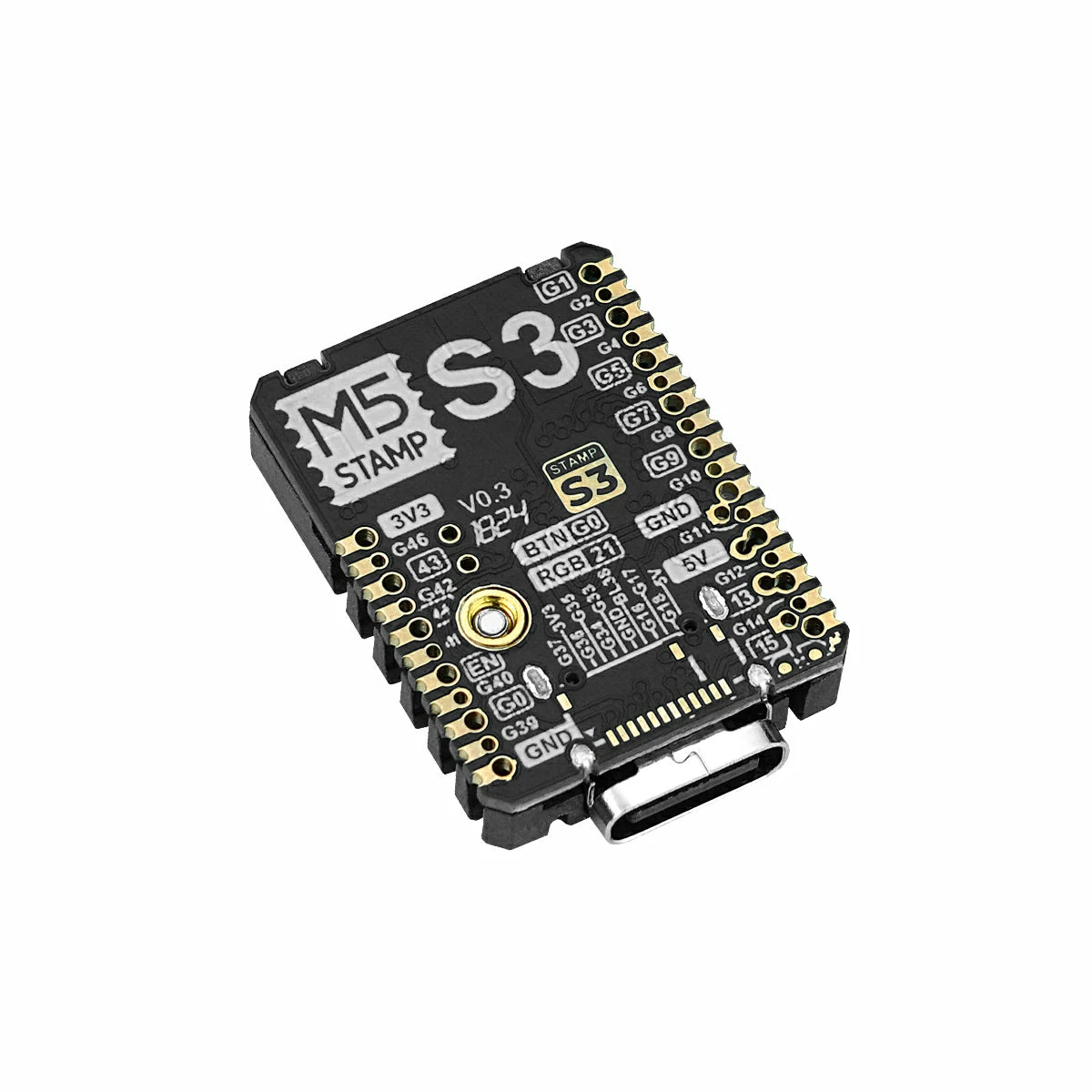

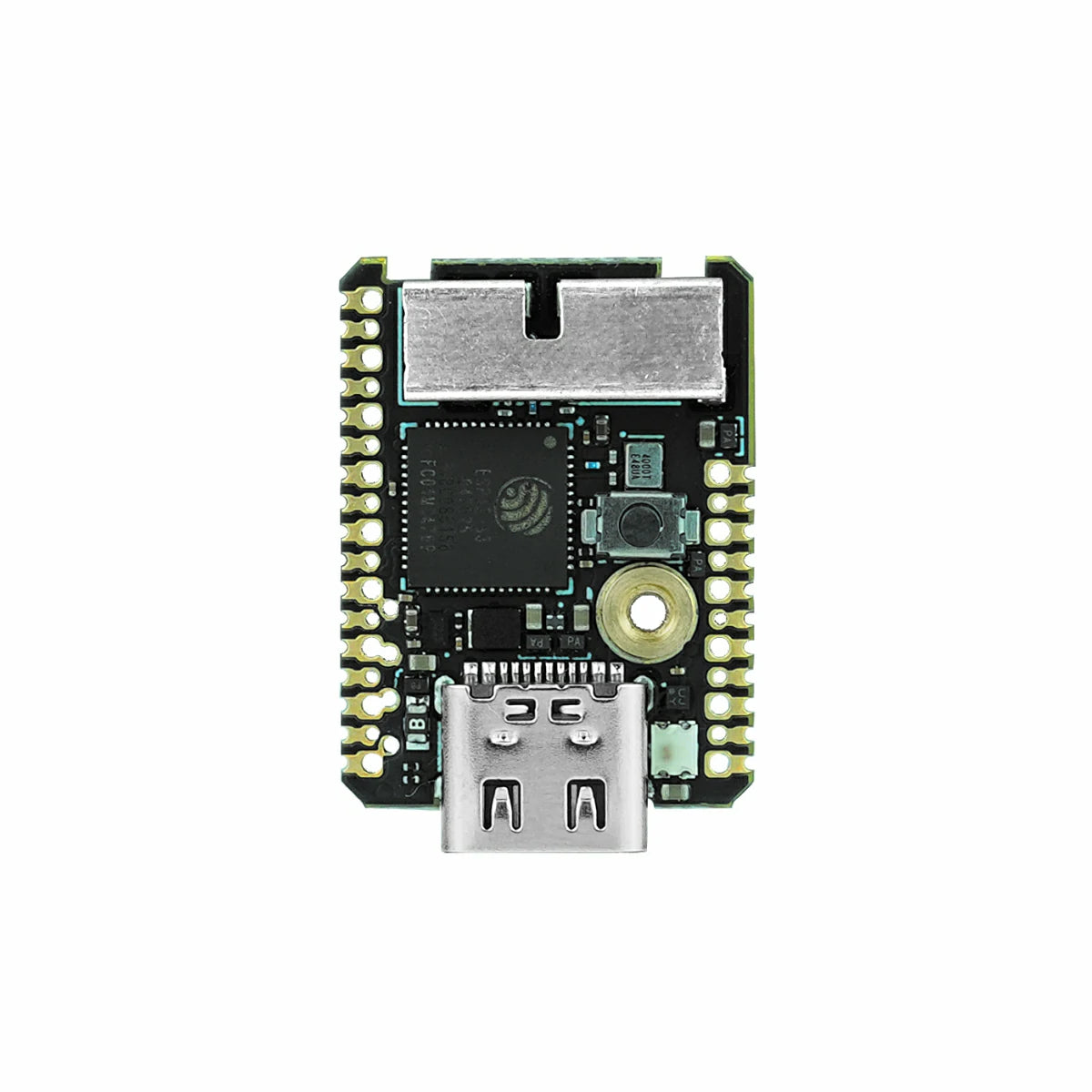

Stamp-S3A is a highly-integrated embedded module based on the Espressif ESP32-S3FN8. It is equipped with a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button. The deeply-optimized 3D antenna design offers stronger wireless communication performance. Twenty-three GPIOs are broken out and provided via 1.27 mm / 2.54 mm pitch SMT/DIP pin headers or sockets, allowing effortless PCB integration and enabling developers to build applications rapidly.

Features

  • ESP32-S3FN8 (2.4 GHz Wi-Fi)
  • Minimum-system board
  • Rich I/O breakout supporting multiple application forms (SMT, DIP, fly-wire, Unit)
  • Integrated programmable RGB LED and button
  • Development Platform
    • UiFlow2
    • Arduino IDE
    • ESP-IDF
    • PlatformIO

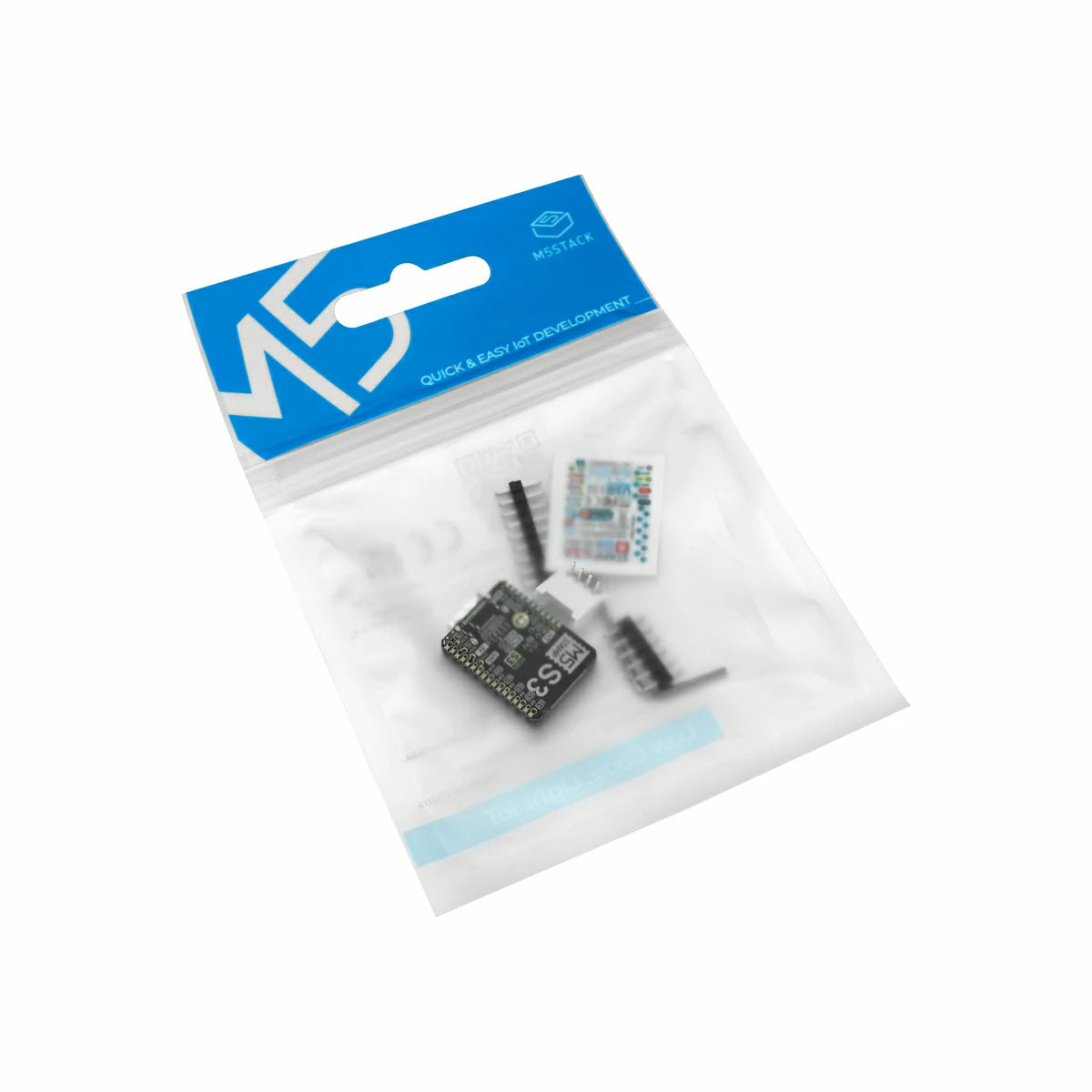

Includes

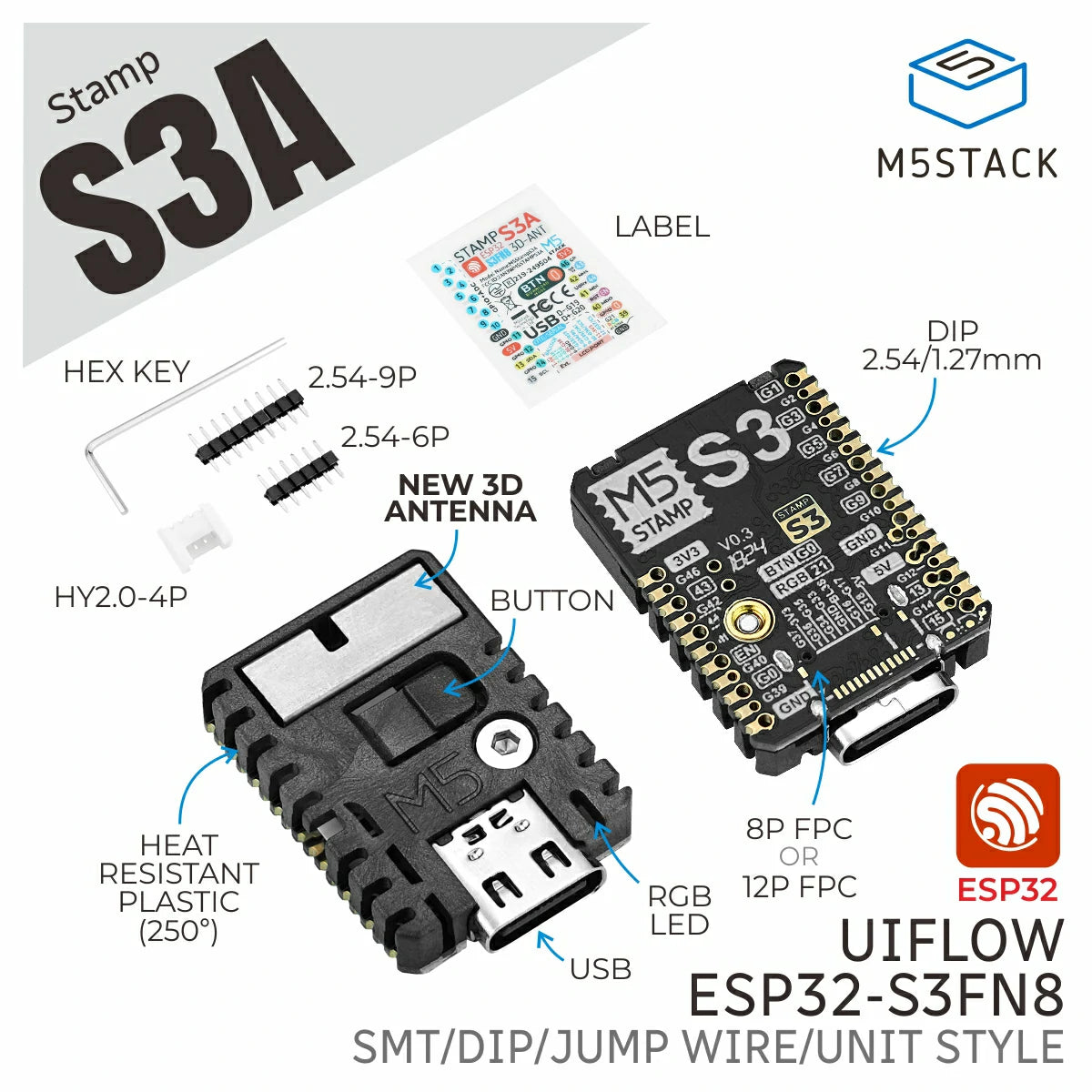

  • 1 x Stamp-S3A
  • 1 x HY2.0-4P Terminal
  • 1 x 2.54-9 P Male Header
  • 1 x 2.54-6 P Male Header
  • 1 x Hex Key L-Shape 1.5 mm (For M2 Screw)
  • 1 x Pin Sticker

Applications

  • Smart home
  • Intelligent IoT devices
  • Industrial control terminals
  • Wearable devices

Specifications

Specification Parameter
SoC ESP32-S3FN8
DC-DC MUN3CAD01-SC
Flash 8 MB
Input Voltage DC 5 V
HMI Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
Antenna Type 2.4 GHz 3D antenna
Module Resource I/F

Touch Sensor, SD/SDIO/MMC Host Ctrl, SPI, SDIO/SPI Slave Ctrl, EMAC,

Motor PWM, LED PWM, UART, I²C, I²S, GPIO, Pulse Counter

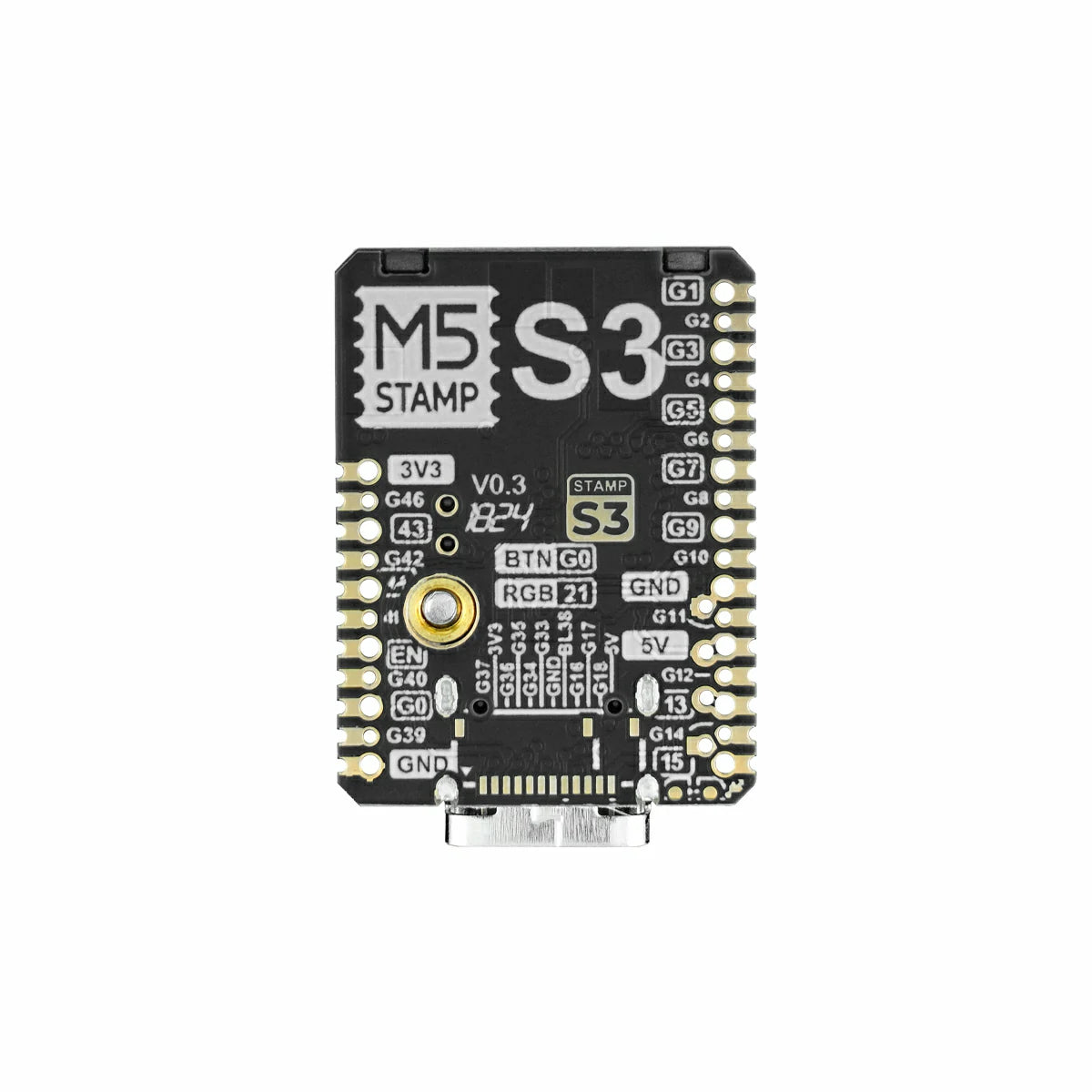

IO Interfaces × 23

G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/

G14/G15/G39/G40/G41/G42/G43/G44/G46

IO Pitch 2.54 mm and 1.27 mm
LCD FPC Pitch 0.5 mm @ 12 P or 8 P
Operating Temp. 0 ~ 40 °C
Product Size 26.0 × 18.0 × 4.7 mm
Product Weight 2.9 g
Package Size 138.0 × 93.0 × 10.5 mm
Gross Weight 7.1 g

Product Comparison

Product Comparison Item Stamp-S3A Stamp-S3A Stamp-S3 Stamp-S3
RGB LED Control Logic RGB LED power is multiplexed with the reserved screen FPC bus backlight Powered as soon as power is applied
Antenna Design Optimized antenna design with better signal reception Conventional antenna design
Module Boot Button Improved tactile feel; 4.0 × 3.0 × 2.0 mm button 2.6 × 1.6 × 0.55 mm button
Power Consumption Optimized for lower power consumption Standard design
Power Consumption USB-typec Power Supply: DC 5V@88.82uA
VIN_5V Power Supply: DC 5V@6.84uA
USB-typec Power Supply: DC 5V@400.67uA
VIN_5V Power Supply: DC 5V@310.89uA
