M5Stamp C3U Mate with Pin Headers

SKU:K122

Regular price $5.90

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

M5Stamp C3U is a cutting-edge development board featuring the ESPRESSIF ESP32-C3 RISC-V MCU. Equipped with Wi-Fi 5 (LE) connectivity, this board is designed for a wide range of applications, including home appliances and industrial automation. With top-of-the-line security features such as RSA-3072-based secure boot and AES-128-XTS-based flash encryption, the M5Stamp C3U ensures robust protection for your data. Its compact size and powerful functionality make it an ideal choice for various IoT scenarios.

The M5Stamp C3U is built around a 32-bit RISC-V microcontroller, operating at a maximum clock frequency of 160 MHz. With 400 KB of internal RAM and 4 MB Flash memory, it provides ample resources to support diverse connected device use cases. This versatility enables seamless integration into a wide range of projects and applications.

Furthermore, the M5Stamp C3U features an exceptional heat-resistant plastic enclosure, allowing it to operate reliably even at higher temperatures. This ensures the board's durability and stability, making it suitable for demanding environments.

The M5Stamp C3U combines the power of the ESPRESSIF ESP32-C3 RISC-V MCU, Wi-Fi 5 (LE) connectivity, advanced security features, and a compact form factor, making it a highly adaptable and capable development board. Whether you're working on smart home appliances or industrial automation solutions, the M5Stamp C3U provides the performance and reliability you need for your IoT projects.

Note: If you need to use SPIFFS filesystem in Arduino IDE. Please install a patch package first.

Product Features

  • MULTIPLE STYLE:
    • Three types soldering options are available (SMT, DIP, fly wire);
    • High-temperature resistant plastic enclosure, Peak temperature = 230℃;
  • HIGH INTEGRATION:
    • M5Stamp C3 contains 5V->3.3V DC/DC design, GPIOx14;
    • USB Type C port;
    • Programmable RGB LED x1, Reset button x1, button x1;
    • 3D antenna, providing stable and reliable wireless communication.
  • DEVELOPMENT PLATFORM:
    • Arduino, ESP32-IDF (UIFlow support coming soon)

Application

  • DIY, Prototyping
  • Industrial Automation
  • Smart Home
  • Wearable Devices
  • Medical Devices
  • Consumer Electronics

Note: The newly updated C3U shares the same features as C3, but the difference is that M5Stamp C3U without the USB download chip and the program download method is different((The C3U uses the ESP32-C3's built-in USB Serial for program download)). If you are looking for a more affordable project, you can add this to your shopping list!

Program Download/Notes

Enter the program download mode operation:
1. Long press the center button (G9) of STAMP C3U under power failure condition.
2. Connect to the computer, after the port is successfully identified, program burning.
USB CDC enabled:
By default, USB CDC is not enabled, the serial port output started by C3U will be output through UART0, if you need to output through USB, please use IDE to make it USB CDC before downloading the program option enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled, IDF users please refer to ESP IDF official documentation.)

product comparison

Model Master IO quantity Button IO USB chip USB interface function
STAMP-C3 ESP32-C3 13 G3 CH9102 Download / Serial
STAMP-C3U ESP32-C3 14 G9 / Download / JTAG / CDC Serial

Specifications

Specifications Parameters
ESP32-C3 32bit RISC-V single-core processor, clocked at 160 MHz
Storage 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH
Wi-Fi 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps
Input voltage 5V @ 500mA
HMI Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1
USB interface TypeC x1
Antenna Type 2.4G 3D Antenna
Module peripheral interface resources ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI
IO interface x14 G0, G1, G3, G4, G5, G6, G7, G8, G9, G10, G18, G19, G21, G22
IO interface spacing 2.54mm
Fixing screw specifications M2*4 countersunk head hexagon socket mechanical teeth
Net weight 3.8g

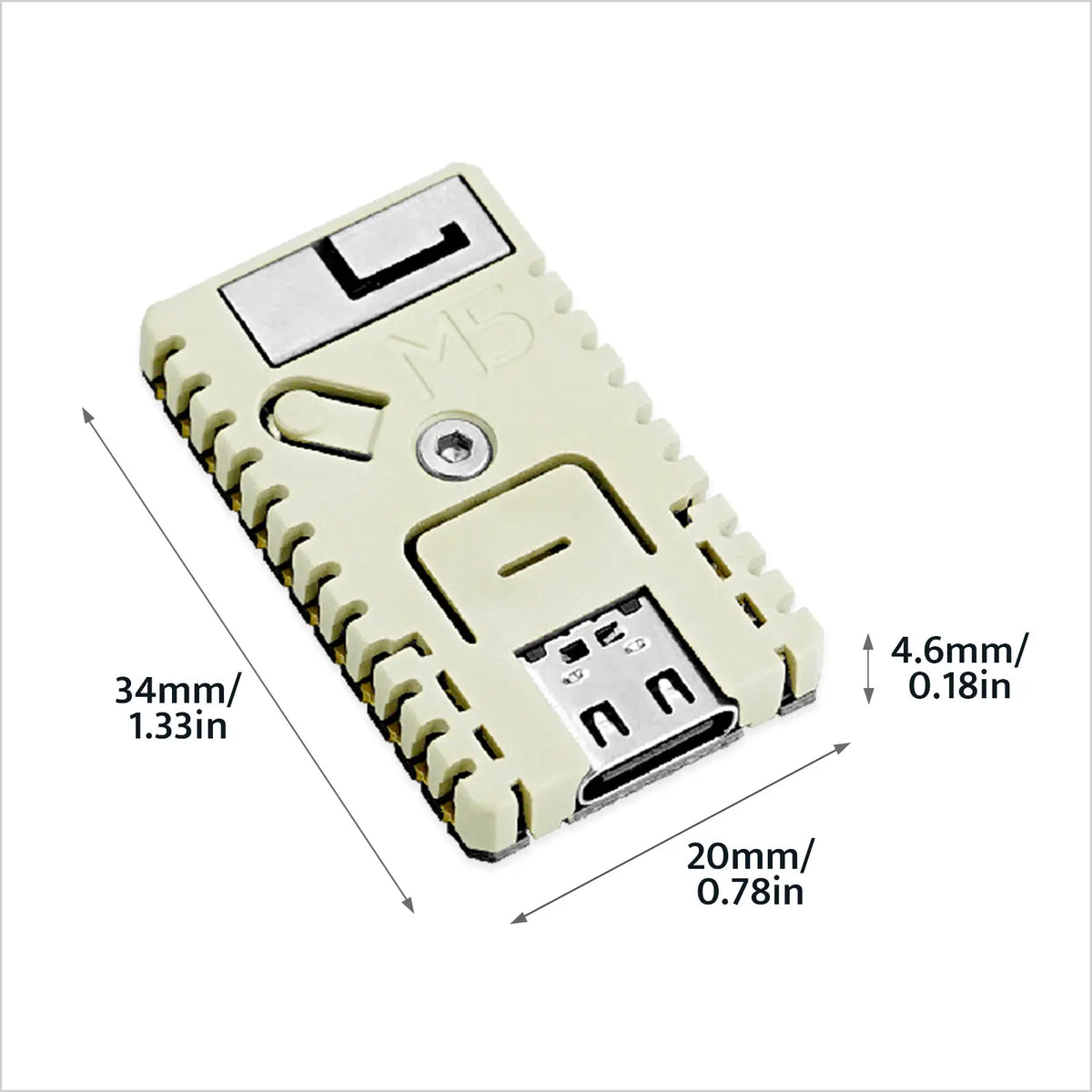

Product size 34 * 20 * 4.6mm
Packing size 85*55mm sealing bag (translucent)
