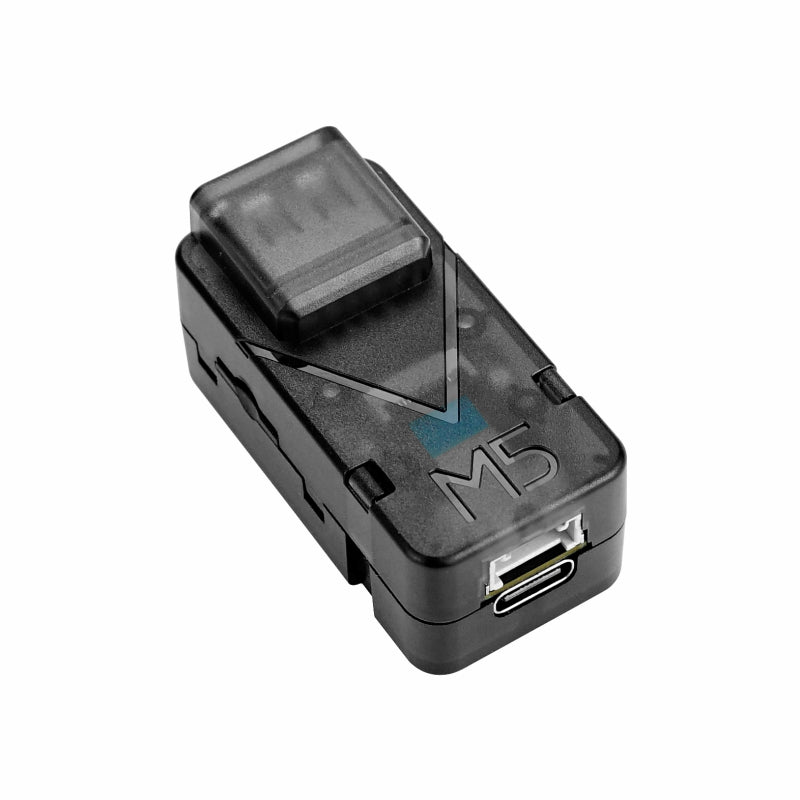

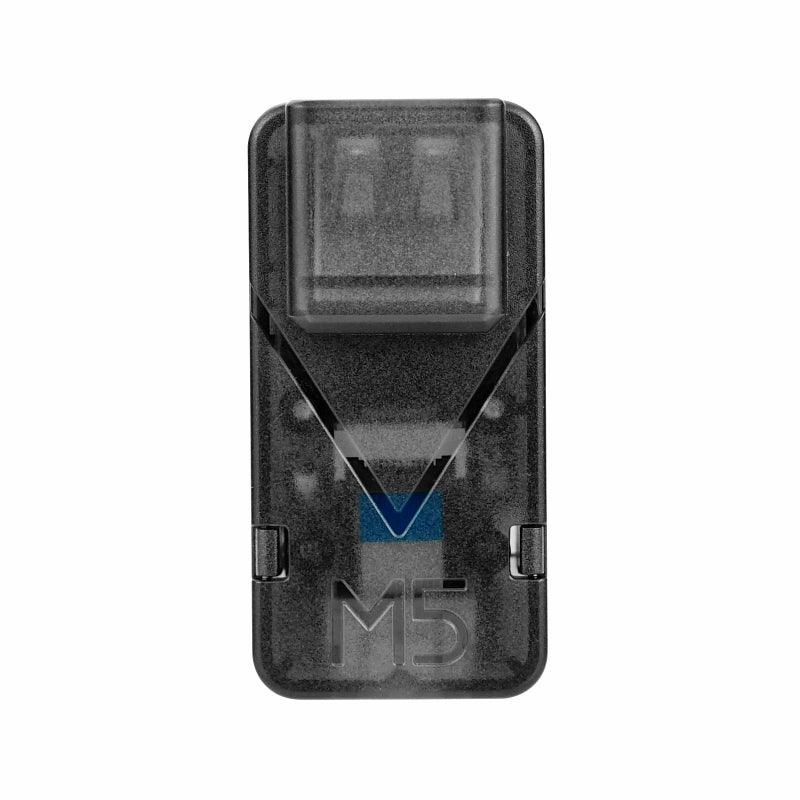

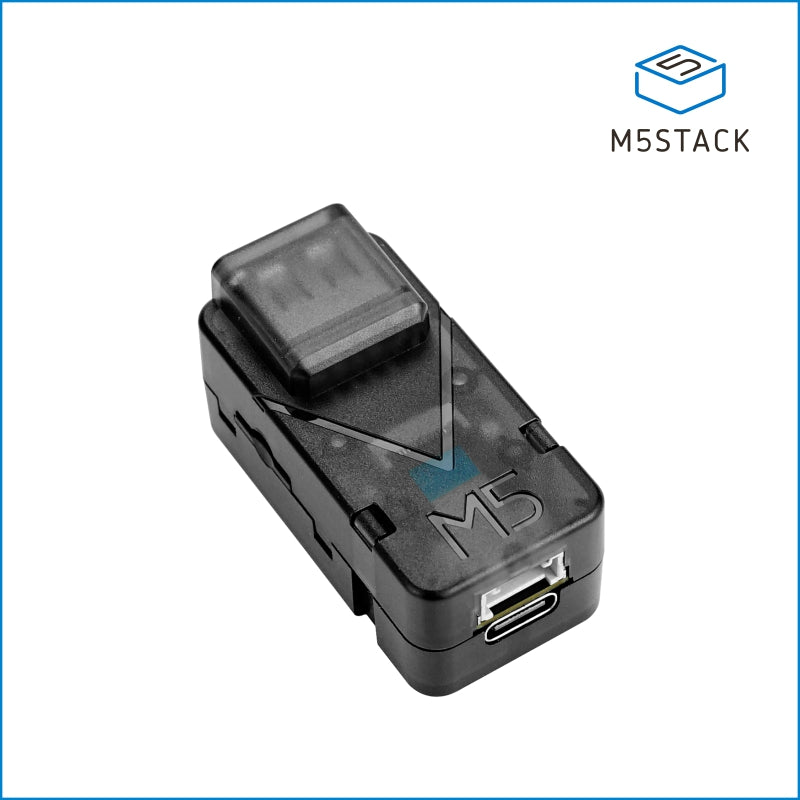

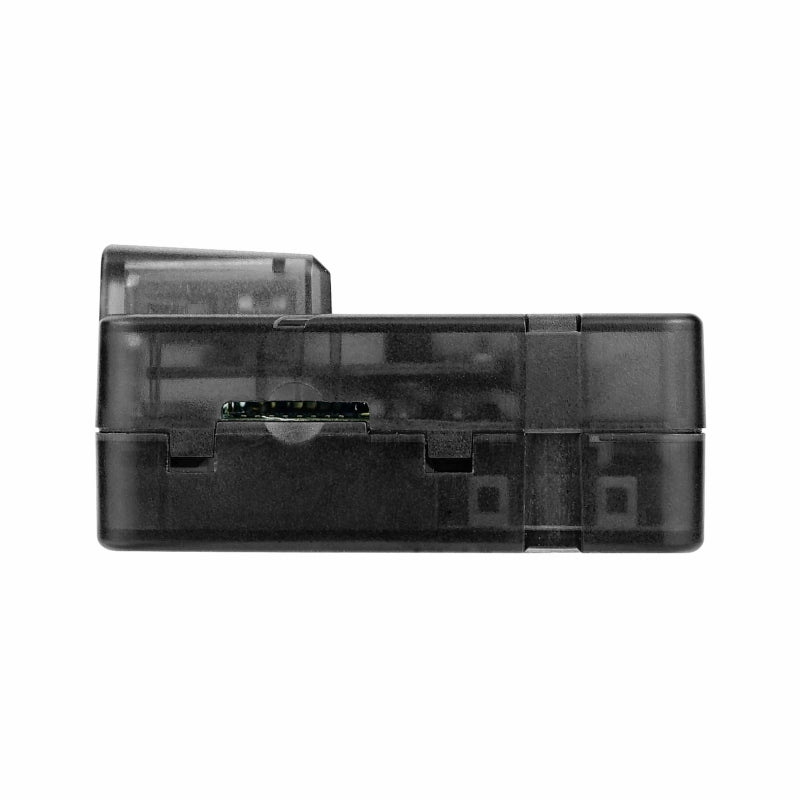

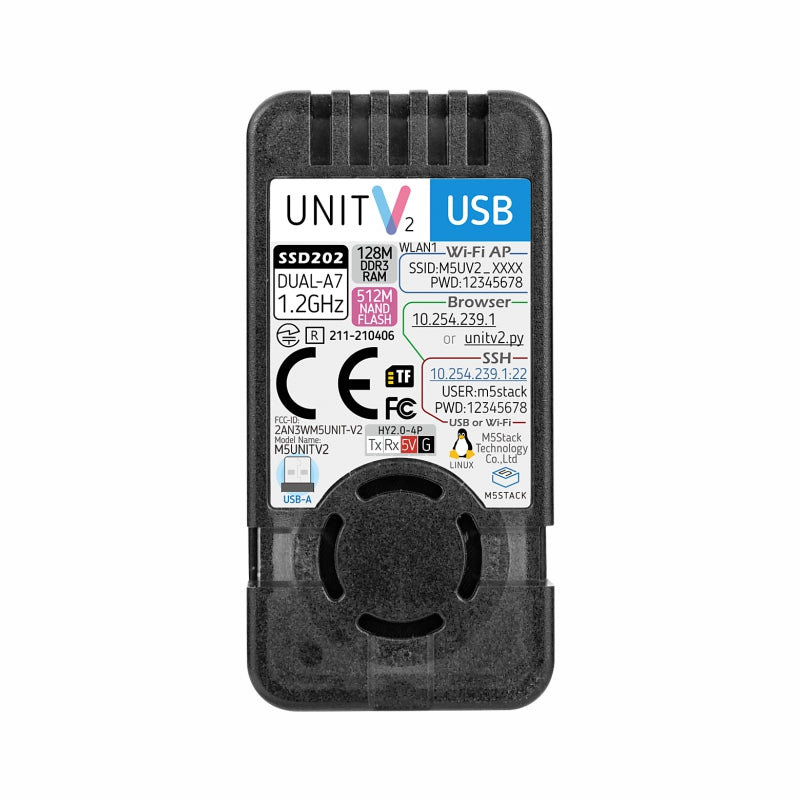

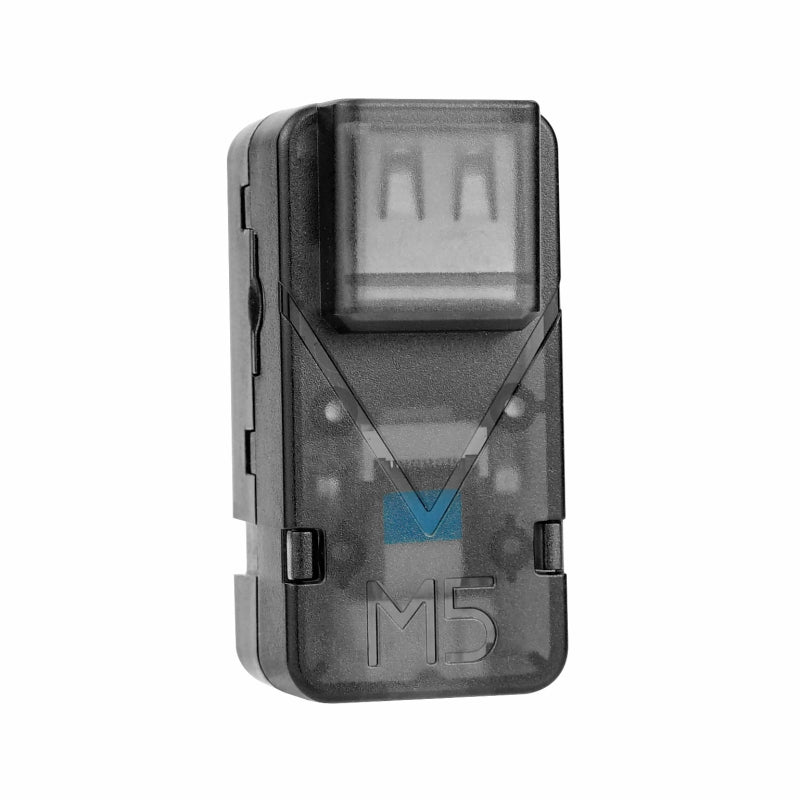

M5Stack UnitV2 USB Version without Camera

SKU:U078-USB

Regular price $65.00

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

The UnitV2 USB is the latest high efficiency AI recognition module from M5Stack, it adopts Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) control core, 128MB-DDR3 memory and 512MB NAND Flash. It offers USB-A universal interface, which allows you to connect various UVC Cameras, Built-in Linux operating system, integrated with rich hardware and software resources and development tools brings you a simple and efficient AI development experience right out of the box!

Product Features

  • Sigmstar SSD202D
  • Dual-core Cortex-A7 1.2GHz processor
  • 128MB DDR3
  • 512MB NAND Flash

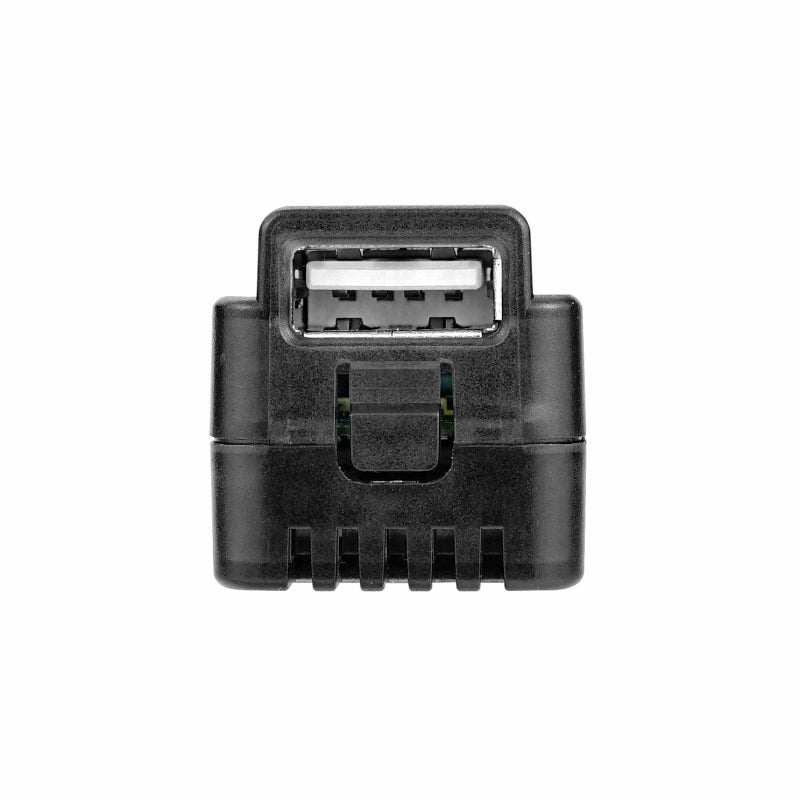

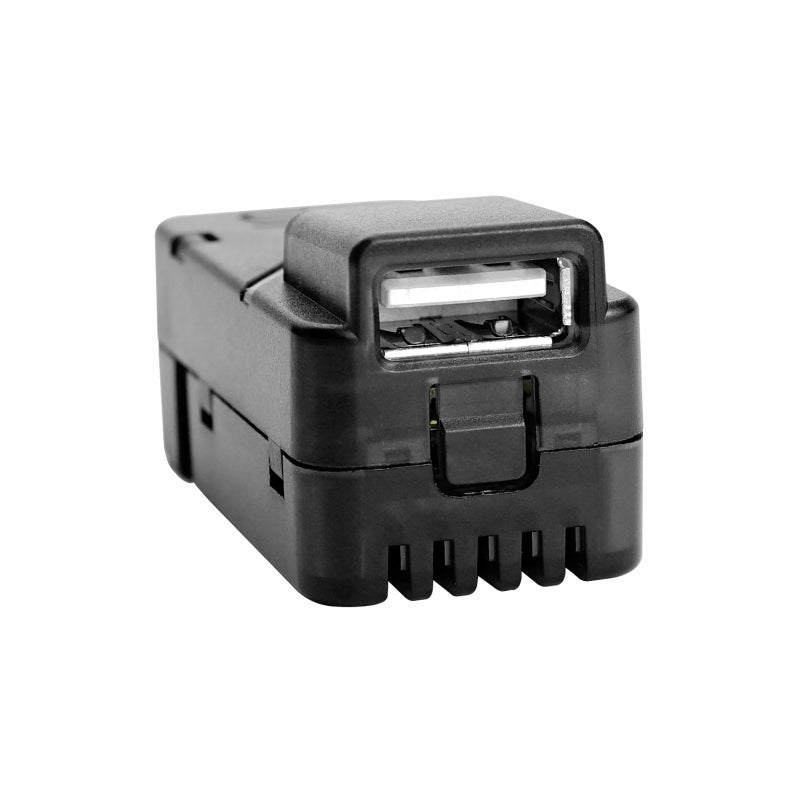

  • USB-A universal interface, can be connected to various UVC cameras
  • Wi-Fi 2.4GHz
  • Development method:
    • Equipped with 12 ways AI image functions: QR code, face detection, line tracking, movement, shape matching, image streaming, classification, color tracking, face recognition, target tracking, shape detection, custom object detection
    • Support online preview, UIFlow (used as serial port json format)
    • Linux system(OpenCV, SSH, JupyterNotebook)

Include

  • 1 x M5Stack UnitV2 USB
  • 1 x 16g TF Card
  • 1 x USB-C cable (50cm)
  • 1 x bracket

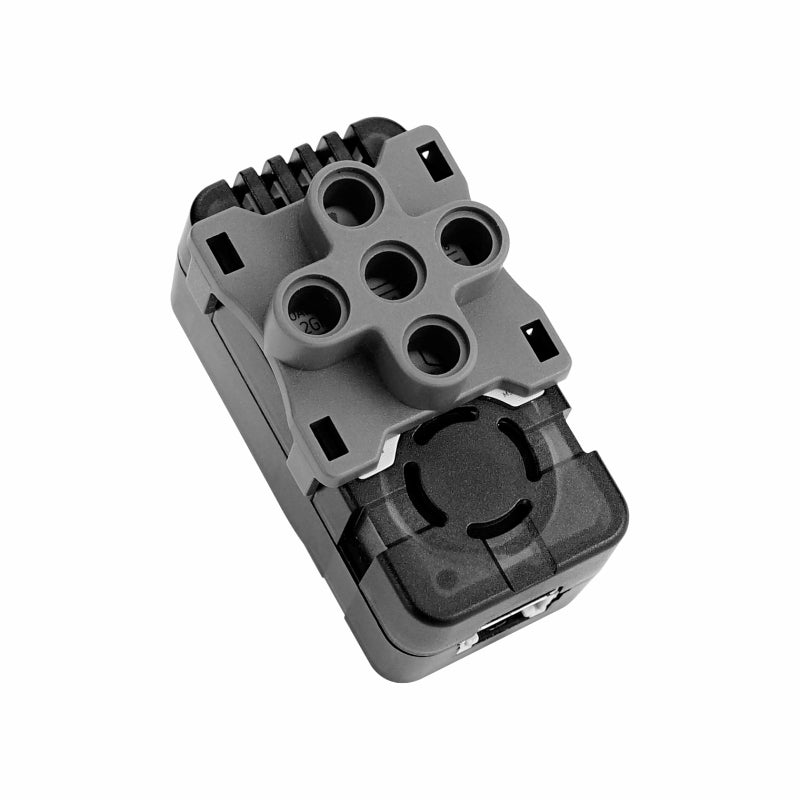

  • 1 x back clip

Application

  • AI recognition function development
  • Industrial visual recognition classification
  • Machine vision learning

UNIT-V2 series comparison

Spec UNIT-V2 UNIT-V2 M12 UNIT-V2 USB
Lens equipment Normal focal length (FOV 68°) Normal focal length (FOV 85°) + wide-angle focal length (FOV: 150°) Without lens, USB-A universal interface, can be connected to various UVC cameras
CMOS GC2145 GC2053 /

Specifications

Specifications Parameters
Sigmstar SSD202D Dual Cortex-A7 1.2GHz Processor
Flash 512MB NAND
RAM 128MB-DDR3
Camera Not equipped with a lens, USB-A universal interface, can be connected to various UVC cameras
Input voltage 5V @ 500mA

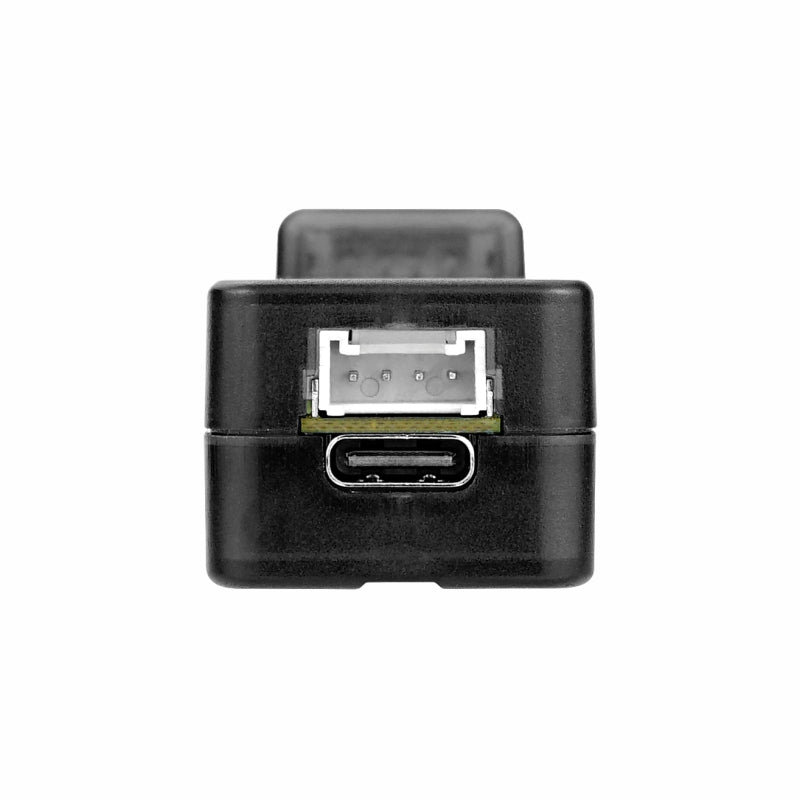

Hardware Peripherals TypeC x1, UART x1, TFCard x1, Button x1, Microphone x1, Built-in active cooling fan x1
Indicator light Red, White
Wi-Fi 150Mbps 2.4GHz 802.11 b/g/n
Ethernet network card SR9900

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Use the latest Linux AI smart camera UnitV2 produced by M5Stack to build a non-performing product screening function that simulates industrial application scenarios.
