Description

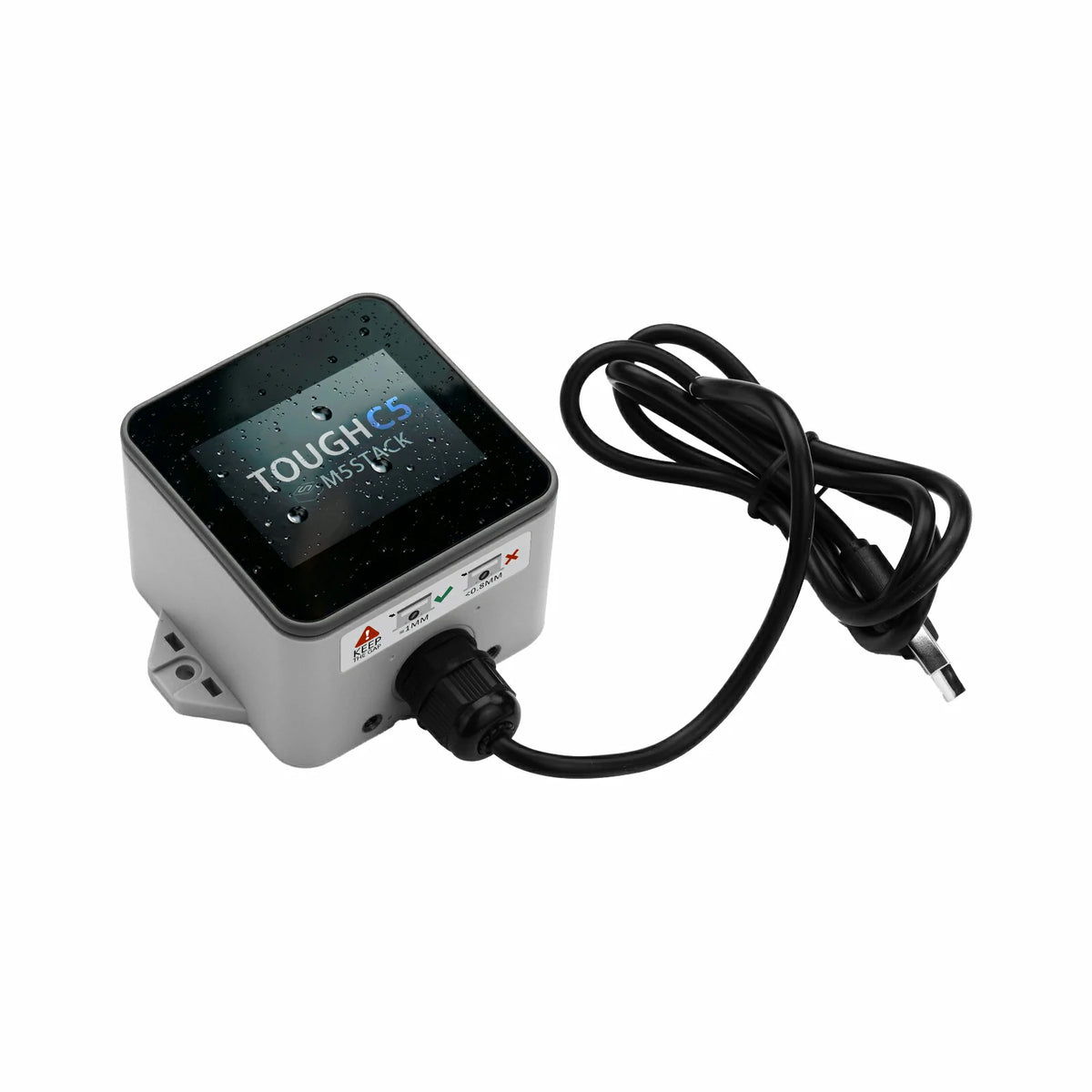

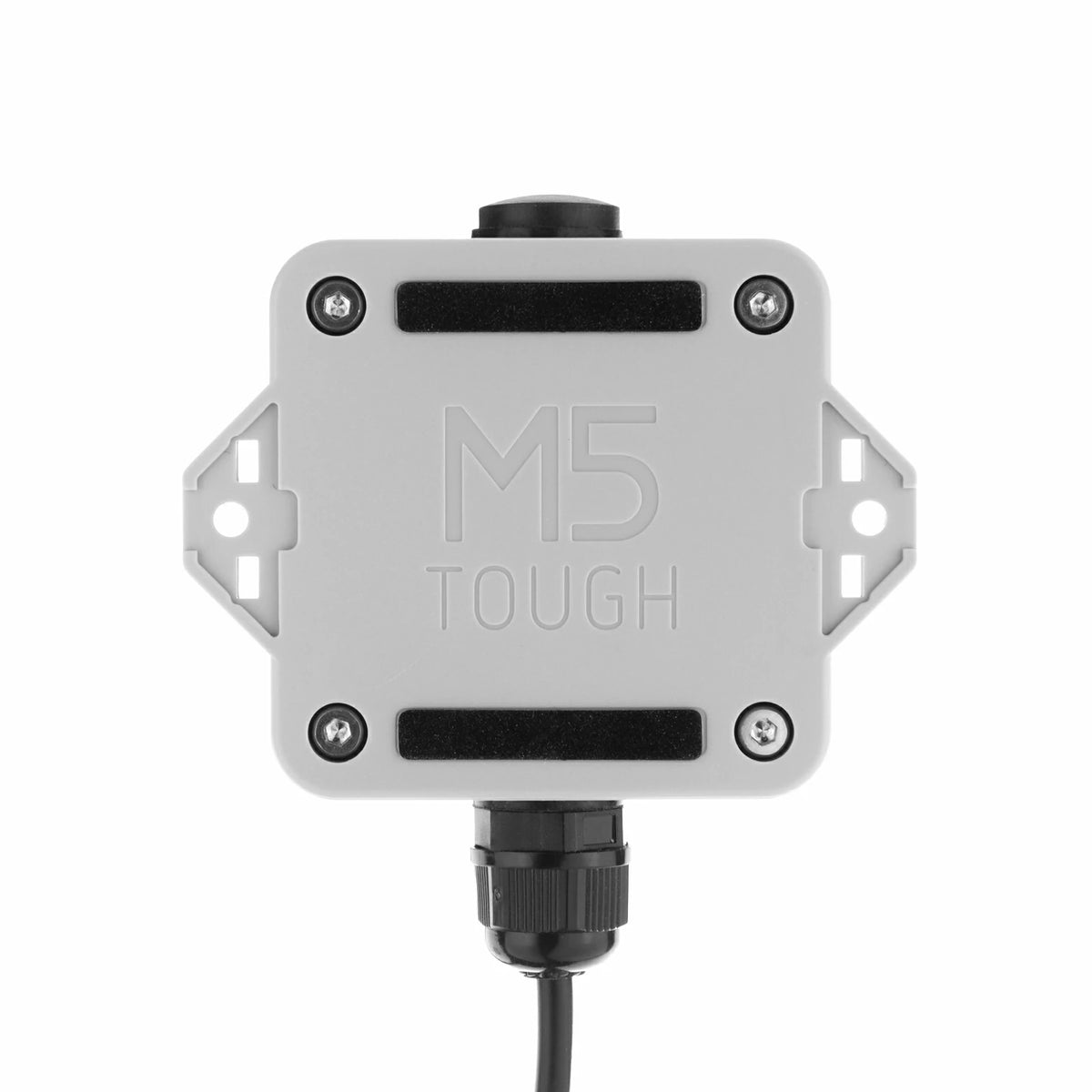

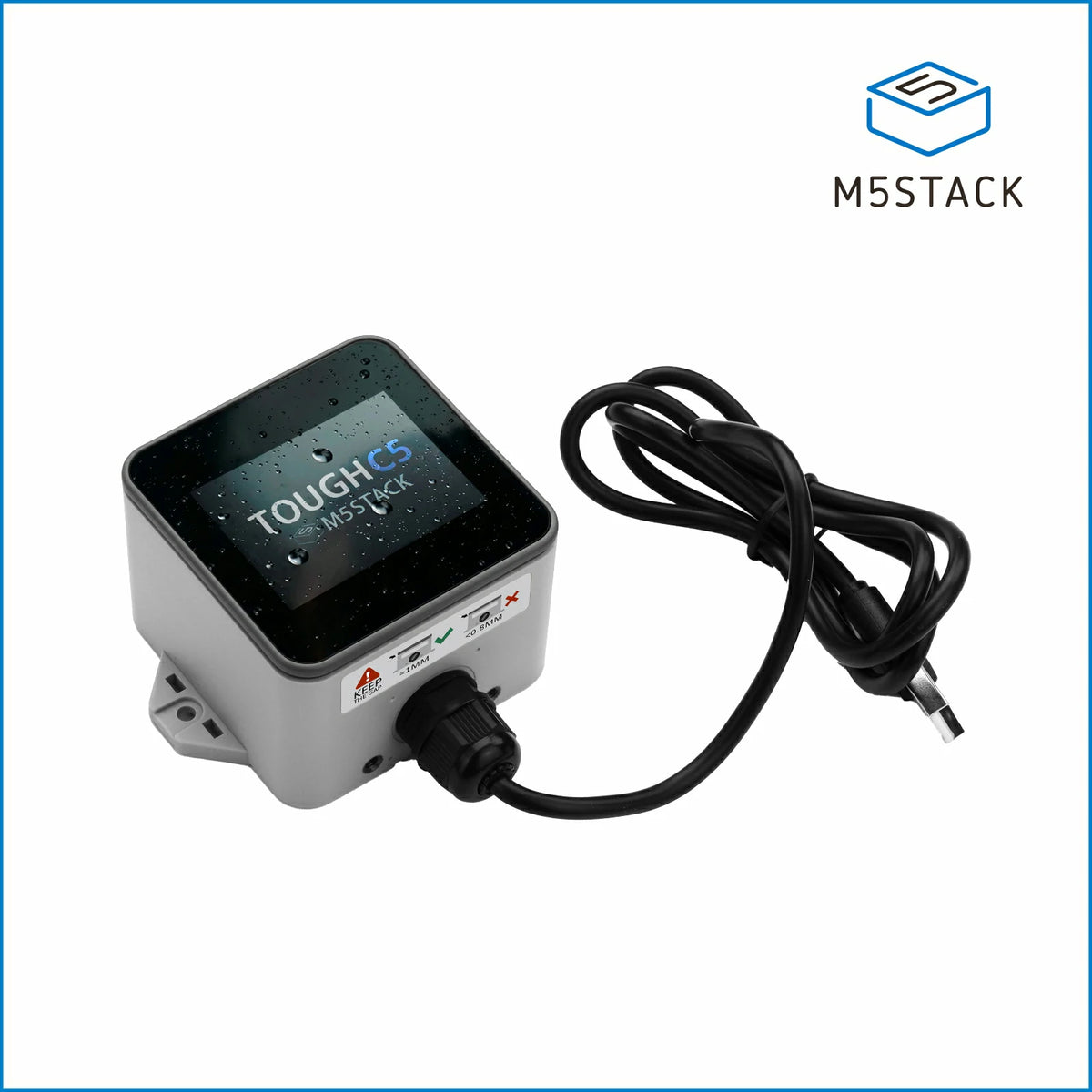

ToughC5 is an outdoor waterproof IoT controller. Built around the ESP32-C5HR8 core module, it features a RISC-V 32-bit single-core processor running at 240MHz, with 16MB Flash and 8MB PSRAM. It supports 2.4 & 5 GHz dual-band Wi-Fi 6, BLE 5, and IEEE 802.15.4 (Zigbee, Thread) multi-protocol connectivity, meeting access requirements across a variety of network scenarios. It integrates a 2.0" color LCD display (resolution 320 × 240) with a highly sensitive capacitive touch panel, and includes an onboard buzzer, microSD card slot, and RX8130CE real-time clock. The housing is made of PC + ABS (with UV powder), providing resistance to UV aging. Internally, the device offers I2C, GPIO, UART, and RS485 expansion interfaces as well as a battery connector, which are routed externally through the M12 connectors on both sides of the body for additional expansion. The system uses M5PM1 + M5IOE1 for multi-level power management and supports low-power wake-up. The device provides standard water and dust resistance (not designed for immersion), making it suitable for a wide range of applications such as outdoor edge data collection, smart buildings, and industrial gateways.
Features
- ESP32-C5HR8 Core Main Controller
- 16MB Flash
- 8MB PSRAM
- 2.4 & 5 GHz Dual-Band Wi-Fi 6
- Supports BLE 5 / IEEE 802.15.4 (Zigbee, Thread)
- Human-Machine Interaction
- 2.0" LCD Capacitive Touch Screen, 320 x 240 Resolution
- Onboard Passive Buzzer
- Clock and Power

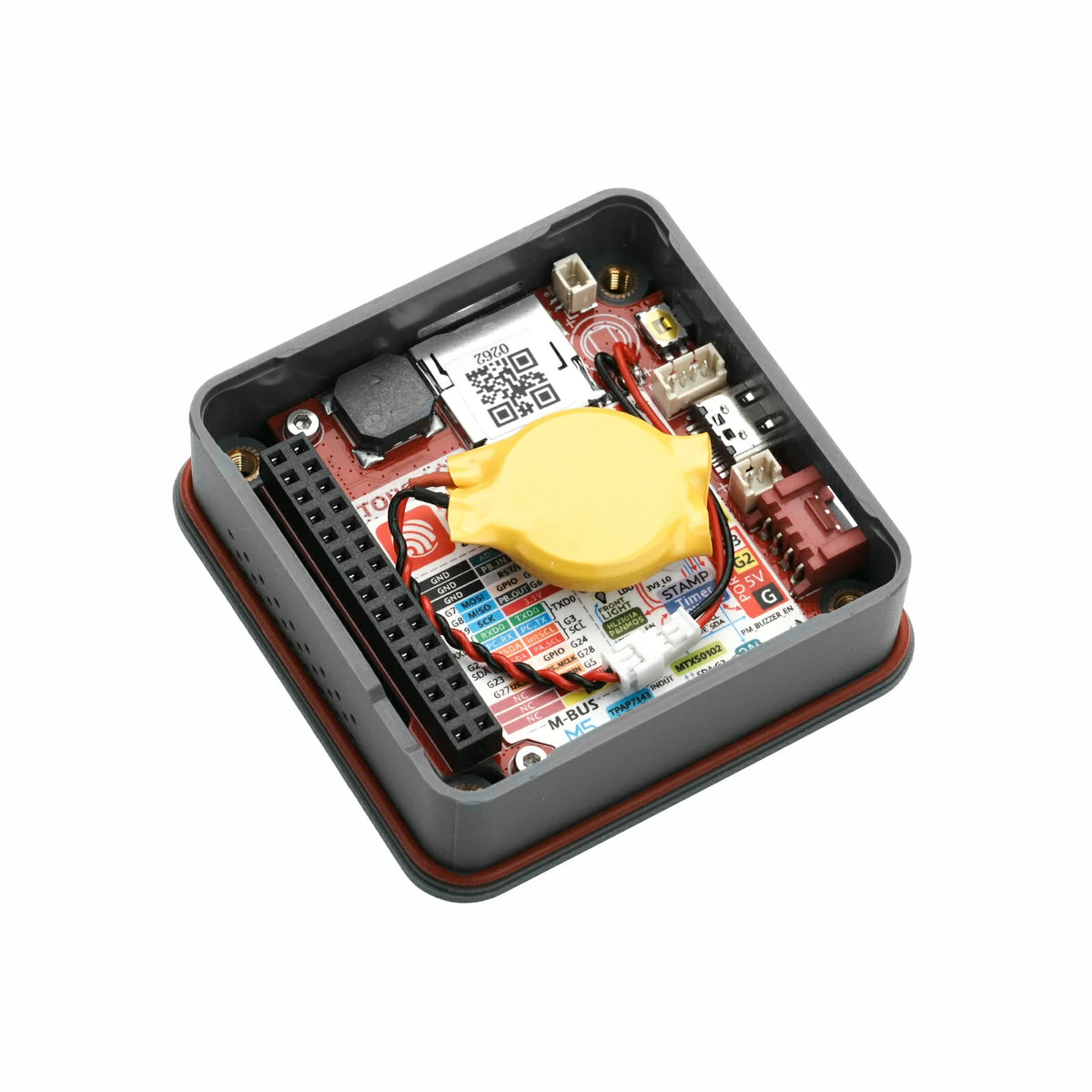

- Onboard RX8130CE RTC Clock
- RTC Clock Battery (CR2032 Coin Cell Battery DC 3V@220mAh)
- M5PM1 + M5IOE1 Multi-Level Power Management
- DC 3.7V Battery Interface
- Interfaces and Expansion
- USB Type-C for Debugging / Program Download

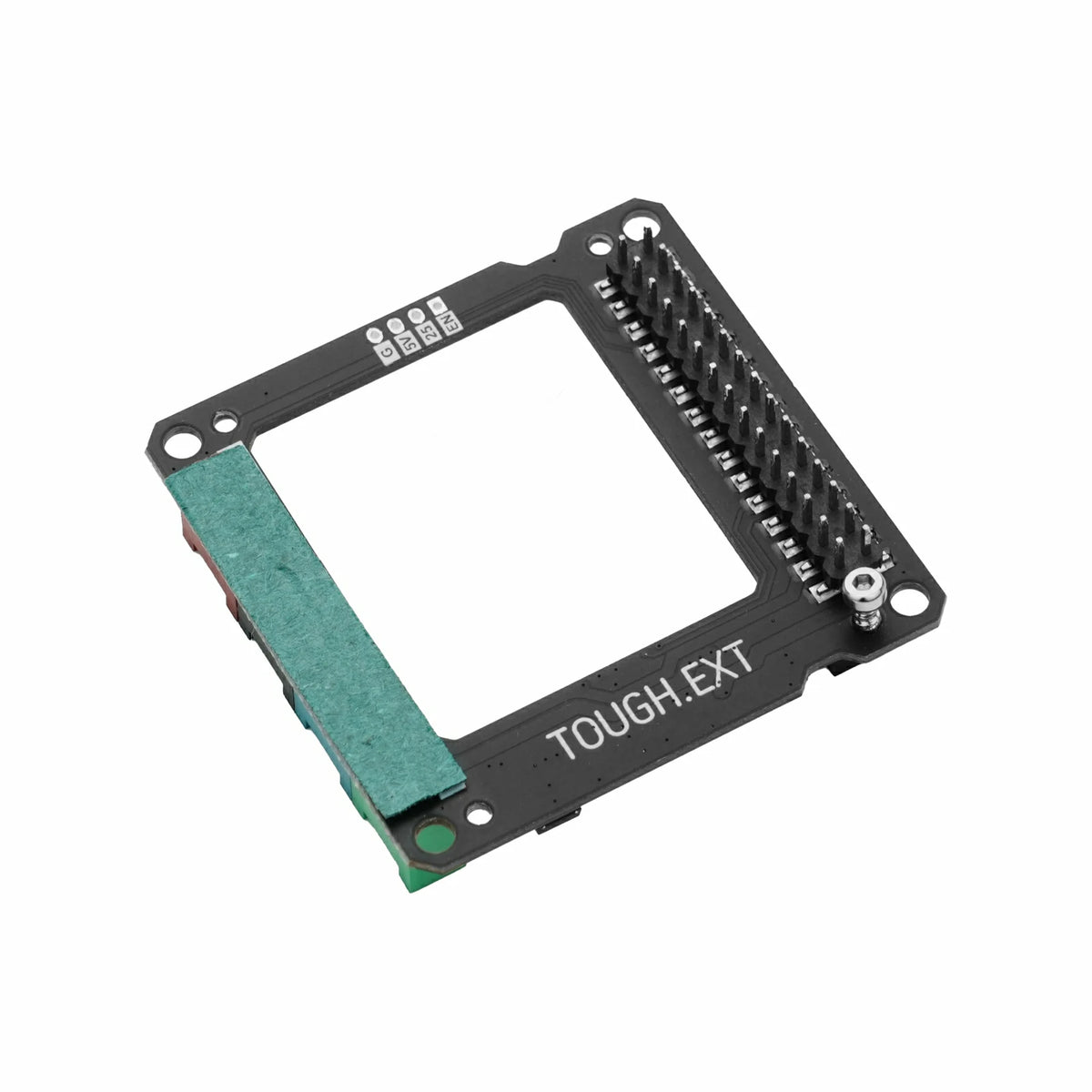

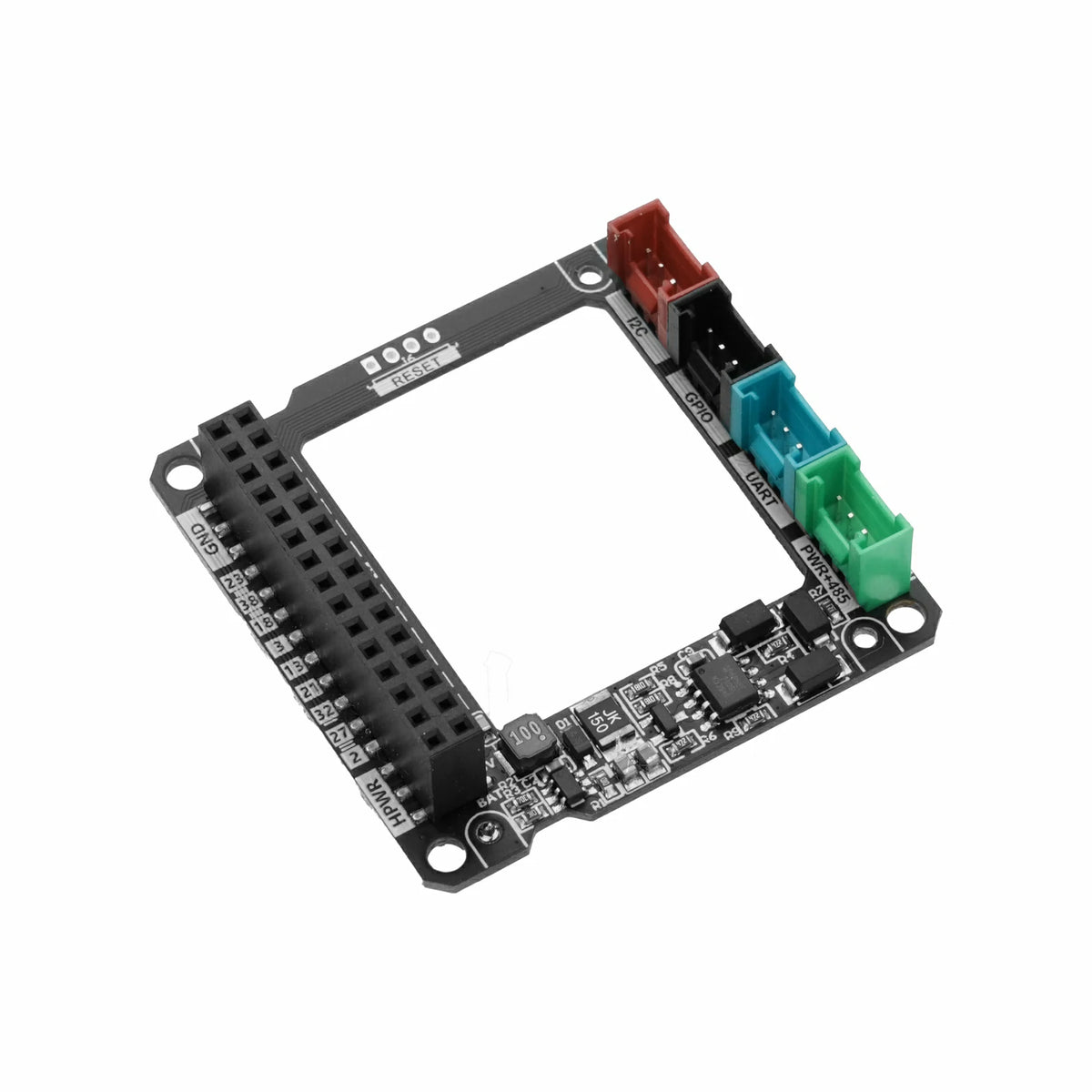

- Internal Interface Expansion Board: HY2.0-4P x 4 (RS485/I2C/GPIO/UART)

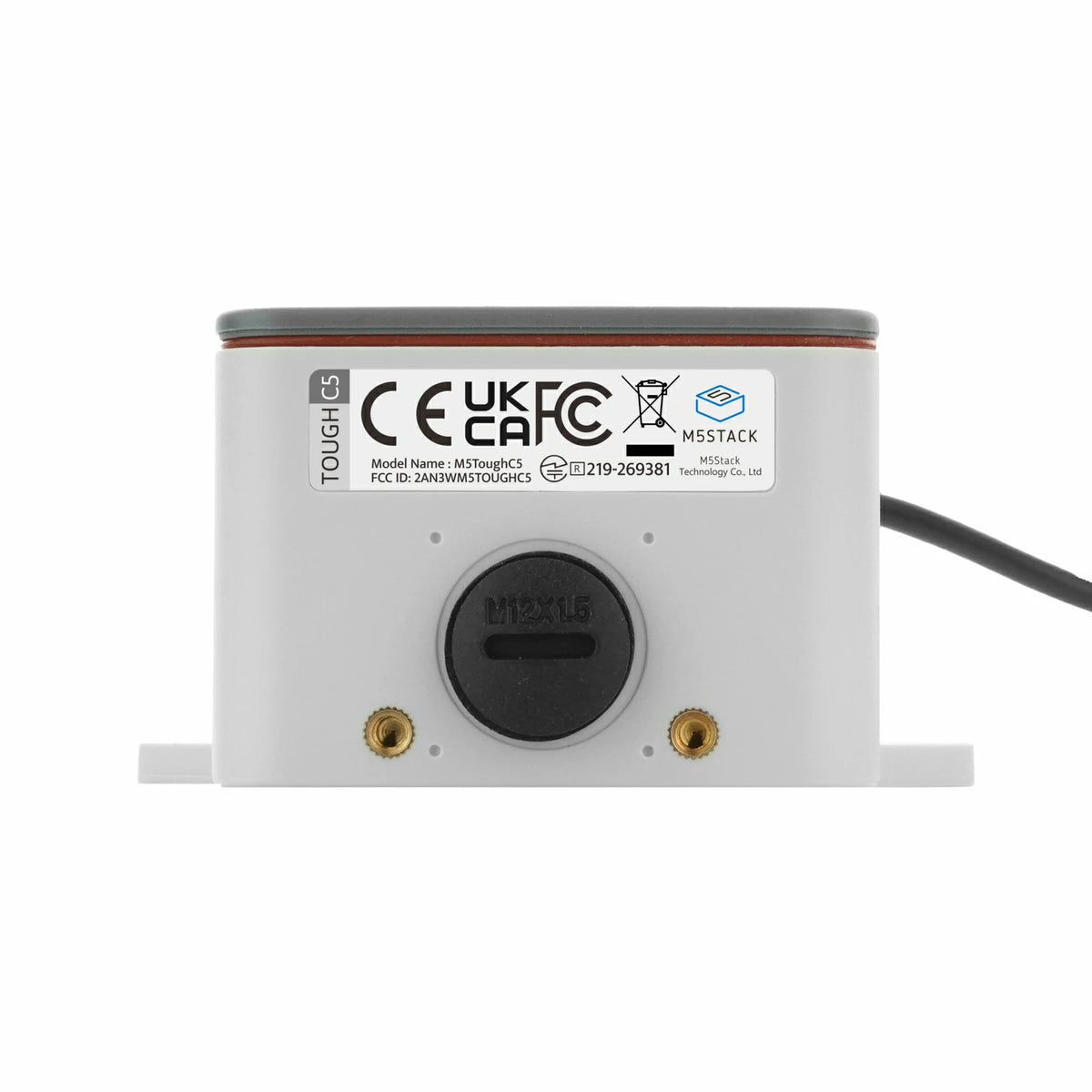

- 2x M12 Body Cable Routing Holes
- microSD Card Slot
- Easy Wiring, Magnetic Mounting
- PC + ABS (with UV Powder) Housing Material, Resistant to UV Aging

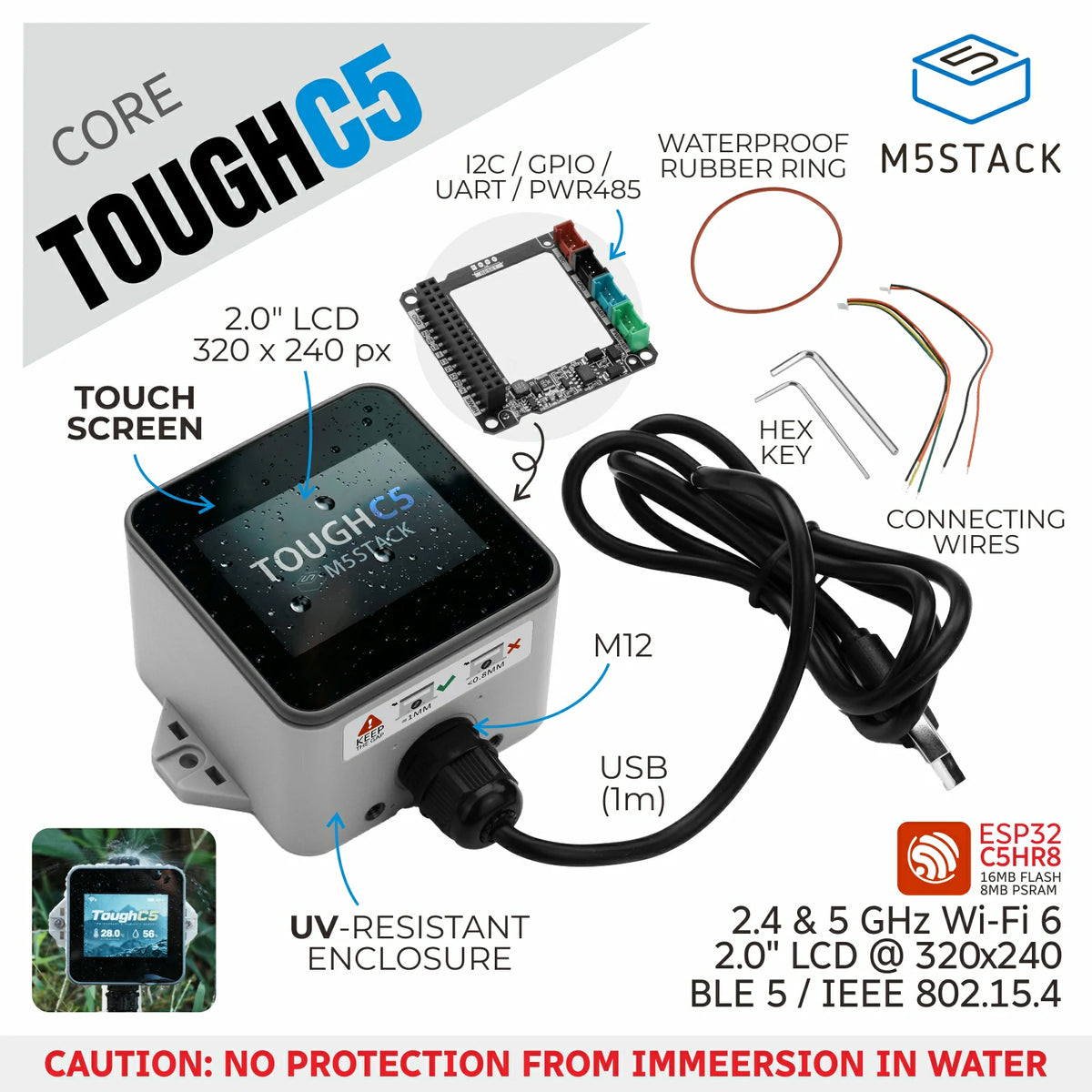

Includes

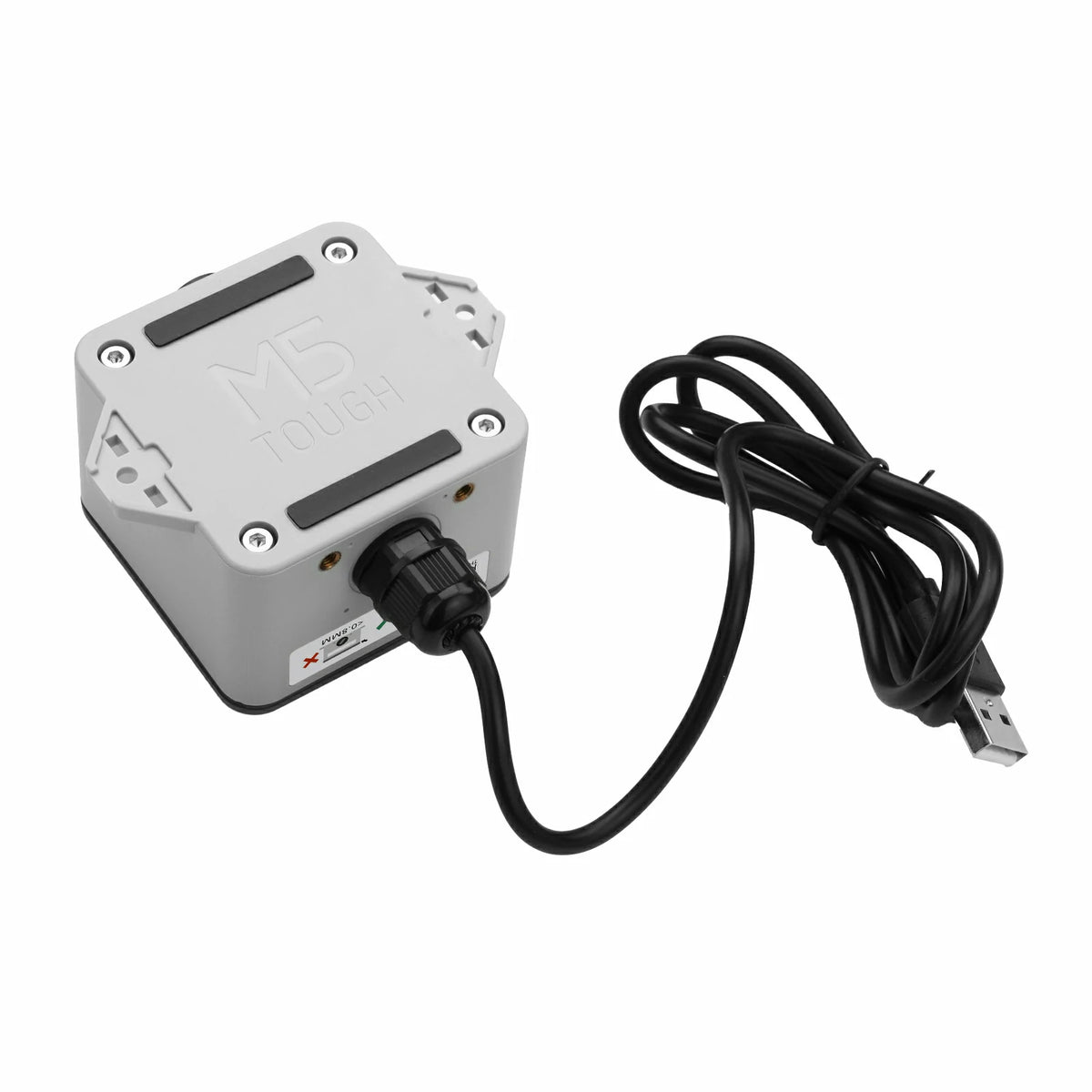

- 1 x ToughC5
- 1 x USB Type-C Cable (1m)
- 1 x Hex Key L-Shape 2.5mm (For M3 Screw)
- 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
- 1 x 1.25-2P Single-Head Terminal Cable
- 1 x 1.25-4P Single-Head Terminal Cable
- 1 x Waterproof O-Ring
Applications

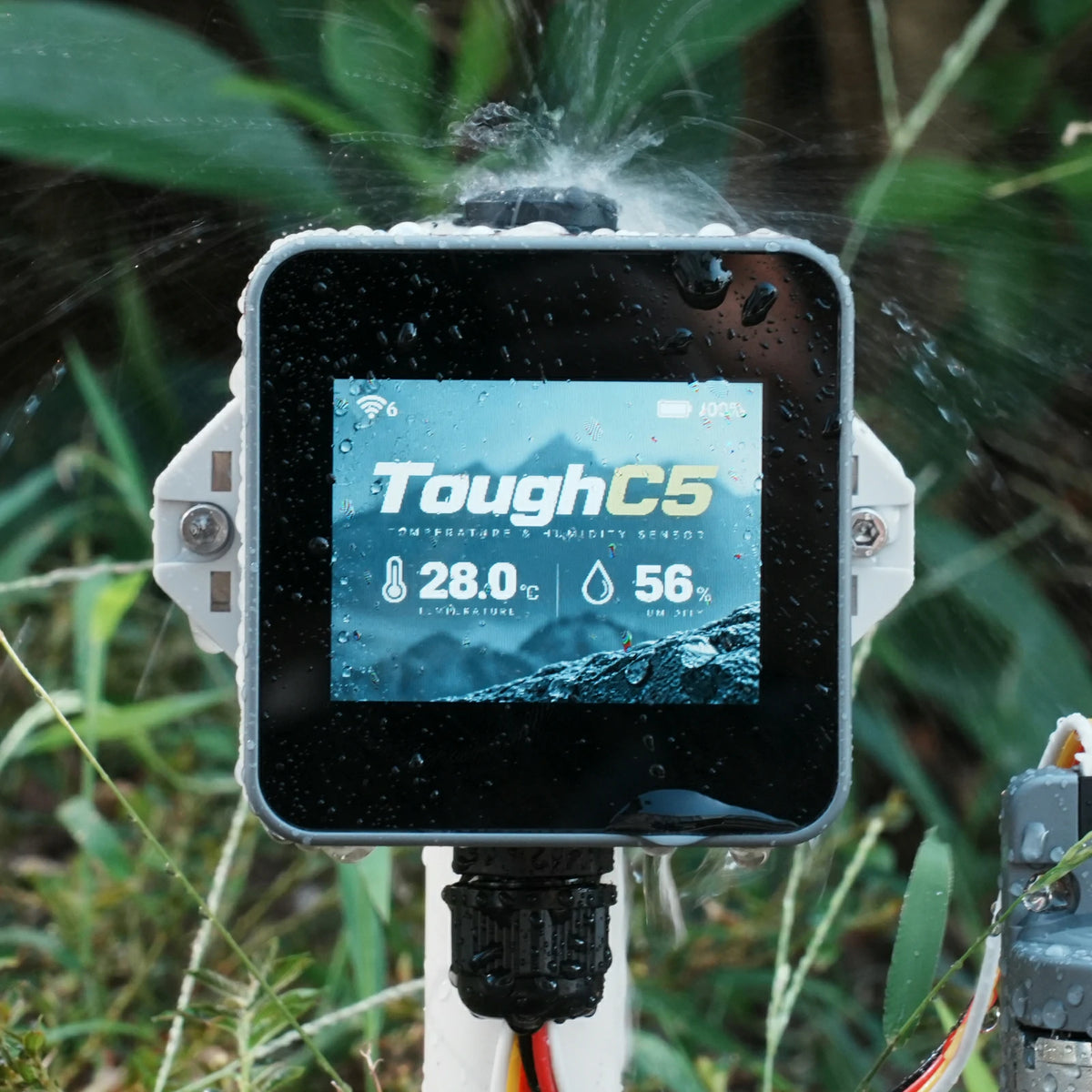

- Outdoor edge data collection
- Outdoor industrial field control
- Outdoor environment gateway monitoring
- Field low-power sensor terminals
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-C5HR8 @ RISC-V® 32-bit single-core processor, up to 240MHz |
| Flash | 16MB |
| PSRAM | 8MB Octal |
| Wireless Connectivity | 2.4 & 5 GHz dual-band Wi-Fi 6 / BLE 5 / IEEE 802.15.4 (Zigbee, Thread) |
| Input Voltage | USB (DC 5V@500mA) / RS485 interface input power (DC 6 ~ 24V@1A) / Battery (DC 3.7V) |
| Interface | USB Type-C x 1, HY2.0-4P x 4 (RS485/I2C/GPIO/UART) |
| RS485 Signal Conversion | RS485 @ SP485EEN-L/TR |
| LCD Screen | 2.0" @ 320 x 240 ILI9342C IPS panel, maximum brightness 853nit |
| Touch Panel Driver IC | CHSC6540 |
| RTC | RTC Chip: RX8130CE RTC Battery Spec: DC 3V@220mAh, Size 20 x 3.2mm Battery Socket Spec: SH1.0-2P |
| Battery Connector Spec | MX1.25-2P |
| Buzzer | Onboard passive buzzer @8530 |
| FPC Antenna | 2.4 GHz & 5 GHz, IPEX‑2nd Gen, 14.3x5.3mm, cable length 50mm |
| Power Management | M5PM1 + M5IOE1 |
| Power Consumption | Shutdown state: DC 4.2V@10.41uA Full load state: DC 4.2V@320mA |
| Housing Material | PC + ABS (with UV powder) |
| Product Size | 75.9 x 58.0 x 42.5mm |
| Product Weight | 119.0g |
| Package Size | 101.0 x 83.0 x 46.0mm |
| Gross Weight | 161.4g |
Product Comparison
| Product Comparison | ToughC5
|
Tough
|
|---|---|---|
| SoC | ESP32-C5HR8 @ RISC-V 32-bit single-core processor, up to 240MHz | ESP32-D0WDQ6-V3 @ Xtensa 32-bit LX6 dual-core processor, up to 240MHz |
| SRAM | 384 KB HP SRAM + 16 KB LP SRAM | 520KB |
| Flash | 16MB | 16MB |
| PSRAM | 8MB Octal | 8MB Quad |
| Wireless Connectivity | 2.4 & 5 GHz dual-band Wi-Fi 6 / Zigbee / Thread (802.15.4) | 2.4 GHz Wi-Fi |
| Antenna | FPC antenna, 2.4G & 5G, IPEX-2nd Gen, 14.3 x 5.3mm, cable length 50mm | 3D Wi-Fi antenna |
| LCD Screen | 2.0" 320 x 240 ILI9342C full-color display, maximum brightness 853nit | 2.0" 320 x 240 ILI9342C full-color display, maximum brightness 853nit |
| Touch Panel Driver IC | CHSC6540 | CHSC6540 |
| Audio | Onboard passive buzzer @8530 | NS4168 16bit I2S amplifier + 1W speaker |
| PMU | M5PM1 | AXP192 |
| IO Expansion | M5IOE1 peripheral control system | / |
| RTC Clock Chip | RX8130CE | BM8563 |
