Description

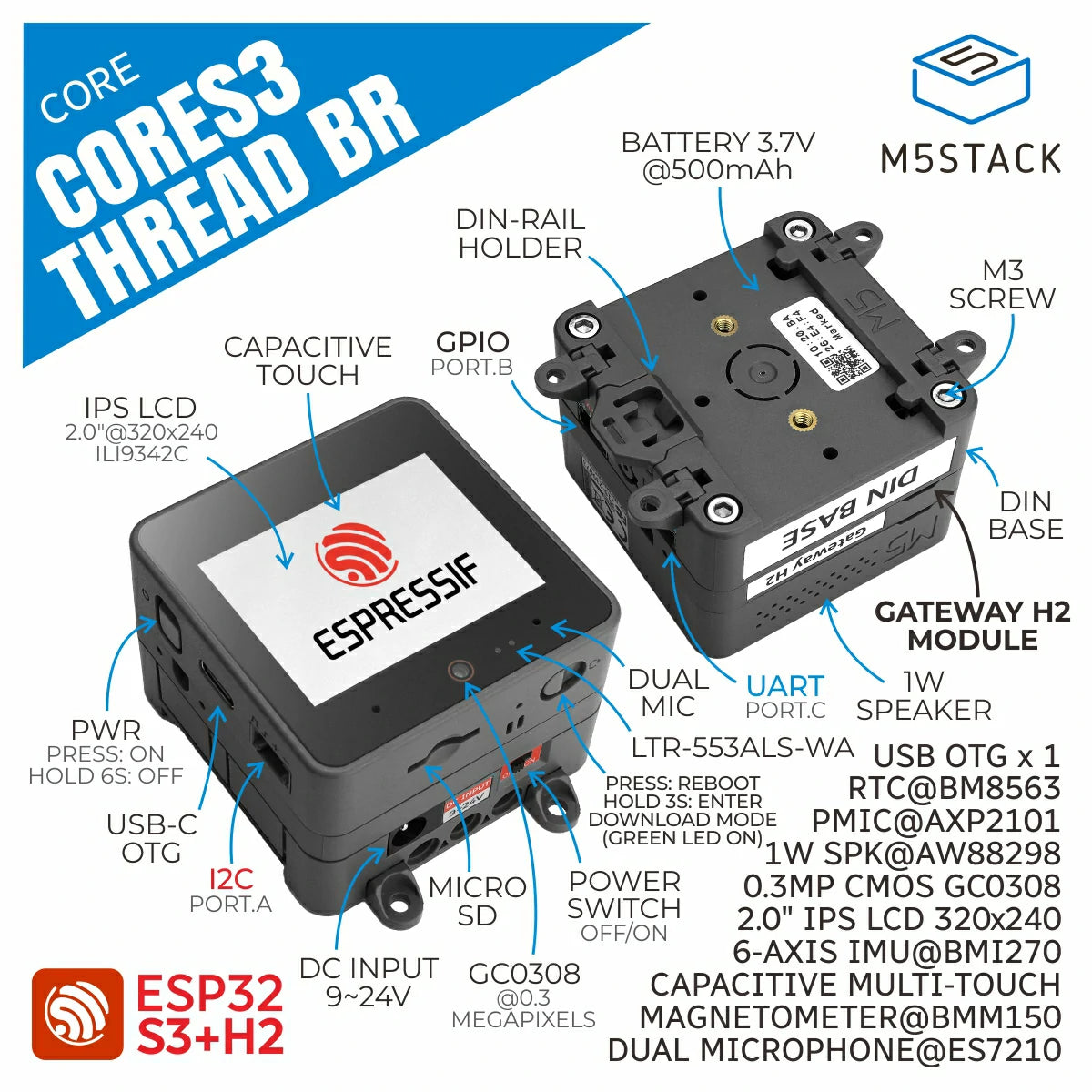

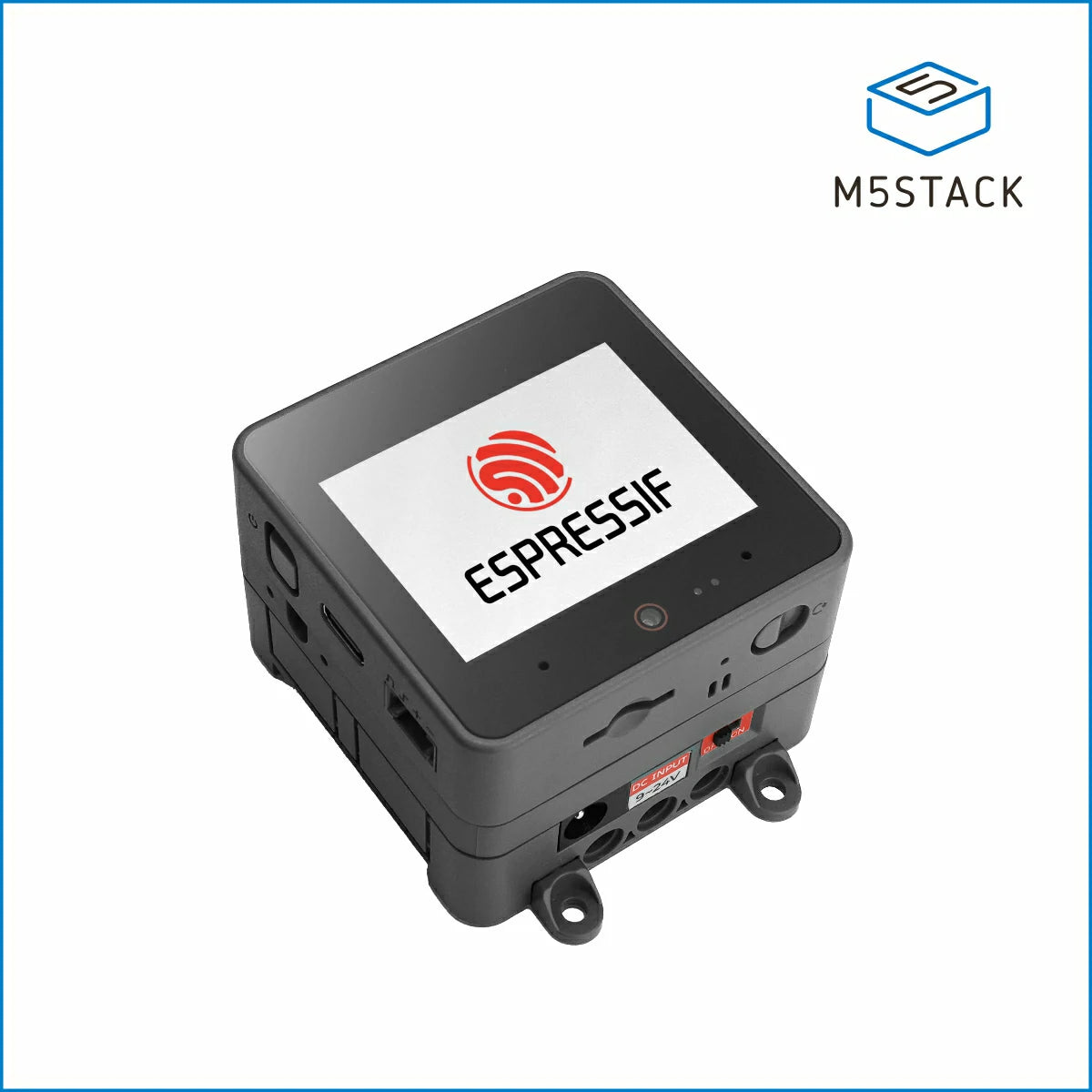

CoreS3 Thread BR is a Thread Border Router kit. The core components consist of the CoreS3 controller and the Module Gateway H2 wireless module. The CoreS3 acts as the control core of the edge gateway, running user applications and the OpenThread protocol stack. The CoreS3 controller is based on the ESP32-S3 SoC and is equipped with a combination of 16MB Flash and 8MB PSRAM. It supports 2.4 GHz Wi-Fi, integrates a 2.0" touch LCD display, camera, microphone, speaker, RTC, and a six-axis motion sensor, among other rich peripherals. The Module Gateway H2 module is built around the ESP32-H2-MINI-1 module and supports IEEE 802.15.4 wireless communication. As an OpenThread Radio Co-Processor (RCP), it provides Thread packet forwarding capabilities for the CoreS3 main controller. CoreS3 Thread BR is well suited for applications such as smart homes, environmental monitoring, sensor networks, and low-power wireless communication nodes, enabling developers to quickly carry out prototyping and product development.

Features

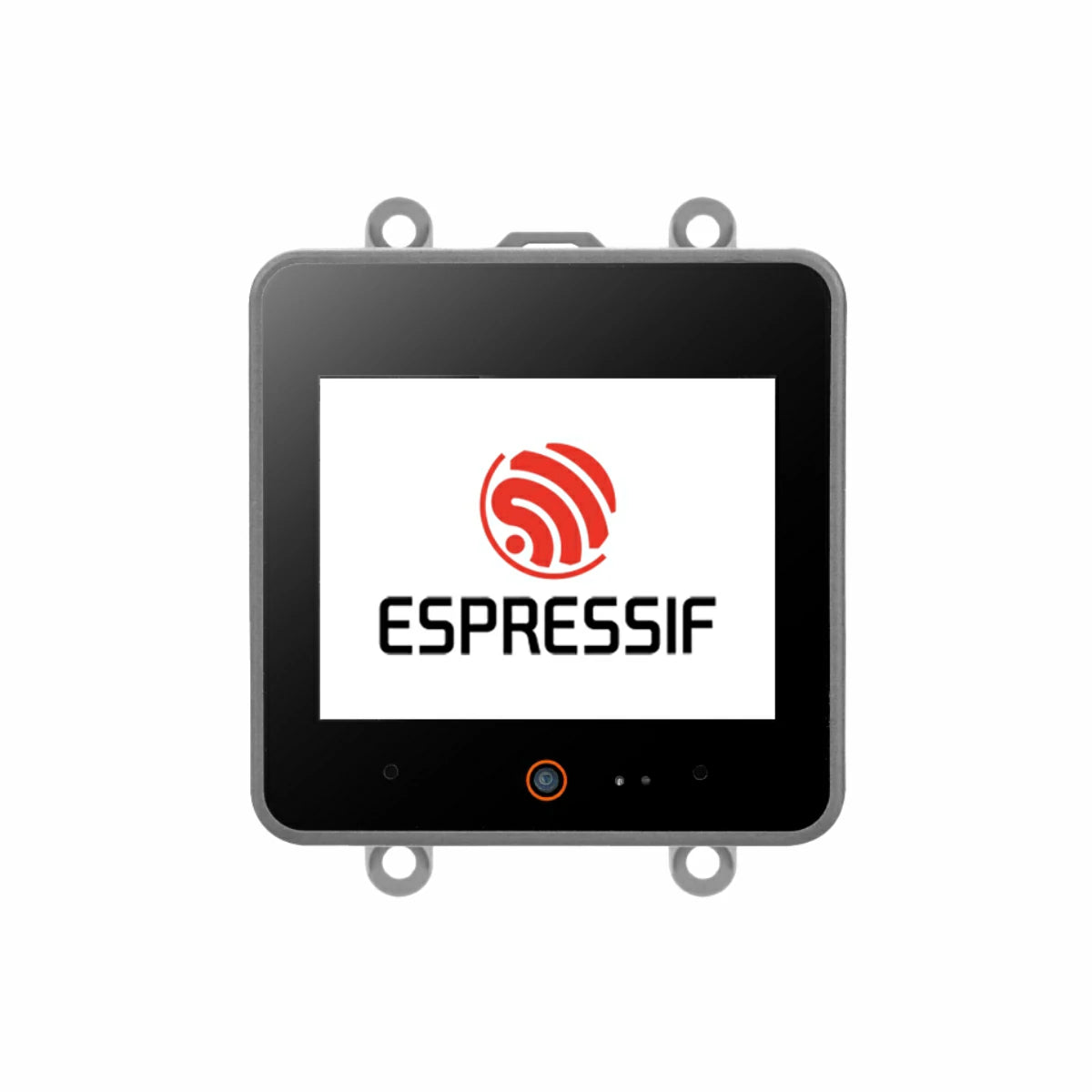

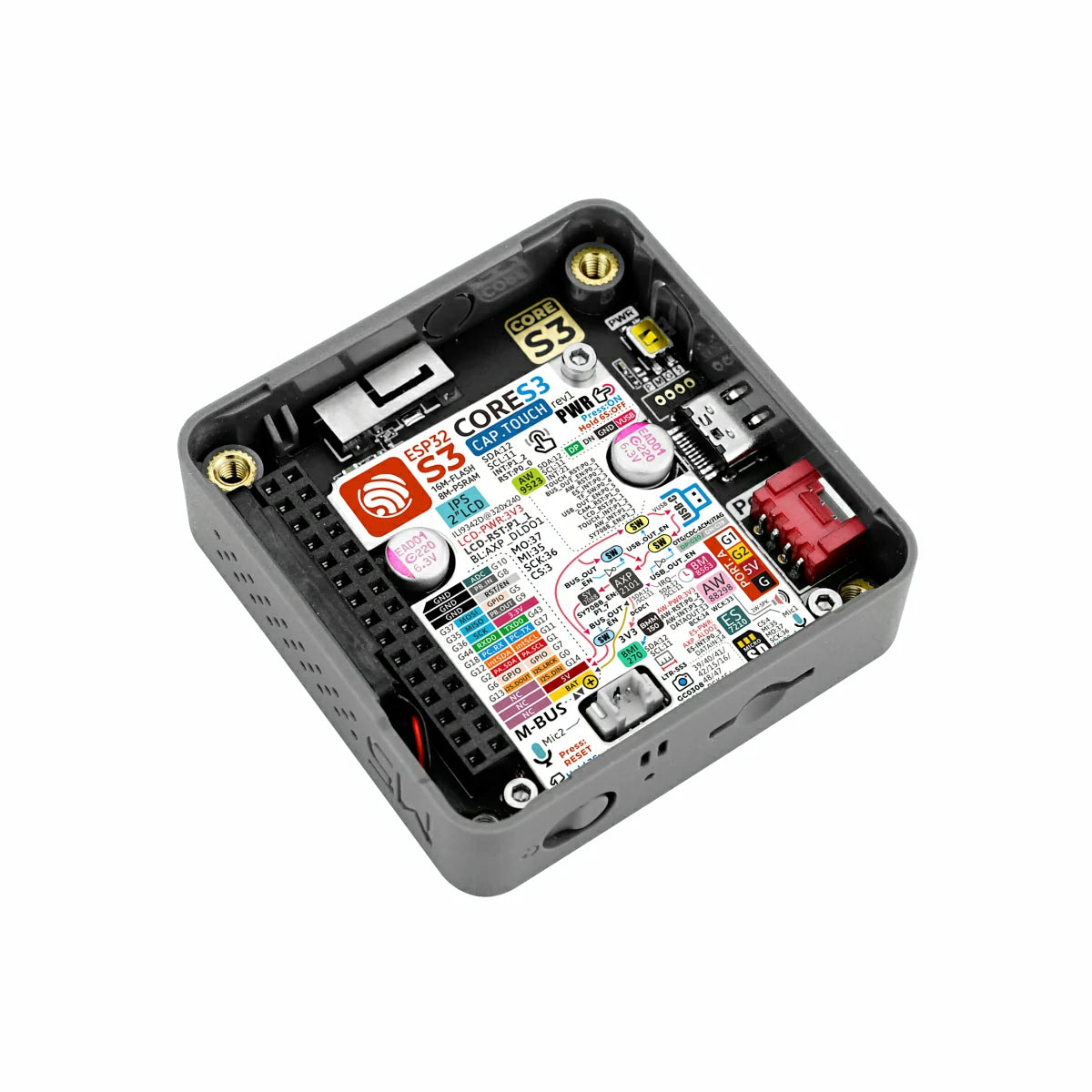

• CoreS3 Core Controller
  • ESP32-S3
  • 16MB Flash
  • 8MB PSRAM
  • microSD Card Slot
  • 9-axis IMU Sensor: BMI270 + BMM150
  • RTC: BM8563
  • USB-OTG
  • 0.3MP Camera GC0308
  • Proximity Sensor LTR-553ALS-WA
  • Audio Codec ES7210
  • Dual Microphone Input
  • Hi-Fi Power Amplifier AW88298 + 1W Speaker

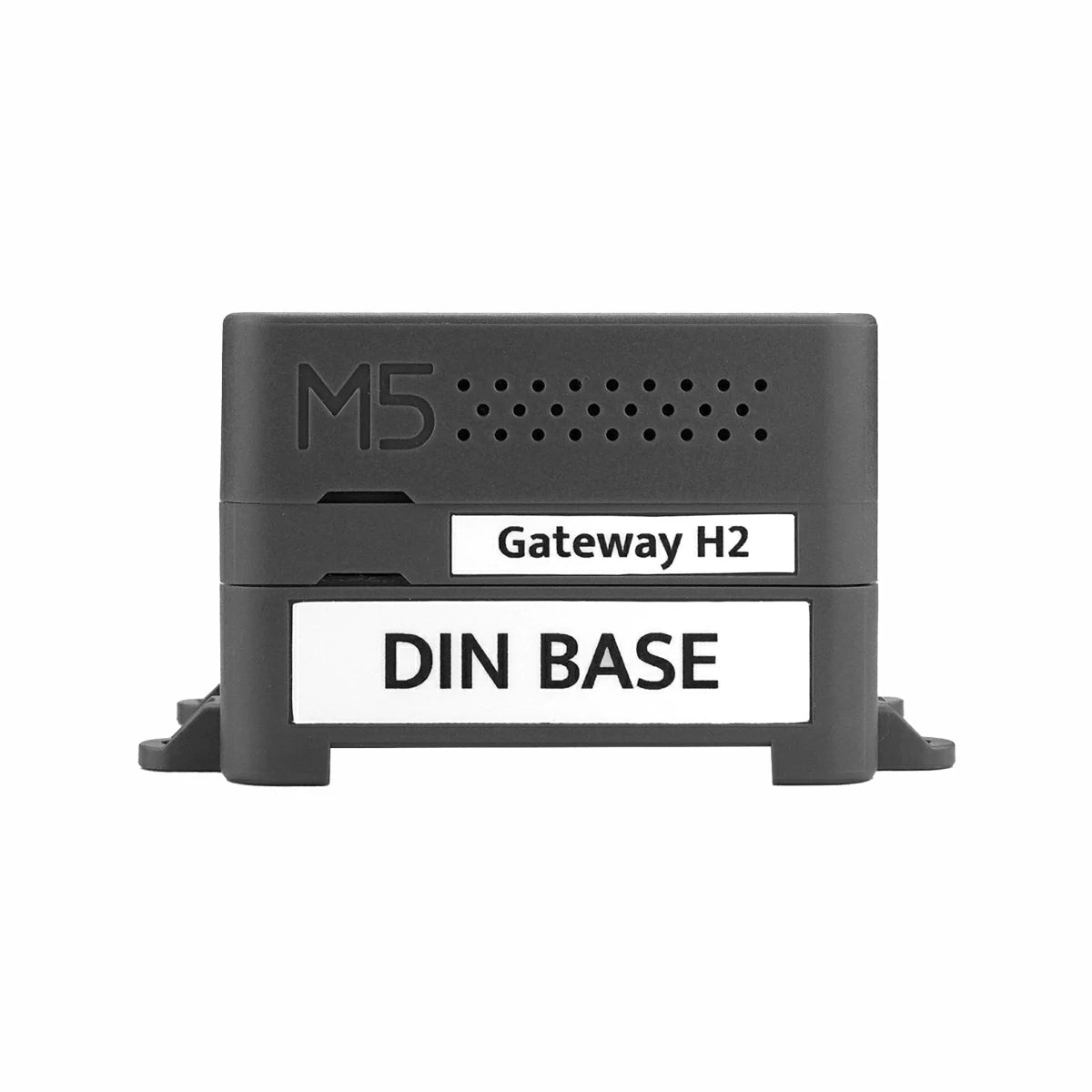

• Module Gateway H2 (RCP)
  • ESP32-H2-MINI-1
  • IEEE 802.15.4
  • Zigbee, Thread, Matter

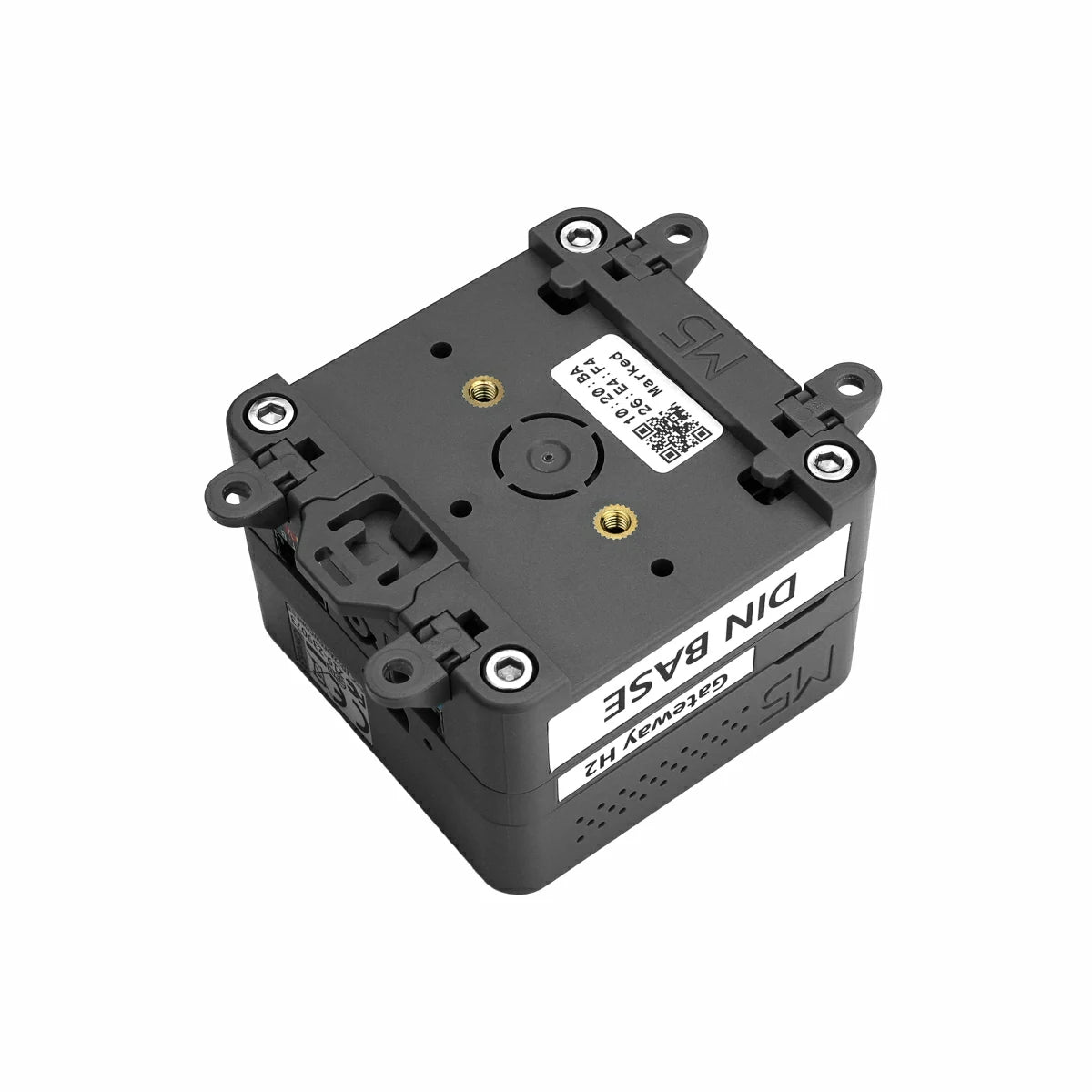

• Base DIN
  • DIN rail mounting design
  • Built-in 500mAh lithium battery

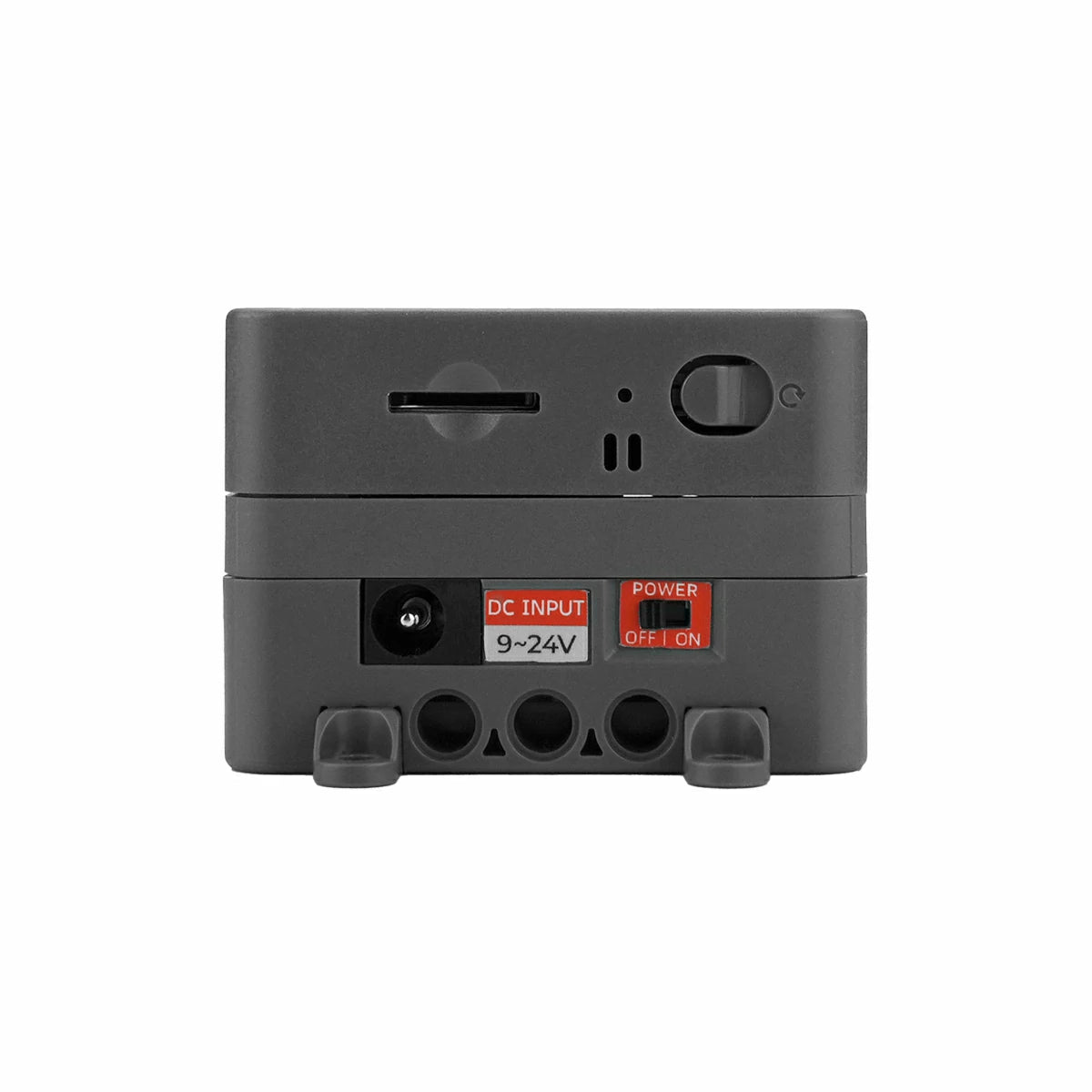

  • Supports DC 9 ~ 24V input power supply
  • Independent power switch
  • 2x HY2.-4P expansion interfaces

Includes

• 1 x CoreS3 Thread BR
• 1 x Hex Key L-Shape 2.5mm (For M3 Screw)
• 4 x Screw Clips
• 1 x DIN Rail Base Clip

Applications

• Smart Home
• Sensor Networks
