Description
Tab5 is a highly expandable, portable smart-IoT terminal development device for developers, integrating a dual-core architecture and rich hardware resources. The main controller adopts the ESP32-P4 SoC based on the RISC-V architecture, with 16MB Flash and 32MB PSRAM. The wireless module uses the ESP32-C6-MINI-1U, supporting Wi-Fi 6. Its antenna system can freely switch between the built-in 3D antenna and an external MMCX antenna interface, flexibly adapting to various deployment environments to ensure data throughput and low-latency control.

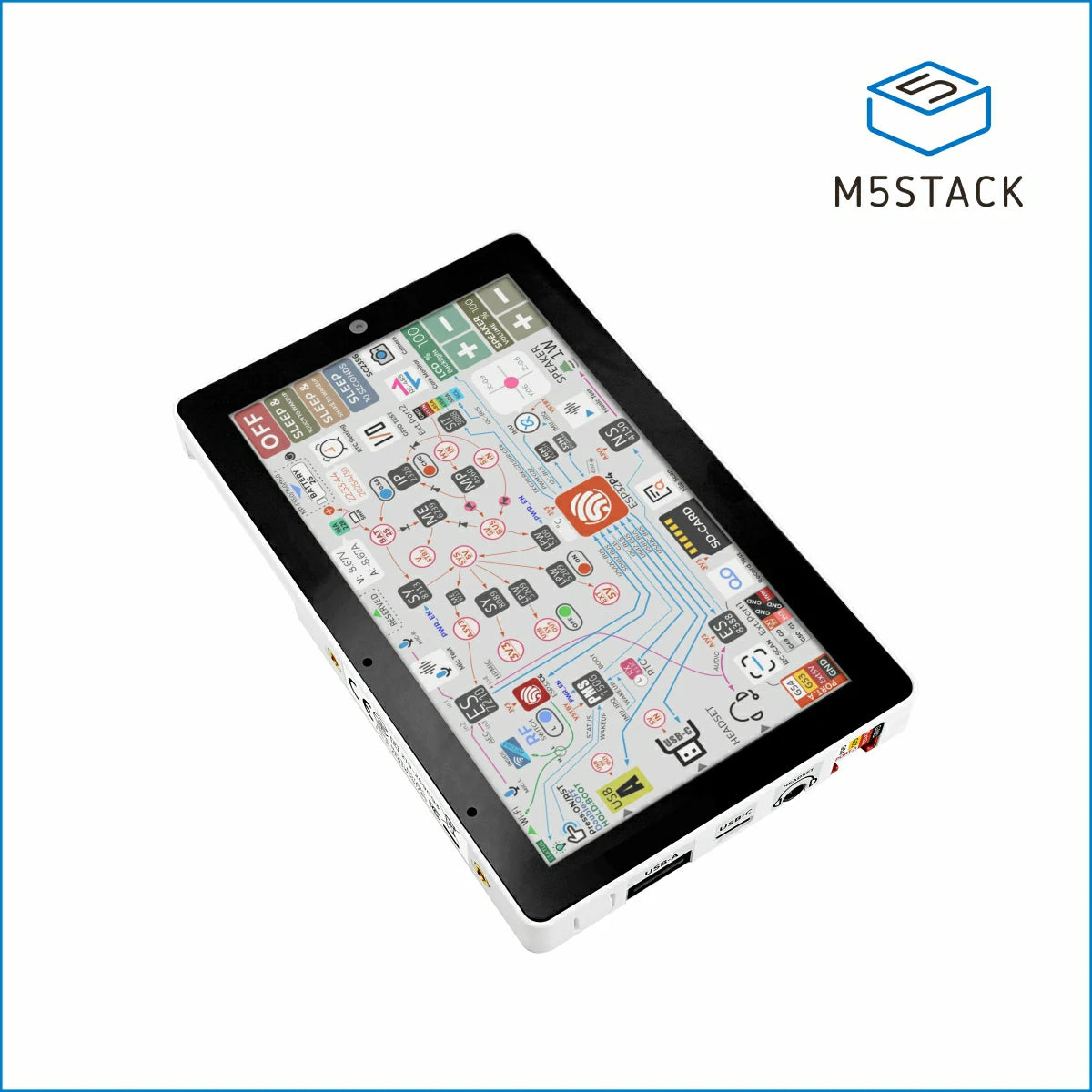

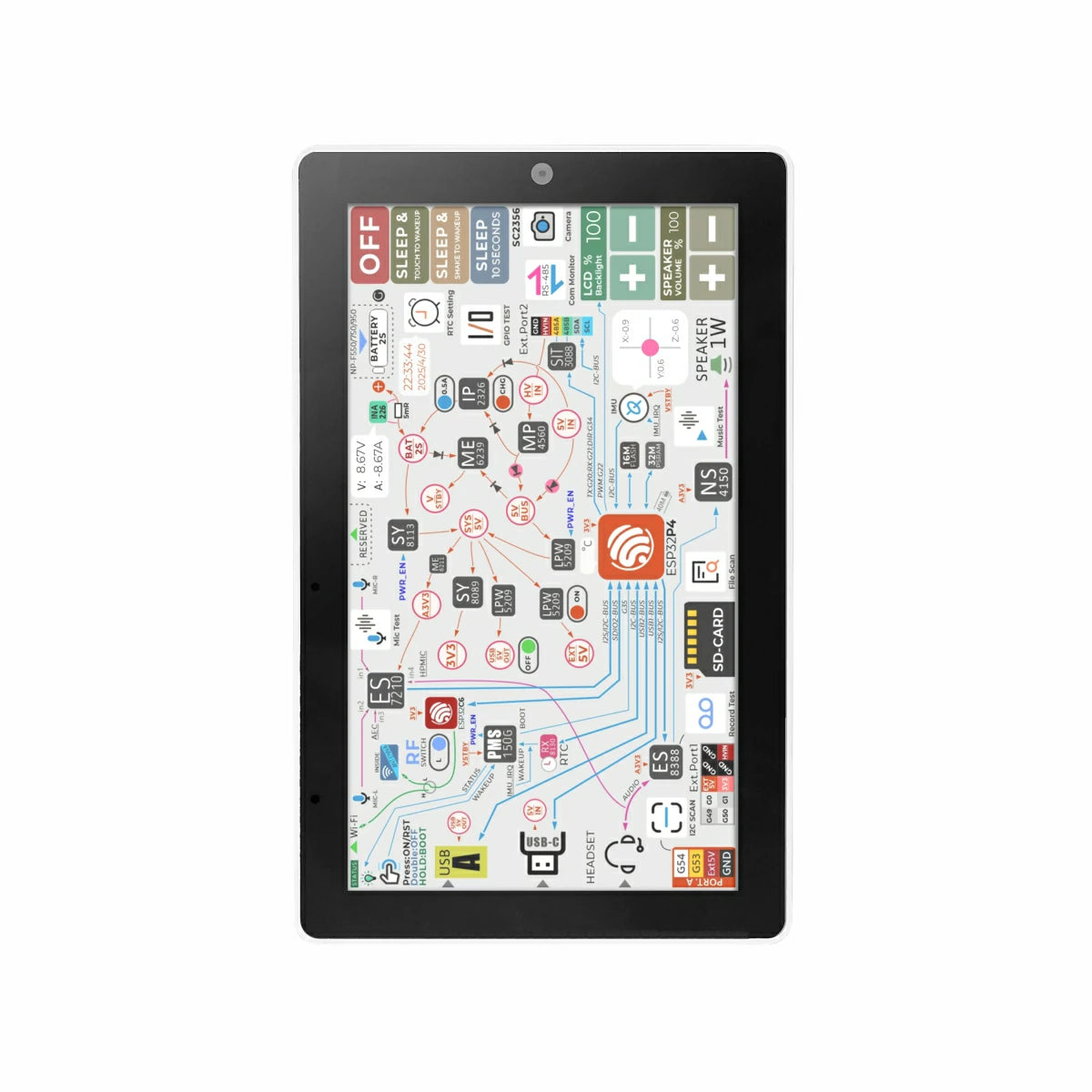

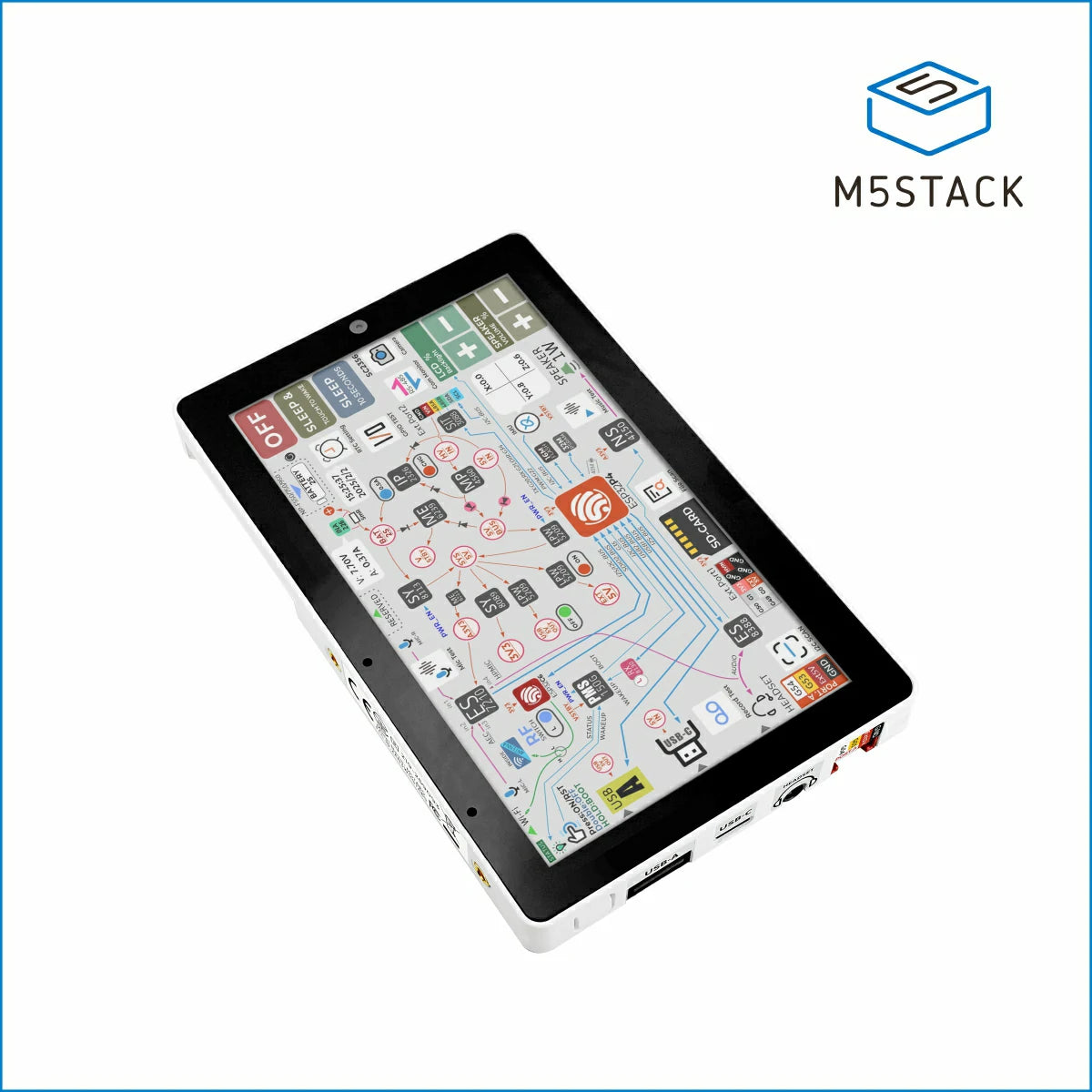

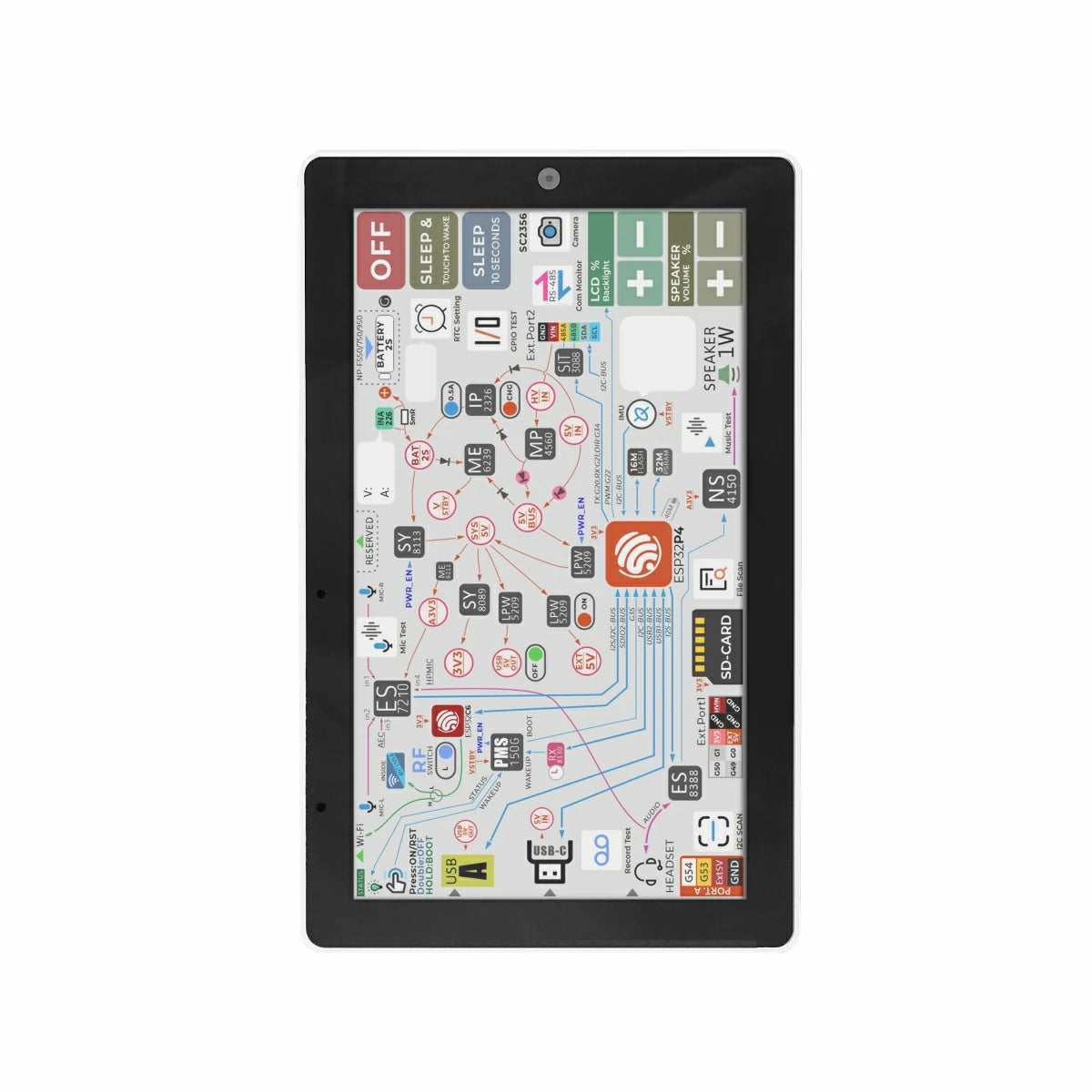

In terms of visual and interactive experience, the Tab5 is equipped with a 5″ 1280×720 IPS touchscreen featuring an MIPI‑DSI interface, delivering a smooth and responsive touch interaction. It also comes with an SC2356 2MP camera (1600×1200) that uses an MIPI‑CSI interface, enabling HD video recording, image processing, and edge AI applications such as facial recognition and object tracking.

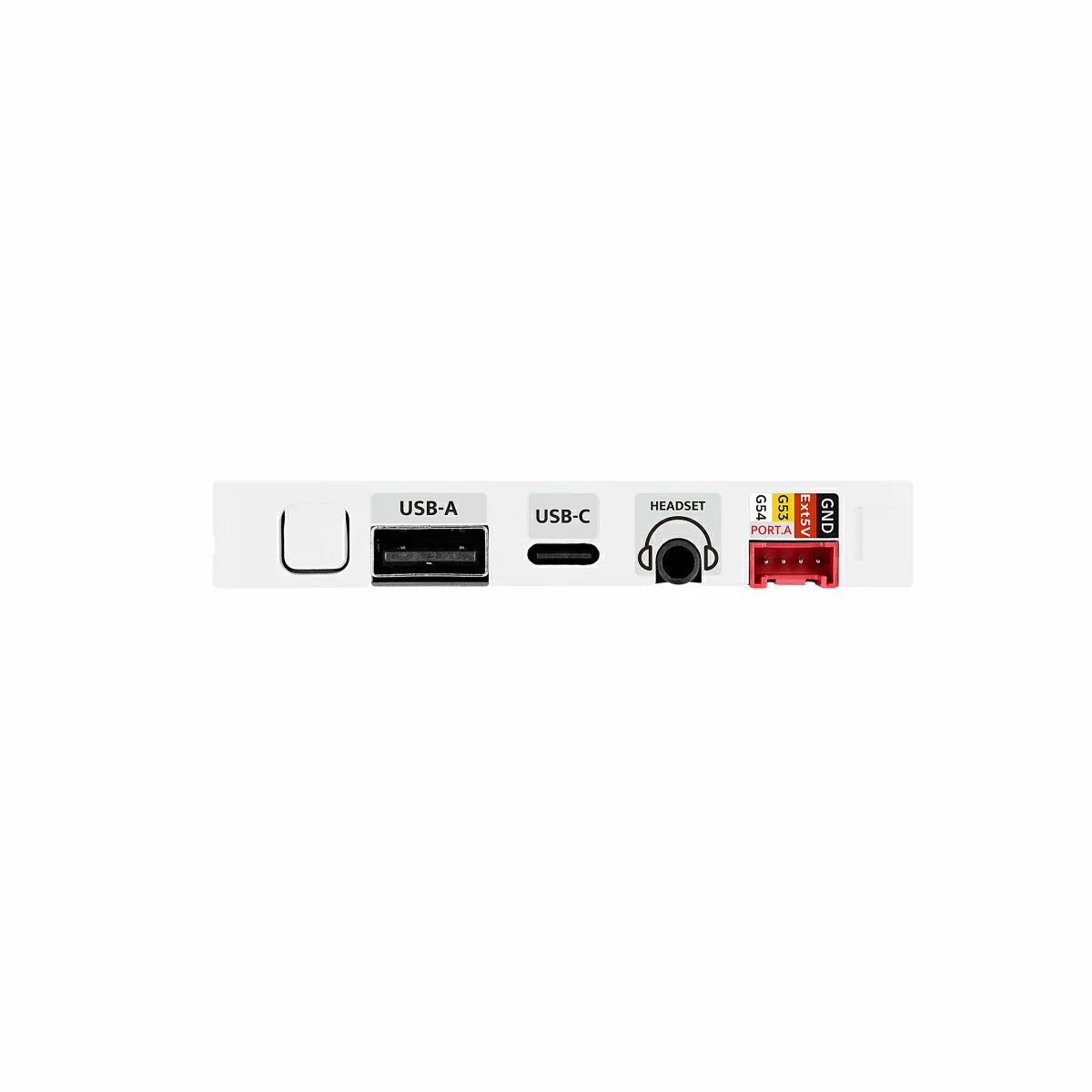

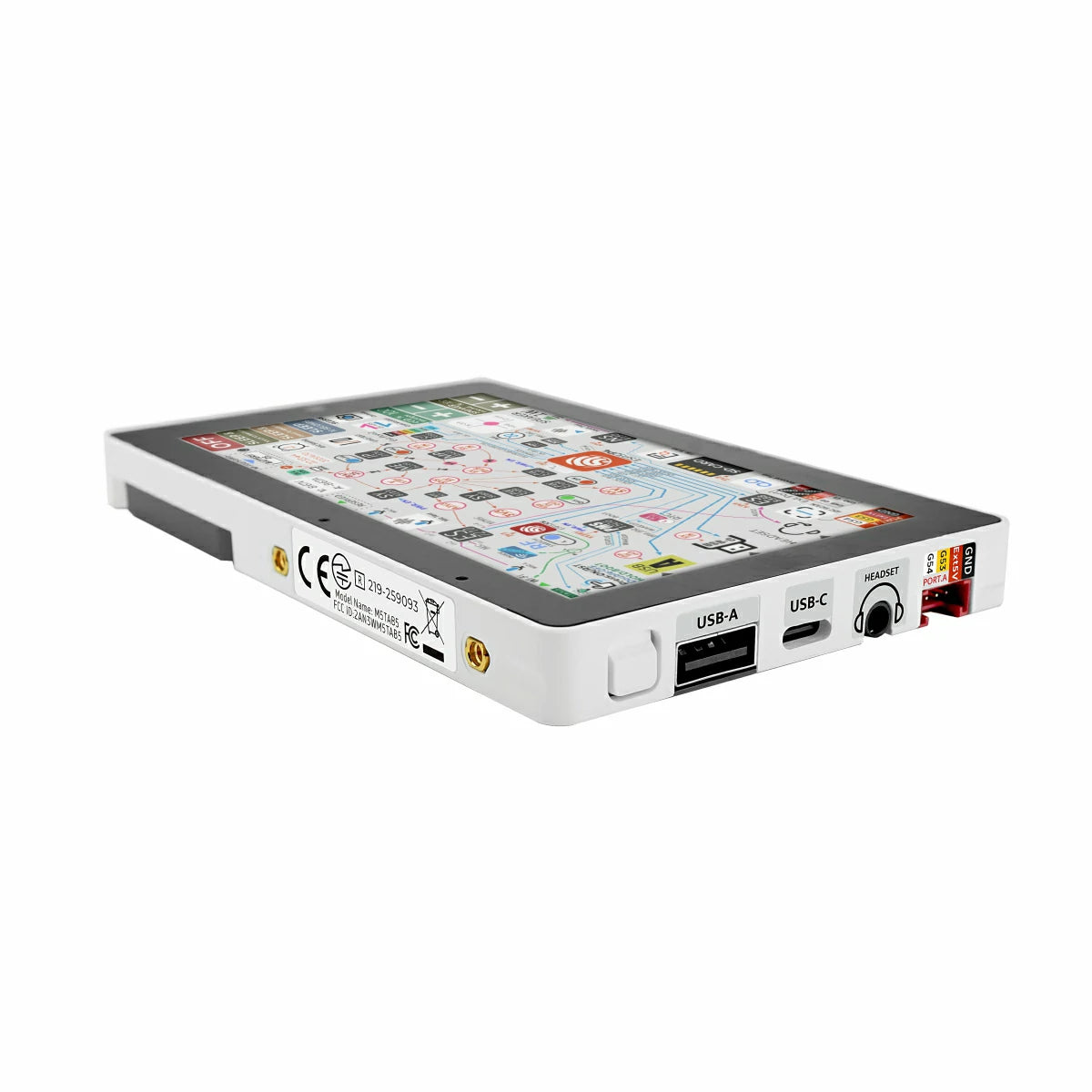

Peripheral interfaces include USB Type-A (Host) and USB Type-C (USB 2.0 OTG) for mouse, keyboard and other devices. Industrial users can leverage RS-485 (SIT3088 + switchable 120Ω terminator). HY2.0-4P, M5-Bus, GPIO_EXT headers, a microSD slot, and reserved STAMP pads (for Cat-M, NB-IoT, LoRaWAN, etc.) enable versatile sensor and communication expansion. Reset/Boot buttons provide quick reset and download-mode entry.
Audio features consist of an ES8388 codec plus an ES7210 AEC front-end, a dual-mic array, 3.5mm headphone jack and speaker, supporting Hi-Fi recording/playback and accurate voice recognition. A BMI270 6-axis sensor (accelerometer + gyroscope, interrupt wake-up) can wake the MCU in motion-tracking scenarios, boosting response efficiency in low-power mode.

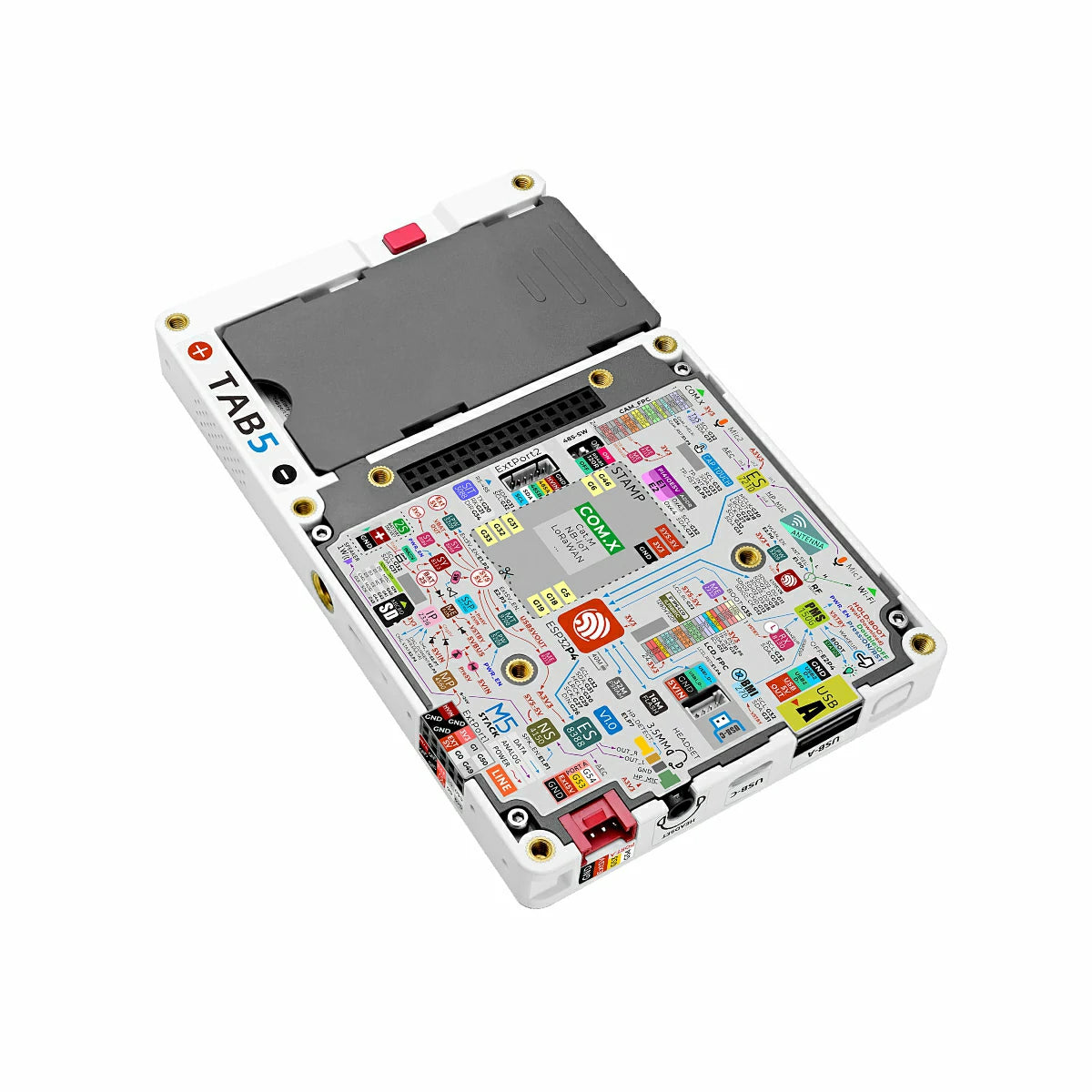

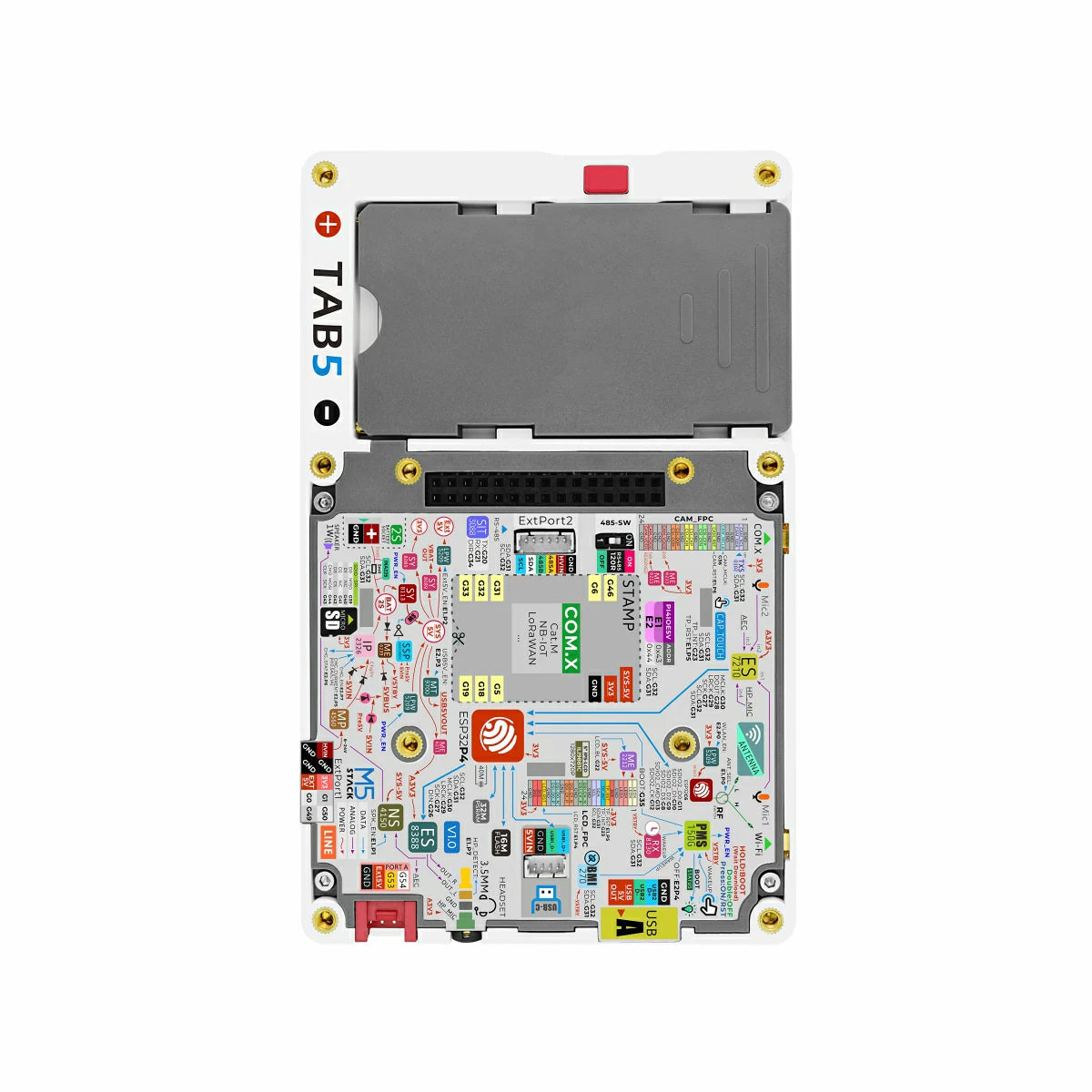

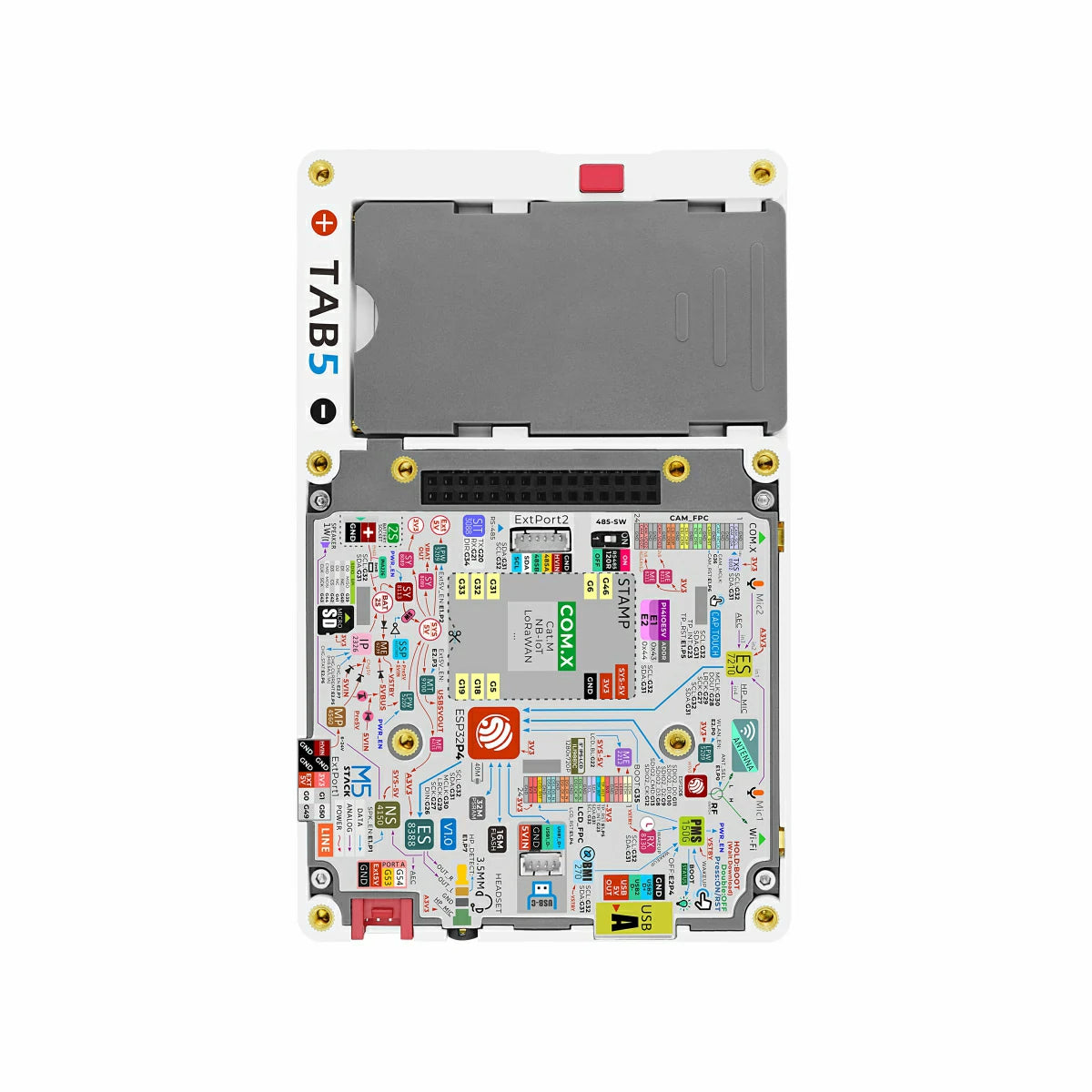

For time and power, Tab5 integrates an RX8130CE RTC (timed interrupt wake-up). The base accepts a removable NP-F550 Li-ion battery and features MP4560 buck-boost, IP2326 charge management, and INA226 real-time monitoring for stable standalone operation.

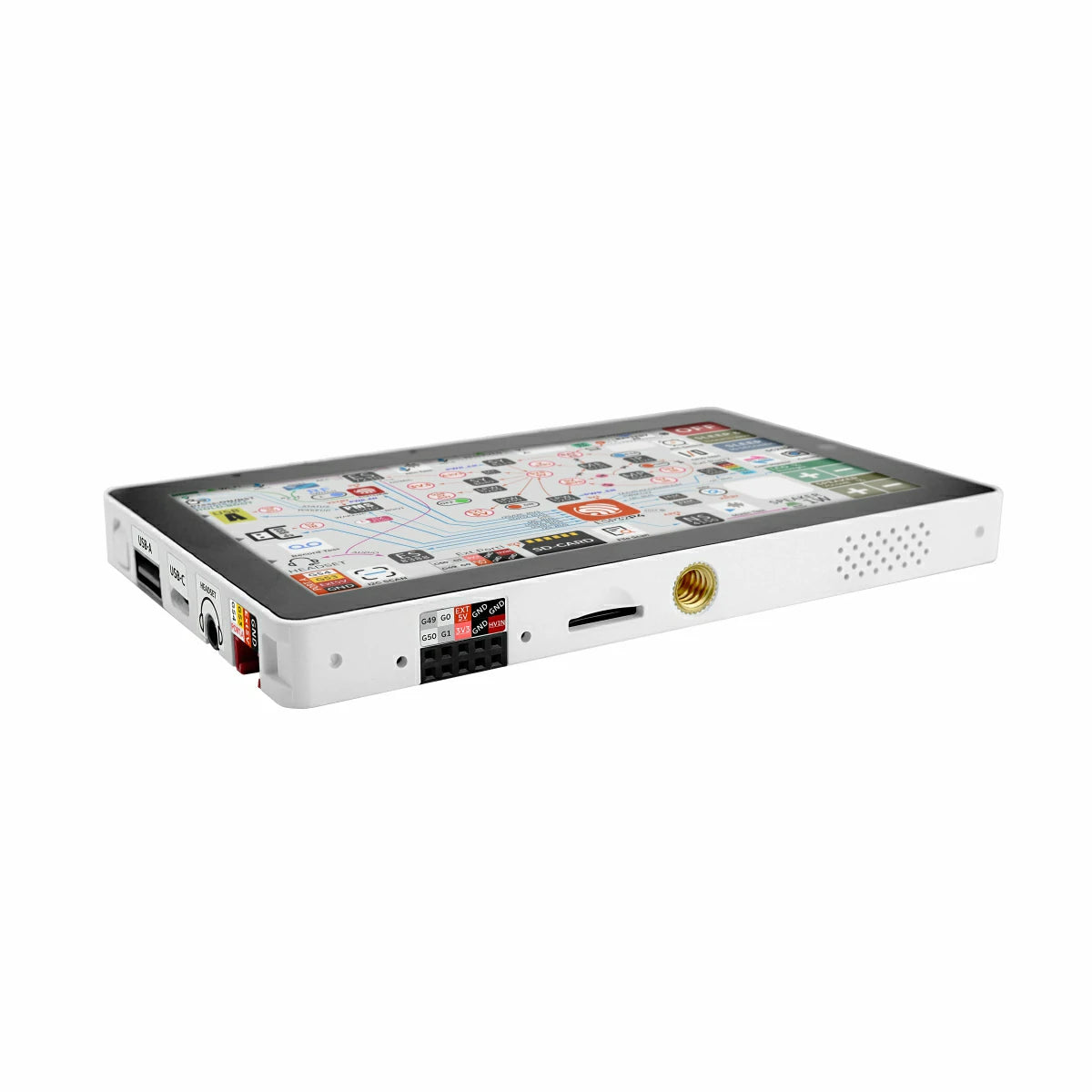

A 1/4″-20 tripod nut on the side allows direct mounting to a tripod or bracket.
Applications include smart-home control, remote monitoring, industrial automation, IoT prototyping and education, offering a full-featured, easily expandable high-performance platform.
Features
- ESP32-P4 dual-core MCU
- ESP32-C6 wireless module
- 2.4 GHz Wi‑Fi 6

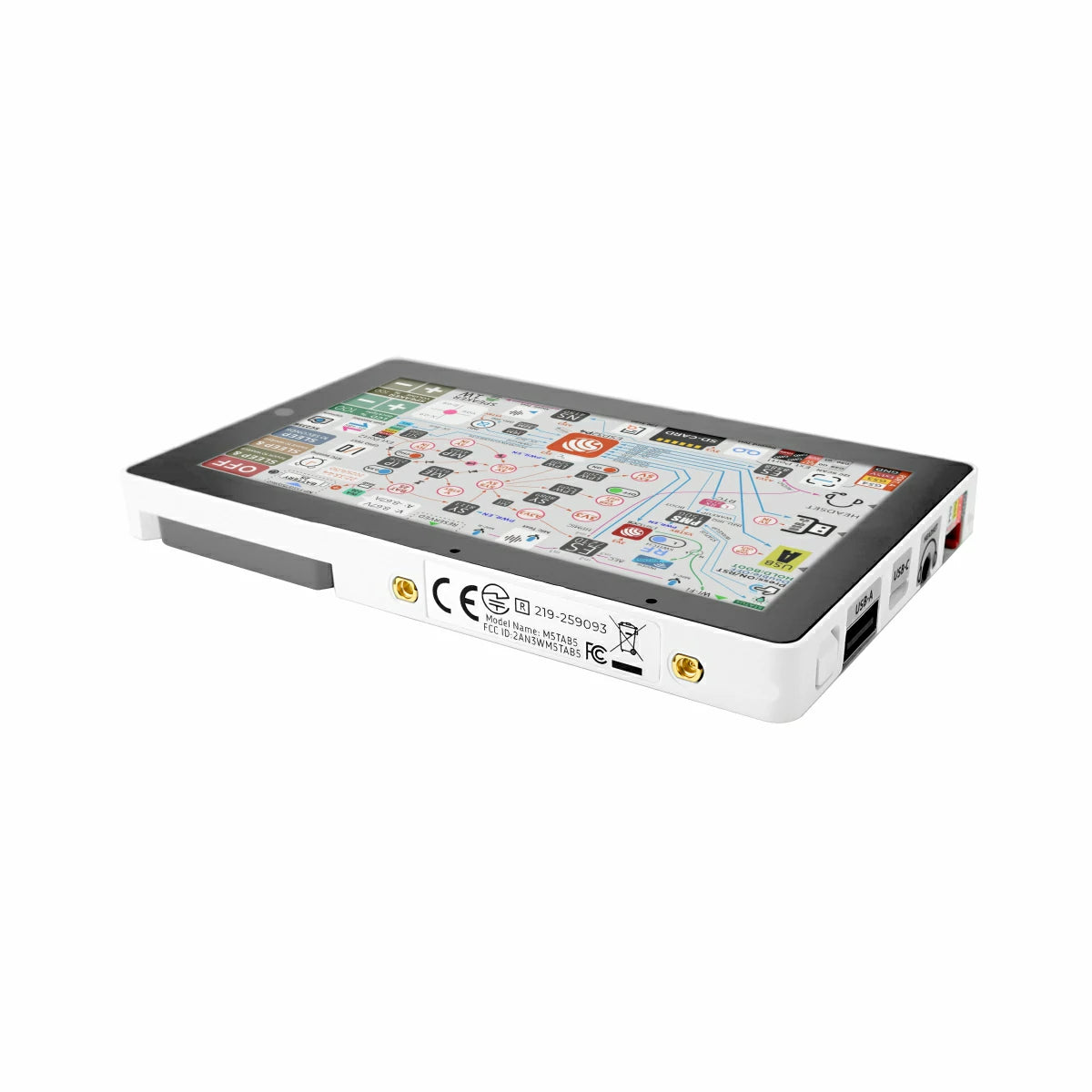

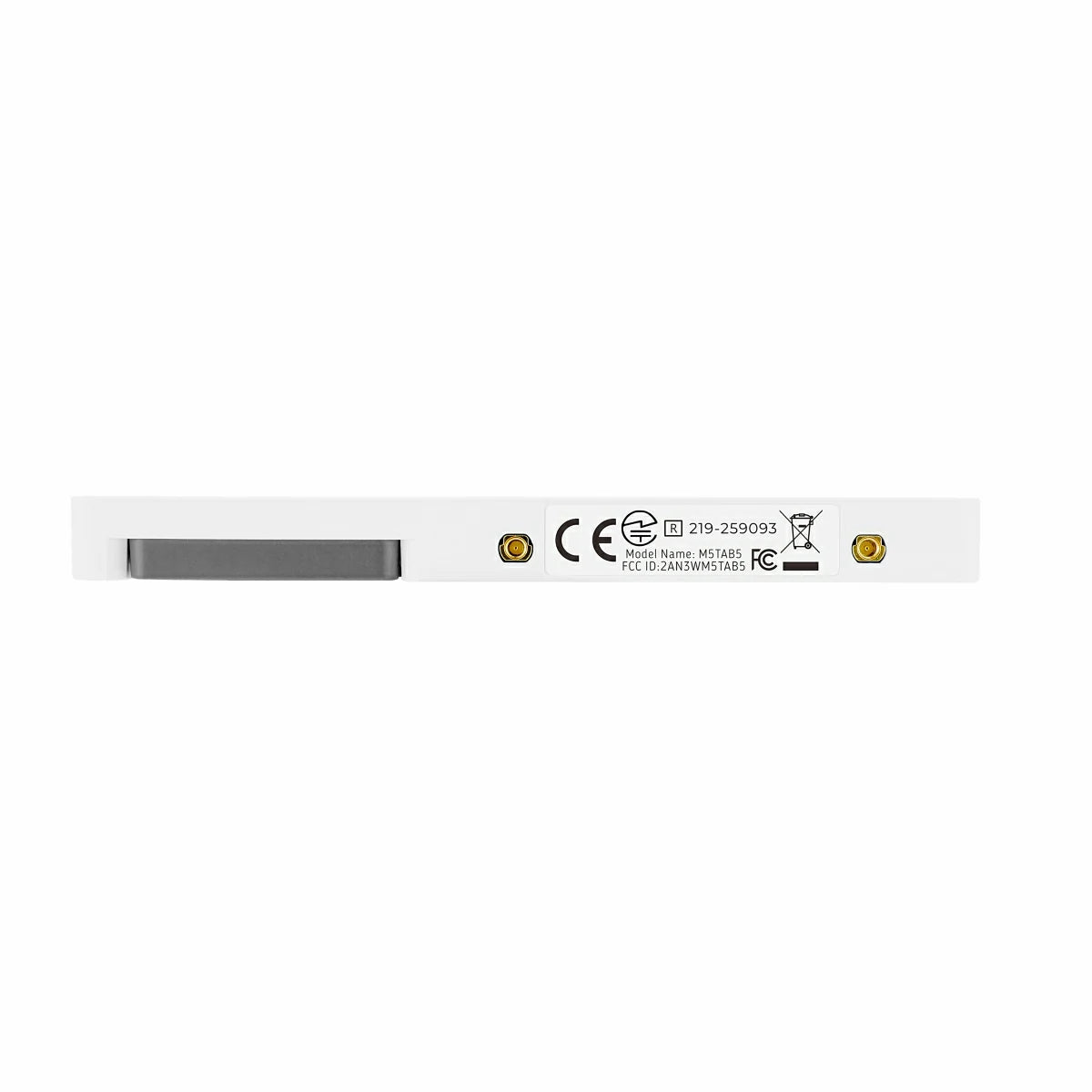

- Built‑in 3D antenna & MMCX external antenna port
- 5‑inch IPS TFT display, resolution 1280×720 (720P)
- SC2356 2MP camera
- USB Type-A Host + USB Type-C OTG
- RS485 industrial interface
- HY2.0-4P & M5-Bus expansion
- microSD card slot
- Stamp expansion pads
- ES8388 audio codec
- ES7210 AEC dual microphones
- 1W speaker + 3.5mm headphone jack
- BMI270 6-axis sensor
- RX8130CE real-time clock
- Reset/Boot & Power keys
- Removable NP-F550 battery
- Standard 1/4″-20 tripod-mount nut
- Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
- 1 x Tab5
- 1 x 1.25-6P Single-ended Terminal Cable
- 1 x NP-F550 2000mAh Removable Battery (optional)
Applications
- Smart-home control
- Remote monitoring systems
- IoT device development
- Industrial automation
Specifications
| Specification | Parameter |
|---|---|
| Main Controller SoC | ESP32-P4NRW32@RISC-V 32-bit Dual-core 400MHz + LP Single-core 40MHz |
| Wireless Module SoC | ESP32-C6-MINI-1U |
| Flash | 16MB |
| PSRAM | 32MB |
| Wi-Fi | 2.4 GHz Wi-Fi 6, Thread, ZigBee |
| Antenna | Built-in 3D antenna & 2 x MMCX external antenna ports |
| Display | Uses a 5‑inch IPS TFT display with a resolution of 1280×720 (720P), equipped with an integrated display and touch driver IC: ST7123 |
| Camera | SC2356 @ 2MP (1600×1200), via MIPI‑CSI interface |
| Audio Chip | ES8388 codec, ES7210 AEC front end |
| Microphone | Dual microphone system (AEC echo cancellation) |
| Speaker | 1W@8Ω NS4150B |
| Headphone Jack | 3.5mm |
| USB Ports | USB Type-A (Host), USB Type-C (USB 2.0 OTG) |
| RS485 Port | SIT3088 (120Ω switchable terminal resistor) Power supply range: 6 ~ 24V |
| Expansion Interface | 1× HY2.0-4P, 1× M5-Bus, GPIO_EXT expansion bus |
| Storage Expansion | microSD card slot |
| Extensible Stamp Interface | Stamp pads (support Cat.M / NB‑IoT / LoRaWAN and other modules) |
| Motion Sensor | BMI270 six-axis (accelerometer + gyroscope, support interrupt wake-up) |
| RTC | RTC Chip: RX8130CE (supports timed interrupt wake-up), RTC supercapacitor specification: 70000μF/3.3V, size Φ4.8×1.4mm |
| Reset/Boot Button | 1x Button, for power on/off and entering download mode |
| Charging Management | IP2326 charging management chip |
| Real-time Power Monitoring | INA226 (bus current / voltage monitoring) |
| Battery | NP-F550 removable lithium battery, 7.4V@2000mAh (14.8 Wh) |
| Battery Life | Under standard usage environment (screen brightness 50%, Wi‑Fi always on, background tasks running), Tab5 built-in battery discharges from full (8.23 V) to shutdown threshold (6.0 V), lasting about 6 hours. |
| Operating Temperature | 0 ~ 40°C |

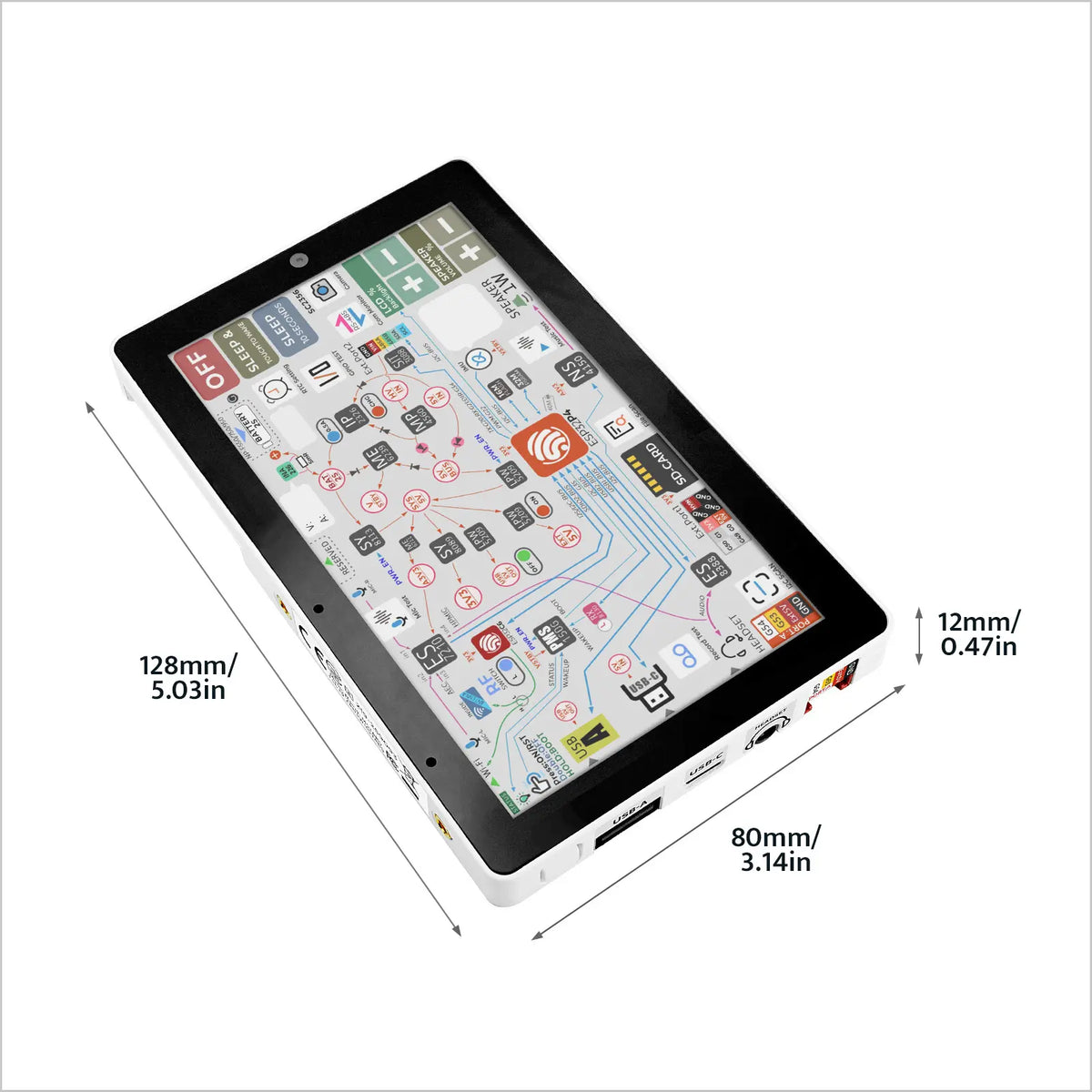

| Product Size | Tab5: 128.0 x 80.0 x 12.0mm Tab5 Kit: 128.0 x 80.0 x 26.7mm |
| Product Weight | Tab5: 124.5g Tab5 Kit: 277.4g Battery: 97.9g |
| Package Size | Tab5: 148.0 x 103.0 x 21mm Tab5 Kit: 191.0 x 103.0 x 25.0mm |
| Gross Weight | Tab5: 162.5g Tab5 Kit: 277.4g |
Version Change
| Release Date | Product Change | Note |
|---|---|---|
| October 14, 2025 | Tab5 screen driver solution optimization: the original independent display driver ILI9881C and touch driver GT911 have been replaced with the integrated display‑touch driver ST7123. | / |
| May 9, 2025 | First product release | / |
