M5Stack Stopwatch Dev Kit (ESP32-S3)

SKU:C152

$45.00

Out Of Stock

Shipping calculated at checkout.

Description

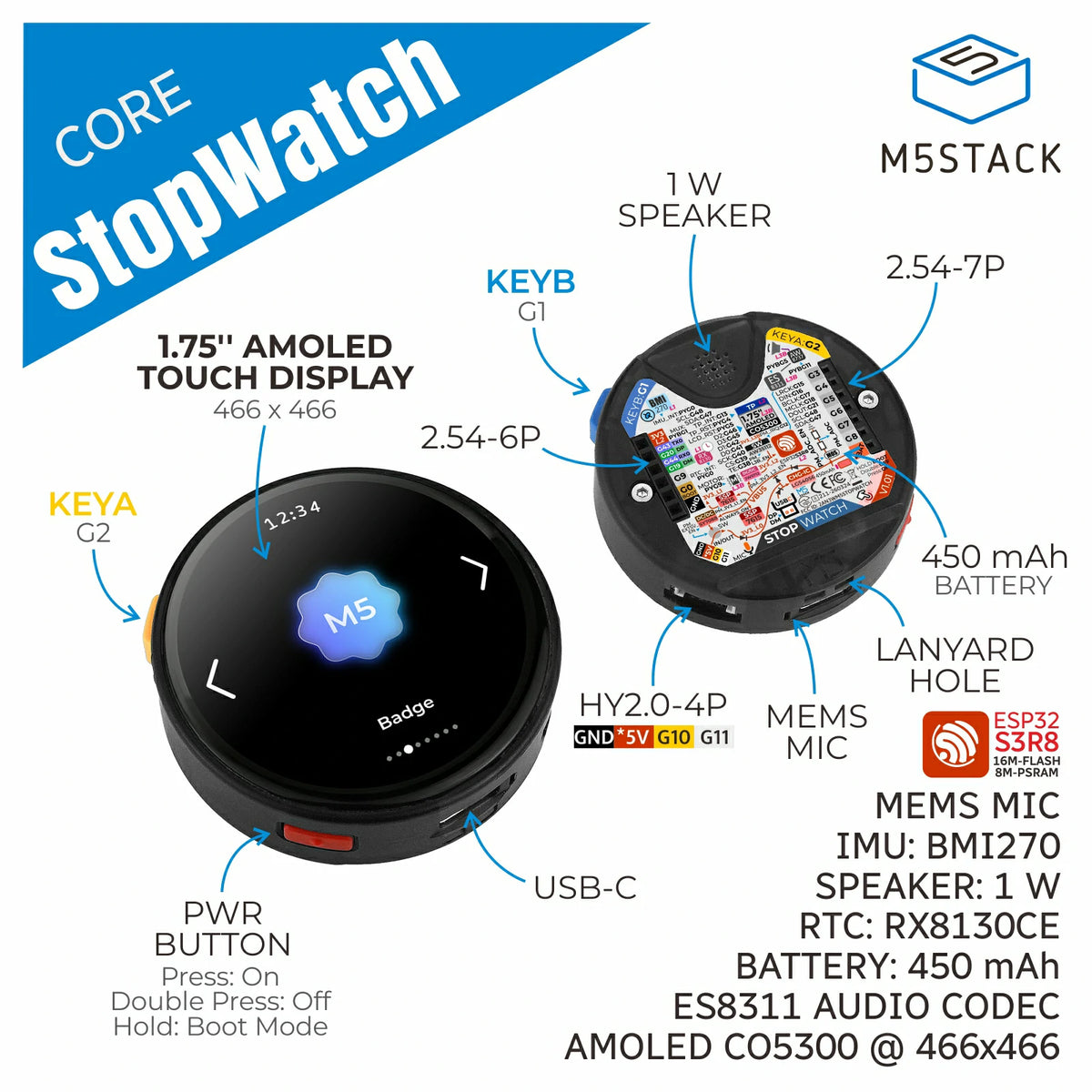

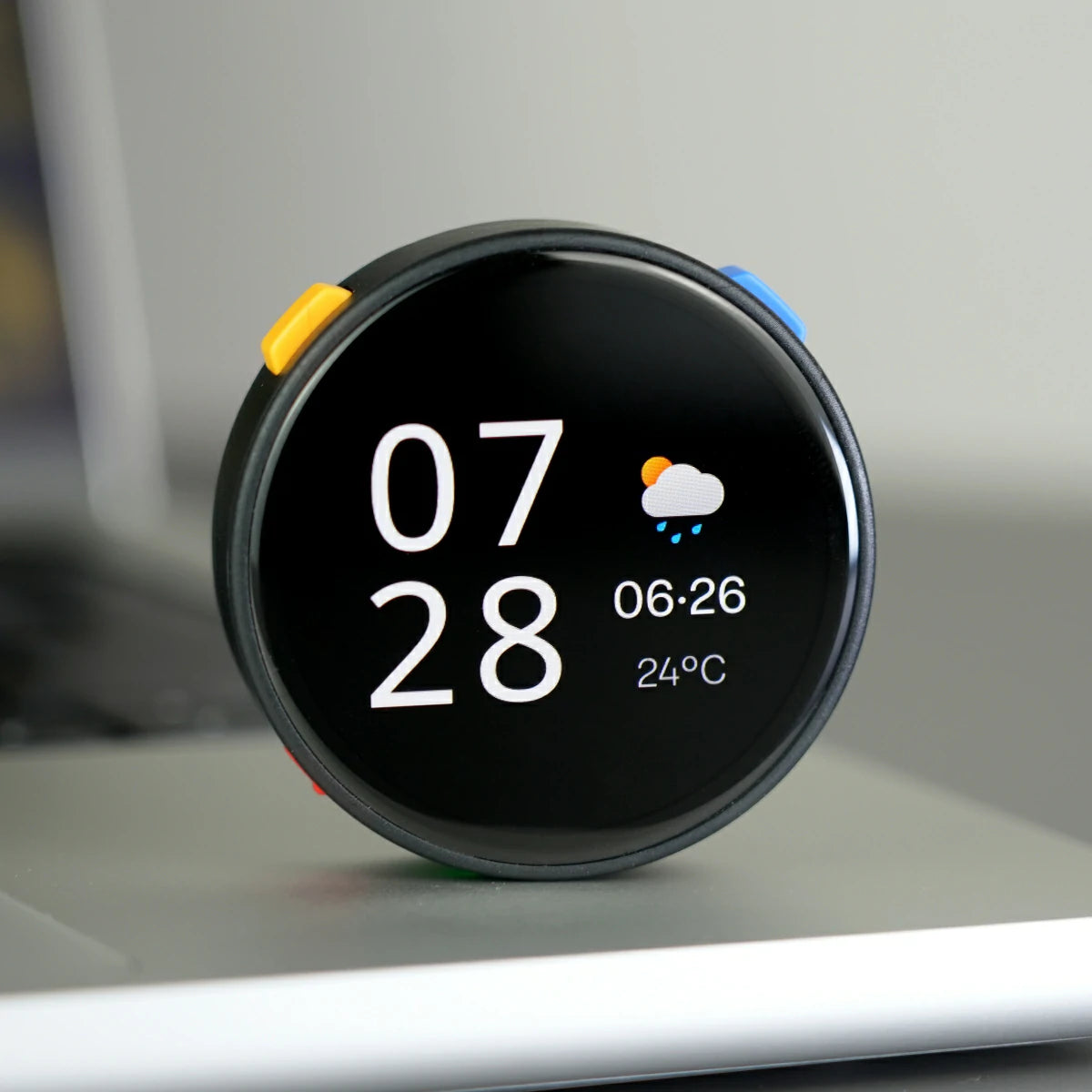

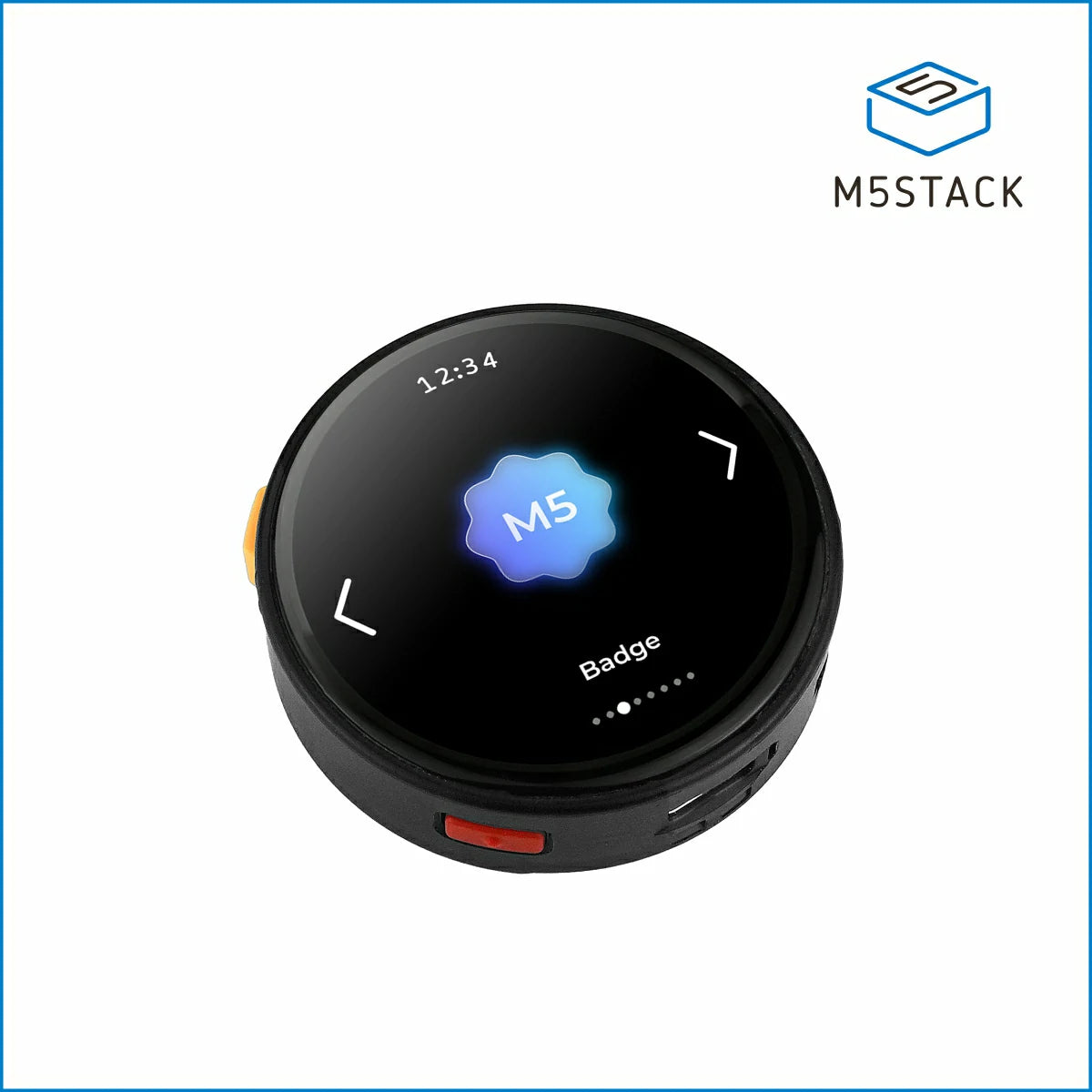

StopWatch is a round AMOLED touch development board designed for portable and interactive scenarios. It features an ESP32-S3R8 main controller with 16MB Flash and 8MB PSRAM, and supports 2.4GHz Wi-Fi wireless communication. The device integrates a 1.75" AMOLED round touch display, programmable buttons, and vibration feedback to provide an intuitive human-machine interaction experience. It also provides audio input/output, IMU attitude sensing, RTC timekeeping, and multiple expansion interfaces. Together with the M5PM1 multi-level power management system and a 450mAh battery, it can meet diverse development needs such as portable smart control, wearable human-machine interaction, and lightweight IoT terminals.

Features

  • ESP32-S3R8 core controller:
    • 16MB Flash + 8MB PSRAM
    • 2.4GHz Wi-Fi
  • Interactive experience:

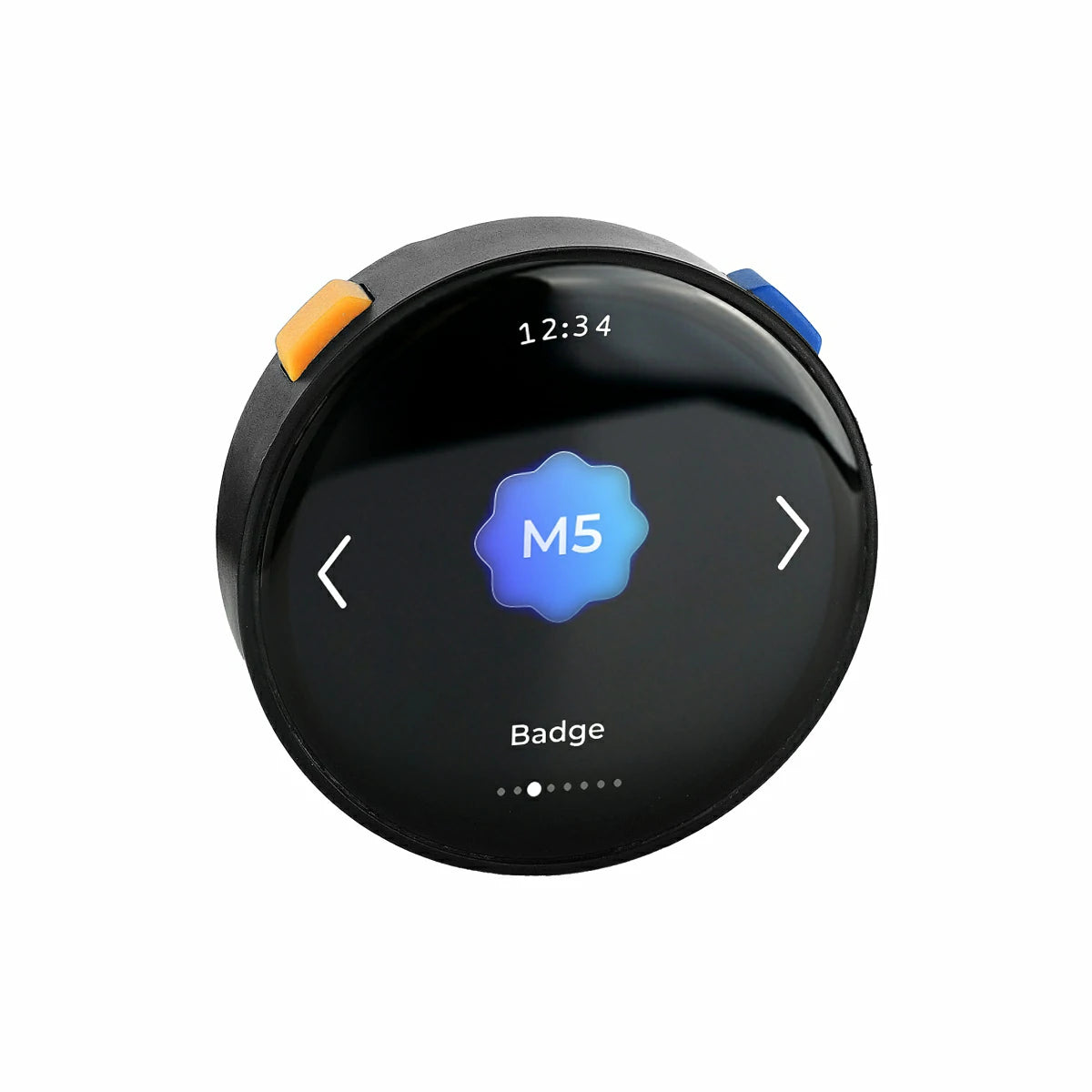

    • 1.75" AMOLED round touch display

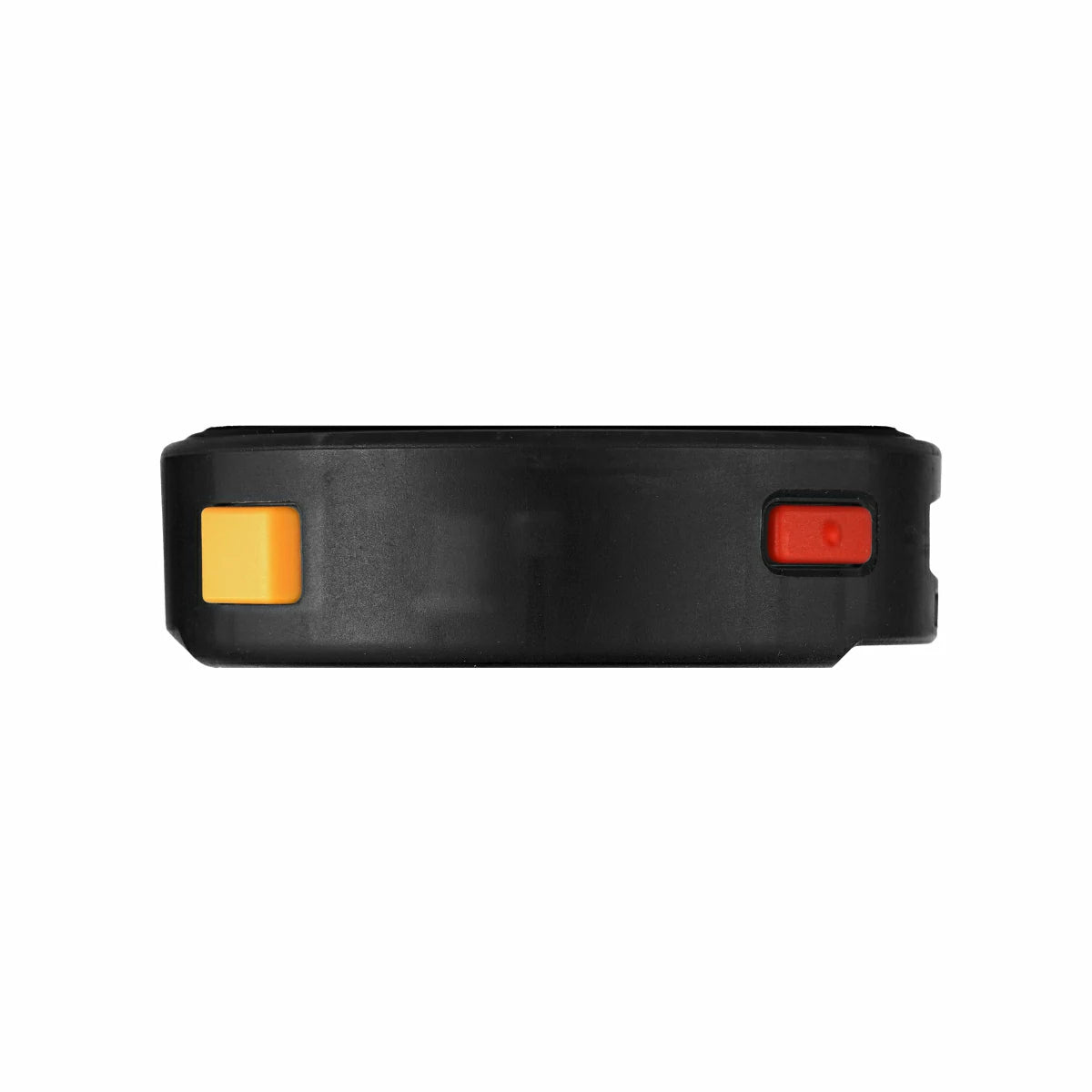

    • 2 x programmable buttons, 1 x power button
    • Built-in vibration motor
    • 6-axis IMU BMI270
  • Audio system:
    • ES8311 Audio Codec
    • MEMS MIC
    • AW8737A amplifier
  • RTC clock chip RX8130CE
  • Expansion capability:
    • HY2.0-4P expansion interface

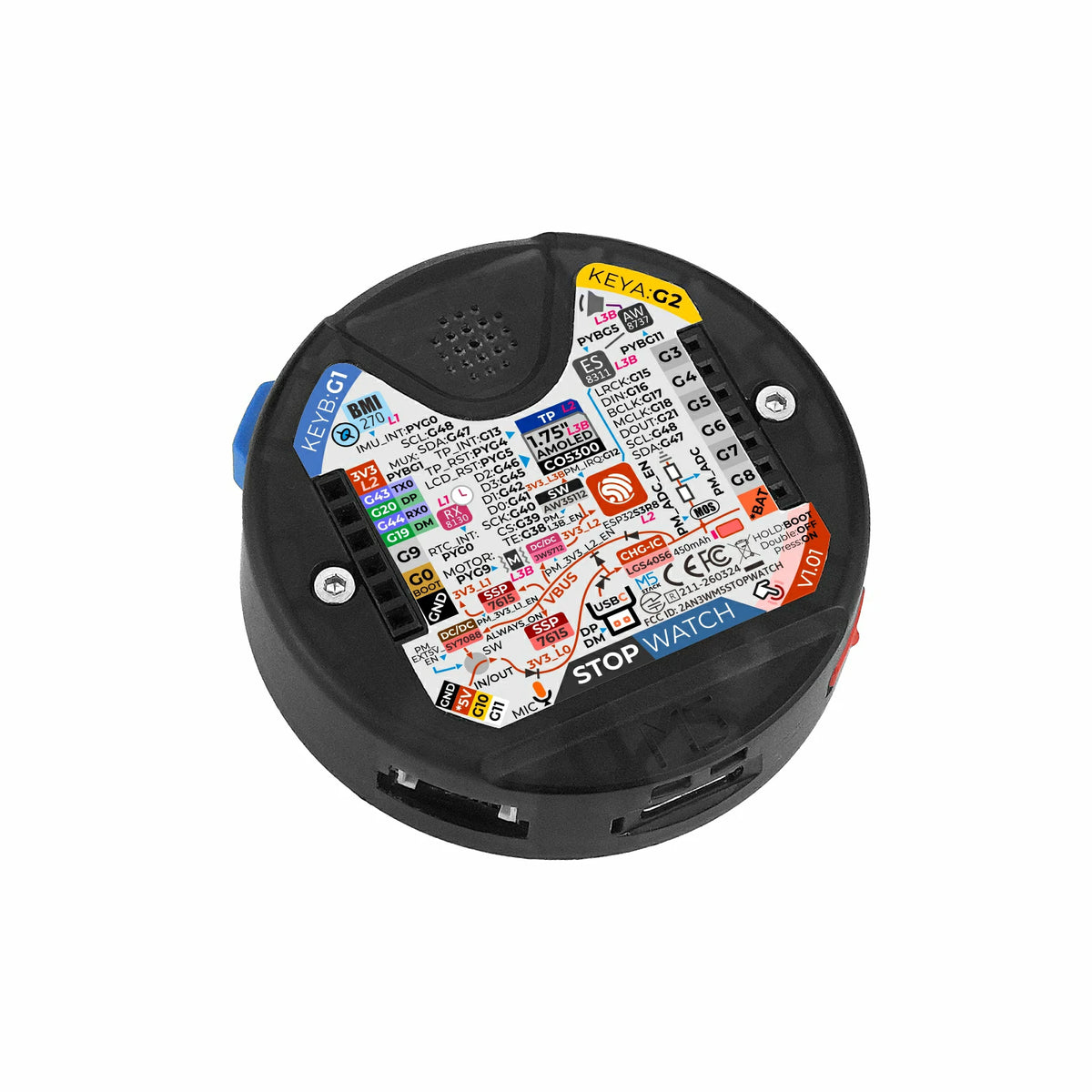

    • Rear expansion bus (2.54-7P, 2.54-6P)
    • Lanyard hole design
    • Rear magnetic attachment design
  • Power system:
    • M5PM1 multi-level power management system
    • Built-in 450mAh battery
    • Balances battery life and low-power operation

Includes

  • 1 x StopWatch

Applications

  • Portable smart devices
  • Electronic badges
  • Lightweight IoT terminals

Specifications

Specification Parameter
SoC ESP32-S3R8 dual-core Xtensa LX7, up to 240MHz
Flash 16MB
PSRAM 8MB
Wireless 2.4GHz Wi-Fi
Display 1.75" AMOLED round touch display, 466x466 resolution, CO5300 driver chip, QSPI interface
Touch CST820B driver chip
Buttons 2 x programmable buttons + 1 x power button
Vibration Feedback Built-in vibration motor
Audio Codec ES8311
Microphone MEMS MIC
Audio Amplifier AW8737A
IMU BMI270
RTC RX8130CE
Expansion Interface HY2.0-4P
Rear Expansion Bus 2.54-7P, 2.54-6P
Body Structure Lanyard hole
Power Management M5PM1 multi-level power management
Battery Capacity 450mAh

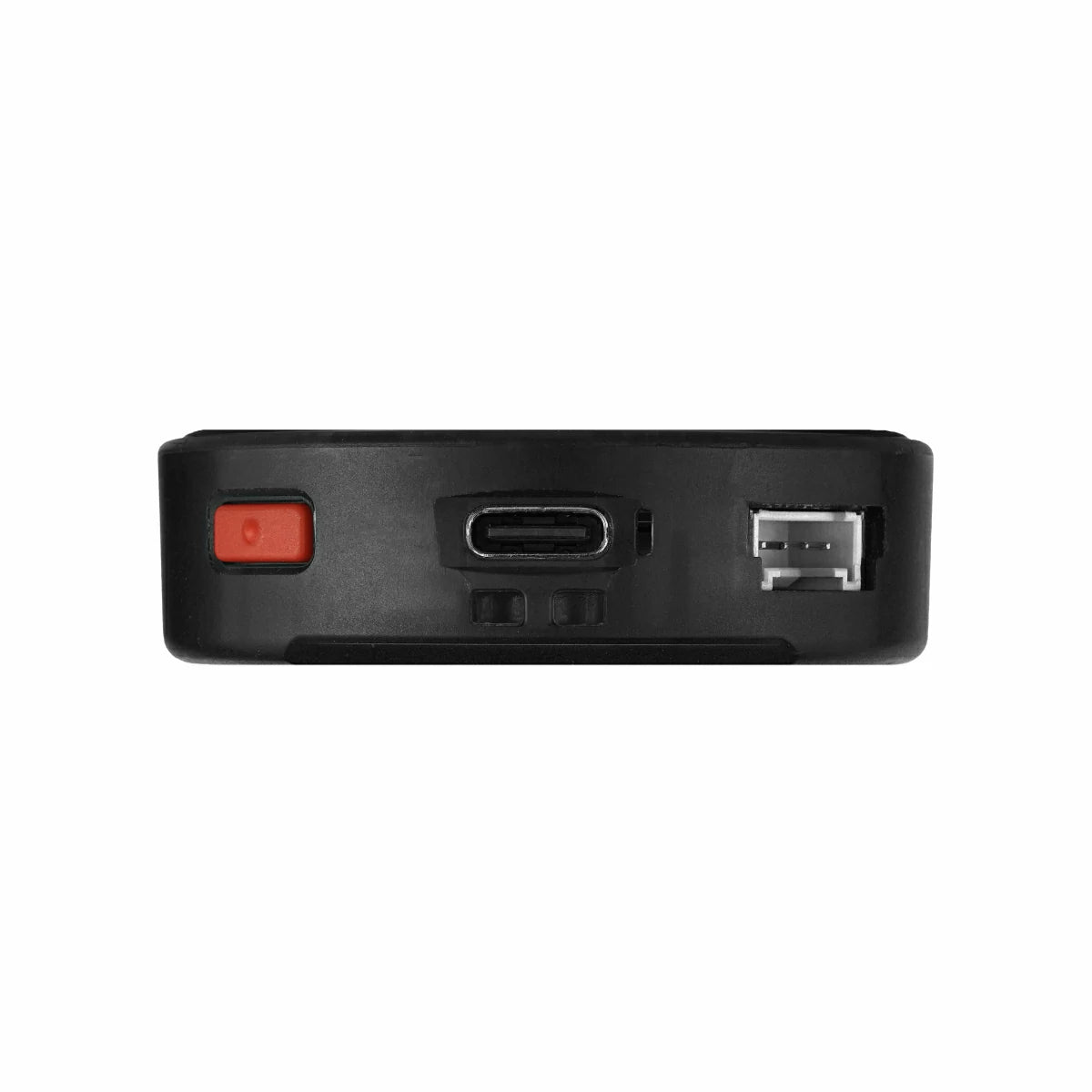

Input Power USB Type-C DC 5V
Product Size 52.0 x 52.0 x 15.5mm
Product Weight 39.0g
Package Size 70.0 x 70.0 x 23.6mm
Gross Weight 49.5g

Learn and Documents

→ DOCUMENTS

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
y
yetzt
Great if it's available

I've implemented a custom stopwatch for Roller Derby on this platform. It's the perfect fit, has all the hardware capabilities i need, and the price is not too outrageous. If anything, i would give it a bigger battery and make the power button safer.

Sadly, the availability ist not great at the time of writing this review, the product has been out of stock since shortly after the launch and for quite a while now. I was lucky to be able to order a few extra units on Ali Express for a highter price. I would love to make a larger order, so all my colleagues can have their own stopwatches using my code.
