Description

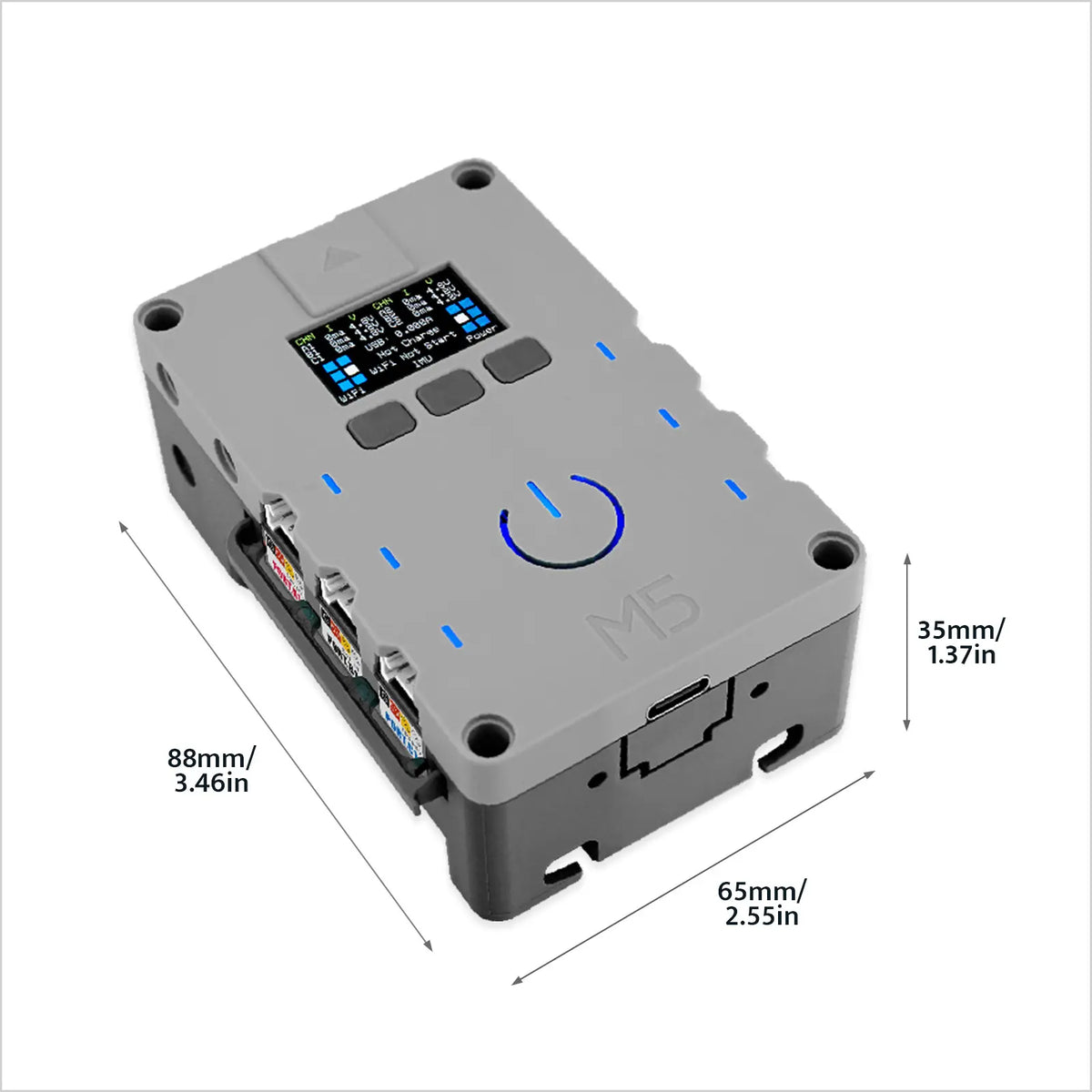

Station-Bat is a versatile industrial-grade programmable embedded controller. It uses the Espressif ESP32 as the main control chip, integrates a Wi-Fi solution, and is equipped with a dual-core low-power Xtensa® 32-bit LX6 microprocessor with a main frequency of up to 240MHz. It comes with 16MB Flash, a 1.14-inch full-color HD IPS display panel with a resolution of 240×135, a physical button panel, rich peripherals, two sets of six expansion interfaces, and features low-power sleep/timed wake-up functionality. It also integrates the IMU MPU6886.

It supports both USB Type-C and internal rechargeable 18650 battery power supply methods. The onboard high-power-density fully integrated boost DC/DC converter SCT12A0DHKR ensures the stability of electrical equipment operation in complex application scenarios.

This controller can be used in industrial field control, smart buildings, multi-channel data acquisition nodes, and developer prototype design, among other application scenarios.

Features

• Interactive Design:
  • 1.14-inch IPS display panel
  • 6-axis gyroscope MPU6886
  • 3 programmable physical buttons
  • 1 power button
  • 7 programmable RGB LEDs

• Power Design:
  • Input:
    • AXP192 power management chip
  • Output:
    • Each interface (5 Grove, 1 USB-A) uses an electronic switch SGM2553D for independent on/off control
    • 6 Grove interfaces use INA3221 for voltage/current monitoring, and USB-A uses INA199 for current monitoring
    • Integrated high-power-density fully integrated boost DC/DC converter SCT12A0DHKR
  • Low Power:
    • Integrated RTC BM8563 for low-power sleep/timed wake-up
• Port Design:
  • 6 Grove expansion interfaces
    • Port A1/A2 share power and signal pins
    • Port B1/B2/C1/C2 have independent power and signal pins
  • USB Type-A is for power output only, with no signal pins
• Structural Design:
  • DIN rail
  • Magnetic
  • Wall-mounted
  • Screws
  • Cable ties

• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Station-Bat
• 1 x USB Type-C cable (50cm)
• 1 x Hex key
