M5Stack Station ESP32 IoT Development Kit (Battery Version)

SKU:K124-B

Regular price $65.00

10+ In Stock

Shipping calculated at checkout.

Description

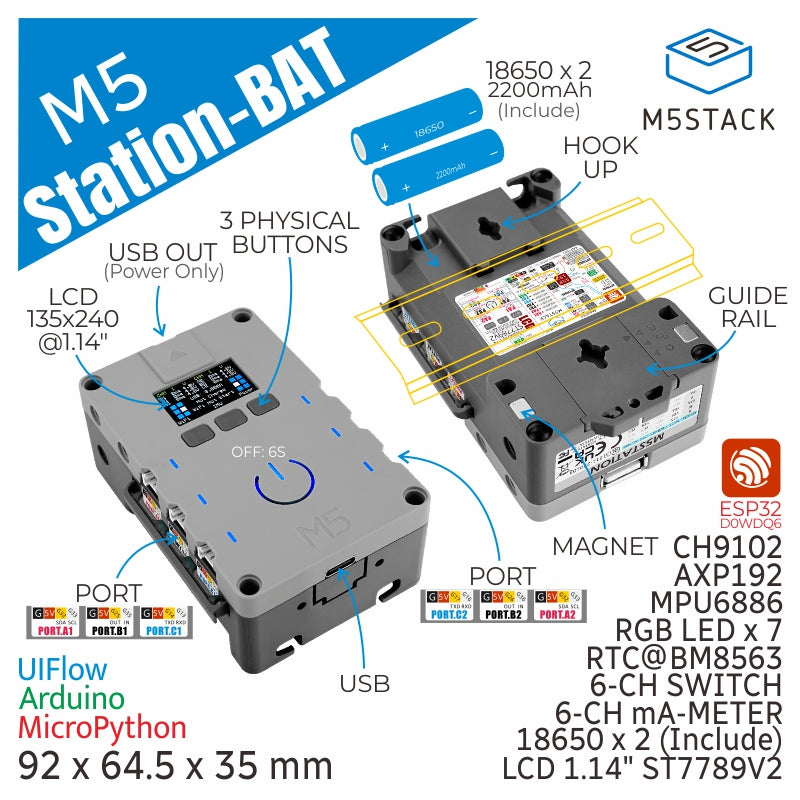

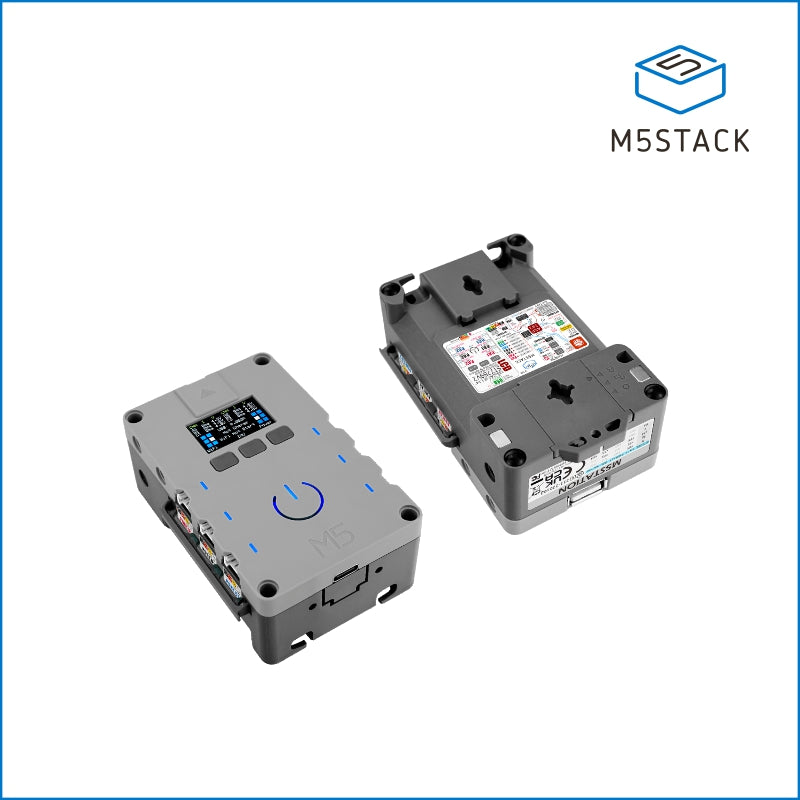

M5Station-BAT is a multi-purpose industrial level programmable embedded controller with Espressif ESP32 SOC, integrated Wi-Fi solution, dual core low-power Xtensa® 32-bit LX6 microprocessor, main frequency up to 240MHz. Onboard 16M FLASH, integrated 240*135 1.14" full colour HD IPS display + physical keypad + rich peripherals, two sets of six expansion ports+ Low-power sleep/wakeup function+Integrated IMU MPU6886. Supports two types of power supply USB Type-C, internal rechargeable 18650 battery (exclude battery). The integrated high power density boost DC/DC converter SCT12A0DHKR on board ensures the stability of the electrical equipment even in complex applications. This device is suitable for industrial control, intelligent buildings, multi-channel data acquisition nodes and prototyping applications.

  • HMI:

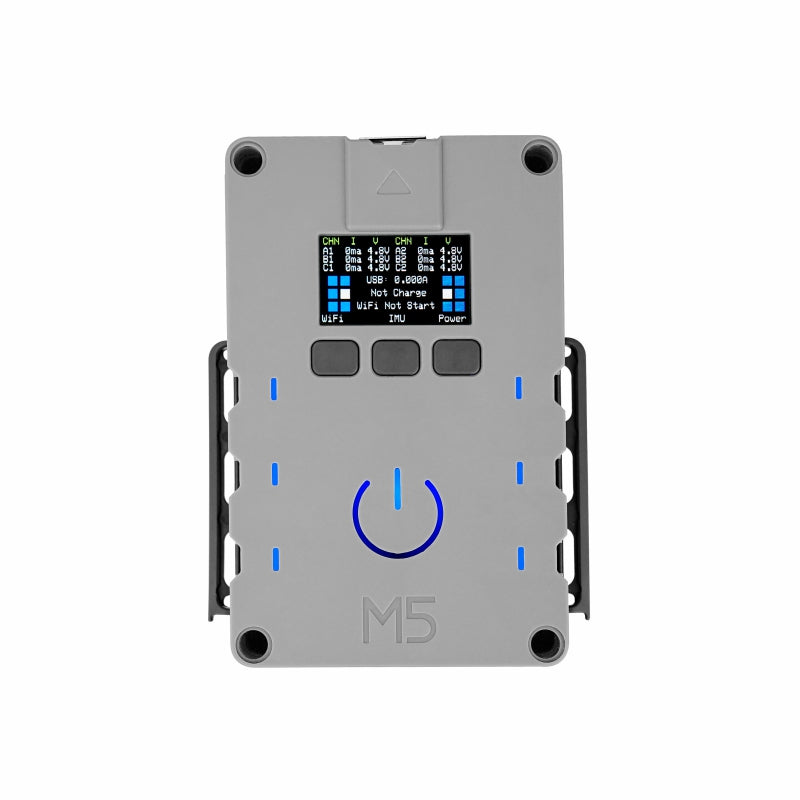

    • 1.14" IPS display panel
    • 6-axis IMU MPU6886
    • 3 physical programmable keys
    • 1 ON/OFF button
    • 7 programmable RGB LEDs
  • Power supply design:

    • Input:
      • Integrated 9~24V->5V DC/DC SY8303 Buck circuit
      • AXP192 power management chip
    • Output:
      • Each interface (6 Grove, 1 USB-A) is electronically switched on/off by SGM2553D.
      • INA3221 for voltage/current acquisition for Grove interfaces, and INA199 for current acquisition for the USB-A
      • Integrated high power density fully integrated boost DC/DC converter SCT12A0DHKR
    • Low power consumption:
      • Integrated RTC BM8563 to achieve low power sleep/wakeup function
  • Port design:

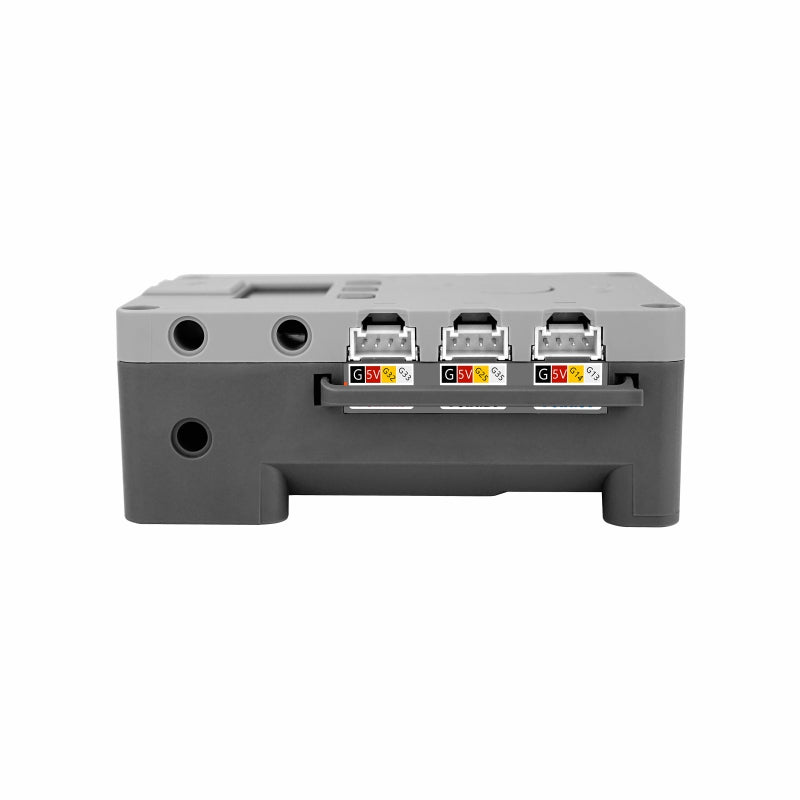

    • 6 way Grove expansion interface
      • Port A1/A2 shared the same power and signal pins
      • Port B1/B2/C1/C2 have separate power and signal pins

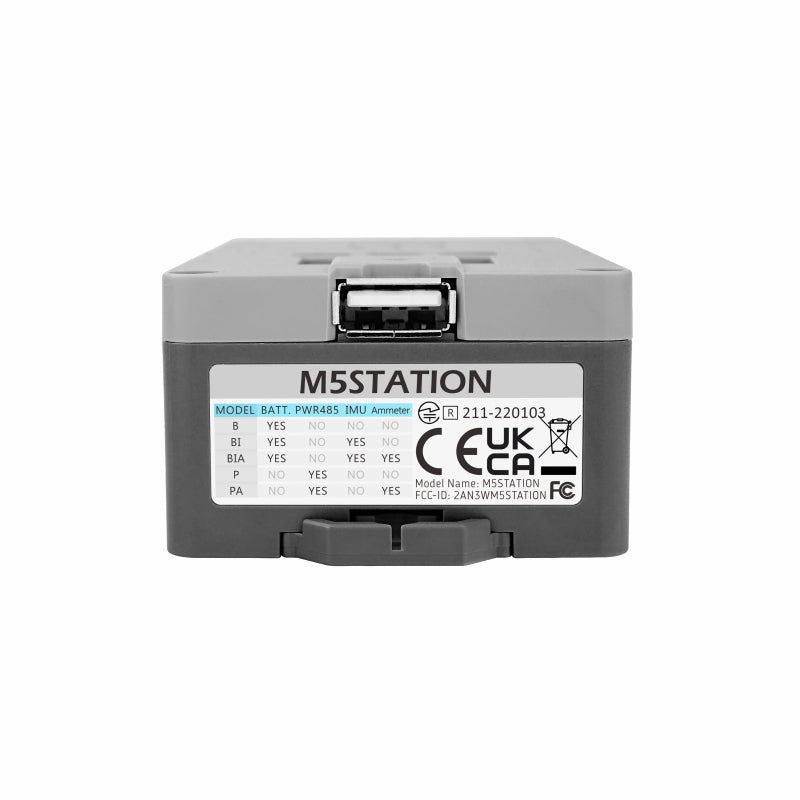

    • USB Tpye-A power supply output only, no signal pins
  • Mechnical Design:

    • Din rail
    • Magnetic suction
    • Wall Mount
    • Screws
    • Ribbon
  • Programming development:

    • Supports UIFlow graphical programming platform, scripting, compile-free, cloud push
    • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
    • Support FreeRTOS, with the help of dual-core and multitasking mechanism, efficient organization of task logic, optimize the execution efficiency of the program.

Power Management

Operations:
Power on:Click the central power button
Power off:Press and hold the central power button for 4 seconds

Contains

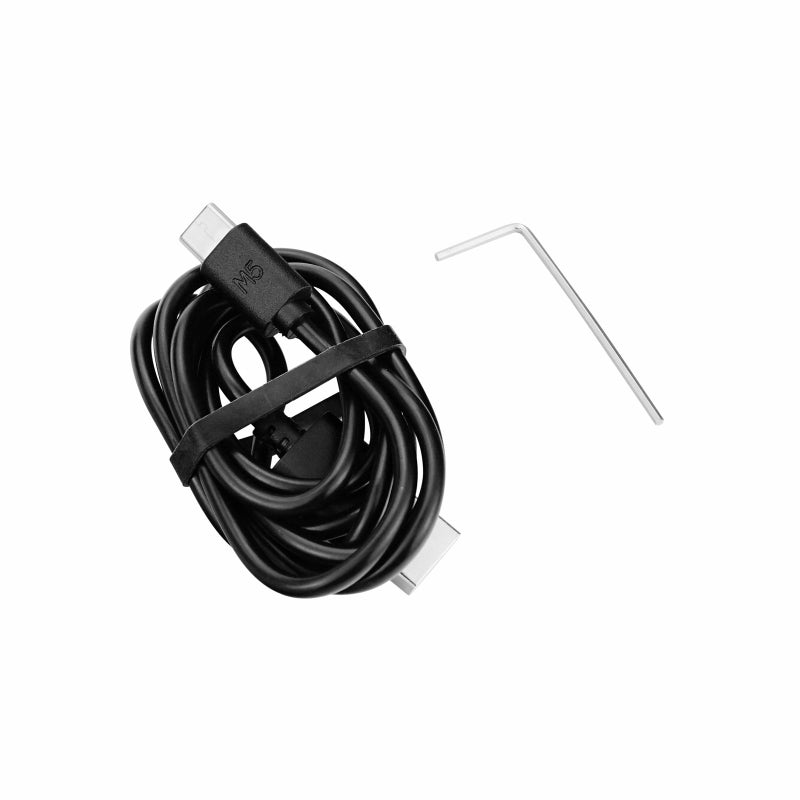

  • 1x M5Station-BAT
  • 1x Type-C USB (100cm)
  • 1x Allen Wrench

Applications

  • IoT controllers
  • STEM Education
  • DIY creations
  • Smart Home Devices
  • IoT product prototyping

Specification

Spec Parameters
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash 16MB
USB powered 5V@1A

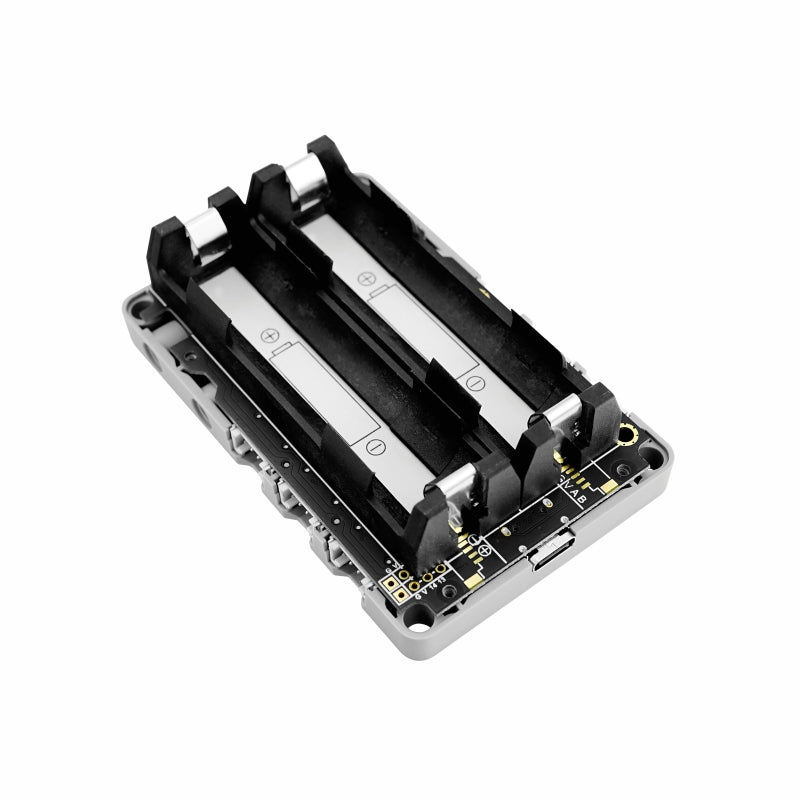

Battery Specification 18650 x 2 (parallel)
Interface Type-C * 1, GROVE(I2C+I/0+UART) * 6, Full-Size USB Type-A(OUTPUT)
LEDs SK6812 * 7
Pushbuttons Power Button, Physical Button \ 3
IPS LCD Screen 1.14"@240*135 ST7789V2
IMU MPU6686
RTC BM8563
PMU AXP192
Voltage/Current Collector INA3221 + INA199
USB Chips CH9102F
DC/DC Boost SCT12A0DHKR
Power Distribution Switch SGM2553D
Antenna 2.4G 3D Antenna
Operating Temperature 0°C to 60°C
Base Screw Hexagon socket cup head M2*8 screw
Net Weight 79.5g
Gross Weight 126.6g
Product Dimensions 92 x 64.5 x 35 mm
Package Size 104.5 x 70.5 x 50mm
Case Material ABS+PC
