Description
PowerHub is a programmable controller integrating multi-channel power management. It adopts the ESP32-S3-WROOM-1U-N16R8 core module, equipped with a dual-core Xtensa LX7 processor (240MHz main frequency), supporting 2.4 GHz Wi-Fi, with 16MB onboard Flash and 8MB PSRAM. It features a built-in STM32G031G8U6 coprocessor combined with multiple INA226 voltage and current detection ICs and an electronic switch design, enabling precise management of the power status of multiple expansion interfaces for accurate power consumption control, while providing whole-device low-power wake-up capabilities. The device’s USB Type-C port supports program download and USB OTG functions. An internal USB switch system allows routing the bottom USB interface to the front USB Type-A / USB Type-C ports to facilitate the expansion of USB peripherals. It adopts a high-efficiency power management system supporting multiple power supply modes (DC power + 2S battery + PWR485/PWR CAN input power). It features onboard 2x HY2.0-4P Grove interfaces, RS485, and CAN communication ports, facilitating connection to various sensors and industrial control equipment. It is suitable for industrial automation control, smart home, and other application scenarios, providing developers with a stable and reliable IoT solution.
Features

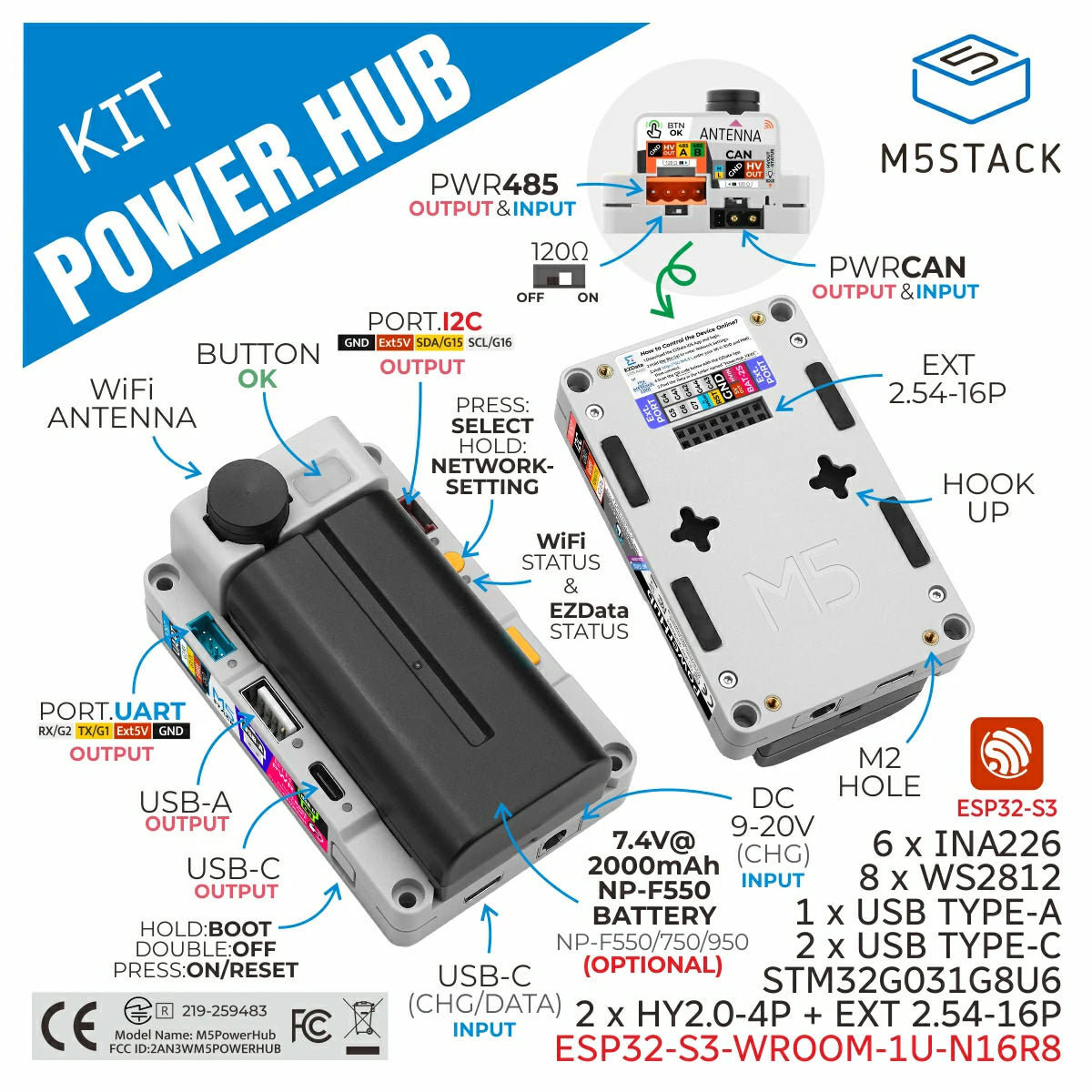

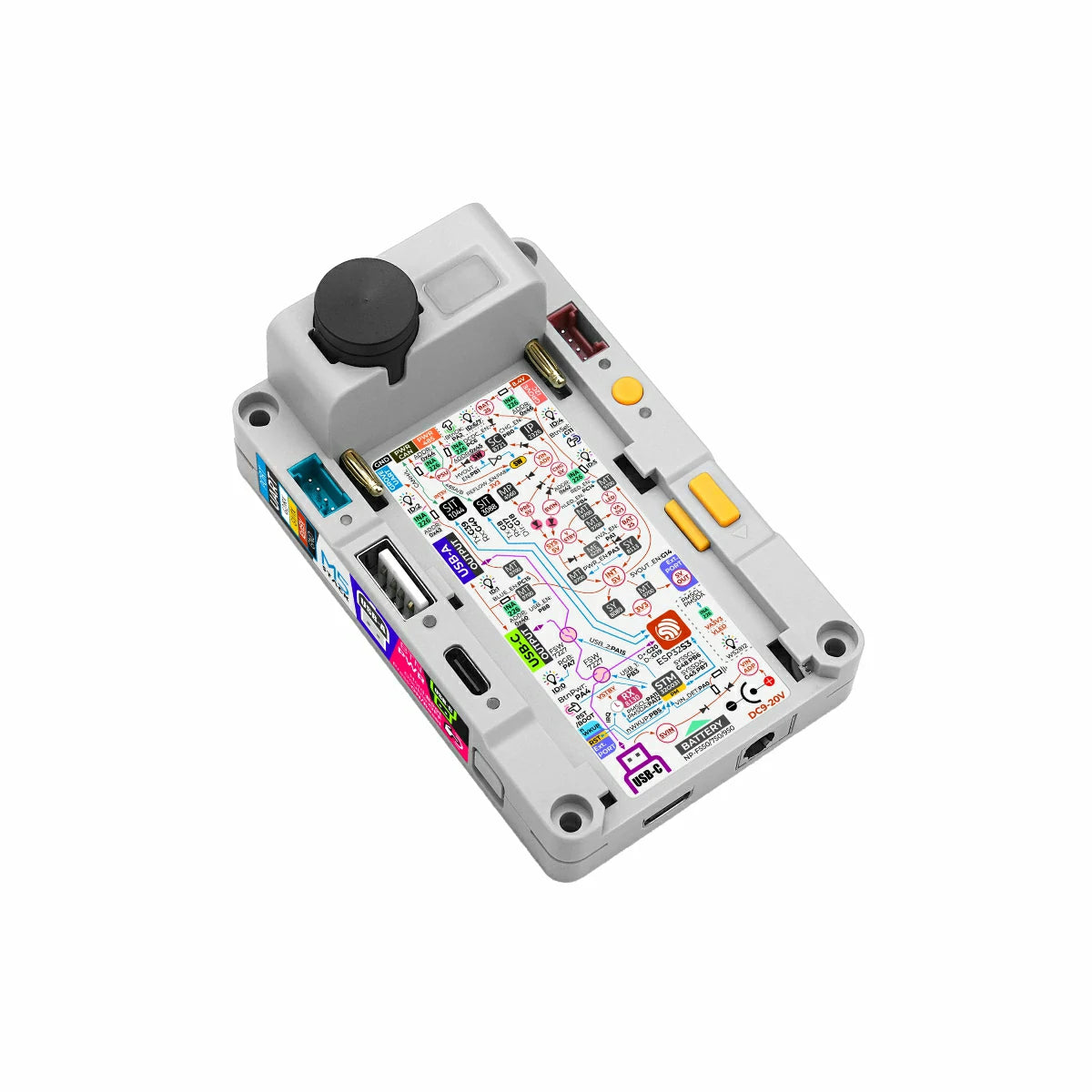

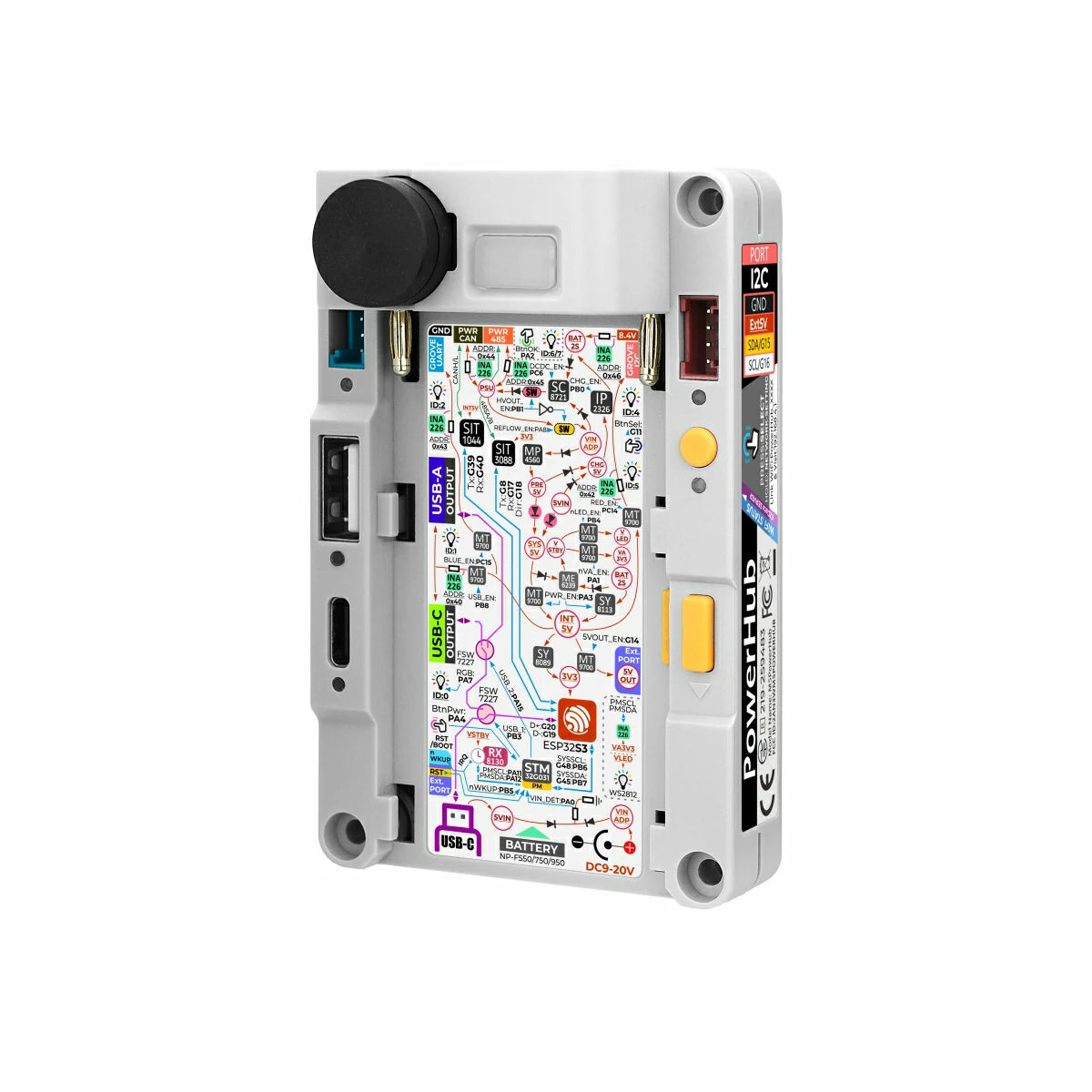

- ESP32-S3-WROOM-1U-N16R8 core module
- Supports low-power timed wake-up

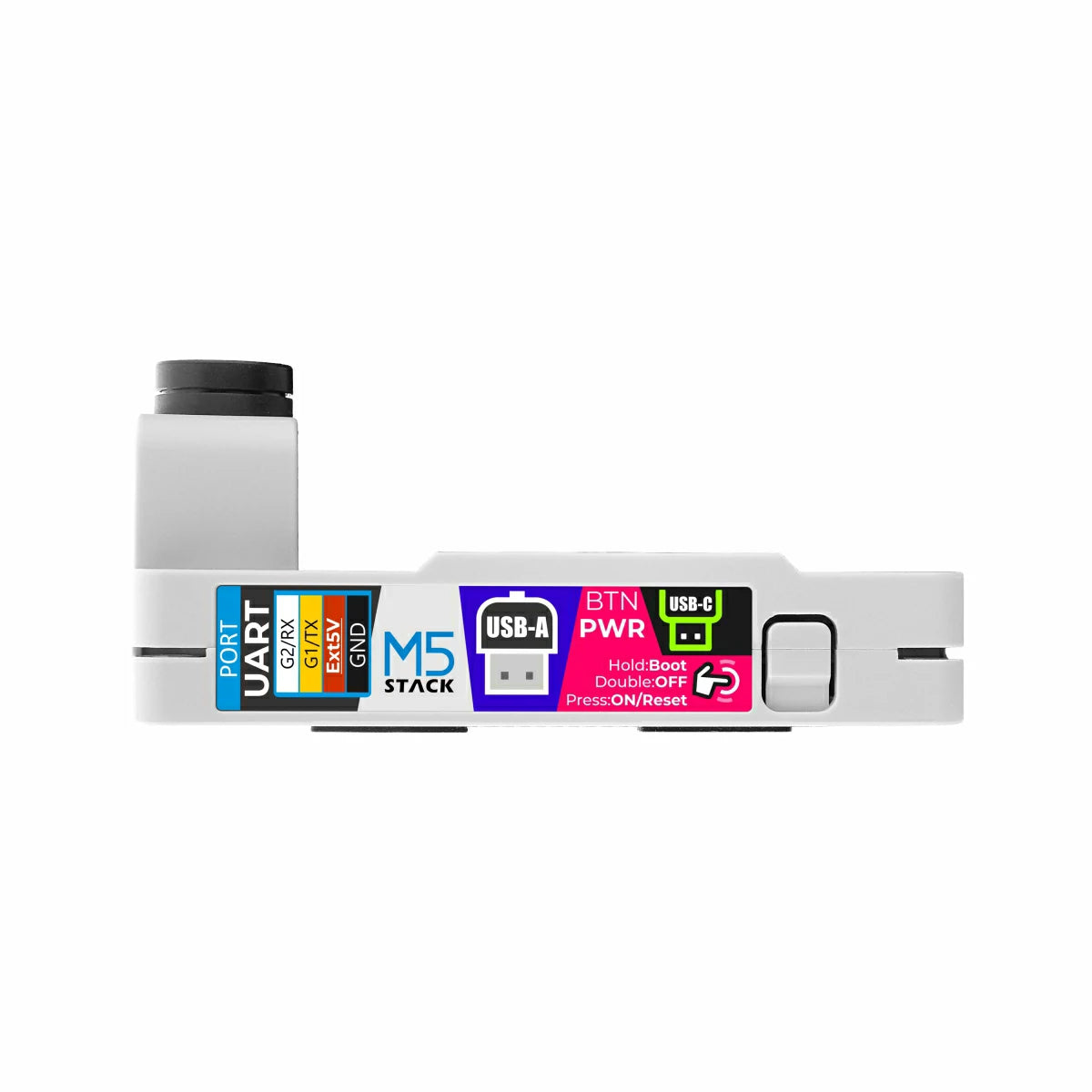

- USB Type-A / USB Type-C expansion ports

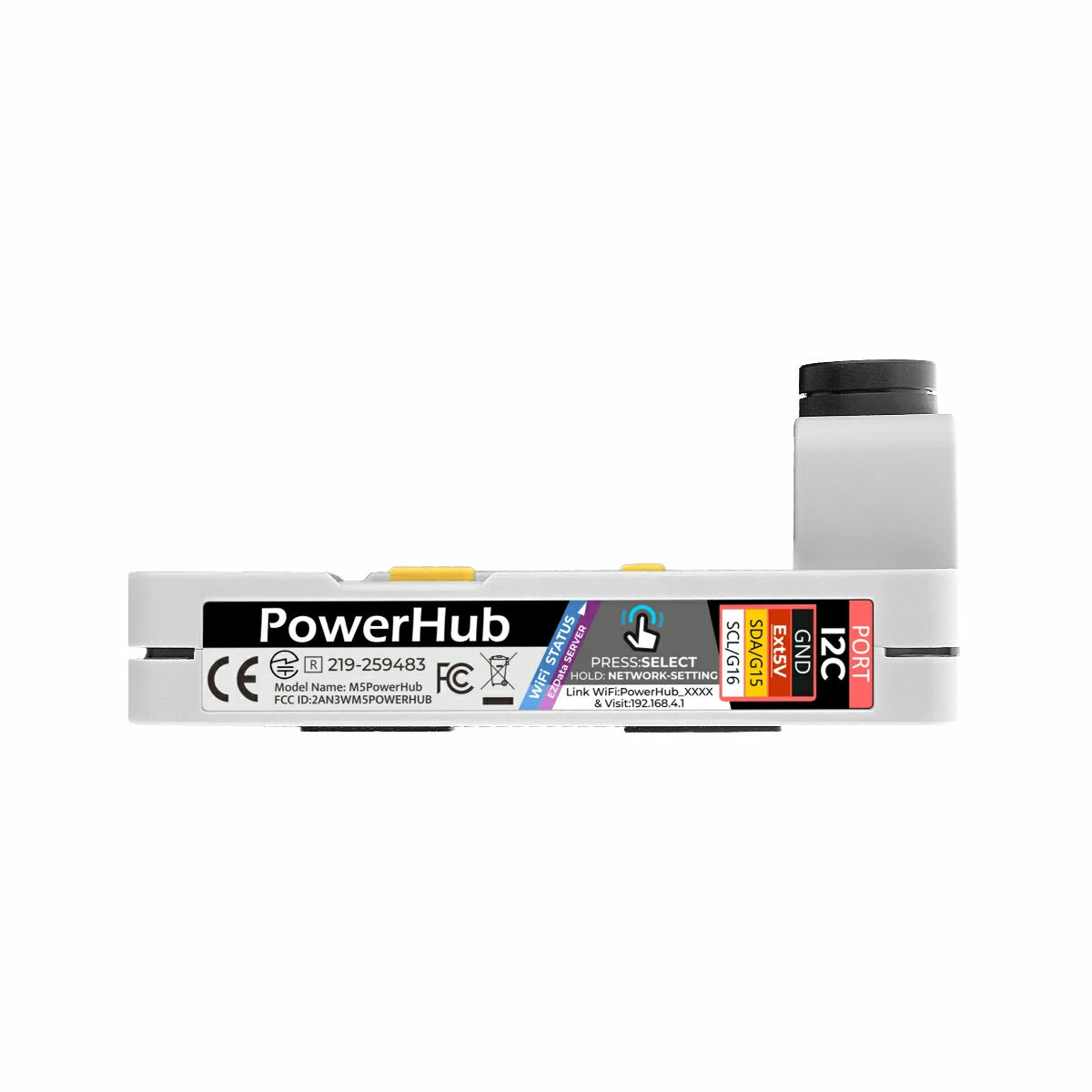

- 2 x HY2.0-4P expansion ports
- 2.54-16P expansion bus interface

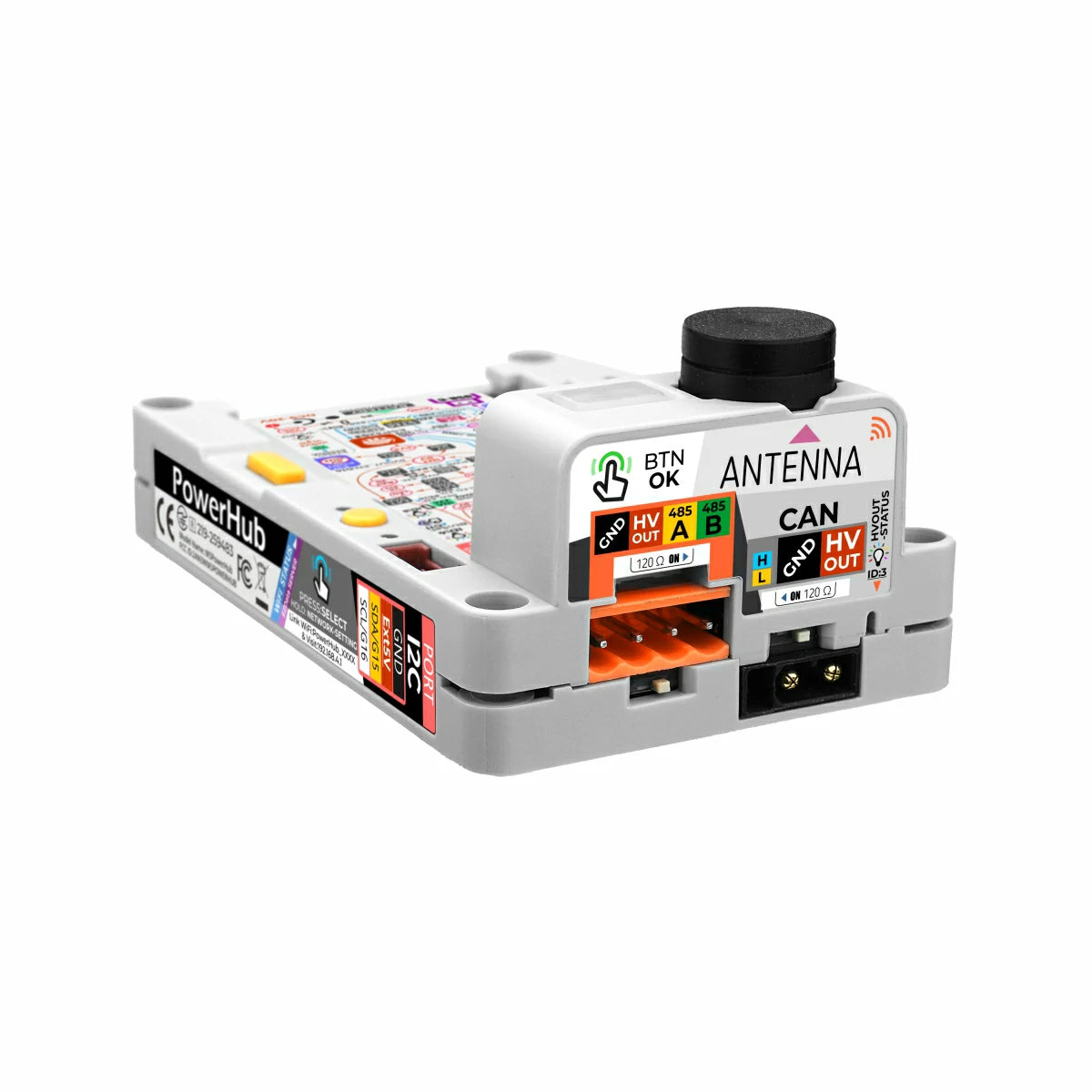

- RS485 communication interface (with 120Ω terminal resistor switch)
- CAN bus communication interface (with 120Ω terminal resistor switch)
- 2.4 GHz SMA mini antenna

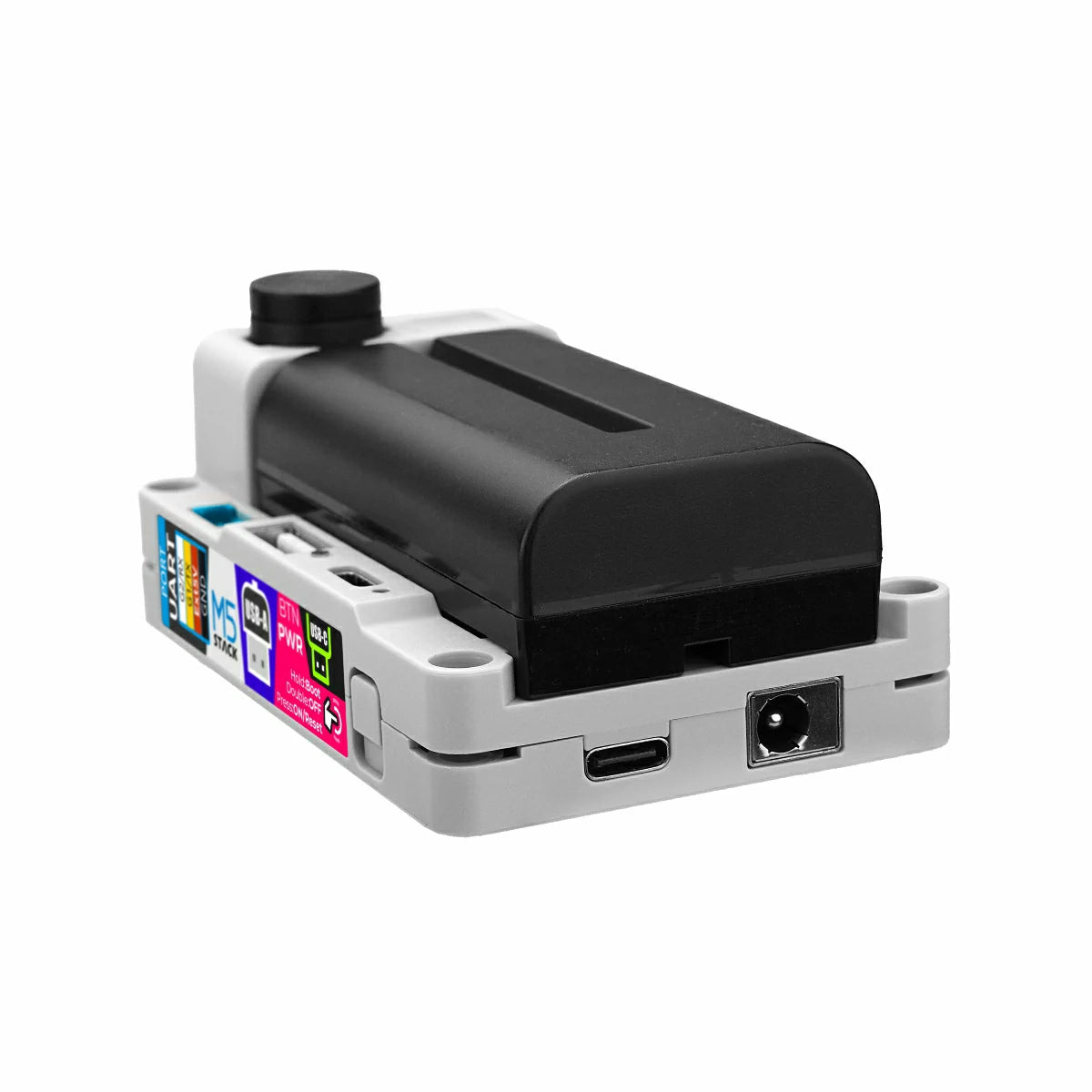

- Multiple power supply modes:
- PWR485/PWR CAN input power
- 2S battery power supply
- DC 7 ~ 20V input power
- Human-machine interaction:
- Multi-channel status indicator LEDs
- 3 x physical buttons

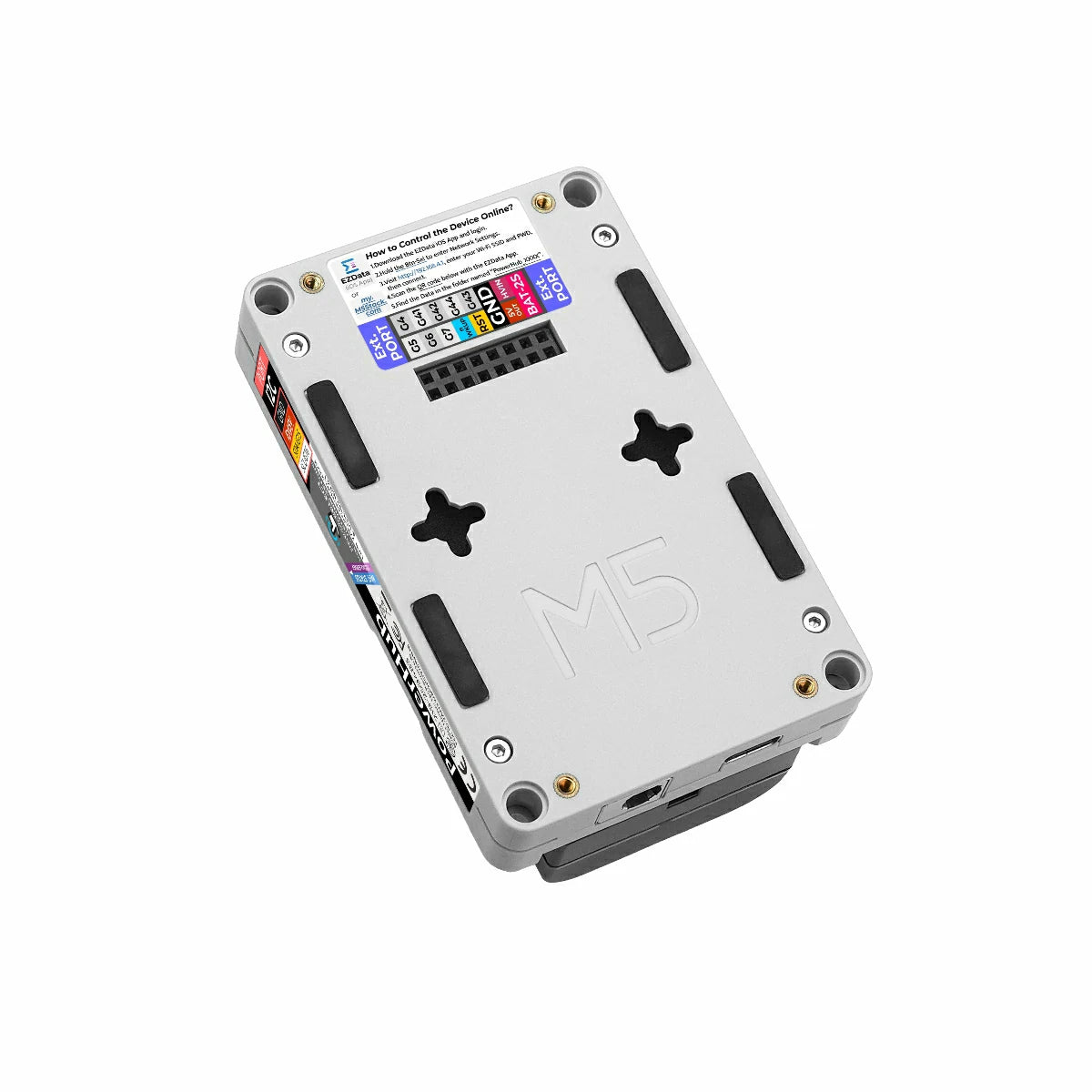

- Multiple mounting options:
- Magnetic design for easy attachment to metal surfaces

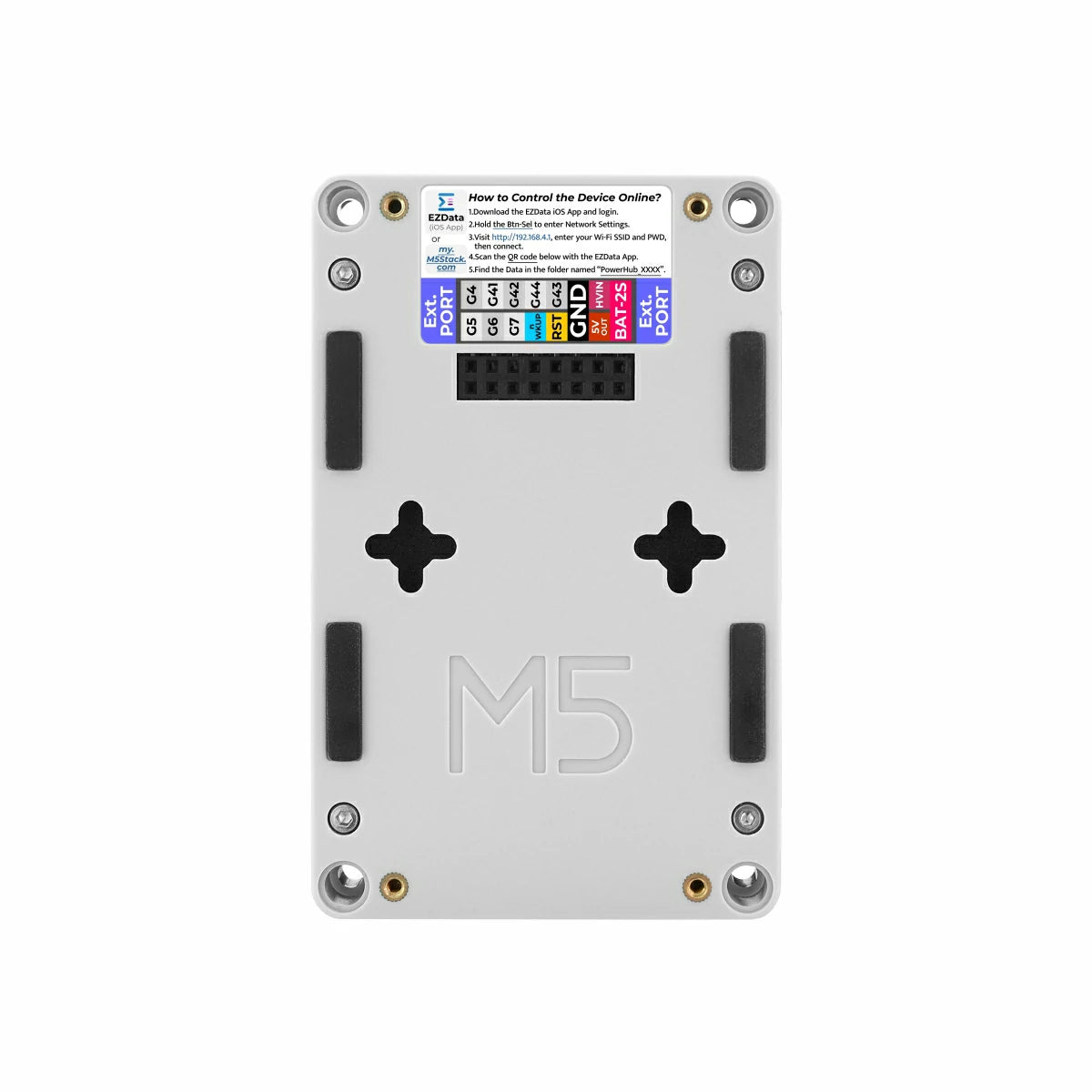

- Cross mounting hole design on the back for easy wall mounting
- LEGO mounting holes
- M2 screw holes

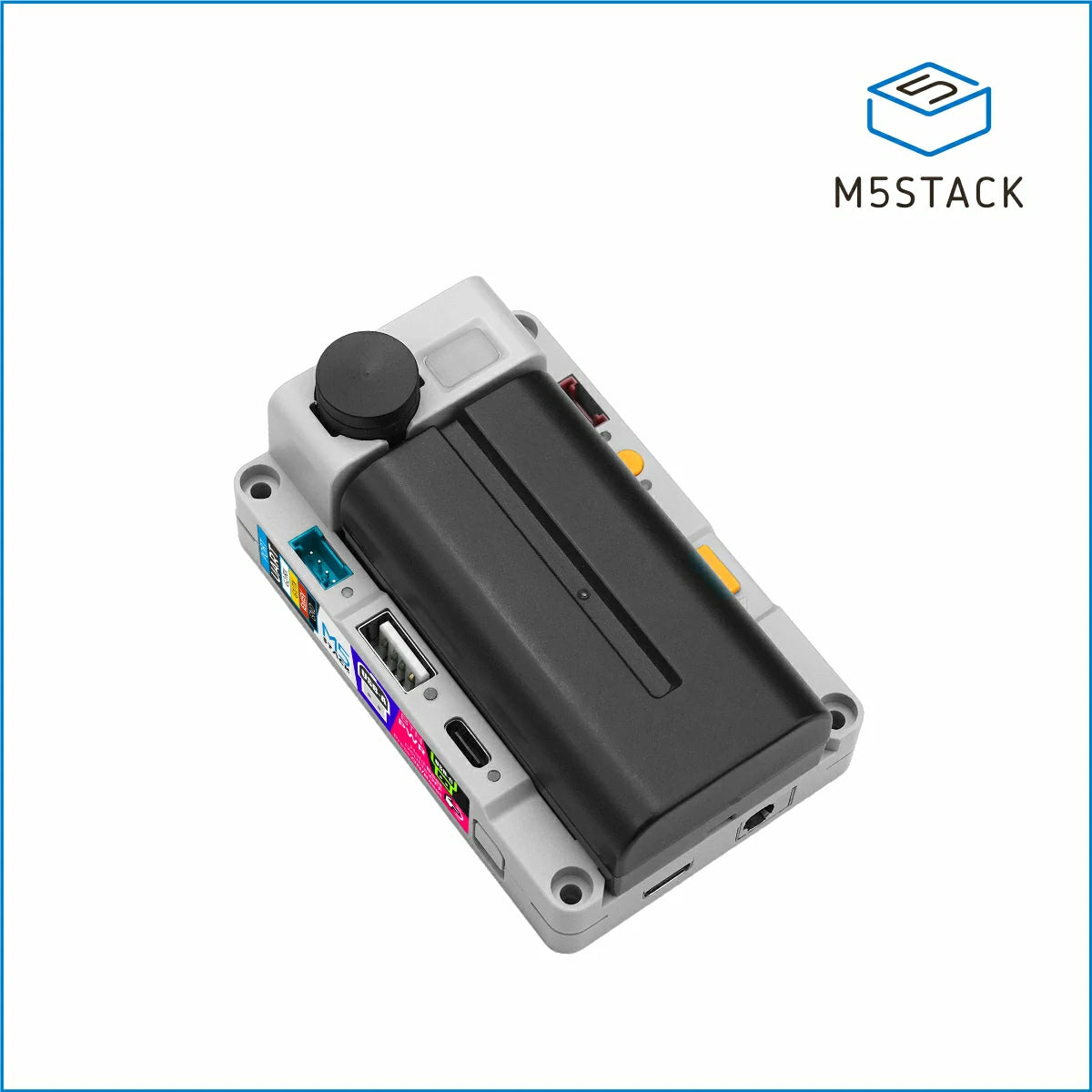

Includes
- 1 x PowerHub

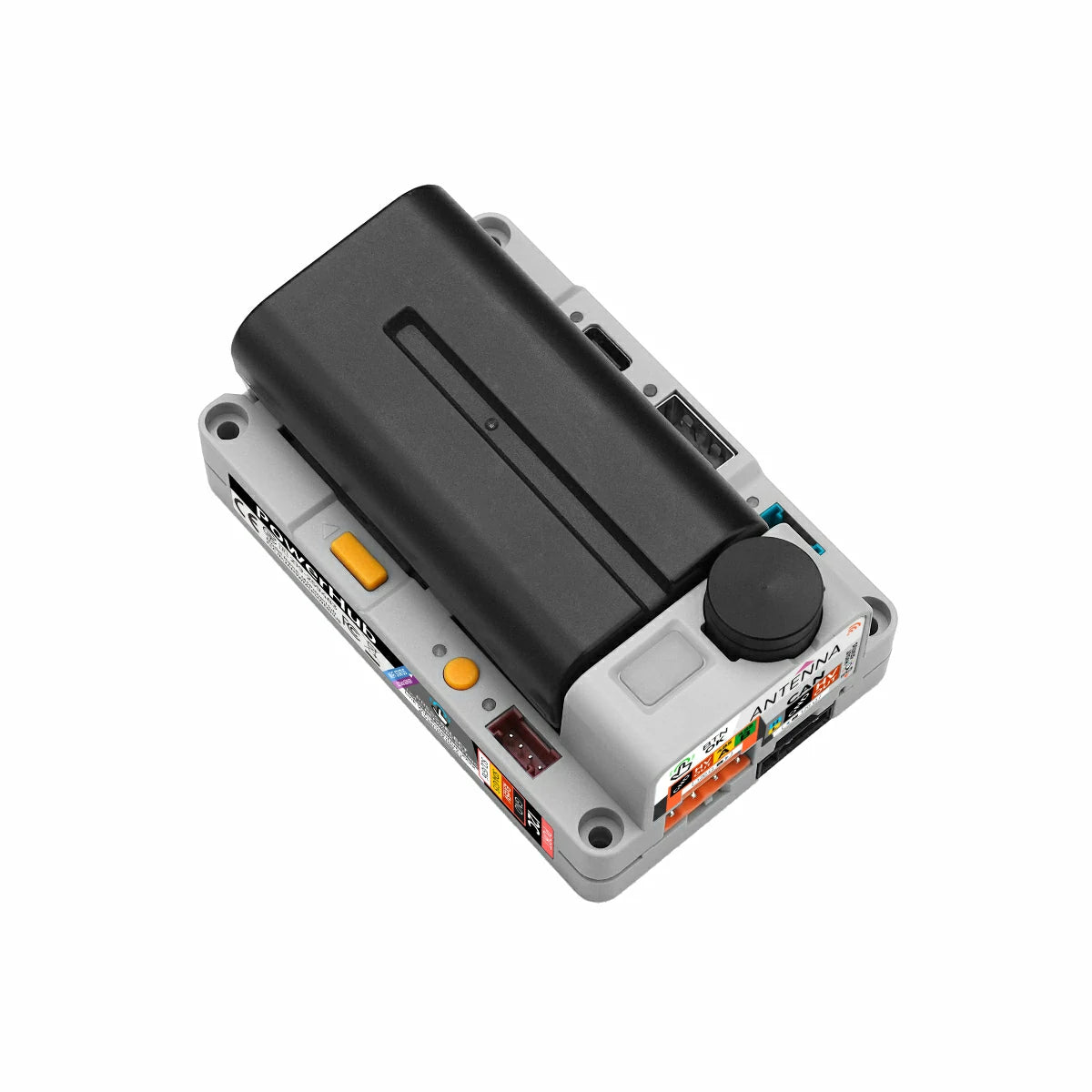

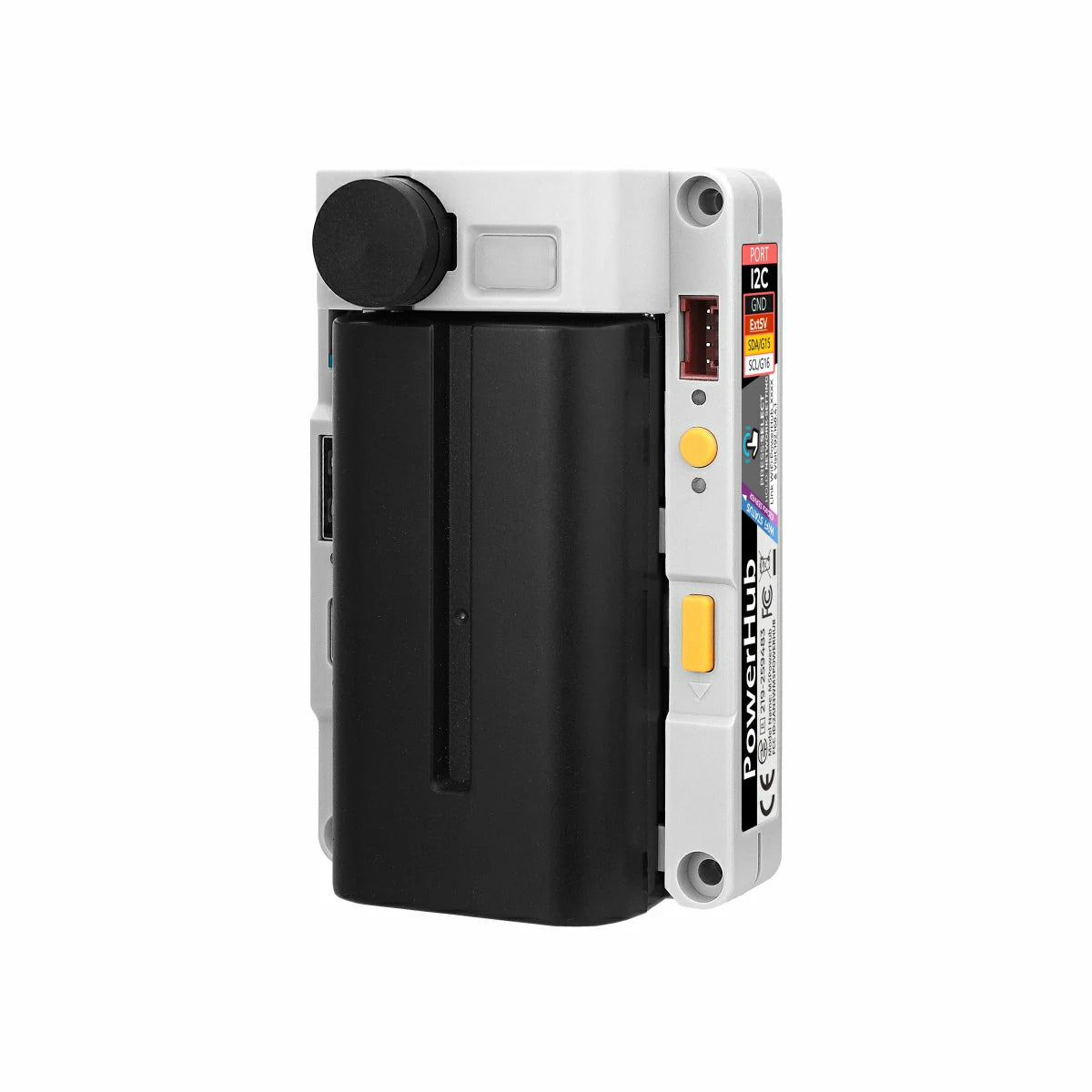

- 1 x NP‑F550 2000mAh removable battery (optional)
Applications
- Industrial automation
- Smart home
Specifications

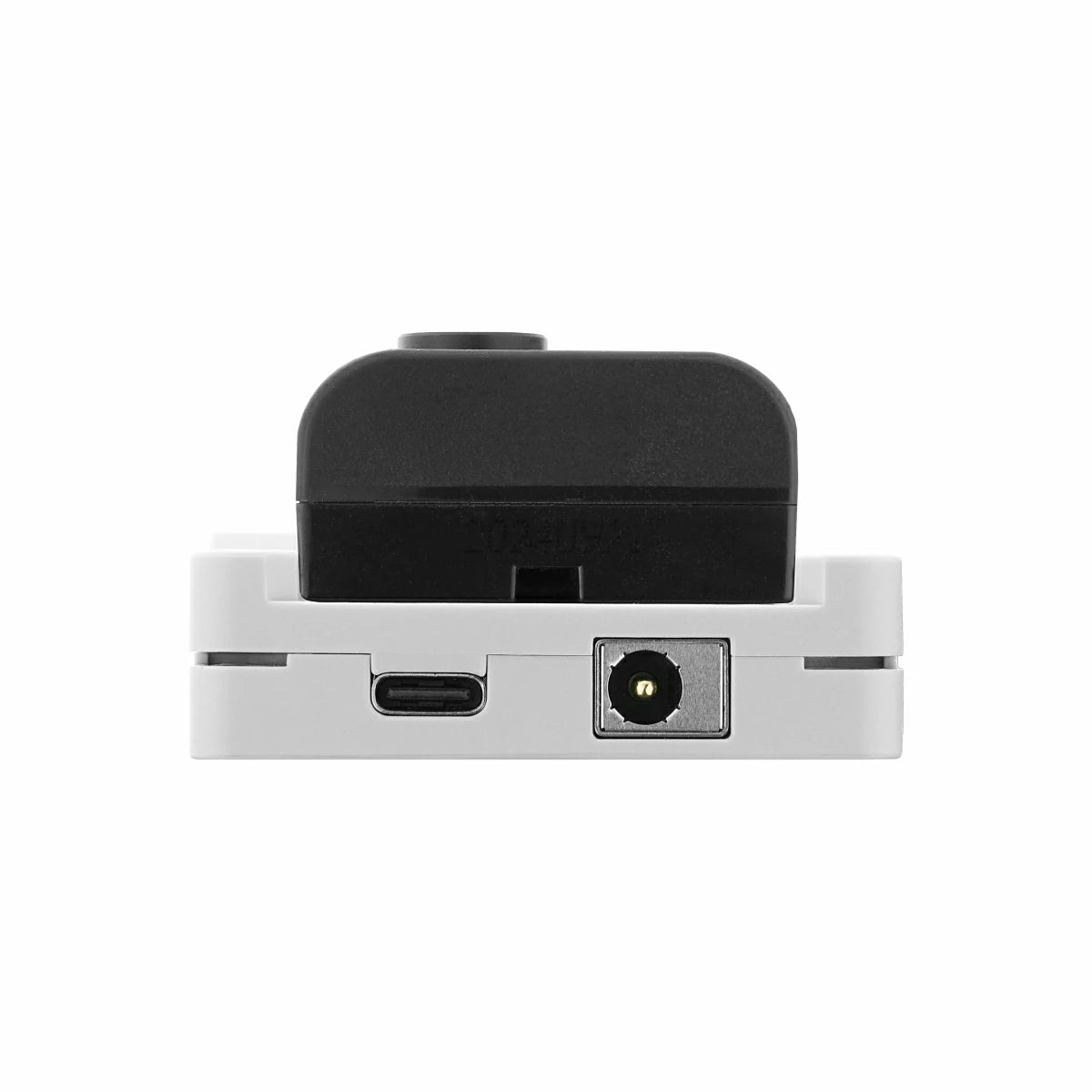

| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-WROOM-1U-N16R8@Dual-core Xtensa LX7 processor, up to 240MHz |
| MCU | STM32G031G8U6 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Expansion Ports | 2 x HY2.0-4P + EXT 2.54-16P |
| RS485 Interface | Connector type: VH3.96-4P with 120Ω terminal resistor switch Reverse input voltage: DC 9 ~ 20V |
| CAN Interface | Connector type: XT30 (2+2) with 120Ω terminal resistor switch Reverse input voltage: DC 9 ~ 20V |
| USB Interface | 1 x USB Type-A, 2 x USB Type-C |
| RGB LED | 8 x WS2812 |
| Antenna Specs | Size: 15 x 14mm, SMA connector (inner thread, inner hole), operating band: 2.4 GHz, gain: 2dB, VSWR ≤ 1.8 |
| Compatible Battery | NP-F550/750/950, lithium 2S @ 7.4V |
| DC Power Input Port | Input voltage: DC 9 ~ 20V, spec: 5.5 x 2.1 mm, polarity: positive inside, negative outside |
| Operating Temp | 0 ~ 40°C |
| Product Size | 88.0 x 56.0 x 38.5mm |
| Product Weight | PowerHub: 71.0g PowerHub Kit (with battery): 170.7g |
| Package Size | 110.0 x 73.0 x 42.0mm |
| Gross Weight | PowerHub: 105.5g PowerHub Kit (with battery): 208.2g |
