Product Status Notice This product is EOL (End of Life). Please order the new version: Unit PoE CAM-W v1.1
Description

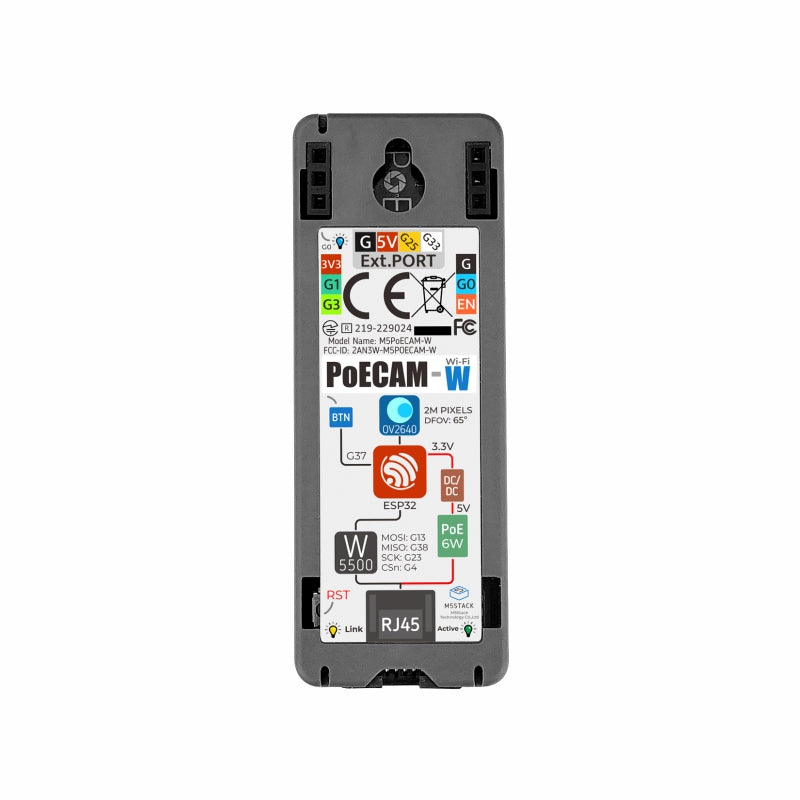

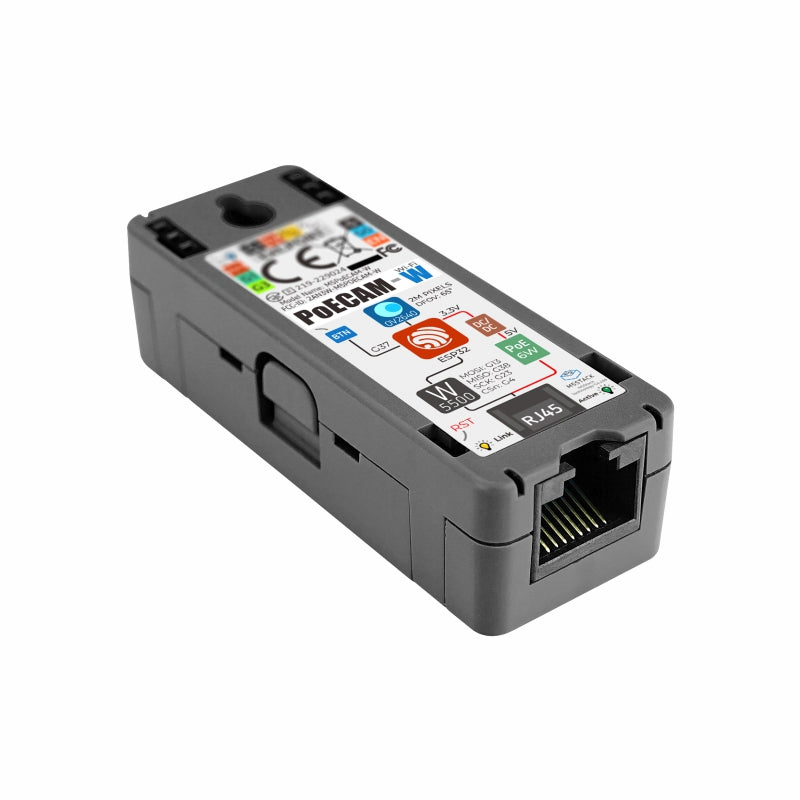

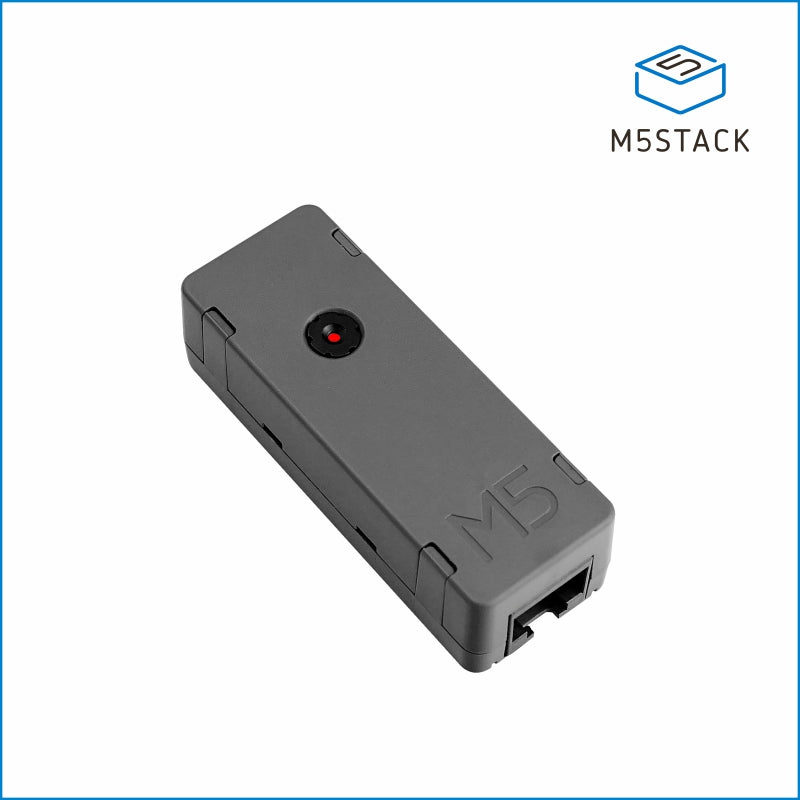

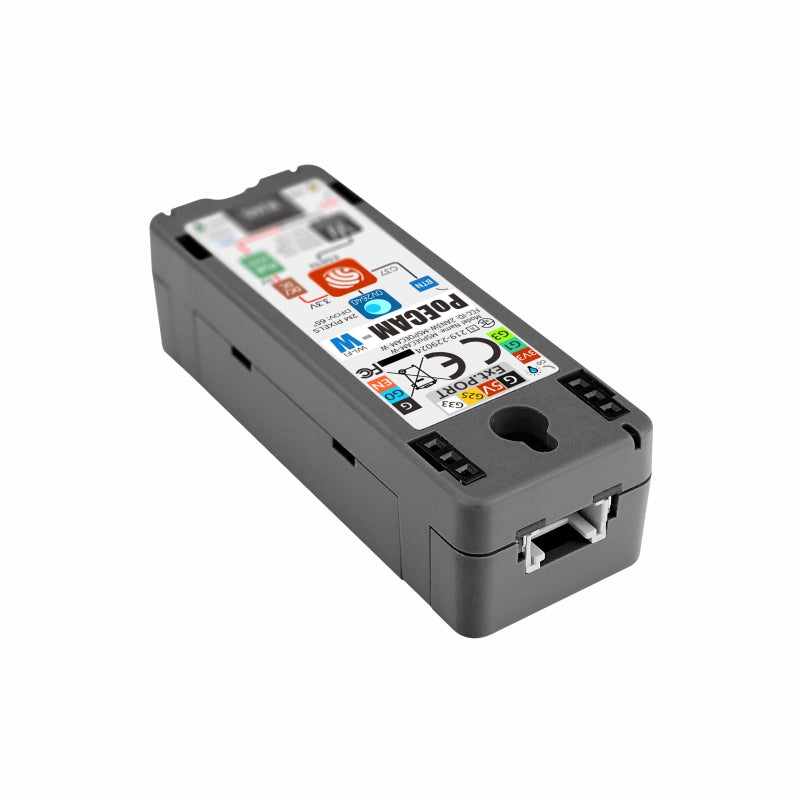

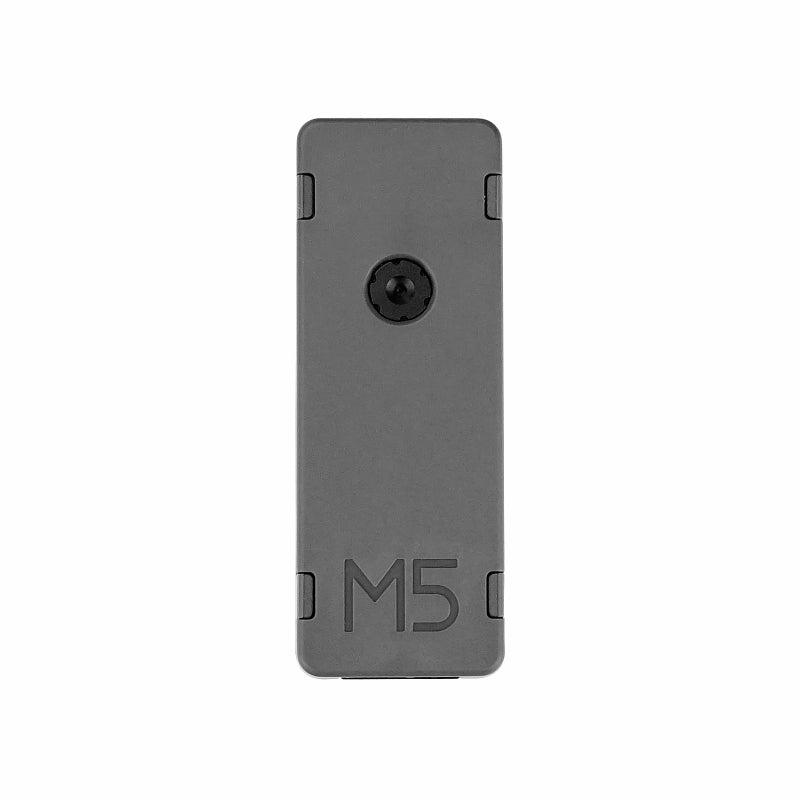

Unit PoE CAM-W is a programmable PoE camera based on the "ESP32 + W5500" solution. It integrates PoE Ethernet communication and power-over-Ethernet functionality, along with Wi-Fi capabilities, and includes a 2MP image sensor OV2640. This product is suitable for image monitoring, remote data collection, and scenarios requiring PoE wiring.

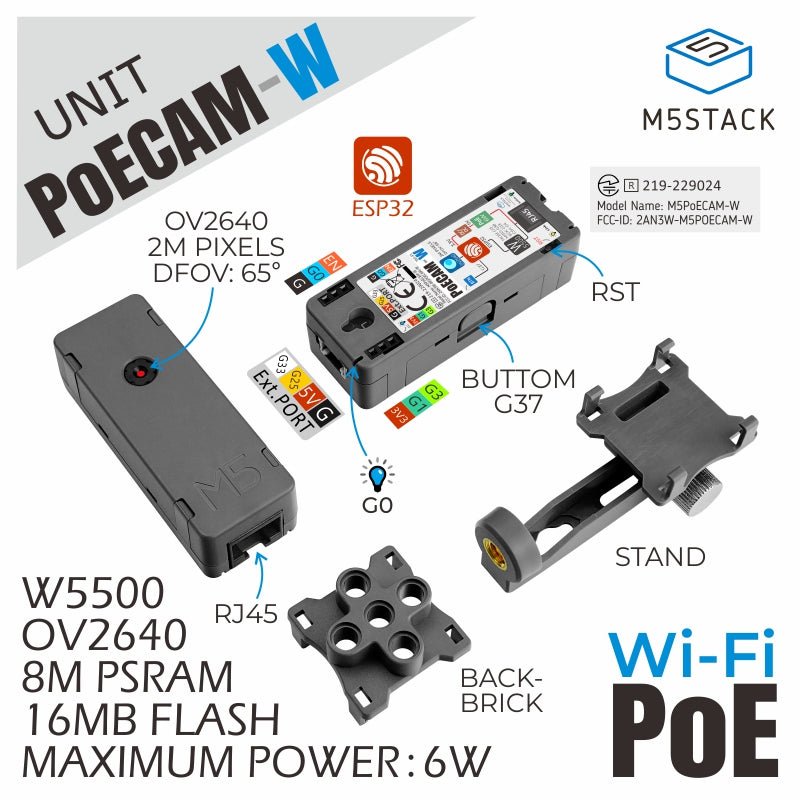

Features
- Built-in ESP32 MCU (supports WiFi)
- 2MP camera OV2640
- Ethernet chip W5500
- LAN speed up to 10M or 100M (depending on the provided line)
- PoE IEEE802.3 AF standard (maximum power 6W)
- Built-in indicator LED
- Development platforms: Arduino, ESP-IDF
- Standard Ethernet interface RJ45
- Standard LEGO interface and camera mount
Includes
- 1 x Unit PoE CAM-W

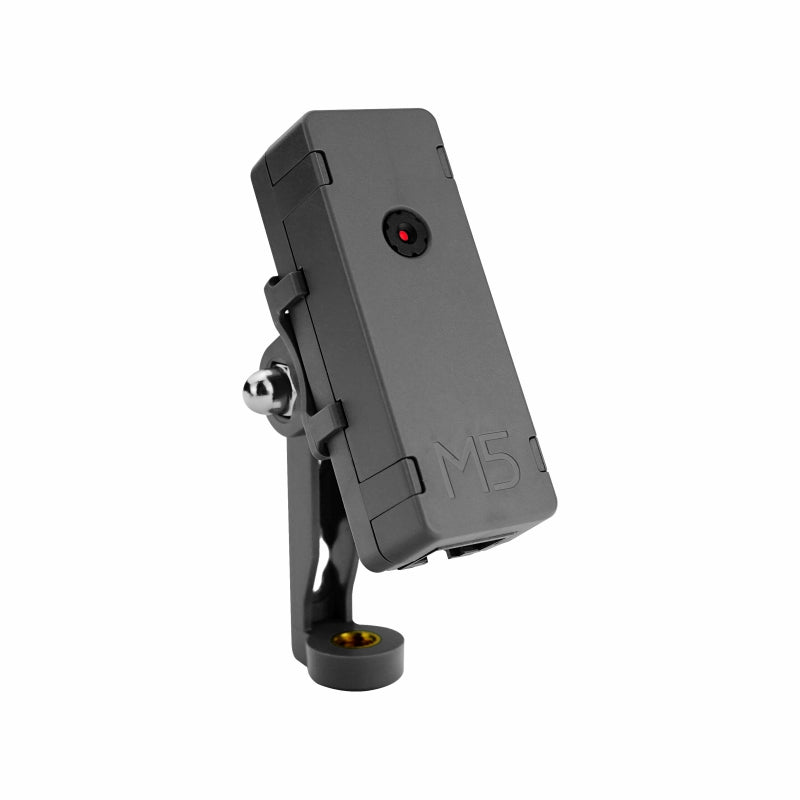

- 1 x Camera mounting clip

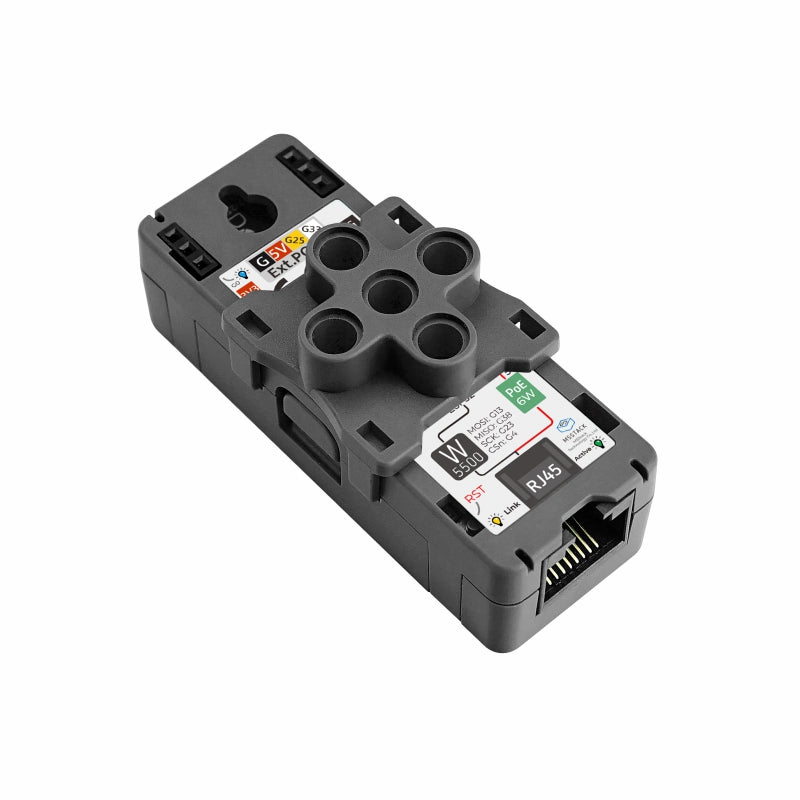

- 1 x LEGO-compatible clip
Applications
- Warehouse monitoring
- Timed photography
- Machine vision
- Home smart monitoring
Specifications
| Specification | Parameter |
|---|---|
| MCU | ESP32-D0WDQ6-V3 |
| Camera Module | OV2640 |
| Ethernet Chip | W5500 |
| Flash | 16MB |
| PSRAM | 8MB |
| Pixel Size | 2.2 µm x 2.2 µm |
| Output Format (8-bit) | YUV (422/420) /YCbCr422, RGB565/555, 8-bit compressed data, 8-/10-bit Raw RGB data |
| Automatic Image Control | Auto Exposure Control (AEC), Auto Gain Control (AGC), Auto White Balance (AWB), Auto Band Filter (ABF), and Auto Black Level Calibration (ABLC) |
| DFOV | 65° |
| Supported TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Ethernet Interface | RJ45 |
| Maximum Power | 6W |
| Product Size | 64 × 24 × 18mm |
| Package Size | 80 × 37 × 32mm |
| Product Weight | 38g |
| Gross Weight | 45g |
