This product is EOL. Please order the new version Unit PoE CAM-W v1.1
Description

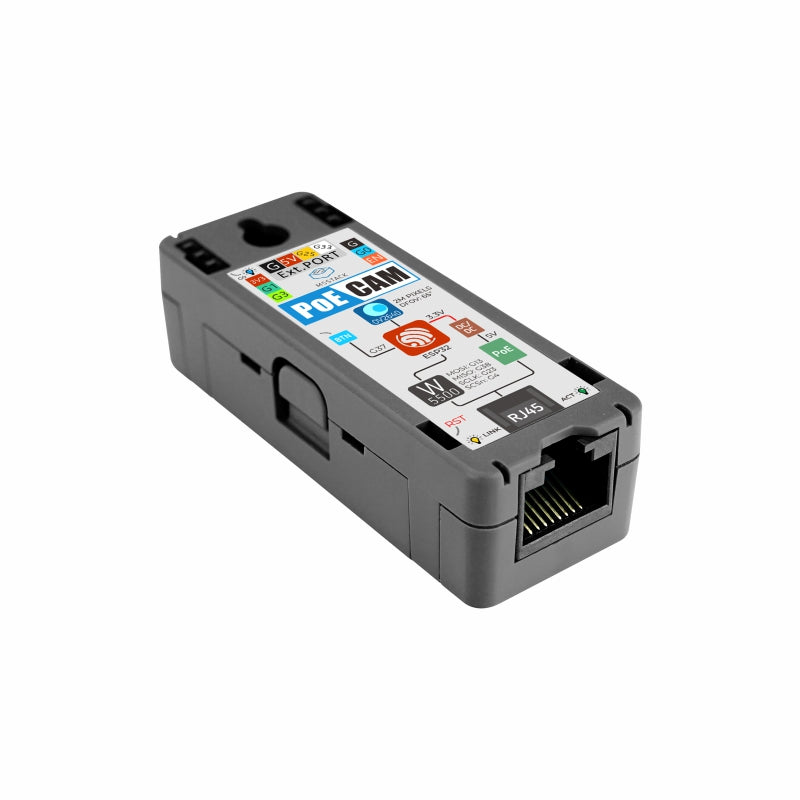

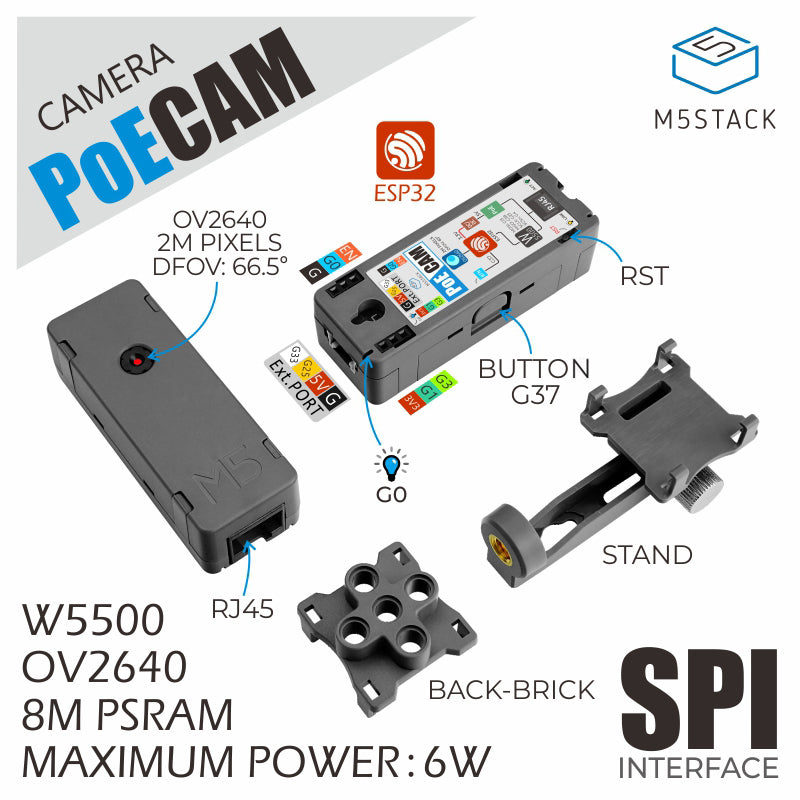

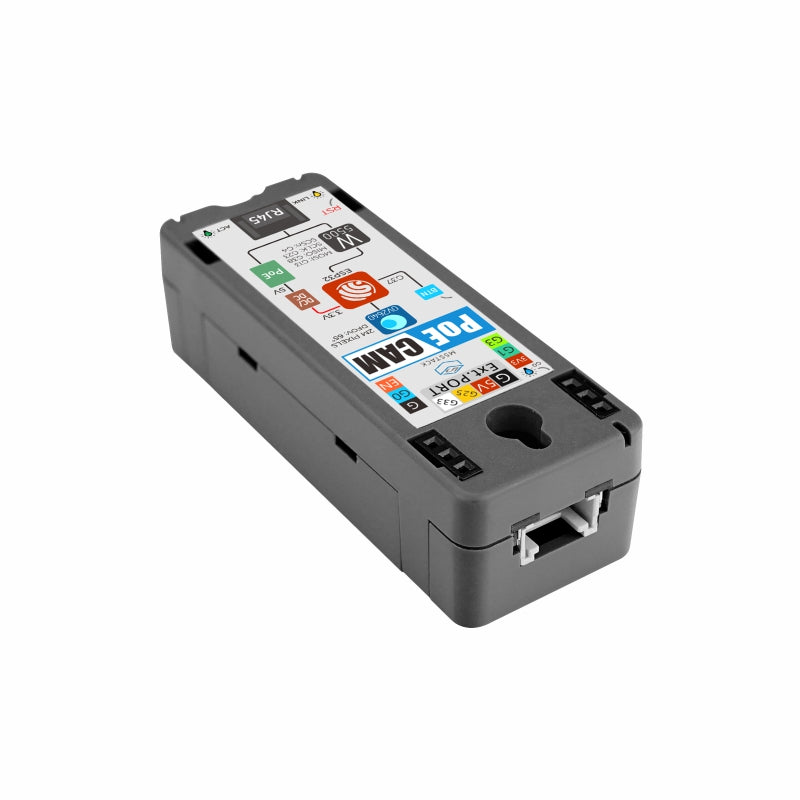

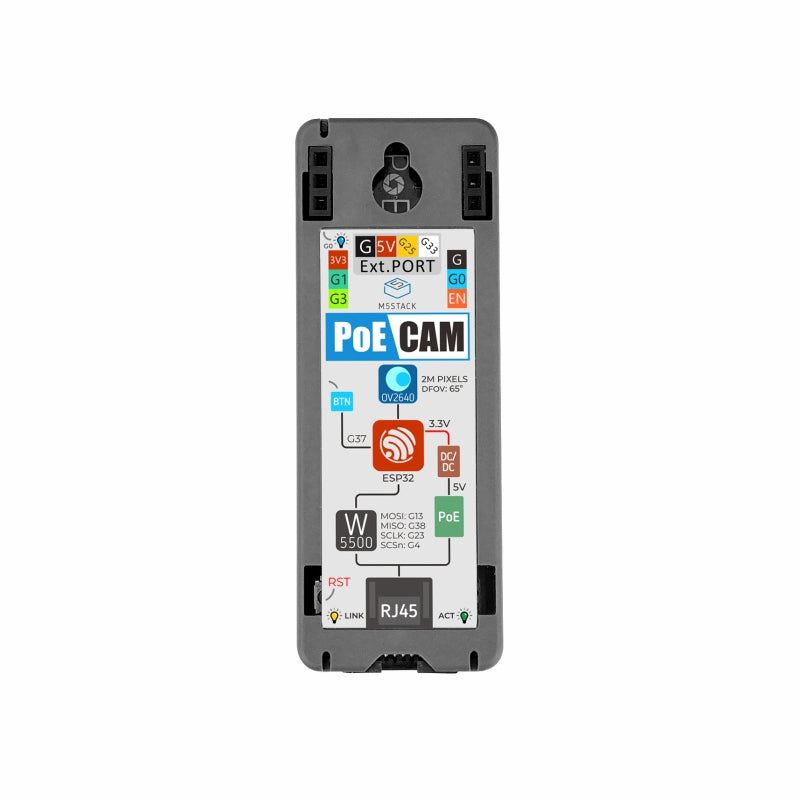

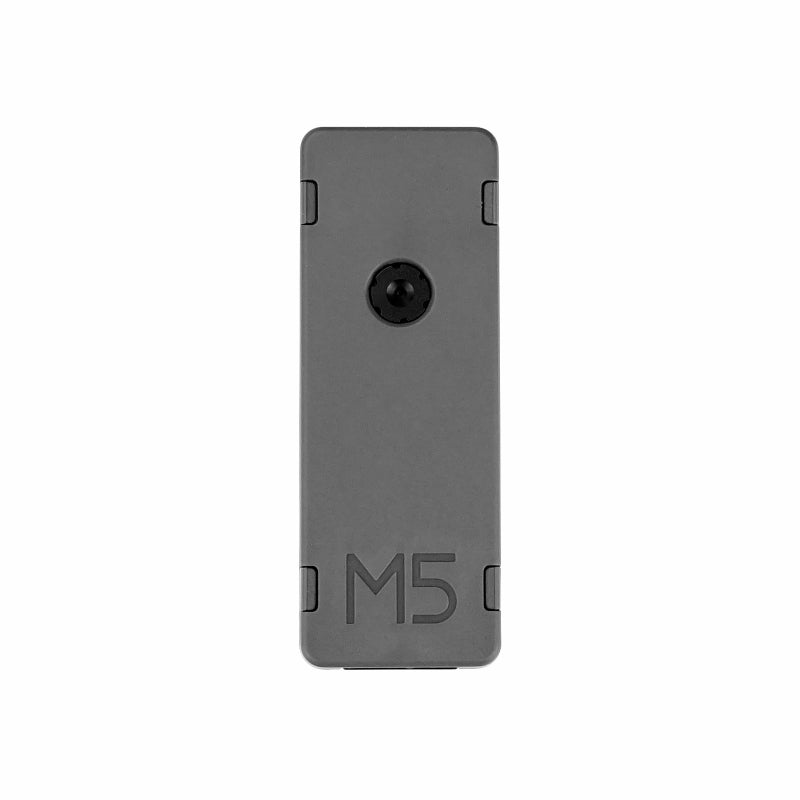

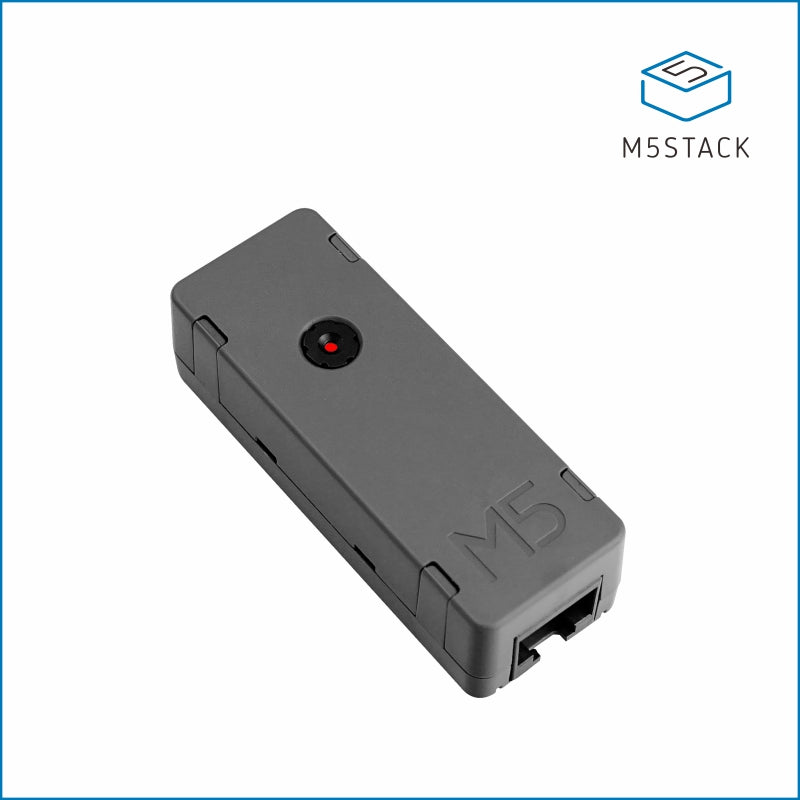

Unit PoE CAM is an open-source programmable network camera with integrated PoE (Power Over Ethernet) functionality. The hardware uses an ESP32 as the control core, combined with a W5500 embedded Ethernet controller and a 2MP image sensor OV2640, along with a high-capacity memory combination of 8MB PSRAM + 16MB Flash.
The camera is compact and supports flexible power options. Simply connecting an Ethernet cable enables stable image transmission, making it ideal for warehouse monitoring, scheduled image capture, and other application scenarios. Features include:
-
Plug and Play:
- Automatically obtains an IP address when the network cable is connected. Any device within the same local network can access the camera image.
- The factory firmware integrates an image transmission module, which provides not only image data access but also API interfaces for adjusting image parameters (such as white balance, exposure, gain, and resolution).
- Comes with a PC-side CameraTool that also supports UART image transmission.
-
Feature-Rich:
- Built-in ESP32 with a reserved programming interface, providing support for secondary development.
- The W5500 embedded Ethernet controller supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols.
- Supports multiple image output formats and allows image parameter adjustments.
-
High Flexibility:
- Supports PoE power supply, integrating power and network into one cable for simplified wiring; also supports 5V power supply.
- Equipped with a GROVE expansion interface.

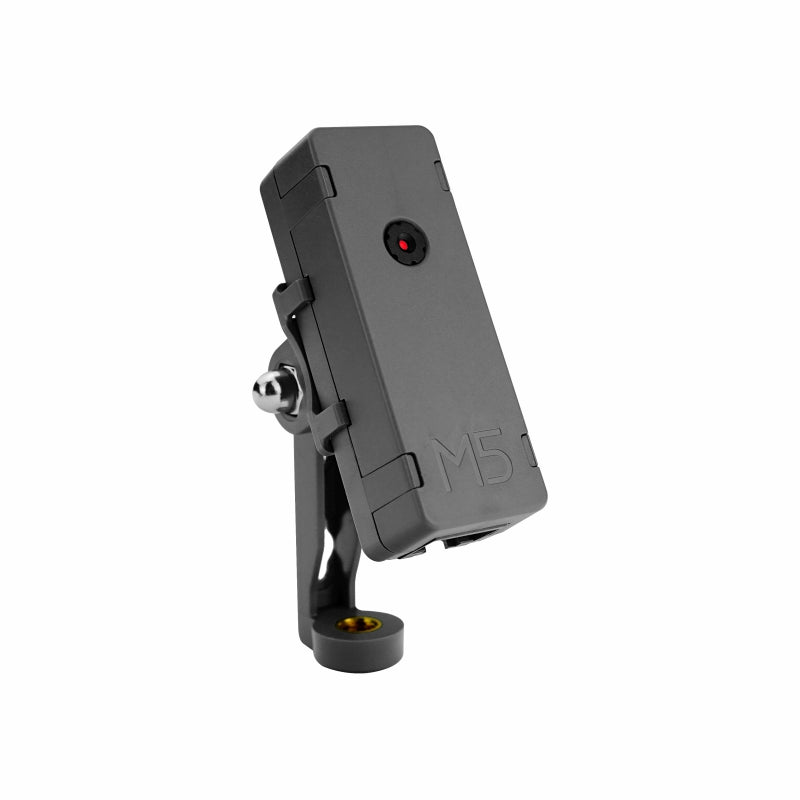

- Comes with a fixed camera clip that supports both wall mounting and ceiling installation.
Features
- Rich image processing API interface
- PoE IEEE802.3 AF standard
- Ethernet network camera
- Built-in ESP32 MCU
- Development Platform:
- UiFlow, Arduino, ESP-IDF
- Software / Hardware open source
Includes
- 1 x Unit PoE CAM
- 1 x Fixed Camera Clip

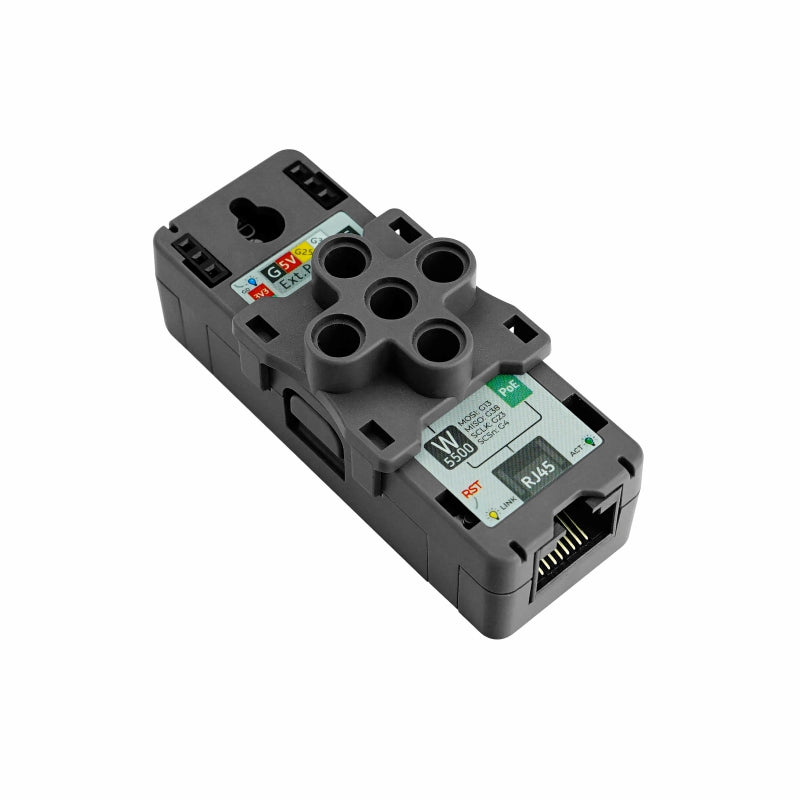

- 1 x LEGO-Compatible Clip
Applications
- Warehouse Monitoring
- Scheduled Photography
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-D0WDQ6-V3@Dual-core processor, main frequency 240MHz |
| DMIPS | 600 |
| SRAM | 520KB |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Image Sensor | OV2640 |
| Max Resolution | 2MegaPixel |
| OV2640 Max Image Transfer Rate | YUV (422/420) / YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data |
| DFOV | 65° |
| PoE Standard | PoE IEEE802.3 AF / Max Power 6W / Power Supply Voltage DC 37-57V |
| Ethernet Controller | W5500, built-in 32Kbytes buffer, SPI interface |
| Supported Protocols | TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE |
| Ethernet Port Type | RJ45 |
| Basic Peripherals | 1x Programmable Button, 2x Status Indicators |
| Product Size | 64.0 x 24.0 x 18.0mm |
| Product Weight | 38.0g |
| Package Size | 80.0 x 37.0 x 32.0mm |
| Gross Weight | 45.0g |
