Description

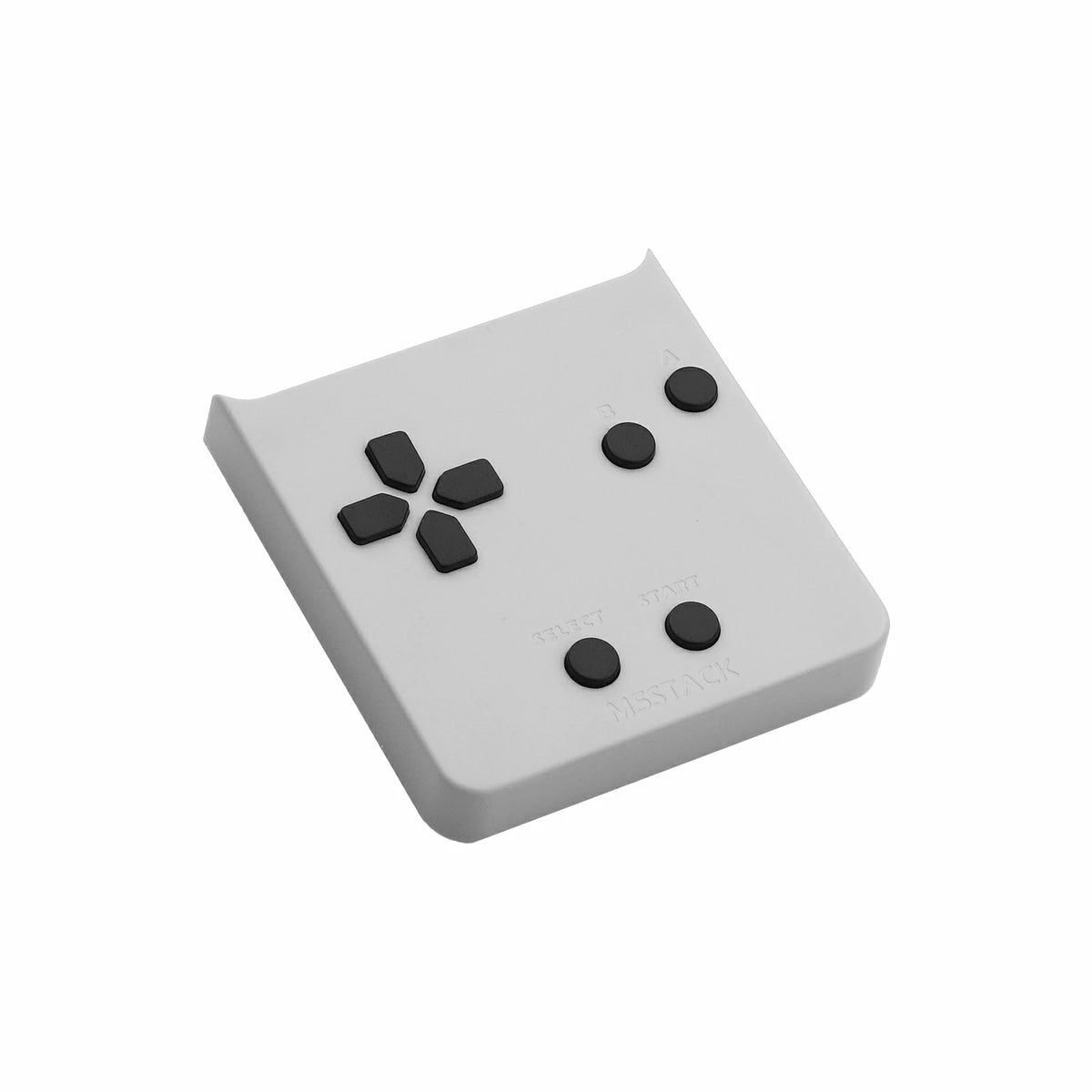

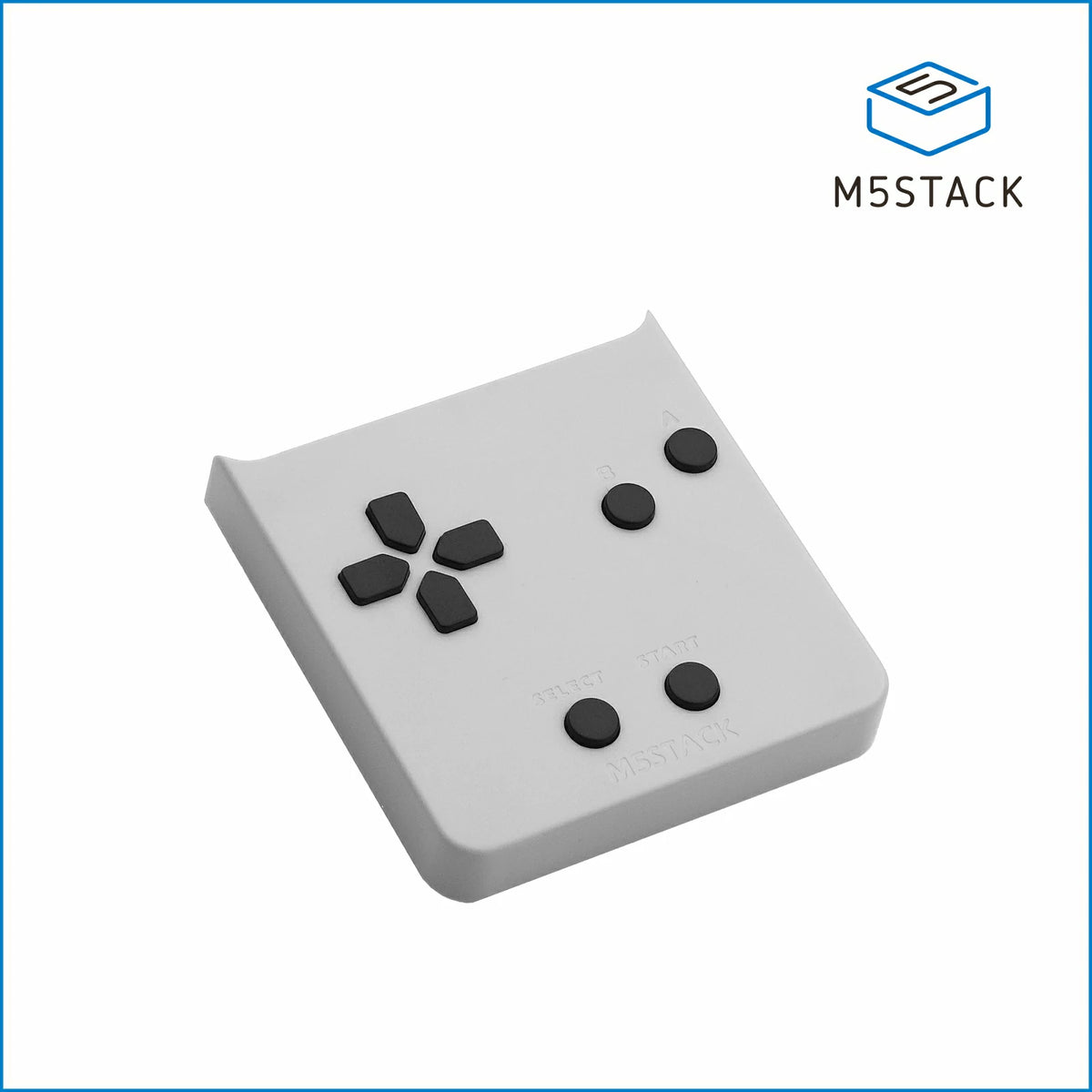

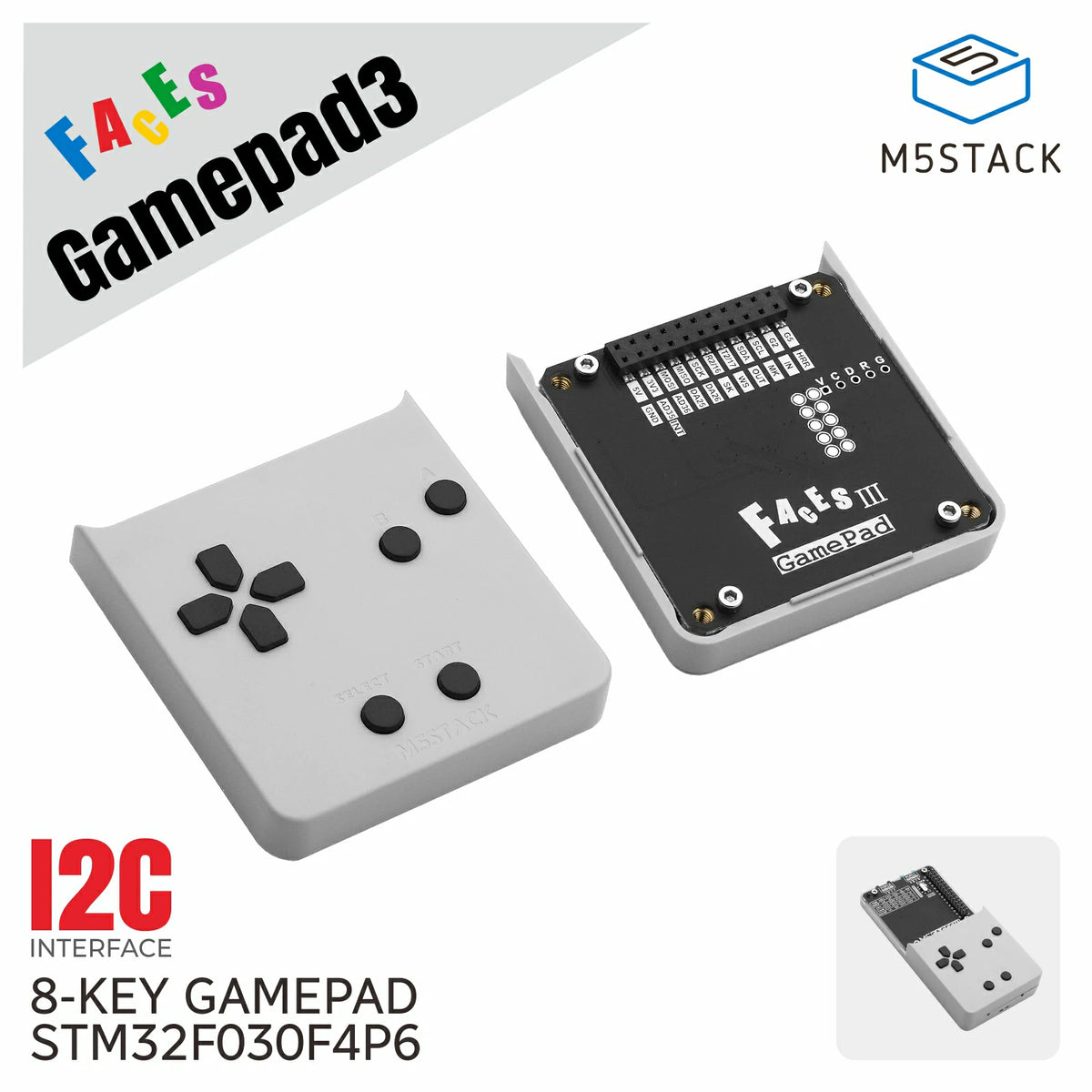

Faces Gamepad3 is a game control input panel designed for the Faces Bottom series. It provides classic directional controls, A/B buttons, and Start/Select interaction buttons, making it suitable for game control and shortcut operation scenarios. It integrates an STM32 MCU and communicates with the host via I2C and an interrupt pin, providing fast response and high integration.
Features
- Built-in STM32 MCU: STM32F030F4P6
- I2C communication interface
- Gamepad button layout
Includes
Applications
- Game control input scenarios
- Directional control and shortcut operation scenarios
- Embedded projects requiring button interaction
Specifications
| Specification |
Parameter |
| MCU |
STM32F030F4P6 |
| Communication Interface |
I2C @ 0x08 |

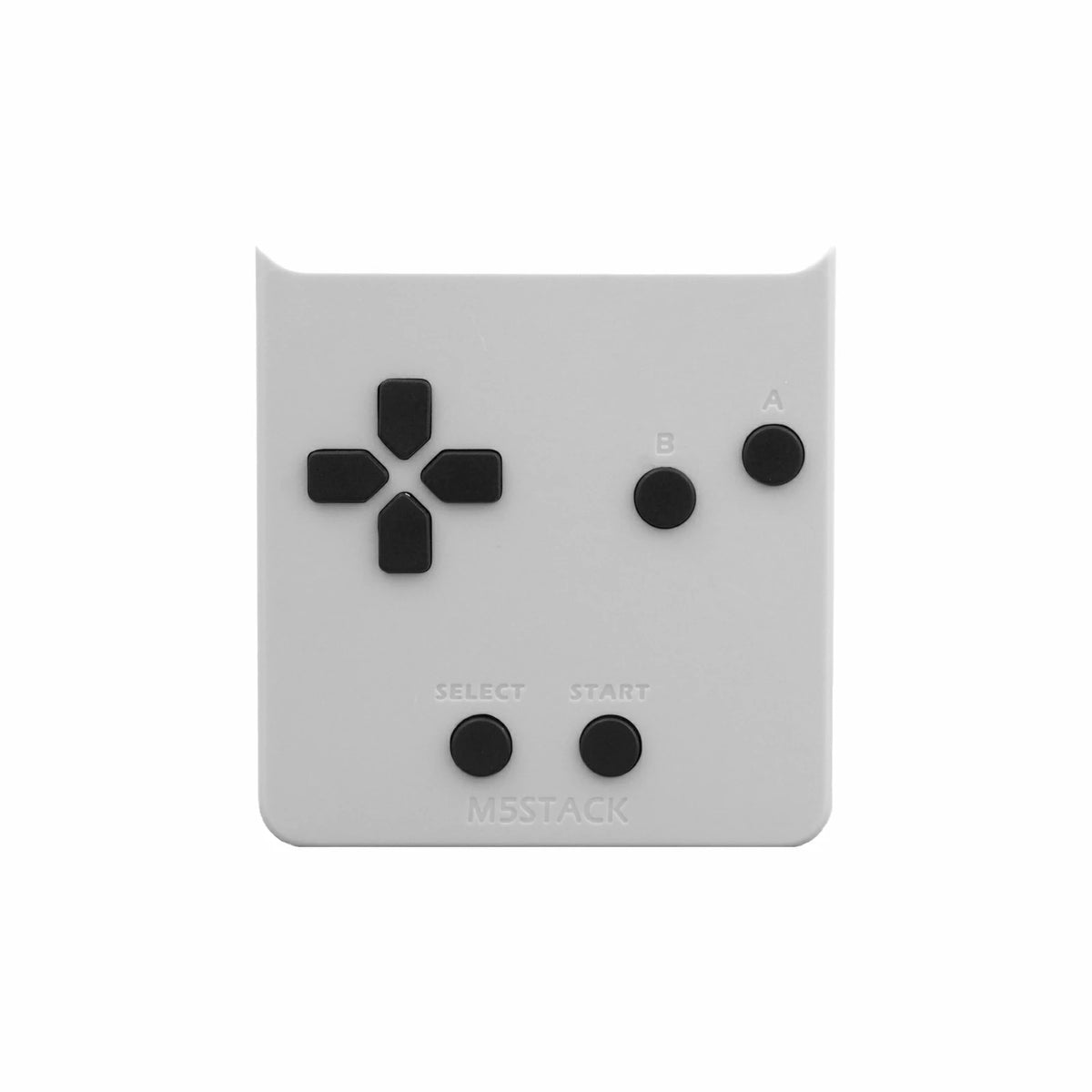

| Button Layout |
D-pad, A/B, Start/Select |
| Number of Buttons |
8 buttons |
| Standby Power (Panel Only) |
3.3V@4.91mA |
| Product Size |
xxx |
| Product Weight |
19.2g |
| Package Size |
56.0 x 59.0 x 19.0mm |
| Gross Weight |
24.0g |
Product Comparison
| Product Comparison |
Faces Gamepad3 |
Faces Gamepad |
| MCU |
STM32F030F4P6 |
MEGA328 |
