Description

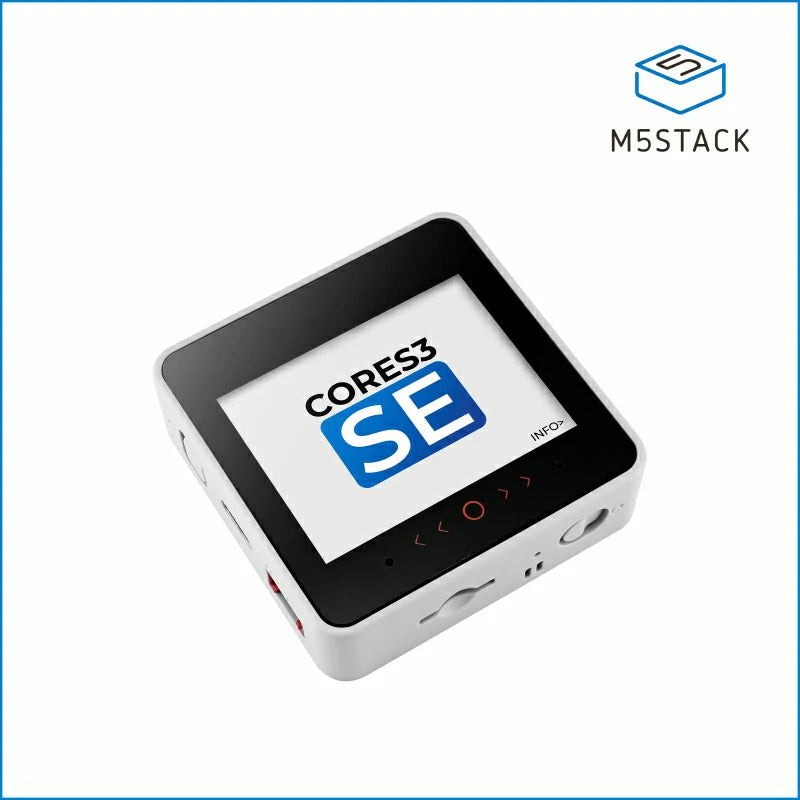

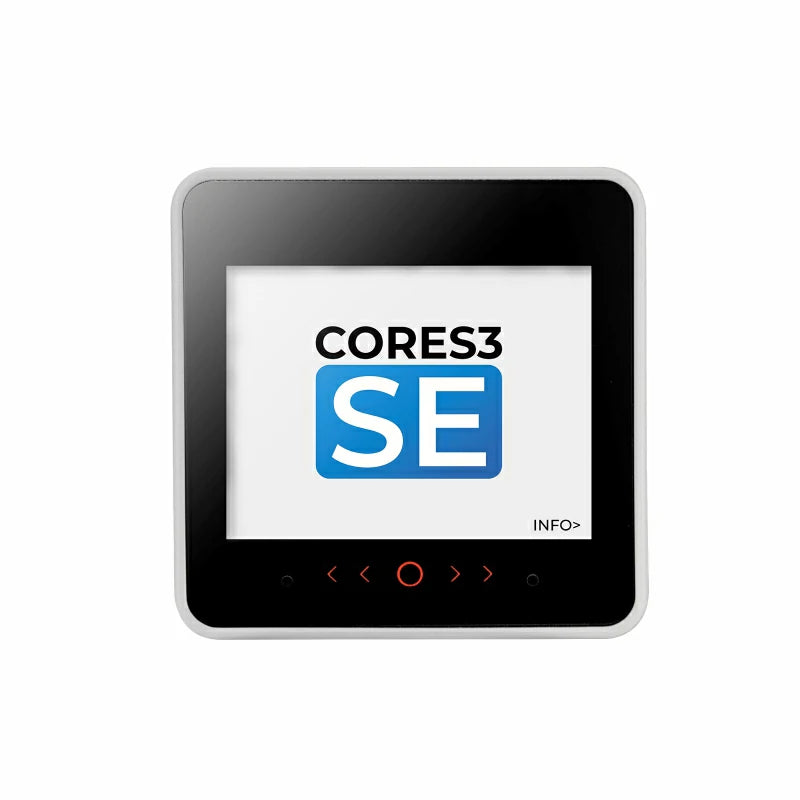

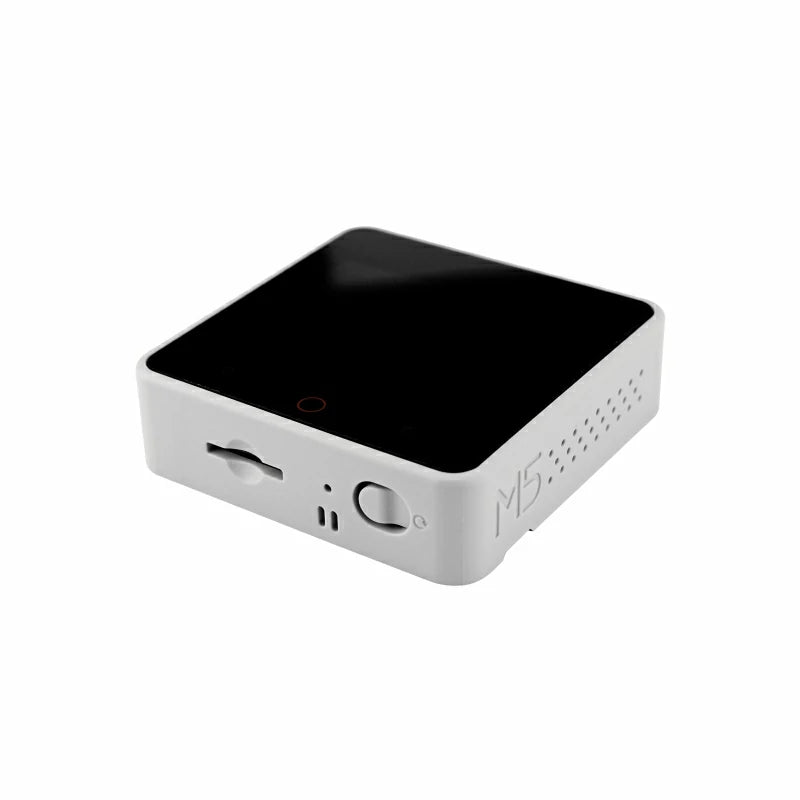

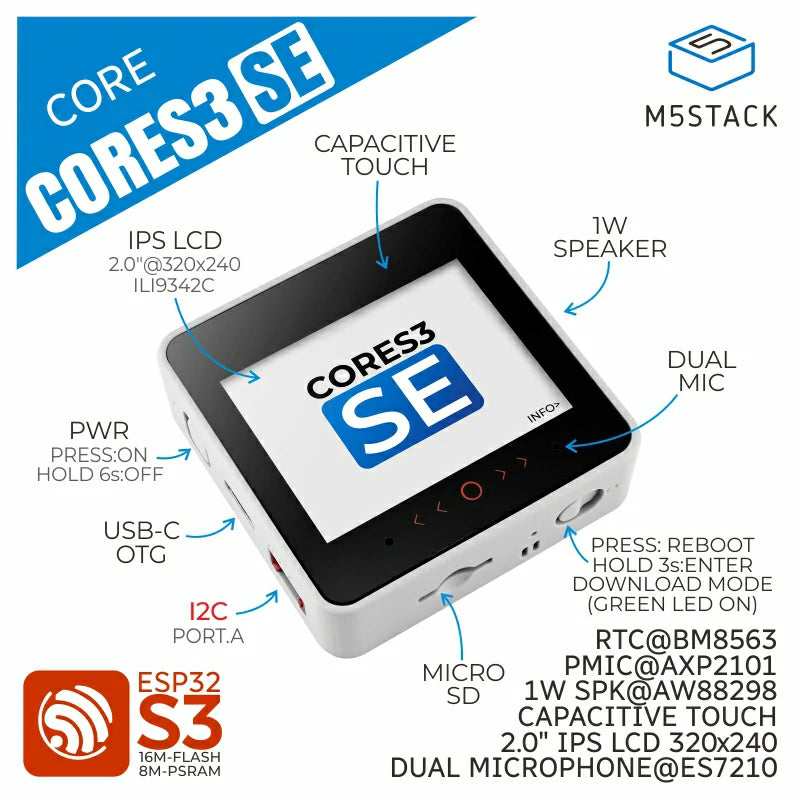

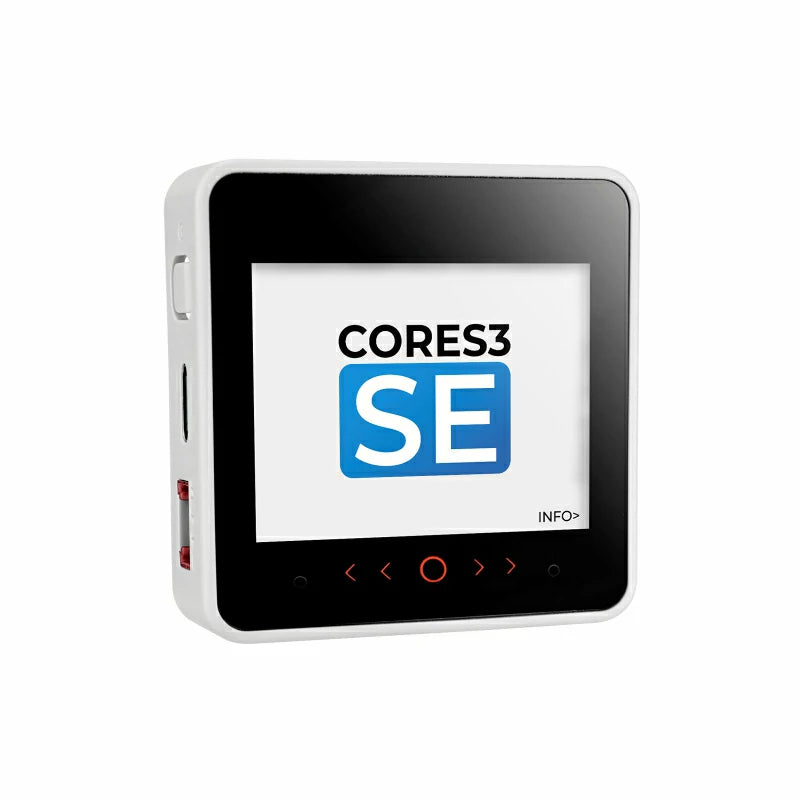

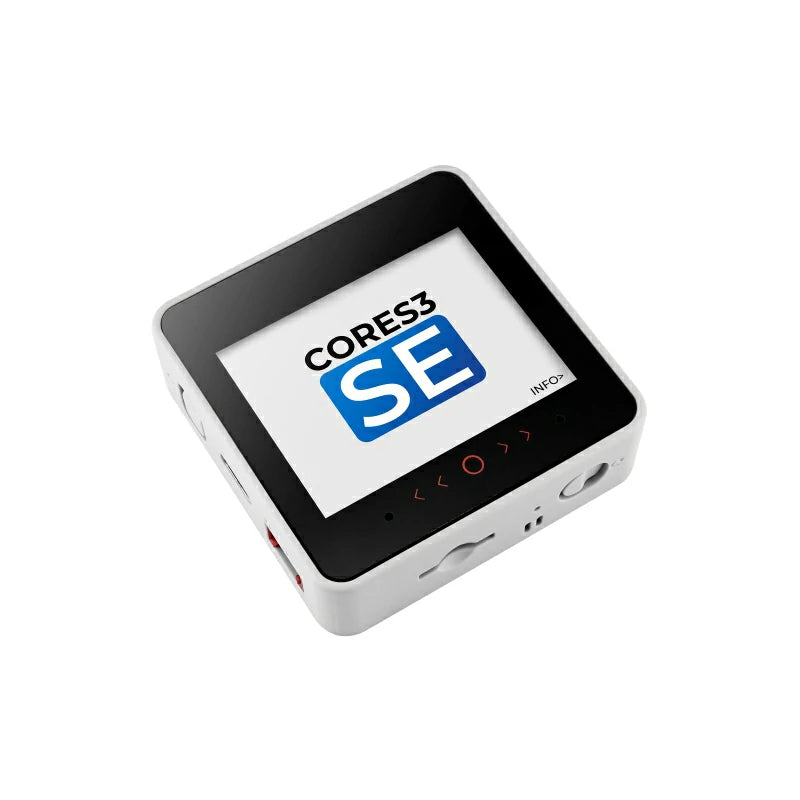

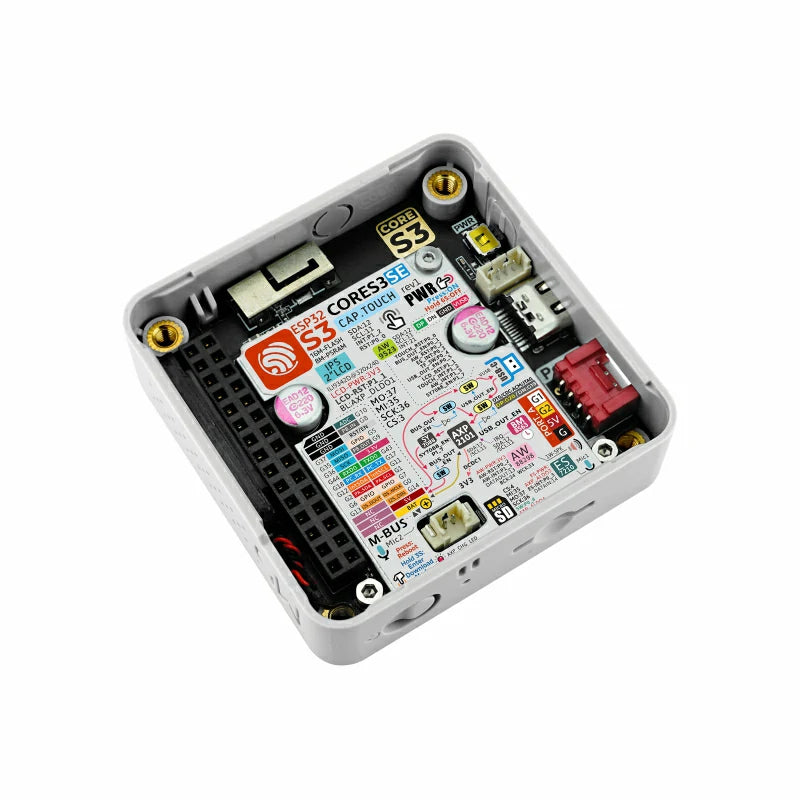

CoreS3-SE is a lightweight version of the third-generation CoreS3 host in the M5Stack development kit series. Its main controller adopts the ESP32-S3 solution, with a dual-core Xtensa LX7 processor, running at 240 MHz, featuring built-in (2.4G) Wi-Fi, onboard 16MB Flash and 8MB PSRAM. Programs can be downloaded via the USB Type-C interface, supporting OTG and CDC functionality for convenient connection of USB devices and firmware flashing. The front is equipped with a 2.0-inch capacitive touch IPS screen with a high-strength glass panel.
The power supply section uses an AXP2101 power management chip along with 4-way power flow control circuits, with an overall low-power design.

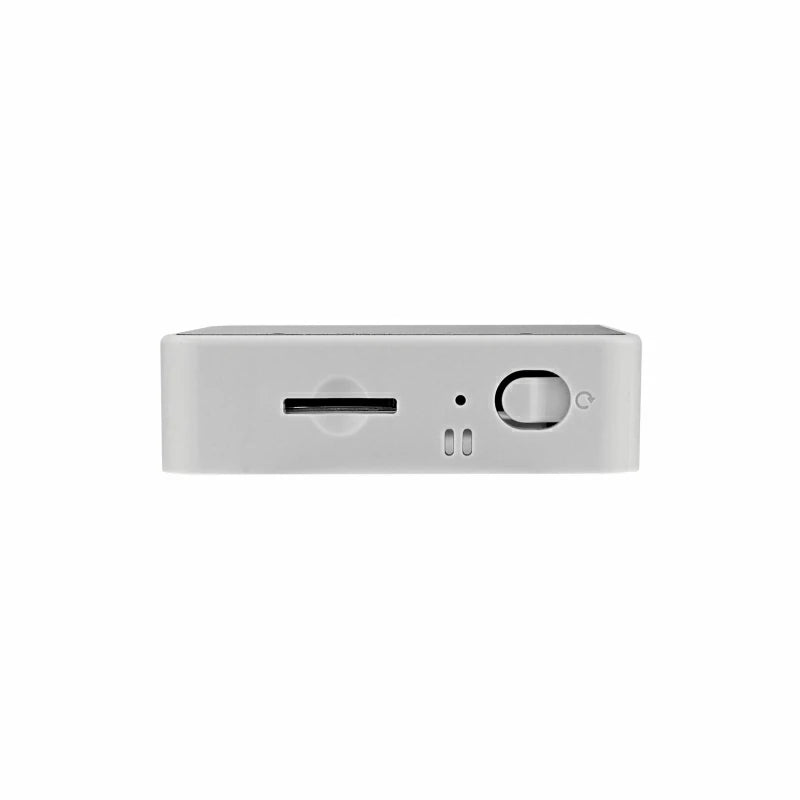

Onboard microSD card slot. Onboard BM8563 RTC chip provides accurate timing and sleep-timer wake-up functionality.
Audio output uses a high-fidelity 16-bit I2S amplifier chip AW88298, with a built-in 1W speaker. Audio input uses the ES7210 audio decoder chip + dual microphone inputs.

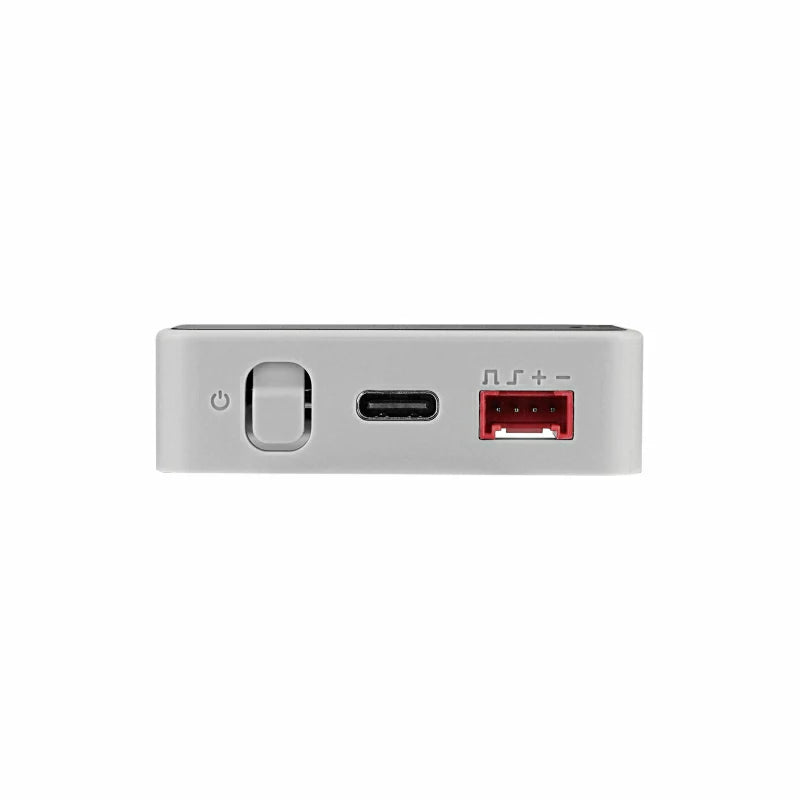

Independent power button and reset (RST) button are located on the side of the device. With a built-in delay circuit, holding the reset button enters download mode.
This product is suitable for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Features
- Based on ESP32-S3 development, supports Wi-Fi @16MB Flash, 8MB PSRAM
- Speaker, dual microphones
- Capacitive touch screen
- microSD card slot
- High-strength glass panel
- Supports OTG and CDC functionality
- Uses AXP2101 power management, with a low power consumption design
- Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
- 1 × CoreS3-SE
- 1 × Hex Key L-Shape 2.0mm (For M2.5 Screw)
Applications
- IoT development
- Various DIY project development
- Smart home control systems
- Industrial automation control systems
Specifications

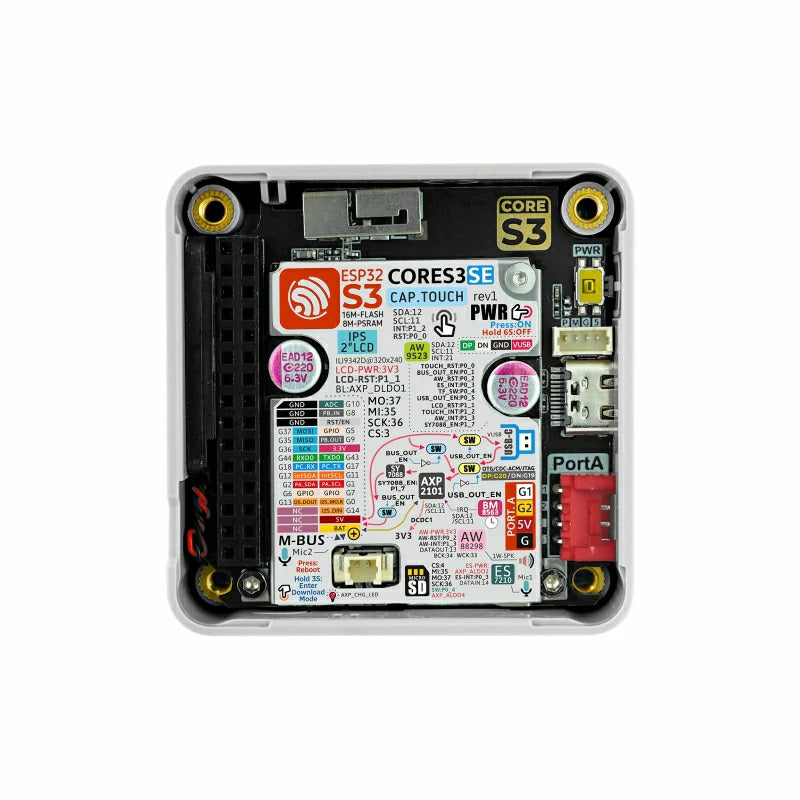

| Specification | Parameter |
|---|---|
| SoC | ESP32-S3@Xtensa LX7 Dual-Core, 240MHz |
| USB | USB OTG, USB Serial/JTAG |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Touch | FT6336U@Capacitive touch, touch area pixels 320 x 280 |
| LCD Screen | 2.0"@320 x 240 ILI9342C, SPI communication |
| Power Management Chip | AXP2101 |
| RTC | BM8563 |
| Speaker | 1W@9028 |
| Amplifier | 16bits-I2S amplifier chip AW88298 |
| Audio Decoder Chip | ES7210, Dual-microphone input |
| BUS Pins | G0/G1/G2/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G17/G18/G35/G36/G37/G43/G44 |
| Lithium Battery Charging Current | 5V@198mA |
| Max Grove Output Current (Battery Power) | DC 4.2V@940mA |
| Max Grove Output Current (USB Power) | DC 5V@680mA |
| Operating Temperature | 0 ~ 40°C |
| Power Consumption | Battery Power: Standby Mode: DC 4.2V@104.64uA; Working Mode: DC 4.2V@109.67mA USB Power: Working Mode: DC 5V@166.27mA |
| Product Size | 54.0 x 54.0 x 15.5mm |
| Product Weight | 37.8g |
| Package Size | 133.0 x 93.5 x 22.5mm |
| Gross Weight | 54.5g |
Product Comparison
Compared with CoreS3, CoreS3-SE does not include a camera (GC0308), proximity sensor (LTR-553ALS-WA), IMU (BMI270), or magnetometer (BMM150). CoreS3-SE adopts a medium gray color different from the black-gray of CoreS3, with the touch area of the glass panel extending to the camera position. The DinBase base originally included in the CoreS3 kit is also removed.
| Hardware Peripheral | CoreS3 | CoreS3-SE |
|---|---|---|
| Camera (GC0308) | √ | × |
| Proximity Sensor (LTR-553ALS-WA) | √ | × |
| IMU (BMI270) | √ | × |
| Magnetometer (BMM150) | √ | × |
| RTC | √ | √ |
| Microphone | √ | √ |
| Speaker | √ | √ |
| PIMC (AXP2101) | √ | √ |
| 16MB Flash and 8MB PSRAM | √ | √ |
| Touch | √ | √ |
