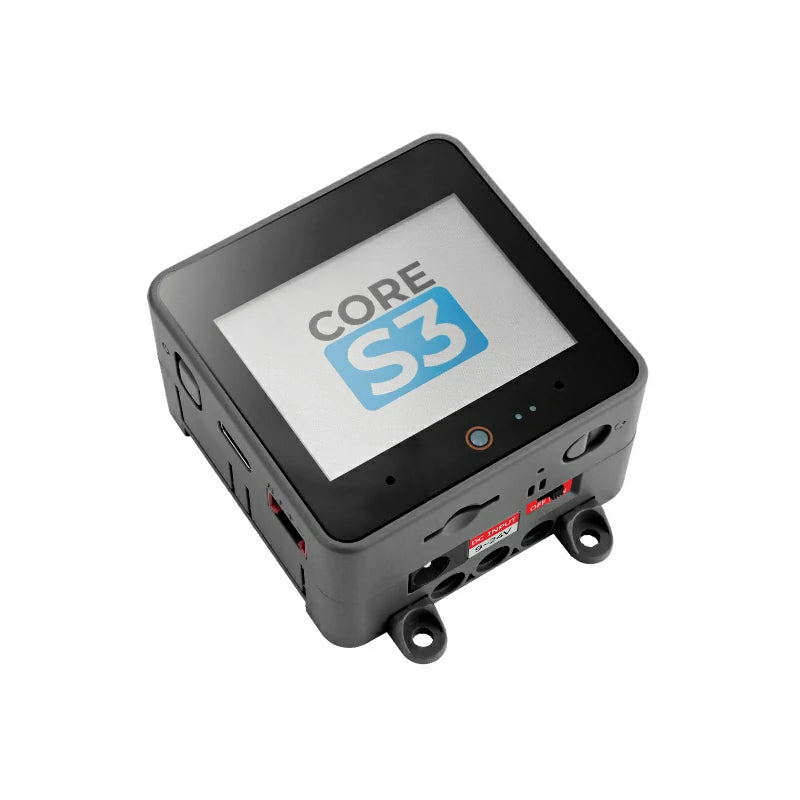

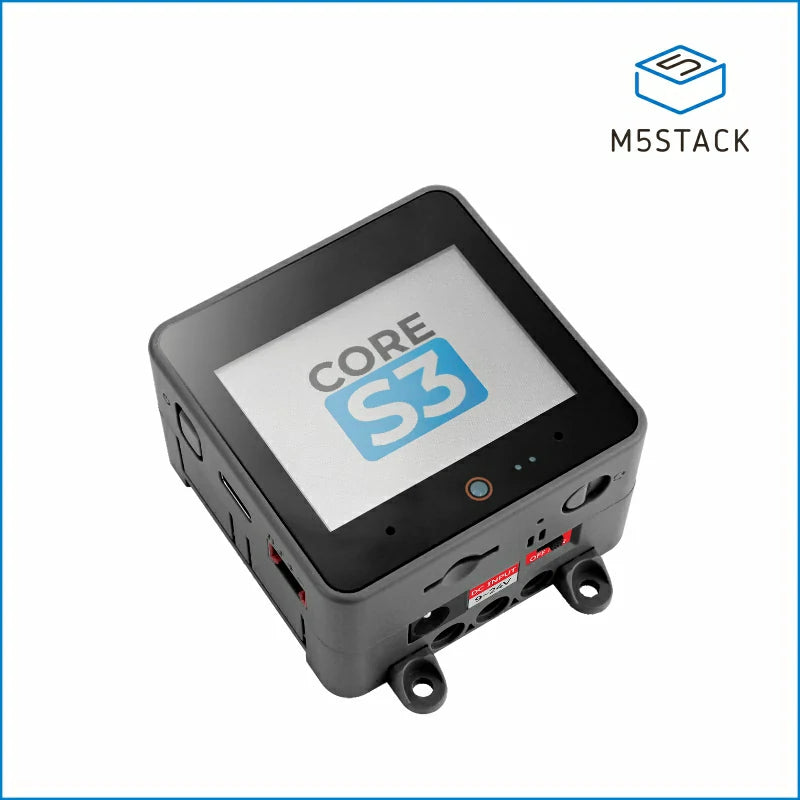

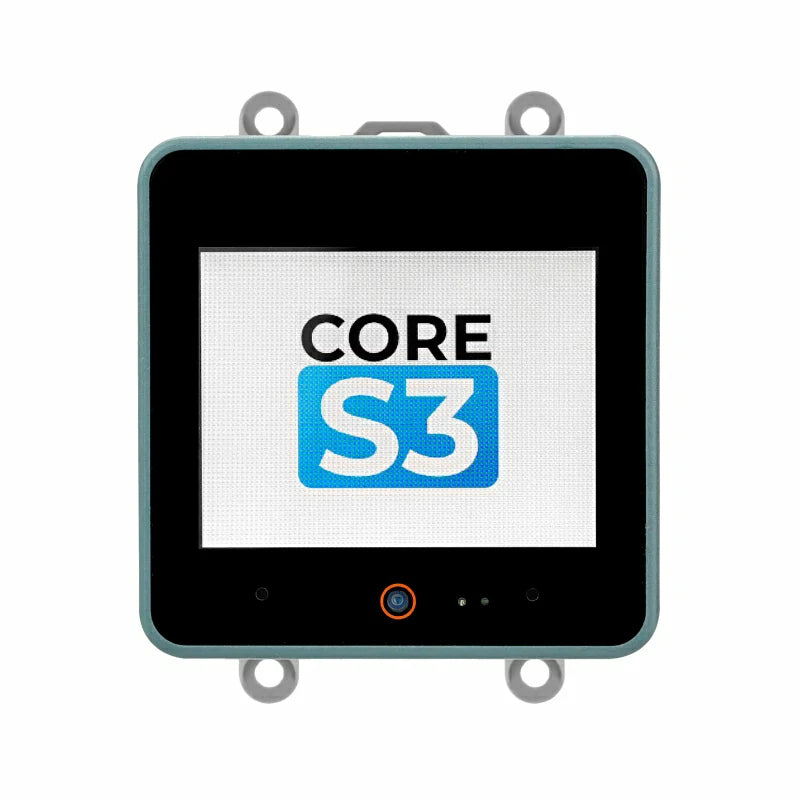

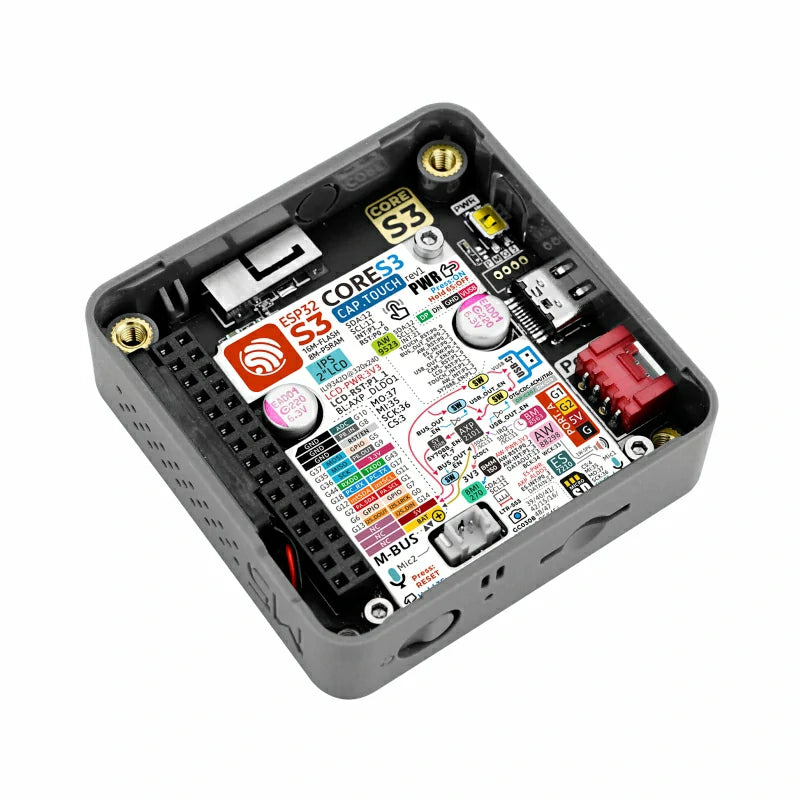

CoreS3 is the third generation of the M5Stack Core series. Powered by the ESP32-S3 solution, this kit features a dual-core Xtensa LX7 processor running at 240MHz. CoreS3 comes equipped with built-in Wi-Fi functionality, enabling seamless connectivity. It boasts 16MB of onboard flash memory and 8MB of PSRAM, providing ample space for program storage.
CoreS3 offers convenient programming options through its TYPE-C interface, supporting OTG and CDC functions. This allows for easy connection with external USB devices and hassle-free firmware flashing. CoreS3 features a 2.0-inch capacitive touch IPS screen, protected by high-strength glass material. Additionally, a 30W pixel camera GC0308 is integrated at the bottom of the screen, accompanied by a proximity sensor LTR-553ALS-WA for enhanced functionality. Power management is handled by the AXP2101 power management core chip, employing a 4-way power flow control loop for efficient power distribution. The overall design emphasizes low power consumption. CoreS3 also features a 6-axis attitude sensor BMI270 and a magnetometer BMM150 for precise motion detection. With the onboard TF-card (microSD) card slot and BM8563 RTC chip, accurate timing and sleep-timer wake-up functions are readily available.

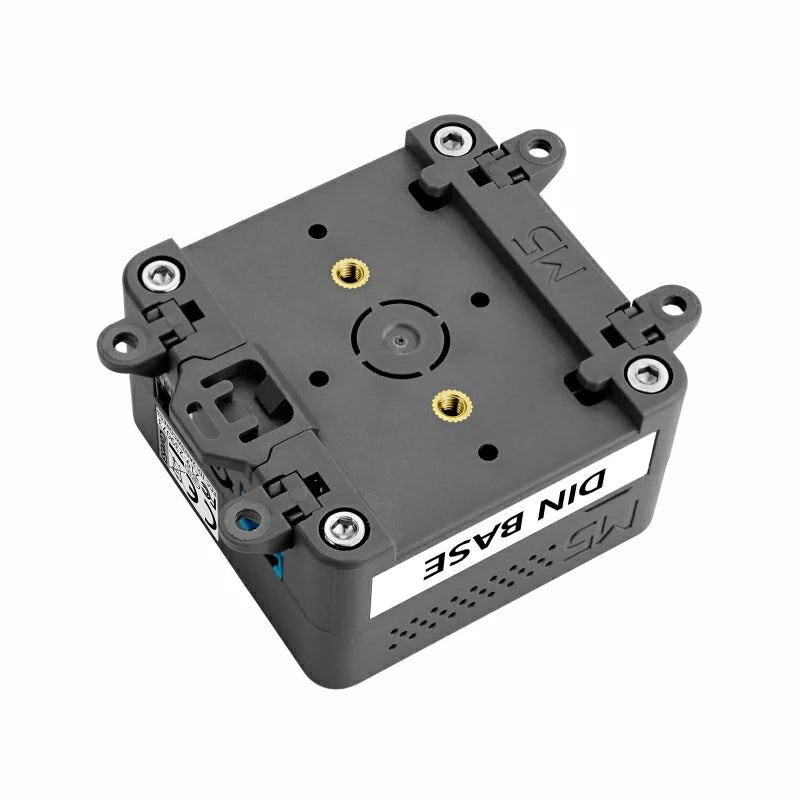

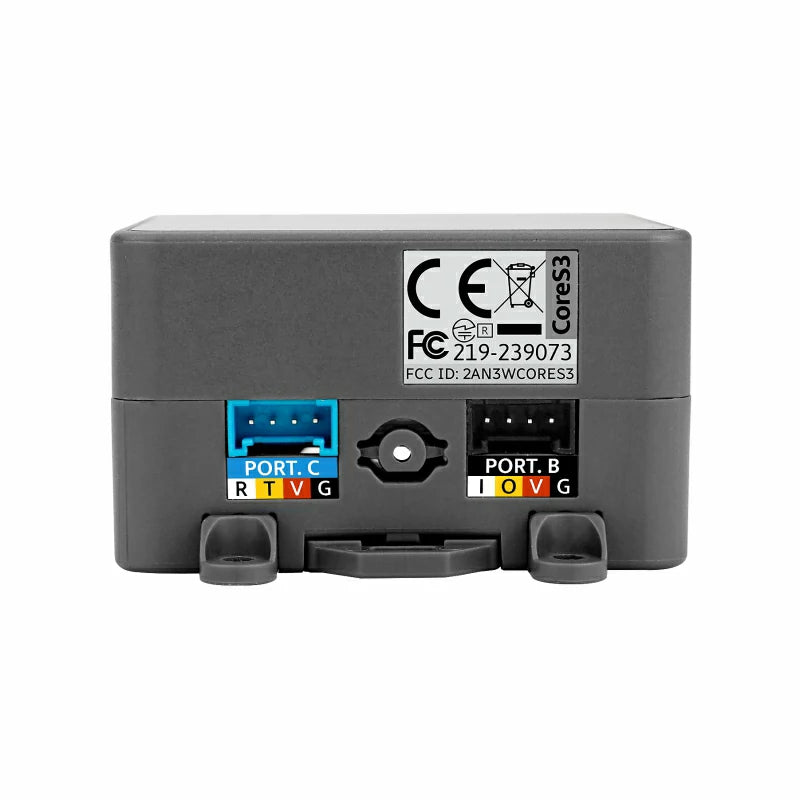

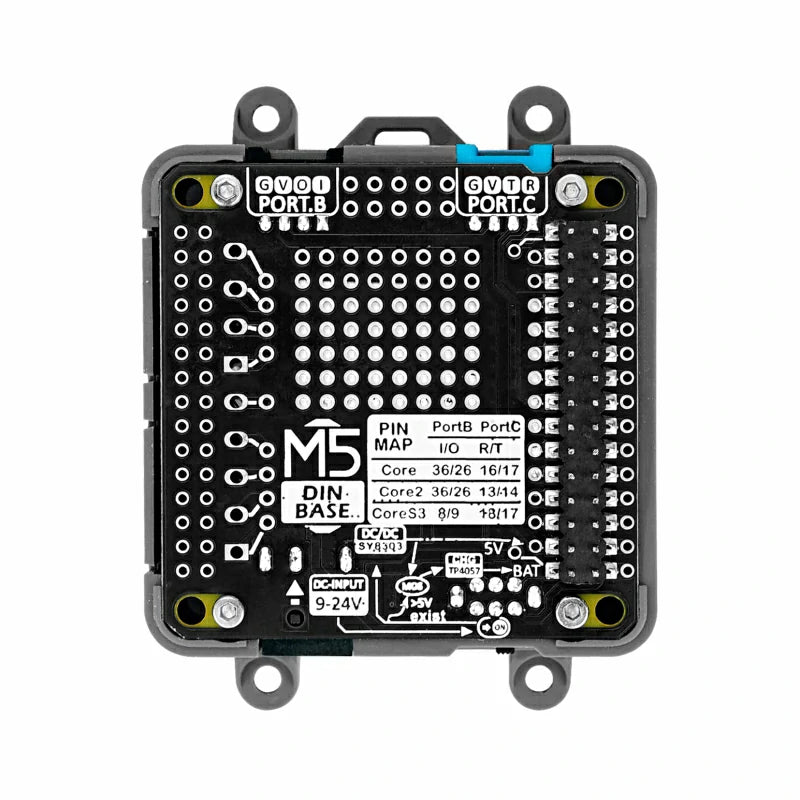

Sound output on CoreS3 is optimized with the high-fidelity 16-bit I2S power amplifier chip AW88298, accompanied by a built-in 1W speaker for clear audio playback. For sound input, the kit incorporates the ES7210 audio decoding chip and dual-microphone input. The side of the device includes an independent power button and restart (RST) button, complemented by a self-built delay circuit. By long-pressing the reset button, users can easily enter the program download mode. The CoreS3 kit comes with the DinBase Base, providing convenient options for Din rail, wall, and screw fixing. It can be powered by an external DC 12V (supports 9~24V) or an internal 500mAh lithium battery. The DinBase also offers multiple proto locations for users to customize and expand their projects. CoreS3 is an ideal choice for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Power on and off operation:
Power on: Click the left power button
shut down: Long press the left power button for 6 seconds
reset: Click the bottom RST button
- Developed based on ESP32, support WiFi @16M Flash, 8M PSRAM
- Built-in camera, proximity sensor, speaker, power indicator, RTC, I2S amplifier, dual microphone, condenser touch screen, power button, reset button, gyroscope
- TF card slot
- High-strength glass
- Support OTG and CDC functions
- AXP2101 power management, low power design
- Supported programming platforms: Arduino, UIFlow
- 1 × CoreS3
- 1 × DinBase
- IoT development
- Various DIY project development
- Smart home control system
- Industrial automation control system
|MCU||ESP32-S3@Xtensa LX7, 16MFLASH AND 8M-PSRAM, WIFI, OTGCDC functions|
|Touch the IPS LCD screen||2.0"@320*240 ILI9342C|
|Power management chip||AXP2101|
|Six-axis attitude sensor||BMI270|
|Speaker||16bits-I2S power amplifier chip AW88298@1W|
|Audio decoding chip||ES7210, dual microphone inputs|

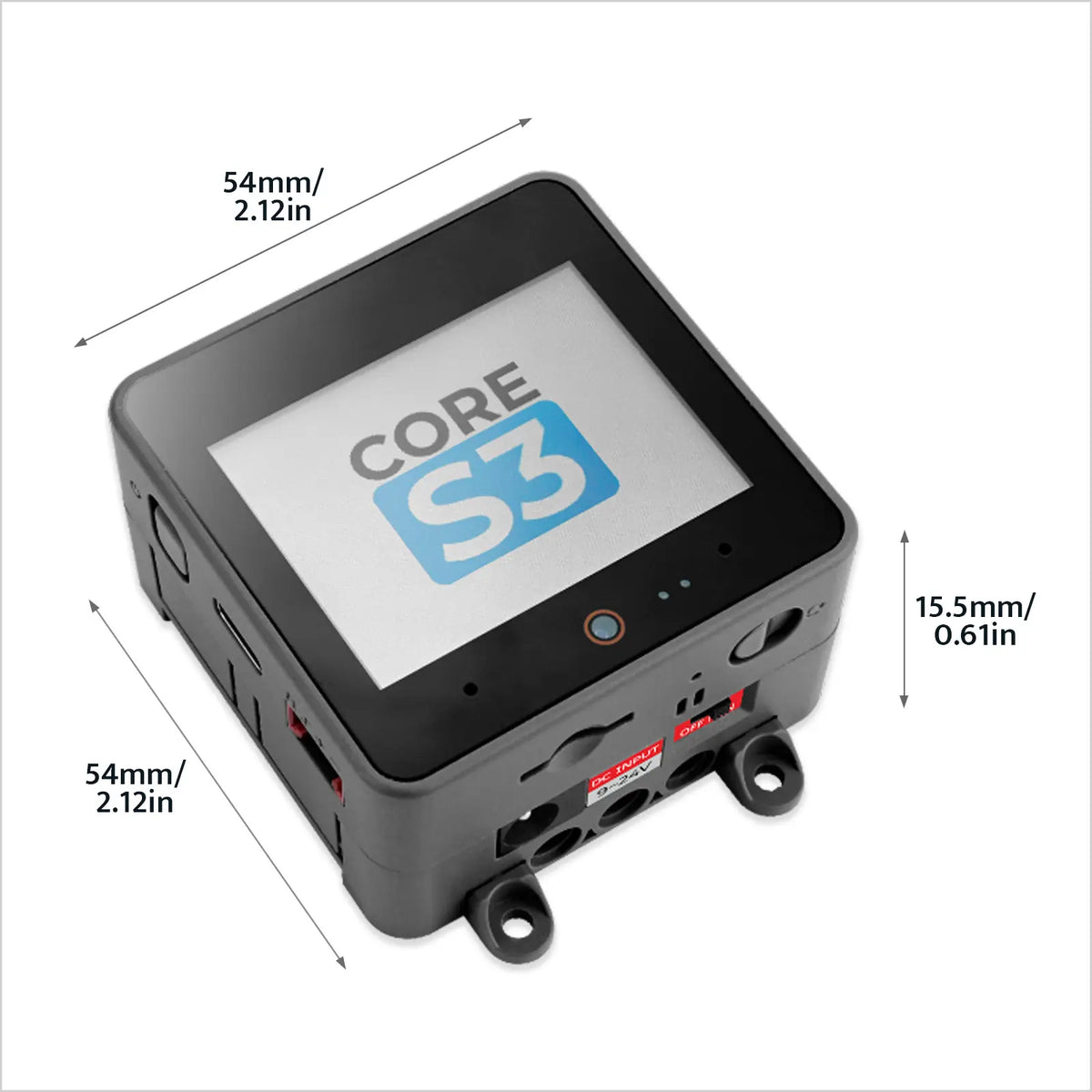

|Product Size||54 x 54 x 16mm|
LCD Screen & TF Card
LCD Pixel:320x240 TF cards support up to 16GB
CAP.TOUCH (I2C Addr: 0x58)
Microphone & amplifier
AXP Power Led
IMU (3-axis gyroscope + 3-axis accelerometer)
Internal I2C connection
M5CoreS3 M-BUS Schematic diagram
LEARN AND DOCUMENTS
Nice core with lots of ports and i/o but without Dac(s).
That's all right
M5Stack CoreS3 ESP32S3 loT Development Kit
The Esp32-cores3 is feature packed hardware but has very poorly supported software. Ive tried using Uiflow and Micropython but there are no methods for getting input from the screen. I have not been able to use lvgl either.
My app project needs buttons on screen and dropdown lists and clearing the screen and moving to a second screen. But its just not there at the moment. Uiflow is still in alpha and missing on screen button support. Vscode does not support the cores3. The python m5 libraries are half implemented.
The documenation is awful, cut and pasted from previous versions.
Its a pity, without proper UI support it misses the one feature it has over other esp32-s3 boards.
Easy to use and good extensions.
