Description

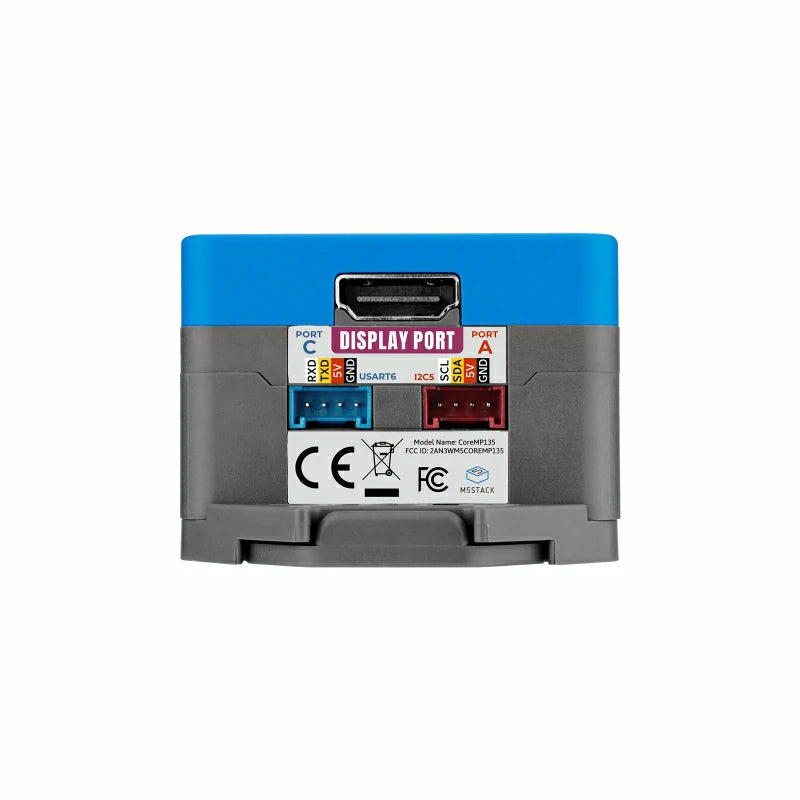

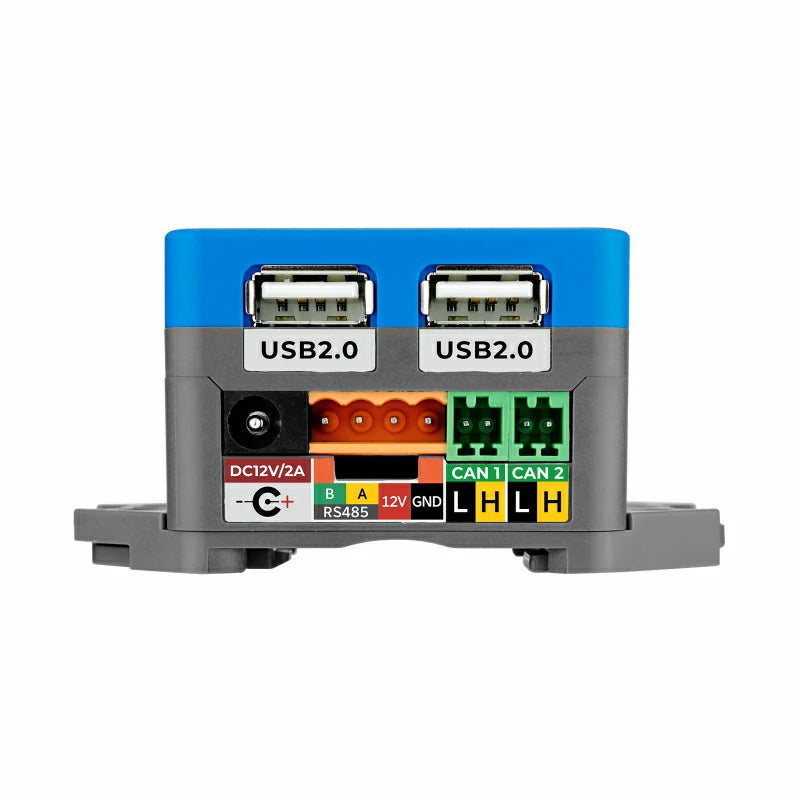

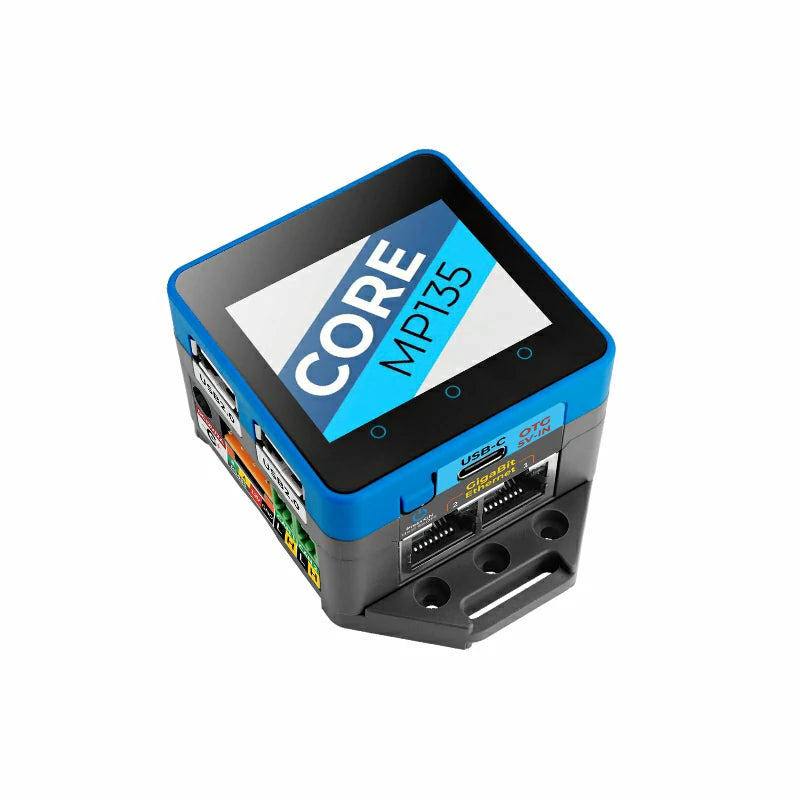

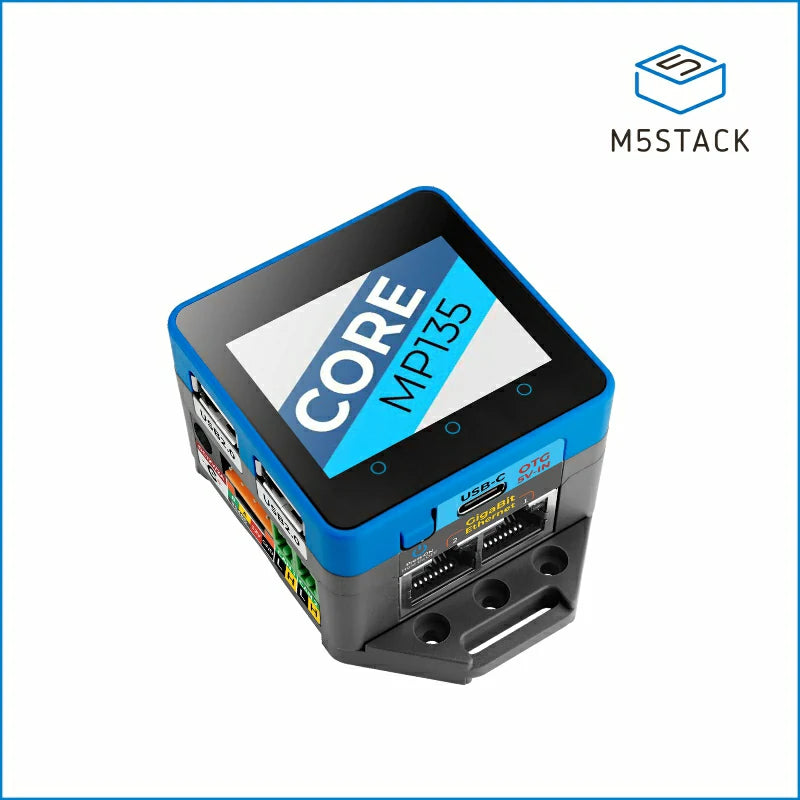

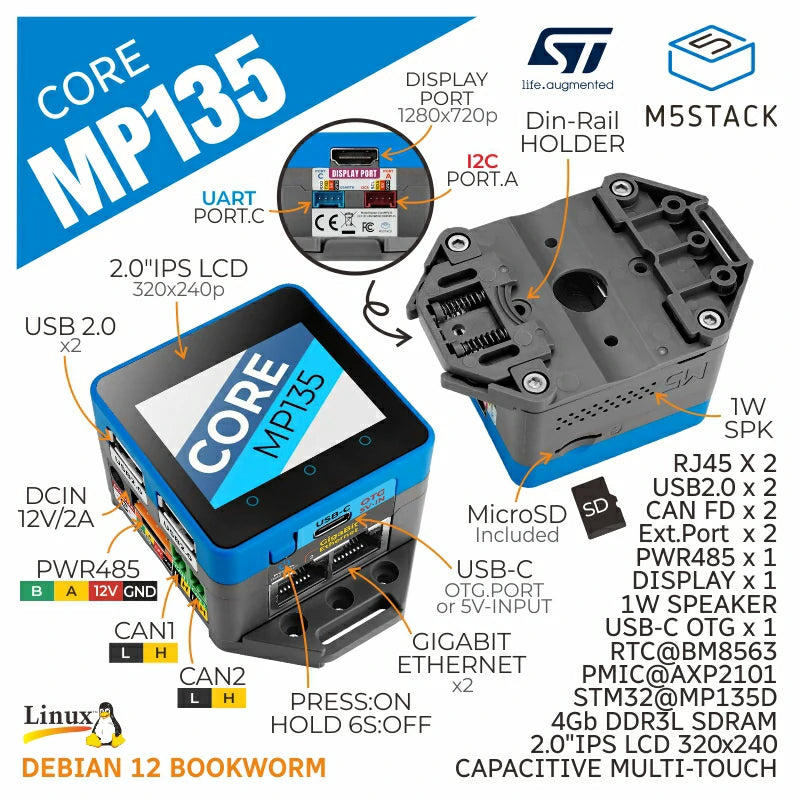

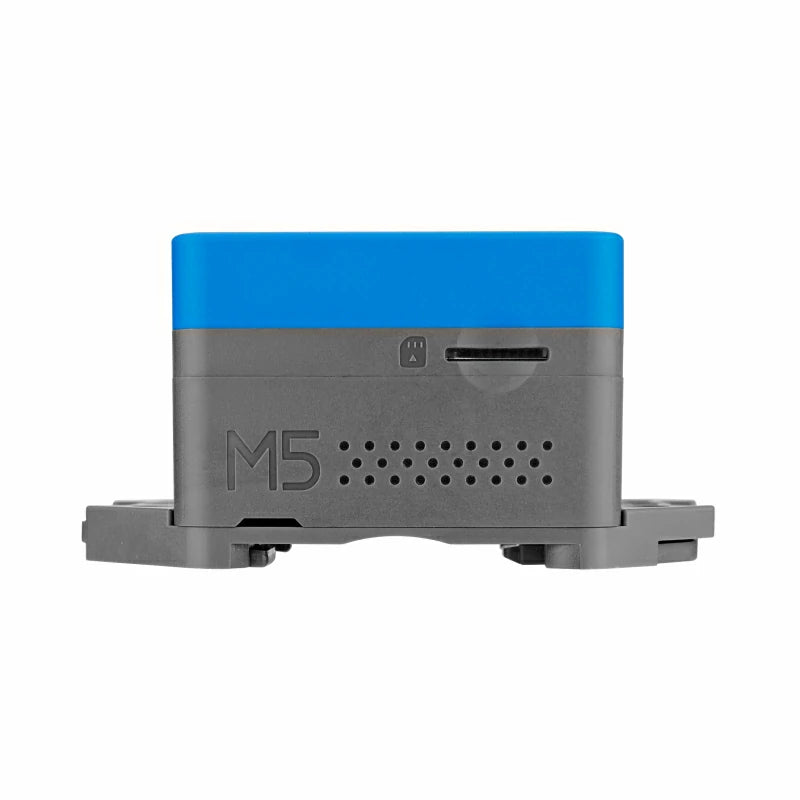

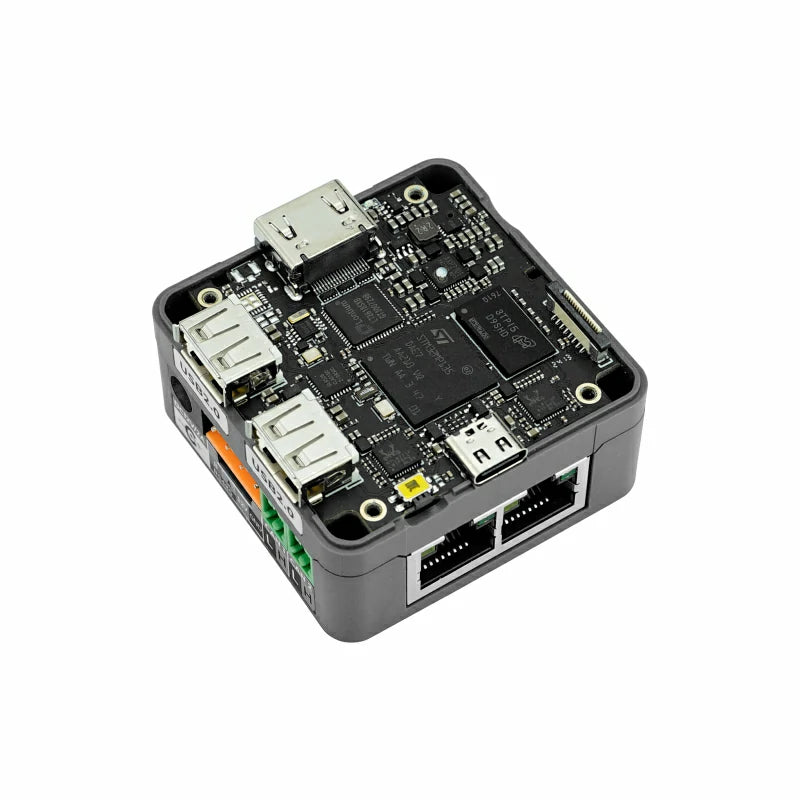

CoreMP135 is an integrated Linux industrial control host based on the STM32MP135DAE7 chip. It features a single-core Arm Cortex-A7 processor with a frequency of up to 1GHz and is equipped with 4Gb DDR3L SDRAM for running memory. The device boasts a rich array of functional interfaces: it has 2 GbE ports, 1 HD video output, 2 USB 2.0-A ports, 1 USB-C port (supporting OTG and power supply), a MicroSD card slot, 2 CAN FD interfaces, and 1 PWR485 interface (9~24V power input + RS485), along with 2 Grove (I2C & UART) interfaces. In terms of human-machine interaction, it features a 2.0-inch IPS capacitive touch screen and a 1W speaker (16 bits I2S driven). The device is designed for low power consumption, utilizing an AXP2101 power management chip and an integrated RTC (BM8563) for scheduled wake-up and sleep functions, and supports a rechargeable battery. It includes a DC power socket supporting an external DC12V@2A power supply. The host comes with a MicroSD card preloaded with Debian system, ready to use upon booting. Suitable for various installation scenarios, the device’s bottom is equipped with a DIN rail base plate for easy wall mounting and screw fixing. It is applicable in advanced industrial automation, smart home and multimedia entertainment devices, industrial IoT edge gateways, and as a central hub for robot motion control.
Features
- STM32MP135DAE7@Arm Cortex-A7@1GHz
- Linux Standard Platform
- Rich peripheral interfaces (CAN\RS485\ gigabit network port, etc.)
- 2.0 "touch screen
- PMU
- Audio Output
- MicroSD and 4Gb DDR3L SDRAM running memory
- M5BUS&PORT A / C

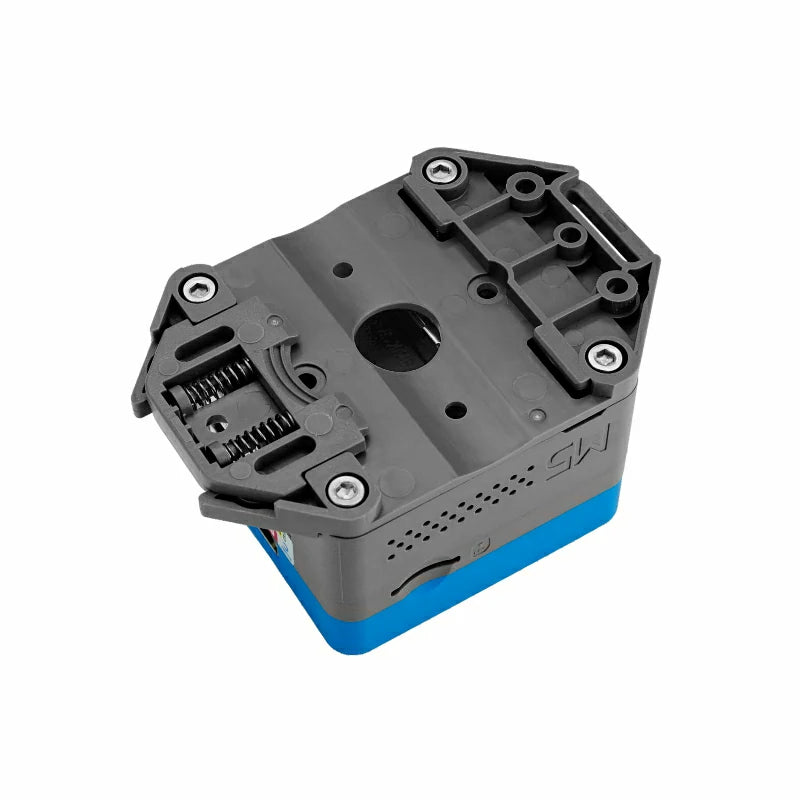

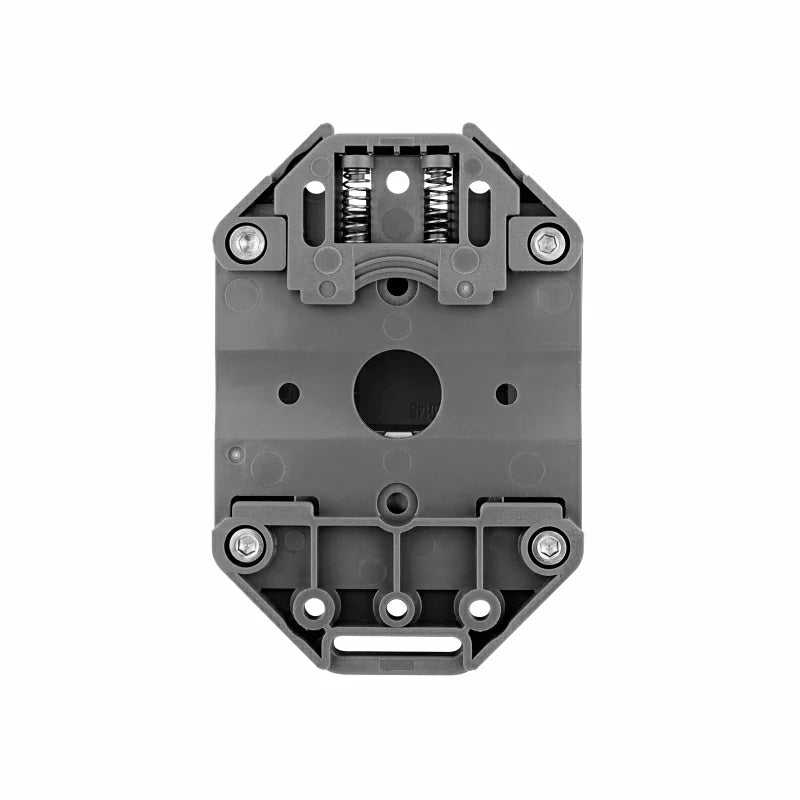

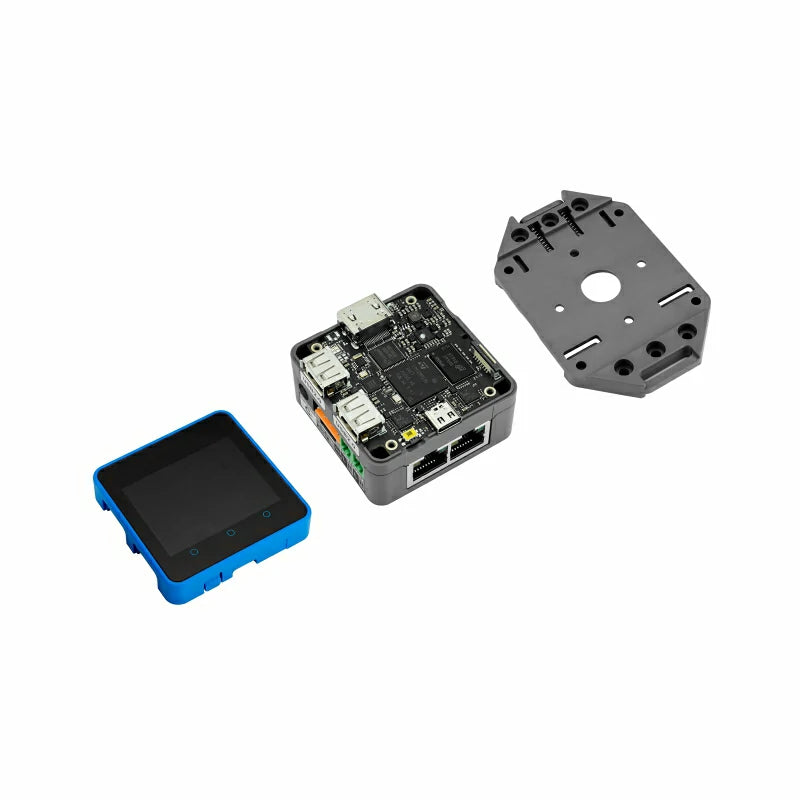

- DIN Rail rails are easy to install
Includes
- 1x CoreMP135
- 1x M3 hex wrench
- 1x VH3.96-4P
- 2x Terminal 2.54mm-2P(green)
- 1x MicroSD Card(already installed in the machine)
- 1x Specification
Applications
- Automation in Industry
- Smart Home
- Industrial IoT Edge Gateway
- Education and development
- Robot motion center controller
Specification
| Resources | Parameters |
|---|---|
| MCU | STM32MP135DAE7@single-core Arm Cortex-A7 processor, main frequency 1 GHz |
| Power Management Chip | AXP2101 |
| 485 Communication | MAX3485 |
| CAN Communications | Two-channel SIT1051T/3 (High speed FDCAN ) |
| USB Hub Interface | GL852G (2x USB2.0) 1x USBC (Support OTG and power supply) |
| HD Video Interface Chip | LT8618SXB, supports up to 24 bits of color depth |
| DDR3L SDRAM | 4Gb |

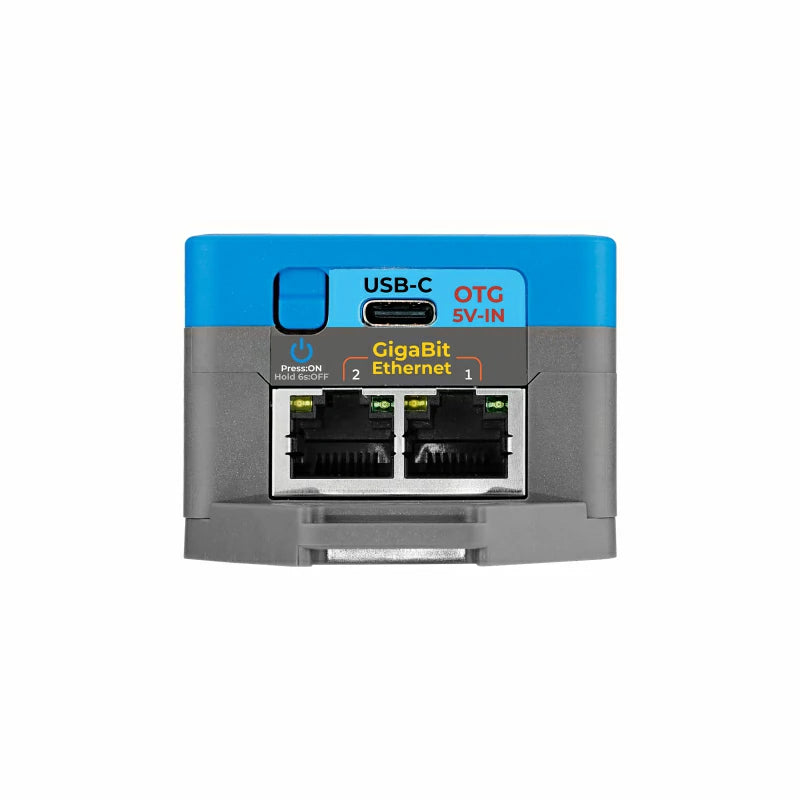

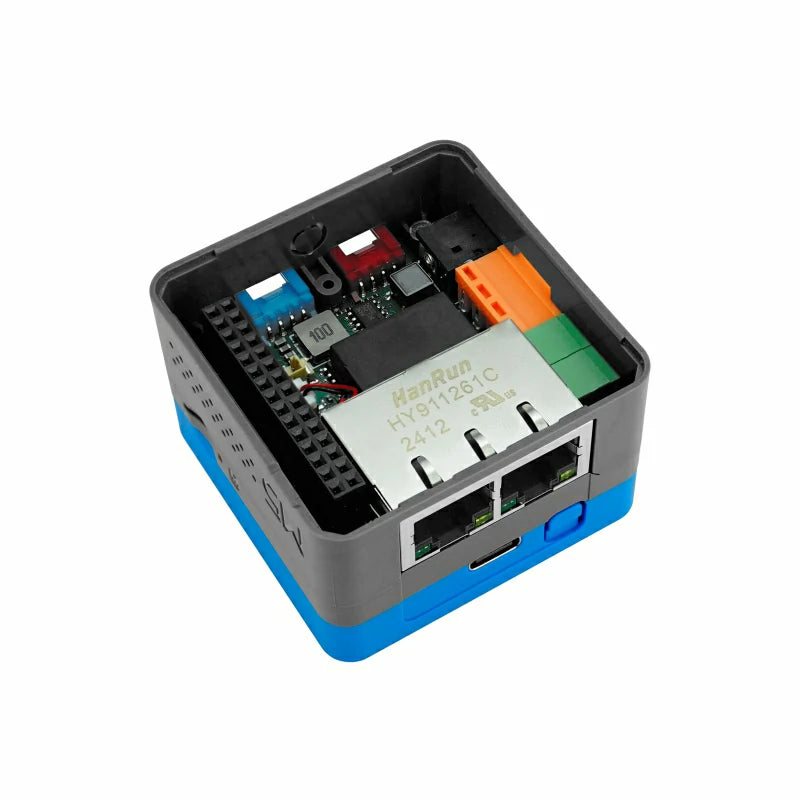

| Ethernet | RTL8211F (supports up to 1Gbps data rate) 2x RJ45 |
| RTC | BM8563 |

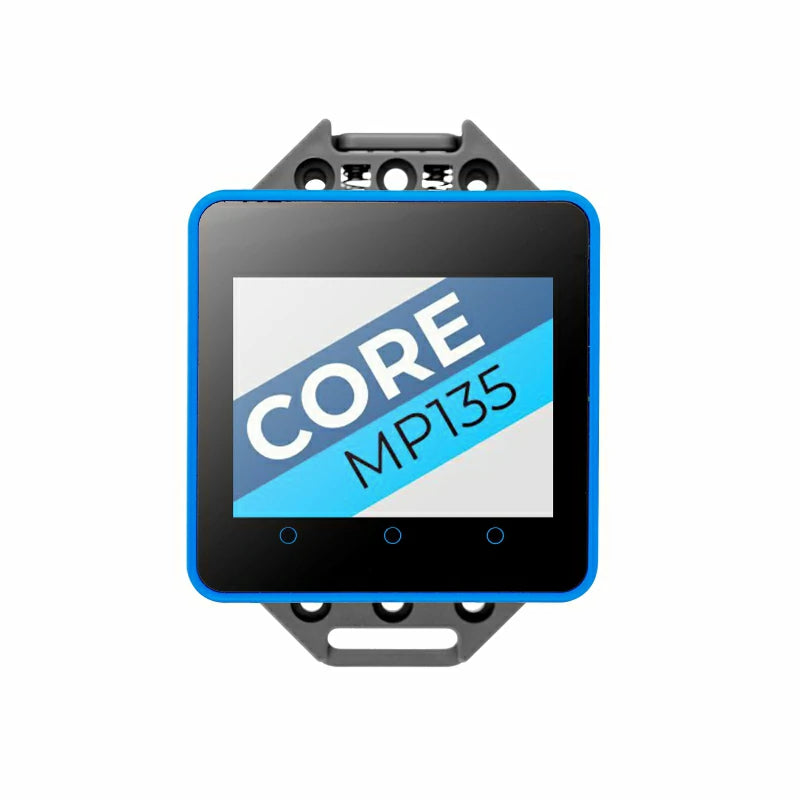

| Screen | ILI9342C(2.0IPS LCD) Resolution: 240*320px |
| Touch | FT6336U |
| Power Amplifier | NS4168 (mono Class D power amplifier) I2S serial digital audio input Supports a wide range of sampling rates: 8kHz~96kHz |
| Speaker | 1W@4Ω |
| Dc power input | DC12V/2A |
| Operating Temperature | 0-40°C |
| Power Supply | DC12V@2A OR USB-C 5V@3A |
| Product Size | 54*54*34.5mm |
| Package Size | 81*54*39.5mm |
| Product Weight | 99.5g |
| Package Weight | 155.9g |
