Description

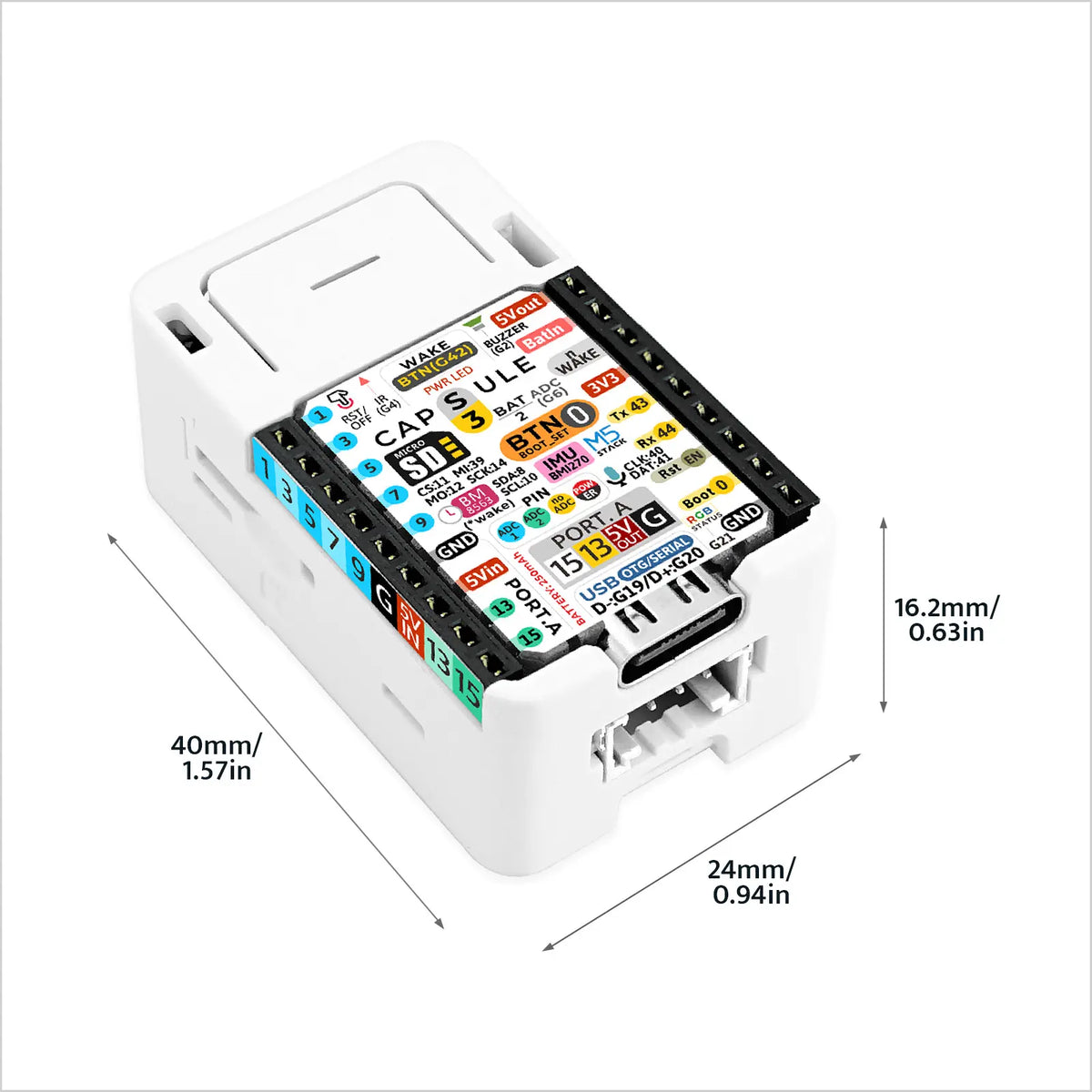

Capsule is a multifunctional embedded development platform using Stamp-S3 as the core controller, integrating key functions such as sensors, power supply, storage, and control. It features a high-performance BMI270 IMU for precise motion tracking and attitude control, an SPM1423 microphone sensor for recording, voice recognition, and wake-up, and an infrared sensor for remote control. For power supply, the platform has a built-in 250mAh battery and supports external battery expansion to ensure long-term operation. In terms of data storage, the TF card slot expands storage capacity for data logging and media storage. The RTC8563 real-time clock module provides high-precision time and date information and supports timed wake-up for low-power functionality. Additionally, a buzzer provides audio feedback, while the Proto pin header offers extra expandability, allowing connection to custom sensors and expansion boards to meet various project needs. Structurally, it embeds 4 magnets and 2 M3 screws for attachment, increasing usage scenarios. This product is suitable for building IoT, embedded systems, sensor applications, and smart device data acquisition systems.

Features

• Versatility: Integrates functions such as IMU, MIC, infrared, storage, clock, buzzer, and Proto expansion
• Flexible expandability: Through the Proto pin header and TF card slot, M5Capsule offers expandability, allowing connection to custom sensors and expansion boards to meet specific project needs.
• Voice recognition and audio processing: The SPM1423 microphone sensor supports voice recognition, recording, and wake-up functions, suitable for voice control and audio analysis.
• Attitude control and motion tracking: The BMI270 IMU provides precise attitude control and motion tracking functions, suitable for virtual reality and game control applications.
• Time and low-power management: The RTC8563 real-time clock module supports high-precision time and date information, as well as timed wake-up functions, suitable for timestamp and automatic control tasks.
• Data acquisition and storage: The TF card slot expands storage capacity for data logging and event recording, suitable for large-scale data acquisition.
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Capsule

Applications
