Description

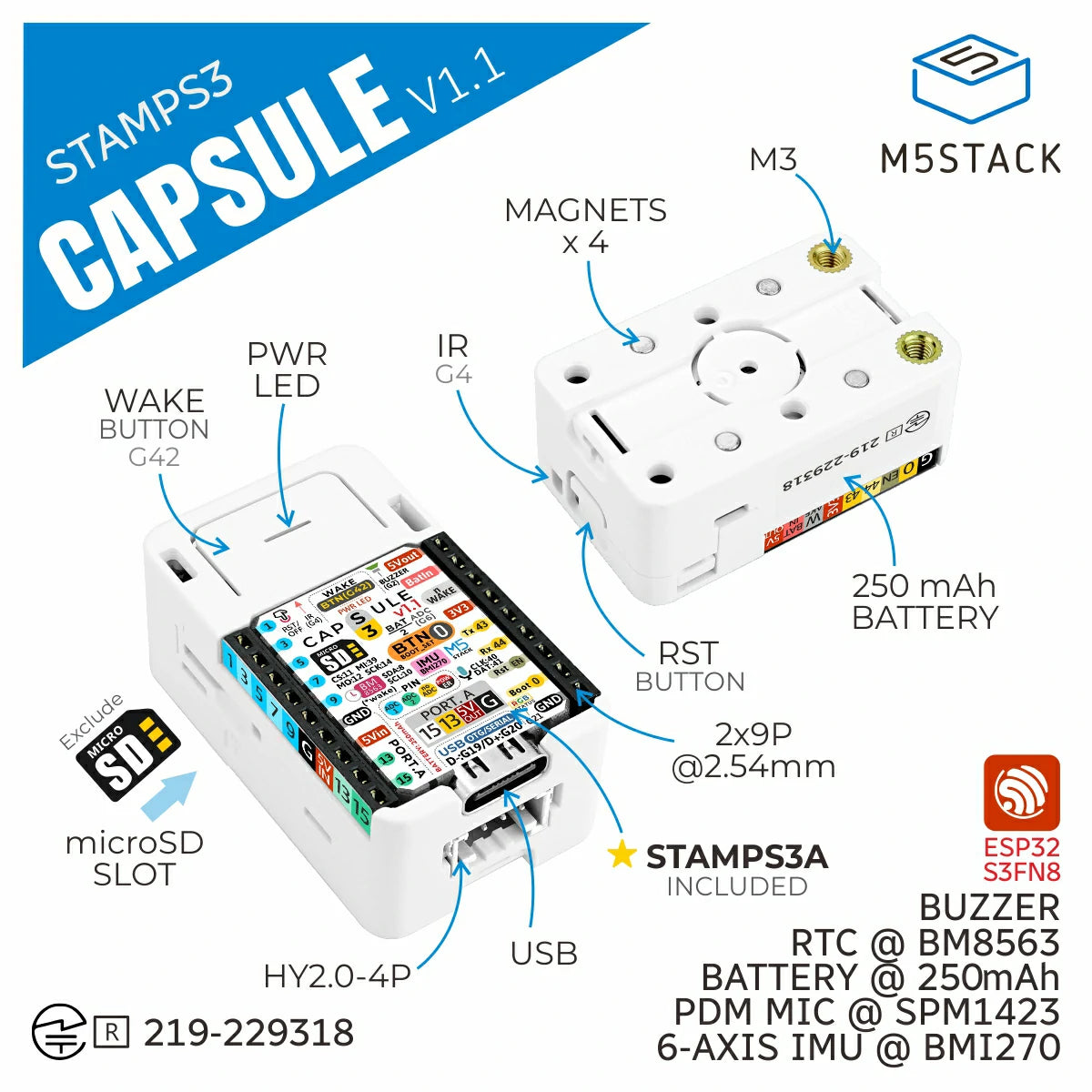

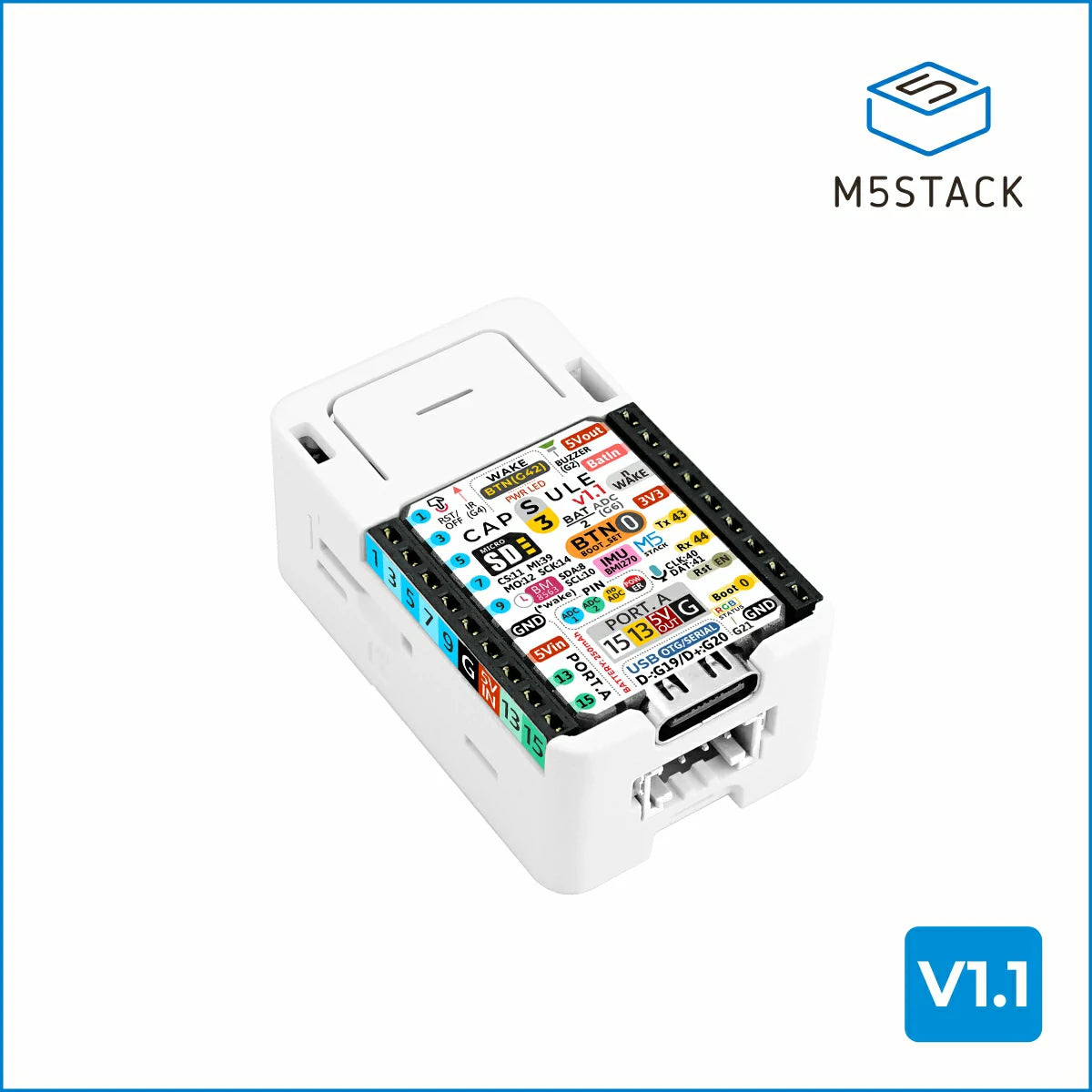

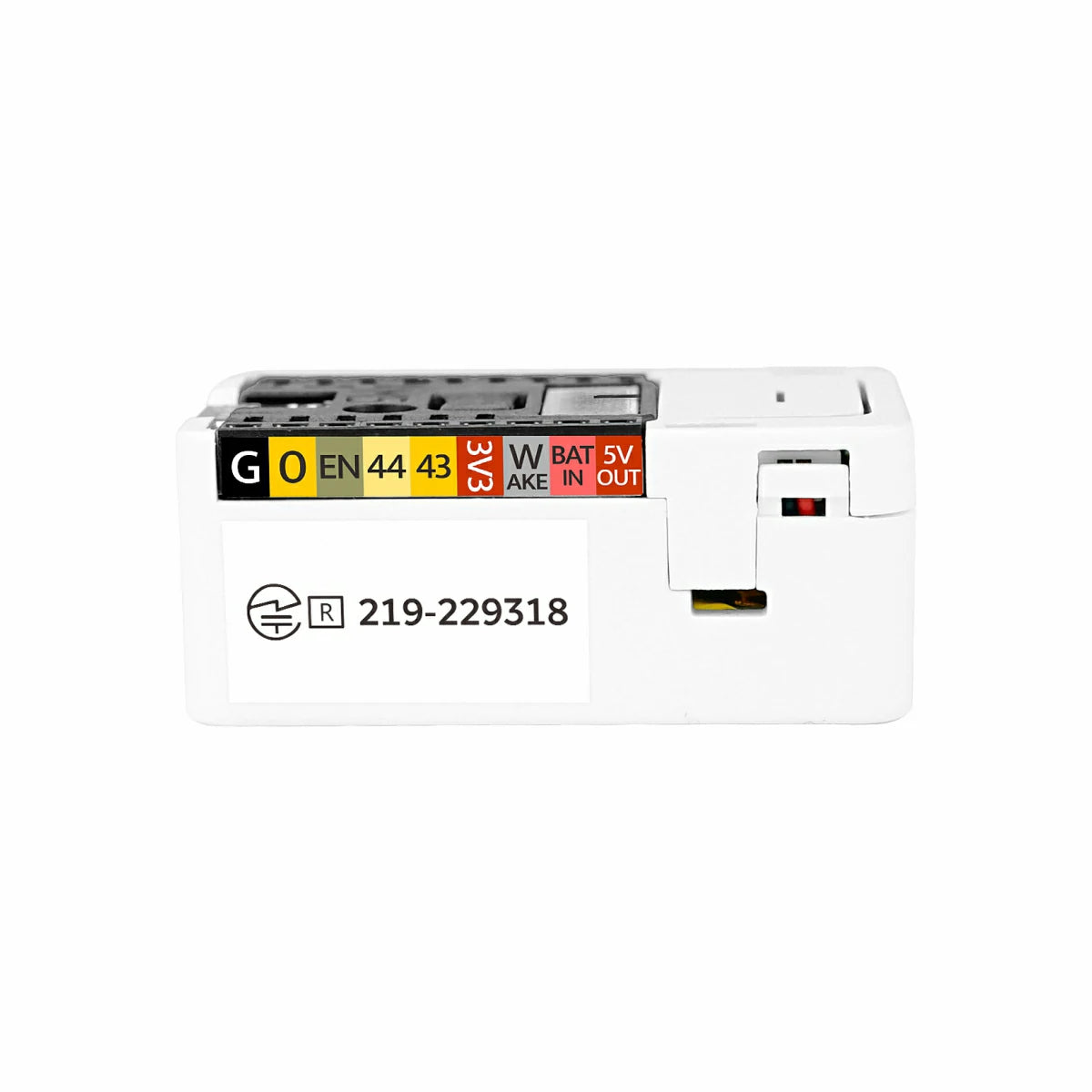

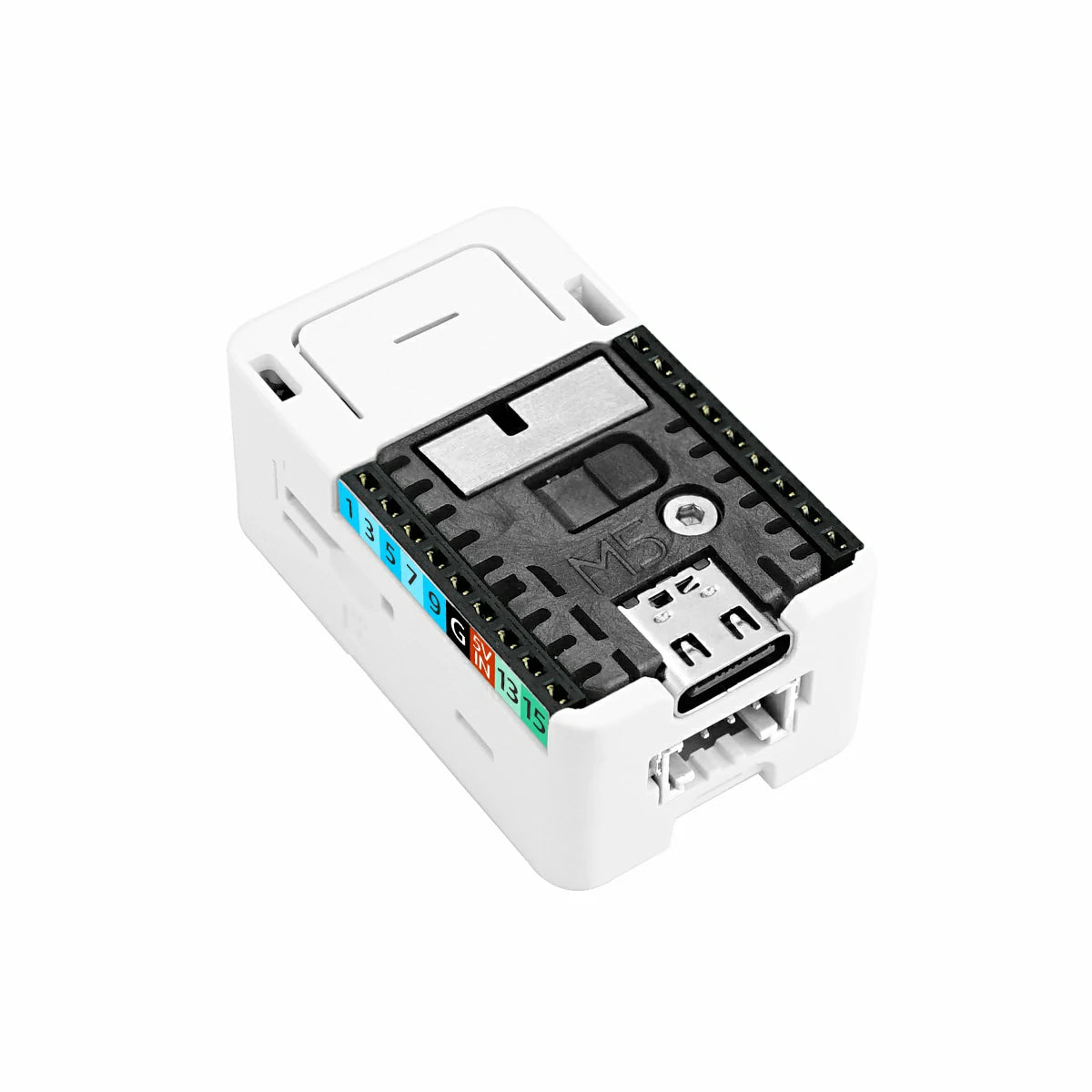

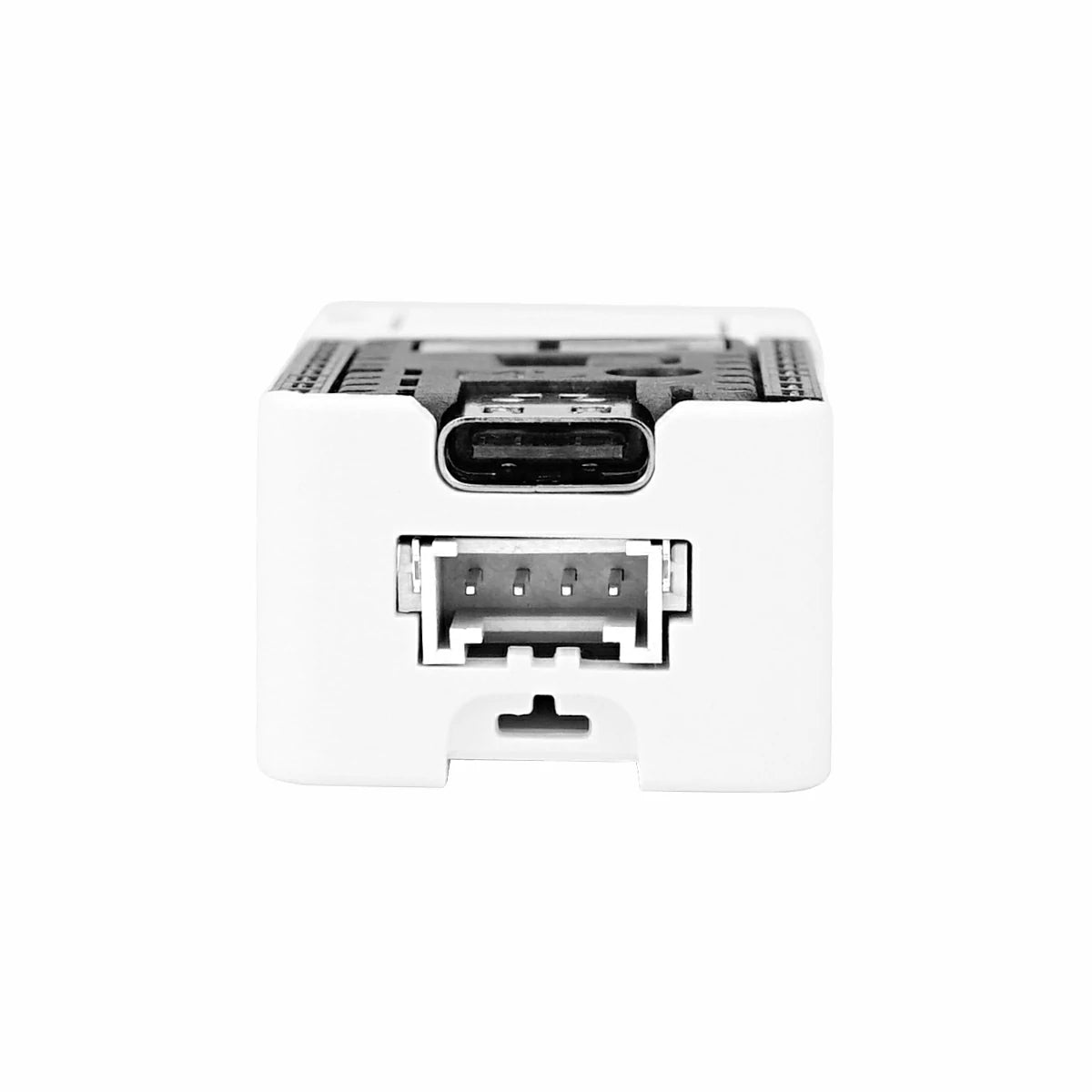

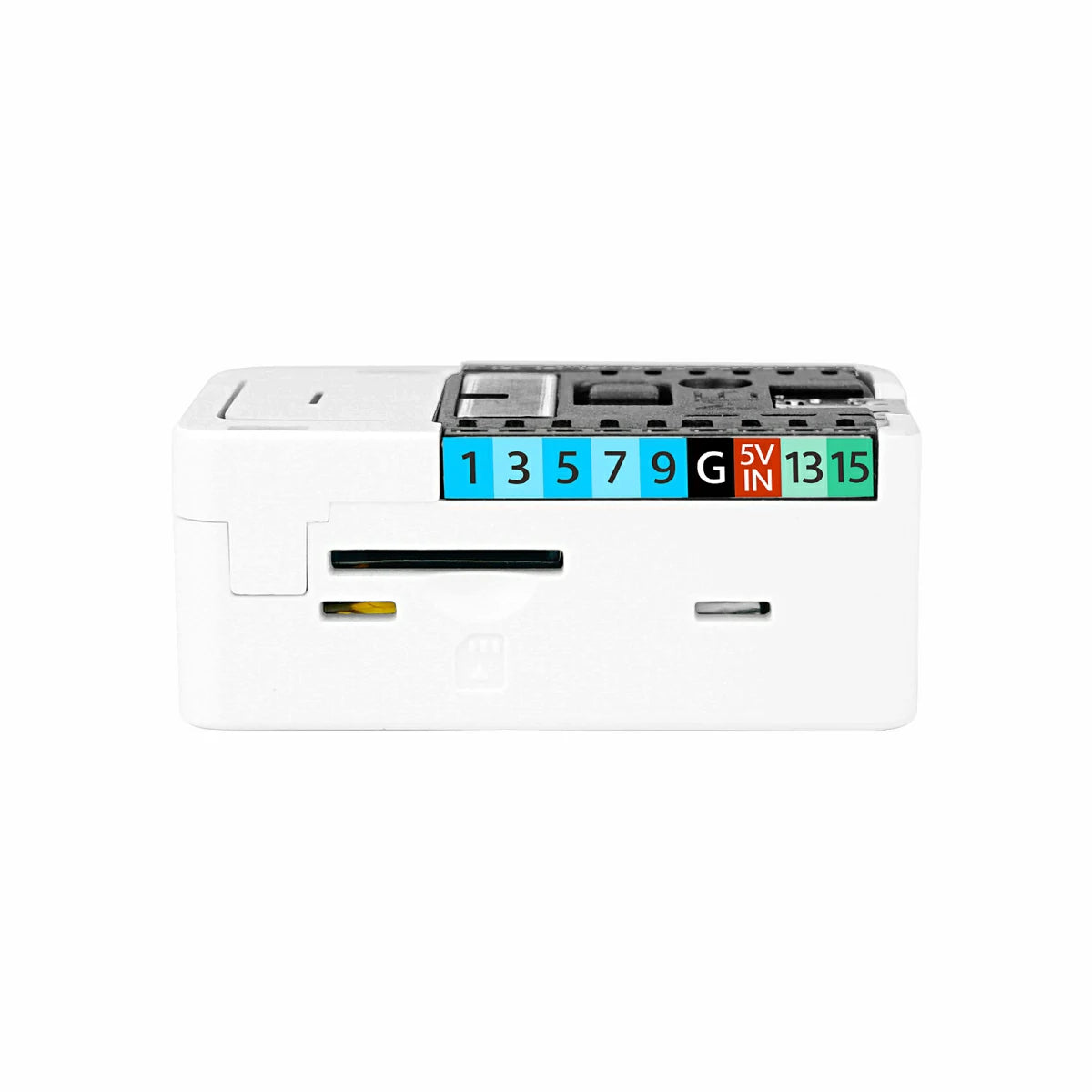

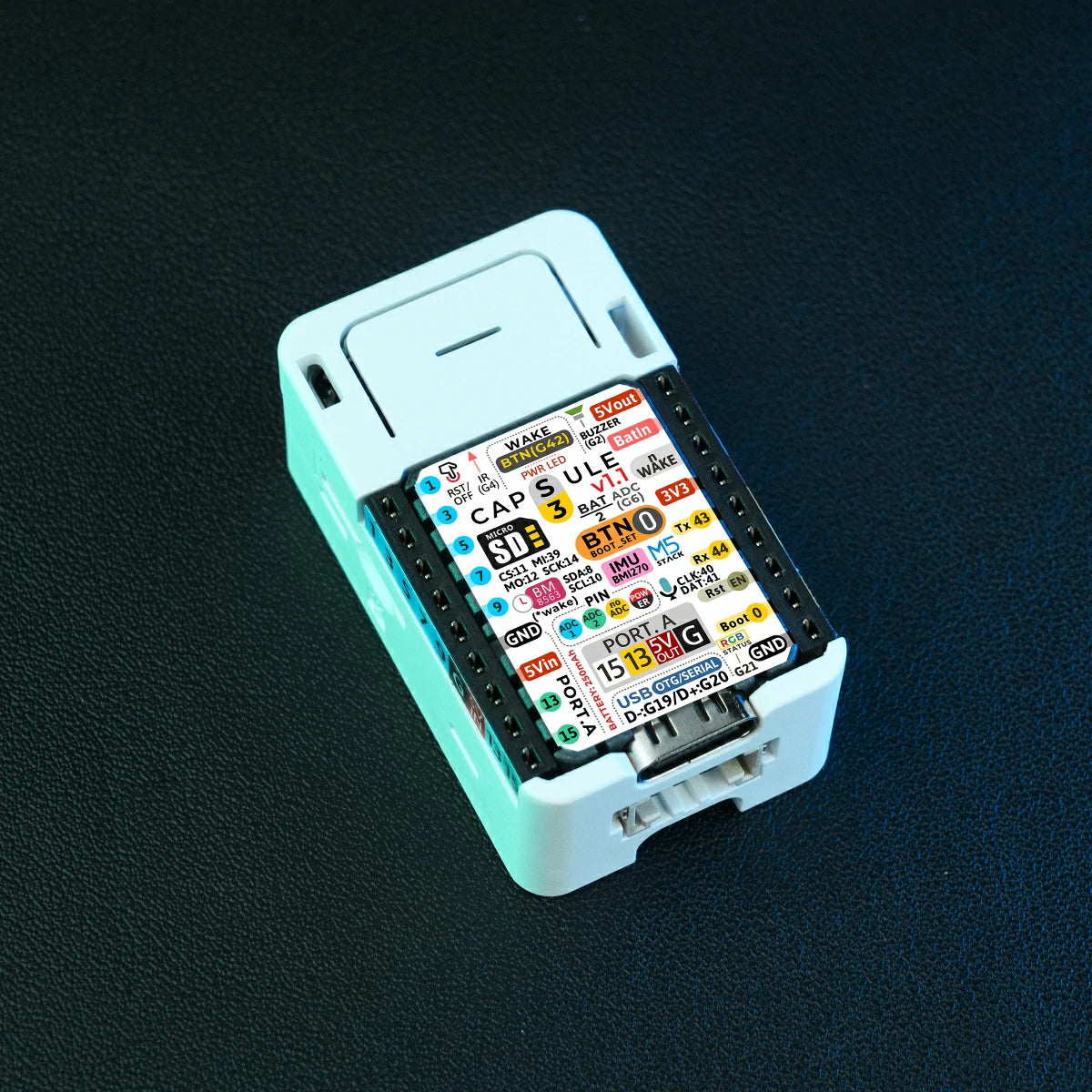

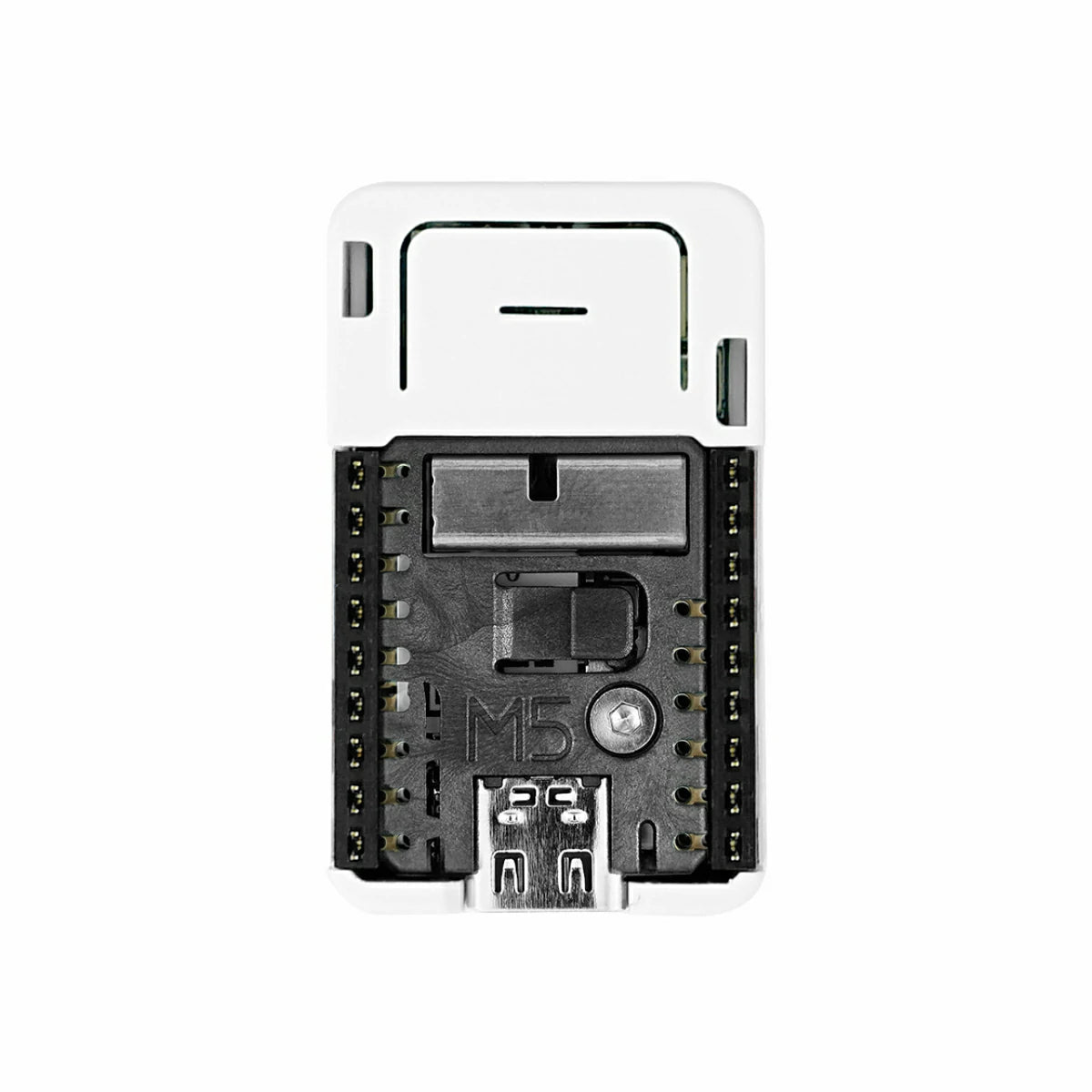

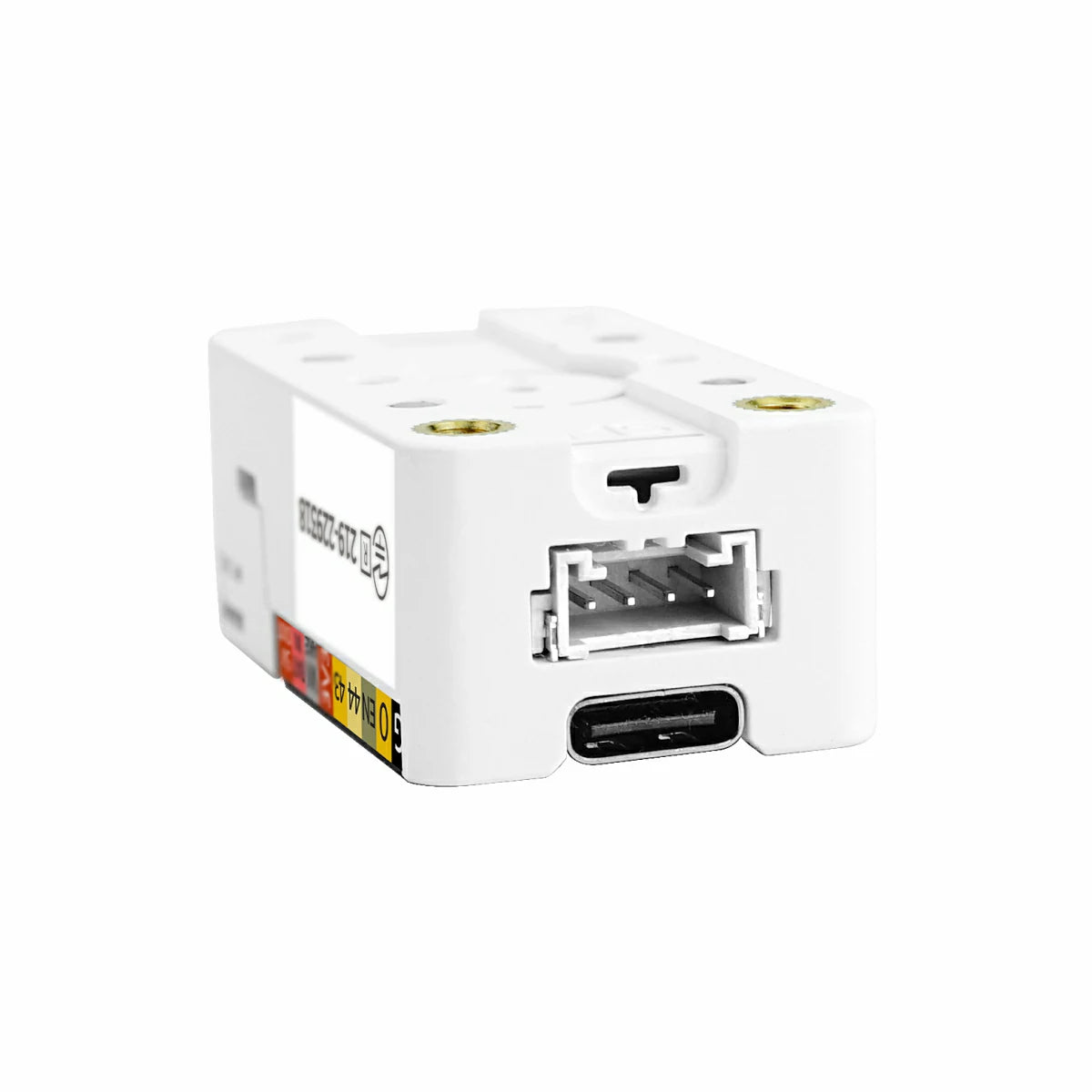

Capsule v1.1 is an iterative upgrade of Capsule, with the core upgrade being the replacement of the main controller from Stamp-S3 to Stamp-S3A, further optimizing hardware performance and user experience. Capsule v1.1 integrates sensing acquisition, power supply, data storage, and main controller drive into one unified function. It features a high-performance BMI270 IMU inertial measurement unit for precise motion trajectory tracking and attitude control. It incorporates an SPM1423 microphone supporting audio recording, voice recognition, and voice wake-up functions, and includes an infrared sensor for remote control operation. The power configuration includes a built-in 250mAh battery and supports external expansion batteries to ensure stable long-term operation. It has an onboard microSD card slot for flexible storage expansion, meeting data logging and media file storage needs. Equipped with an RTC8563 real-time clock module, it provides accurate time and date information and supports timed wake-up, effectively achieving low-power operation. The device integrates a buzzer for sound prompts and status feedback, and has a reserved Proto pin header expansion interface for freely connecting various custom sensors and expansion boards, suitable for diverse project development needs. The body is built-in with four strong magnets and two M3 screw fixing holes, supporting magnetic placement and screw installation, greatly broadening usage scenarios.
This product can be applied to IoT setups, embedded development, environmental sensing monitoring, smart terminal data collection, and various project scenarios.
Features
- Integrated buzzer for status feedback
- Integrated BMI270 attitude tracking
- Supports microphone and infrared remote control
- Built-in 250mAh battery & external battery support
- Built-in RTC8563 for timed wake-up
- Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
- 1 x Capsule v1.1
Applications
- Attitude control and motion tracking
- Audio recording and voice wake-up
- Low-power timed data collection
- Infrared remote control smart terminals
- Embedded system development
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3FN8 |
| Flash | 8MB |
| 6-Axis Attitude Sensor | BMI270 |
| MEMS Microphone | SPM1423 |
| Clock Chip | BM8563 |
| Battery Capacity | 250mAh |
| Infrared Remote Distance | ∠180°: 330CM (straight line) ∠90°: 48CM ∠45°: 134CM |
| Sleep Current | Battery powered DC 4.2V@35uA |
| Operating Current | Battery powered DC 4.2V@144mA |
| Product Size | 40.0 x 24.0 x 16.2mm |
| Product Weight | 18.7g |
| Package Size | 99.2 x 63.1 x 14.7mm |
| Gross Weight | 26.3g |
Product Comparison
| Product Compare | Capsule v1.1 | Capsule |
|---|---|---|
| Core Module | Stamp-S3A | StampS3 |
| Antenna Design | Optimized design, stronger signal | Standard design |
| StampS3 Module Boot Button | Optimized button feel, button specification 4.0 x 3.0 x 2.0mm | Button specification 2.6 x 1.6 x 0.55mm |
| Power Consumption | Optimized for lower power consumption | Standard design |
