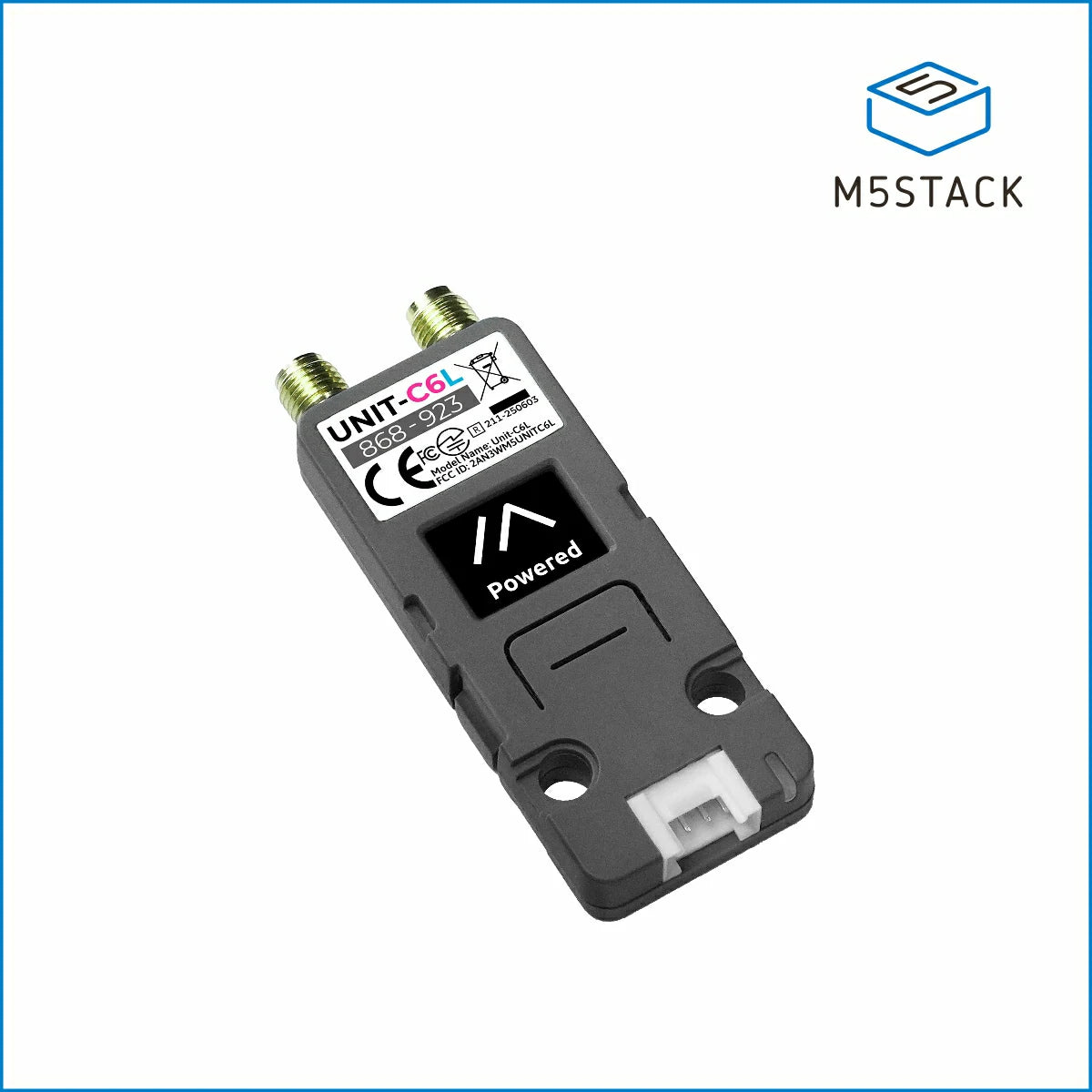

M5Stack C6L Unit for Meshtastic (SX1262, ESP32-C6)

SKU:U202

Regular price $22.90

Out Of Stock

Shipping calculated at checkout.

Description

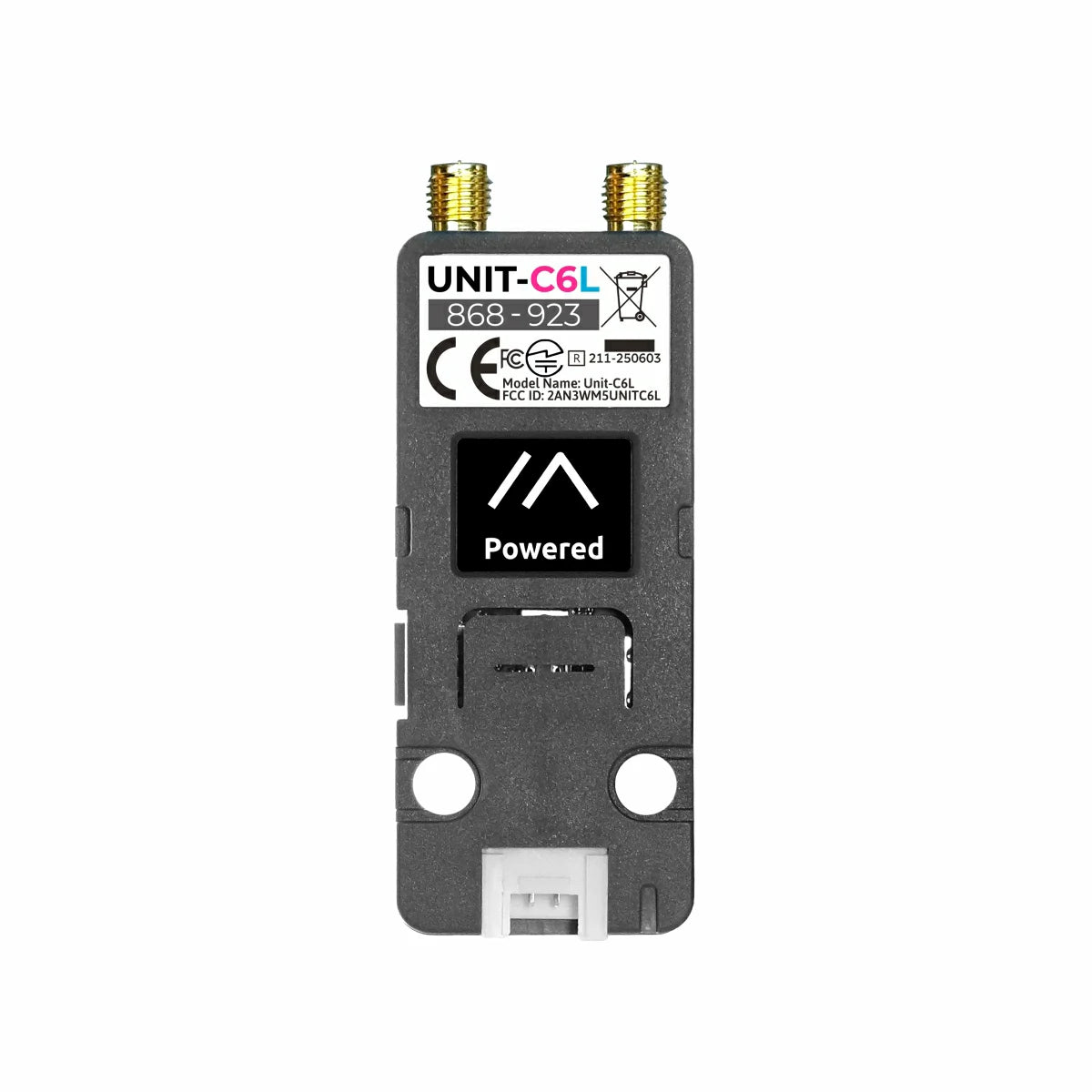

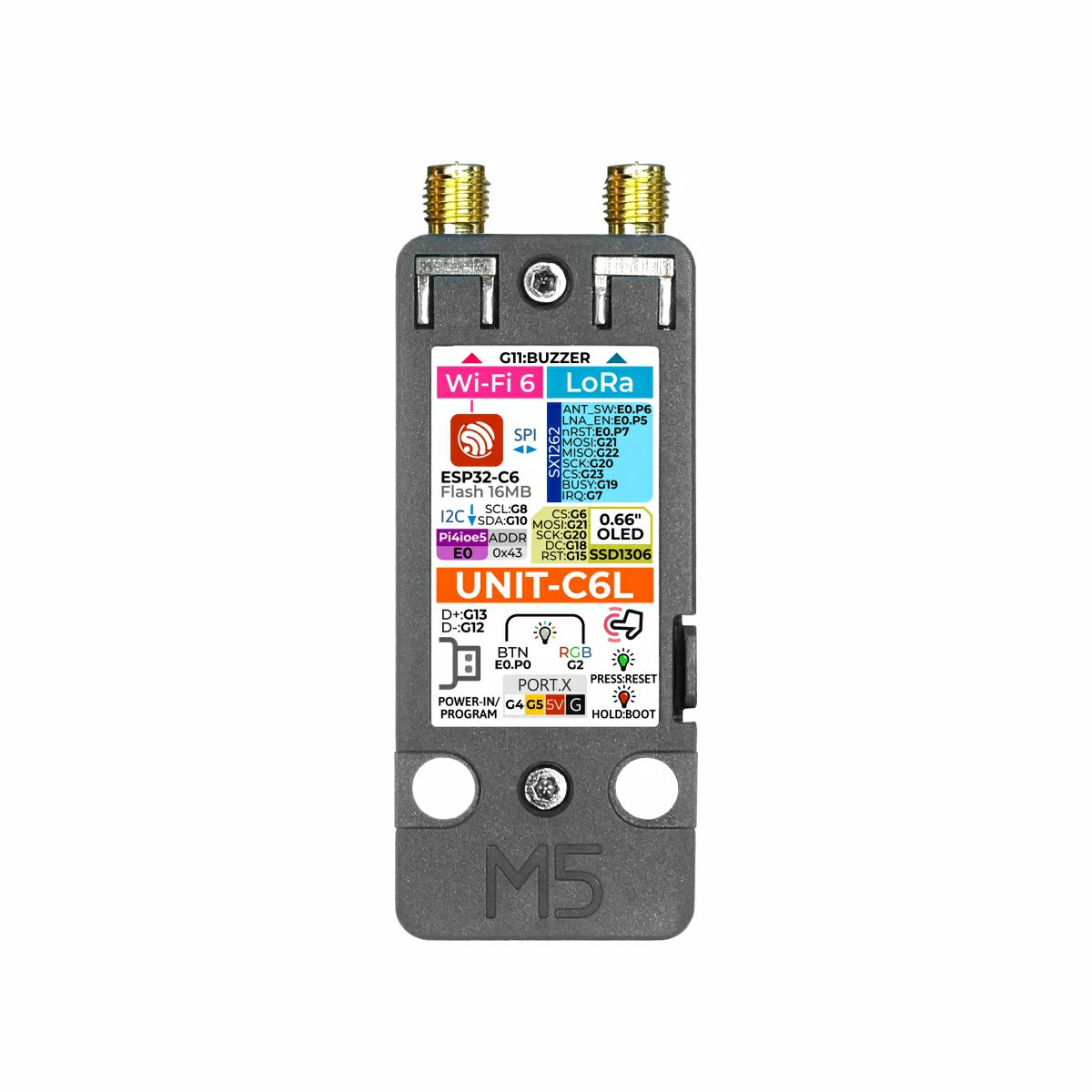

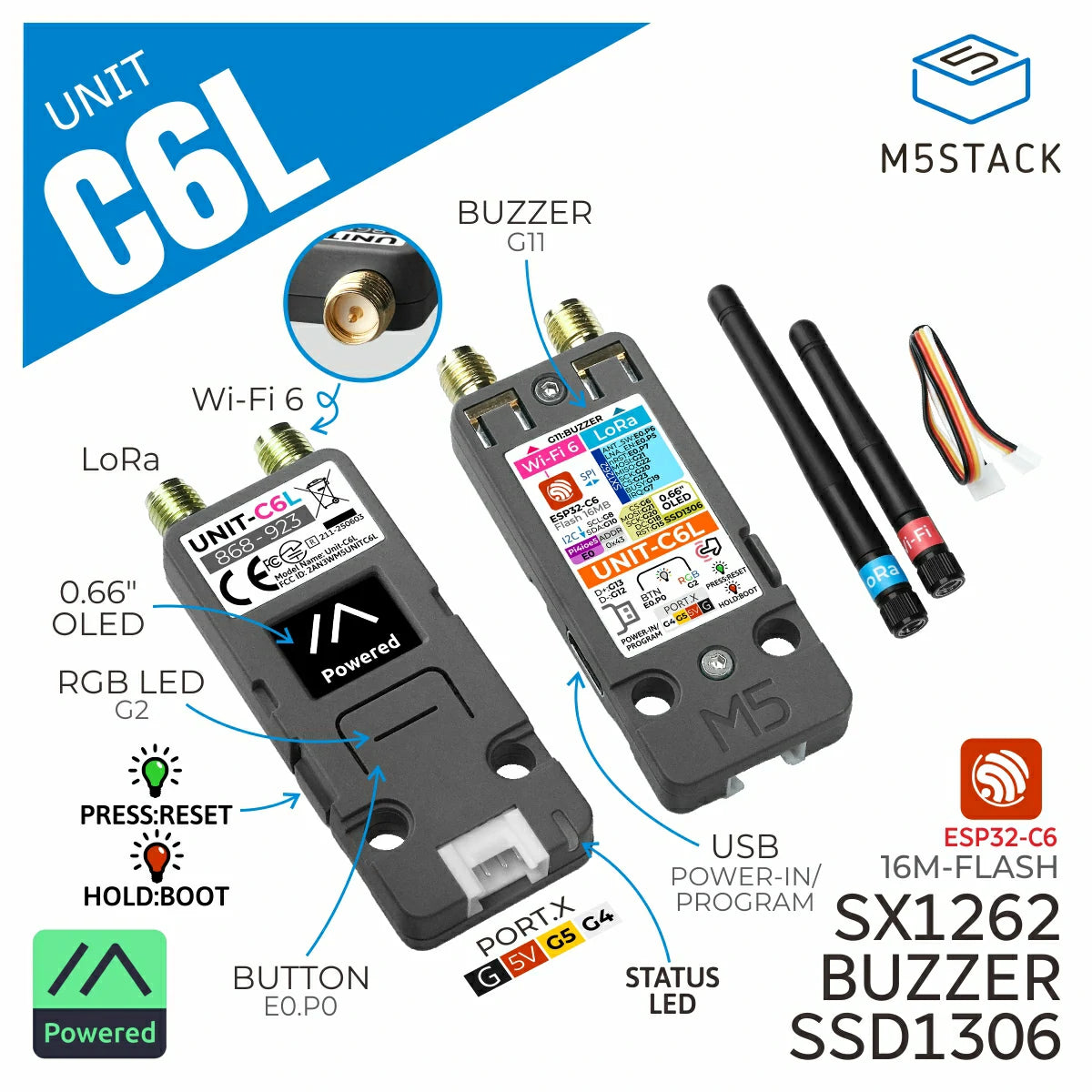

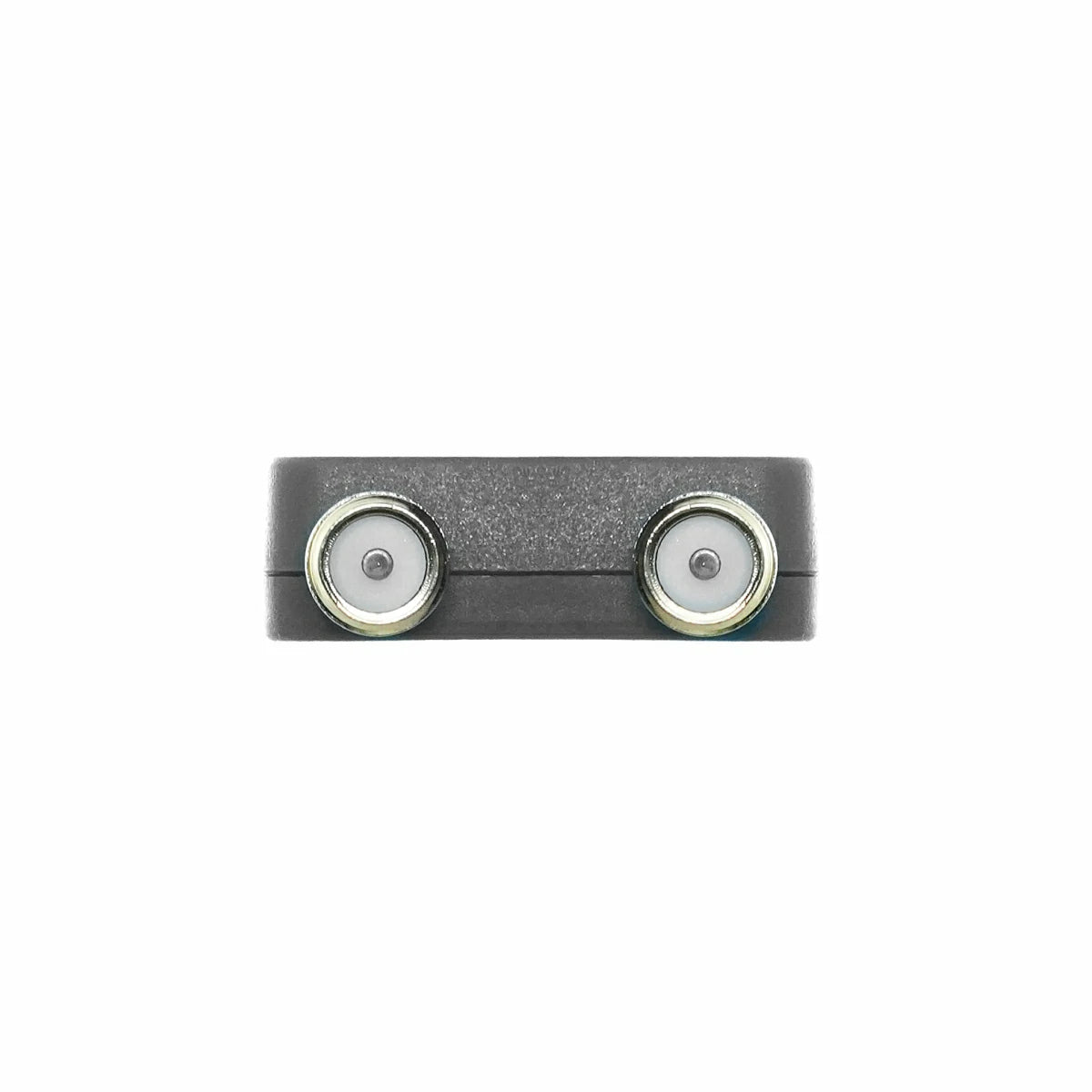

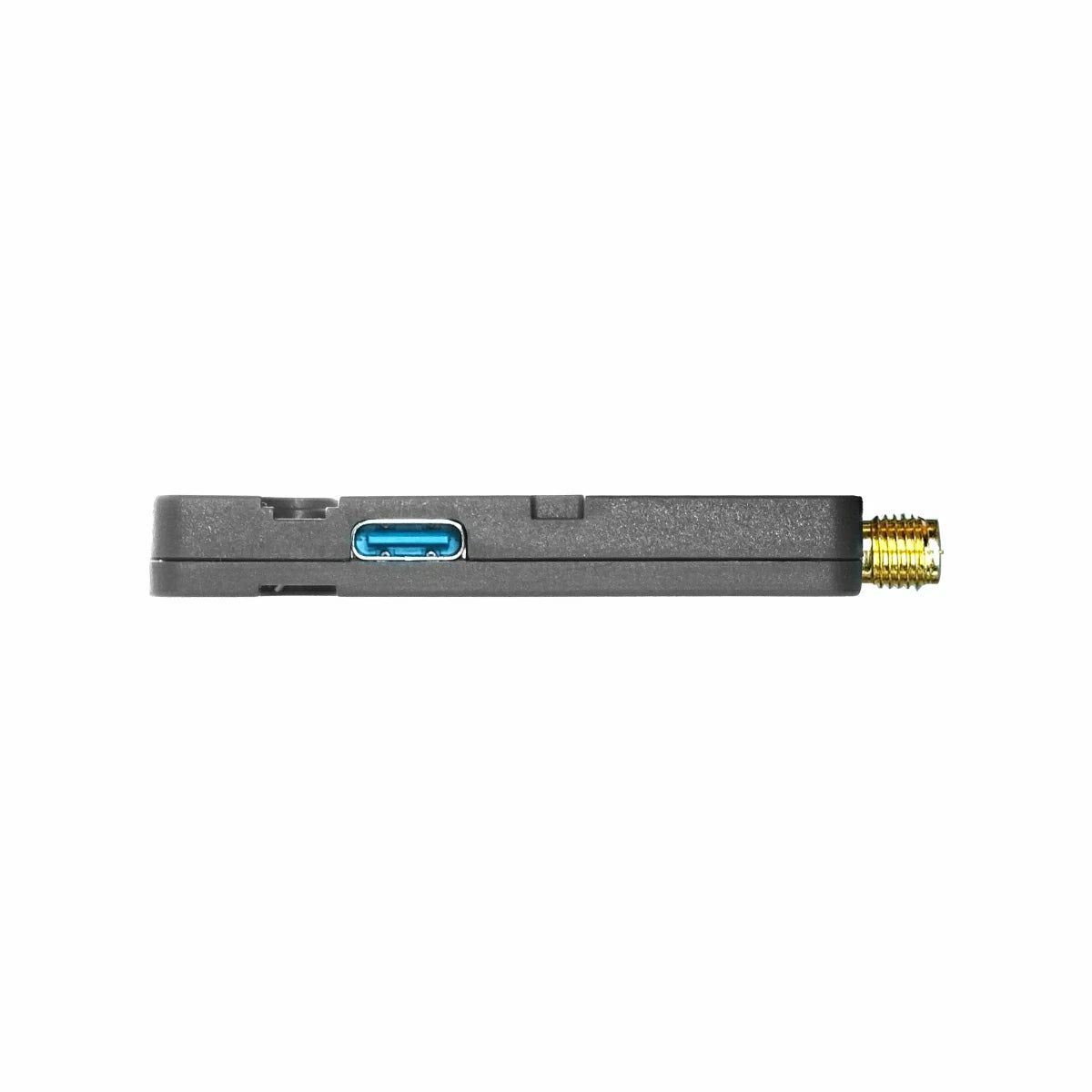

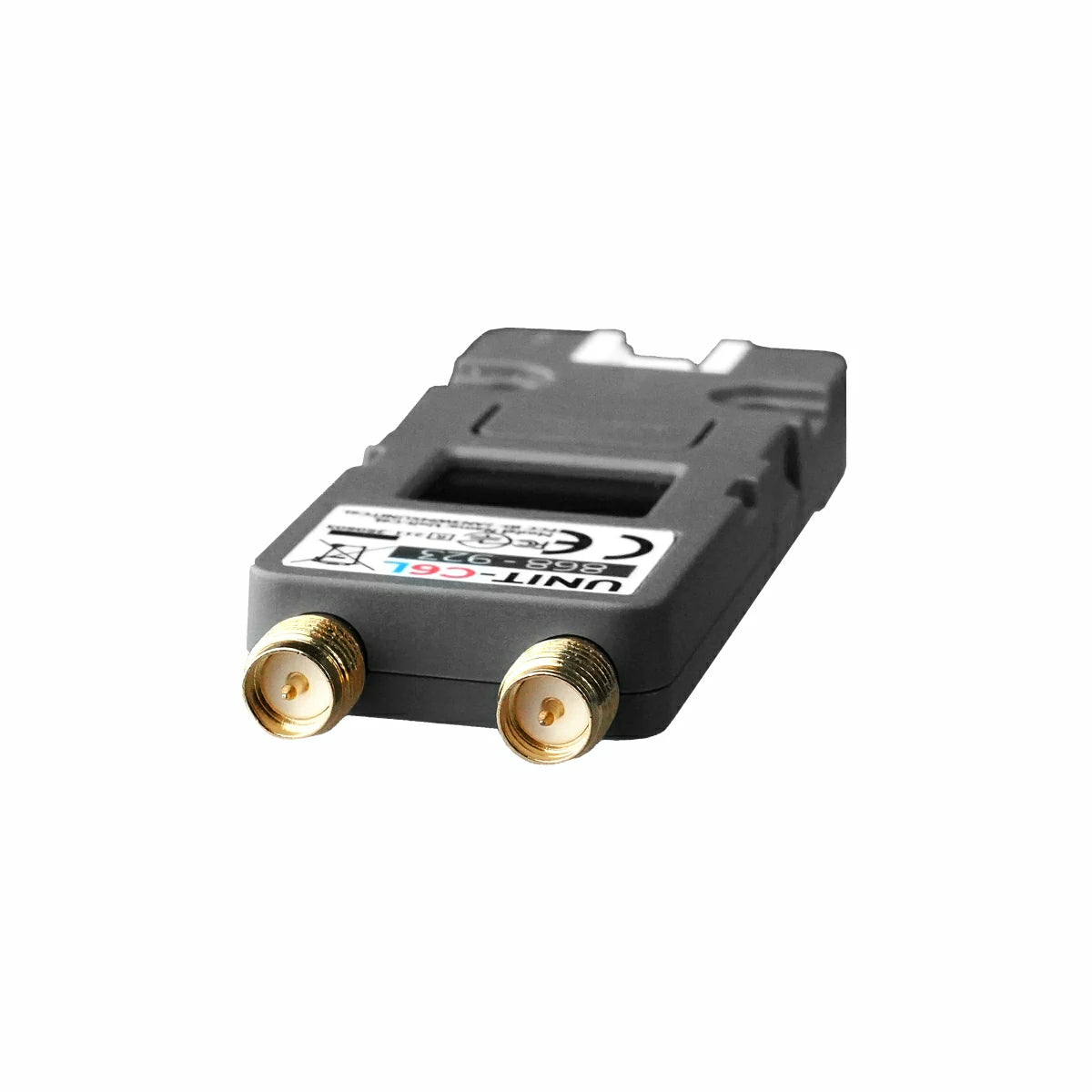

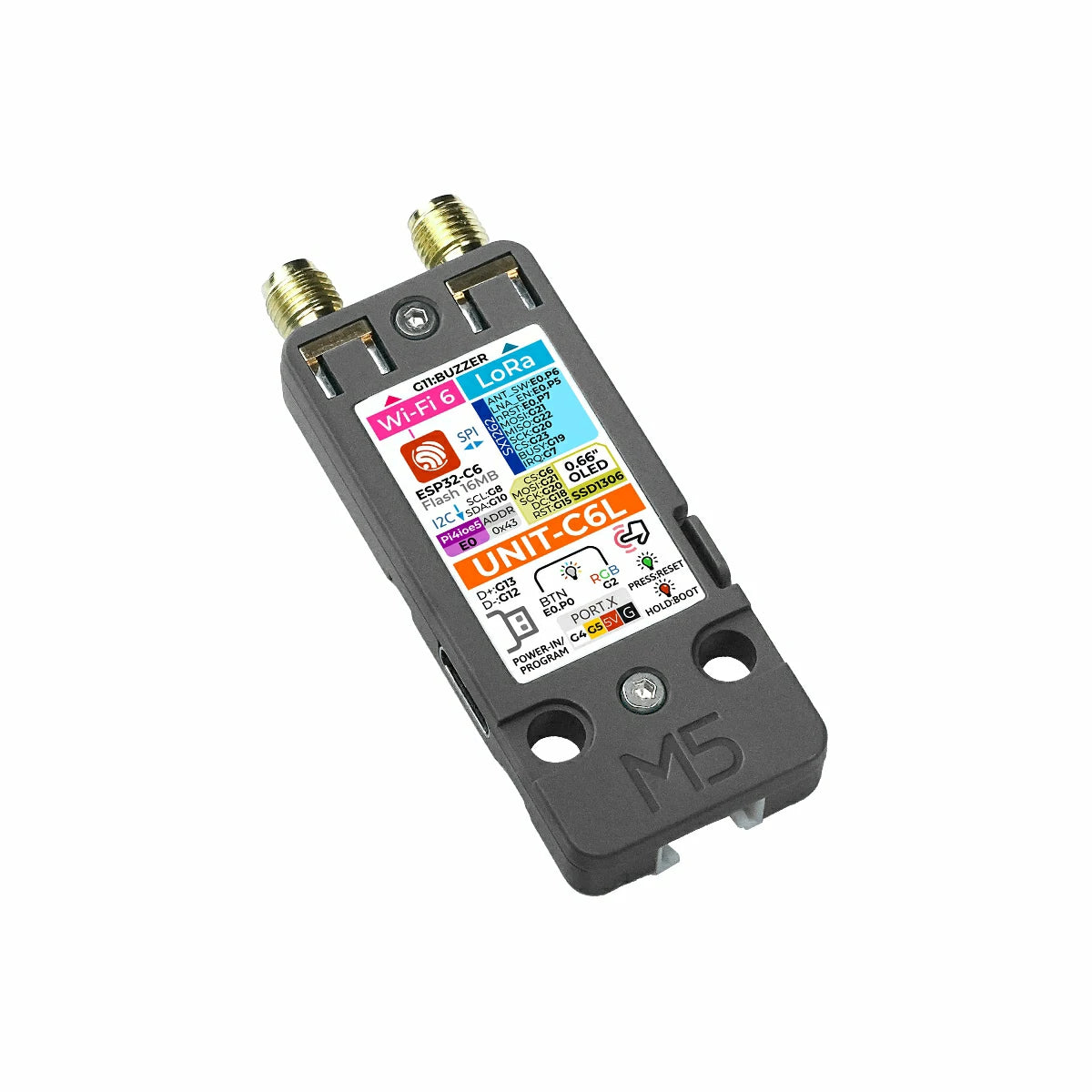

Unit C6L is a highly integrated LoRa communication unit, equipped with the Stamp C6LoRa module (featuring ESP32-C6 as the core controller, integrating SX1262 LoRa transceiver and RF switch circuit), supporting 868 ~ 923 MHz operating frequency range. Unit C6L integrates a 0.66" OLED monochrome display, programmable RGB indicator, buzzer, and user button, providing intuitive human-machine interaction. The device supports connection to the Meshtastic network or secondary development, enabling rapid deployment of private LoRa networks, suitable for remote monitoring, outdoor exploration, and emergency communication scenarios. In hardware design, Unit C6L offers 2x SMA antenna interfaces, respectively for 2.4 GHz Wi-Fi 6 and LoRa communication, ensuring scalability and stability of wireless performance. It also integrates over-voltage protection chip AW32901FCR to enhance device stability. With HY2.0-4P expansion interface and LEGO-compatible mounting holes, users can easily expand sensors or modules to quickly build more application scenarios.

Features

  • Supports Meshtastic
  • ESP32-C6 core controller
  • 2.4 GHz Wi-Fi 6
  • SX1262 LoRa transceiver
  • LoRa operating frequency: 868 ~ 923 MHz
  • Programmable RGB LED WS2812C
  • SSD1306 0.66" OLED monochrome display, resolution 64x48
  • Human-machine interaction:
    • Buzzer
    • User button
  • Integrated over-voltage protection chip AW32901FCR

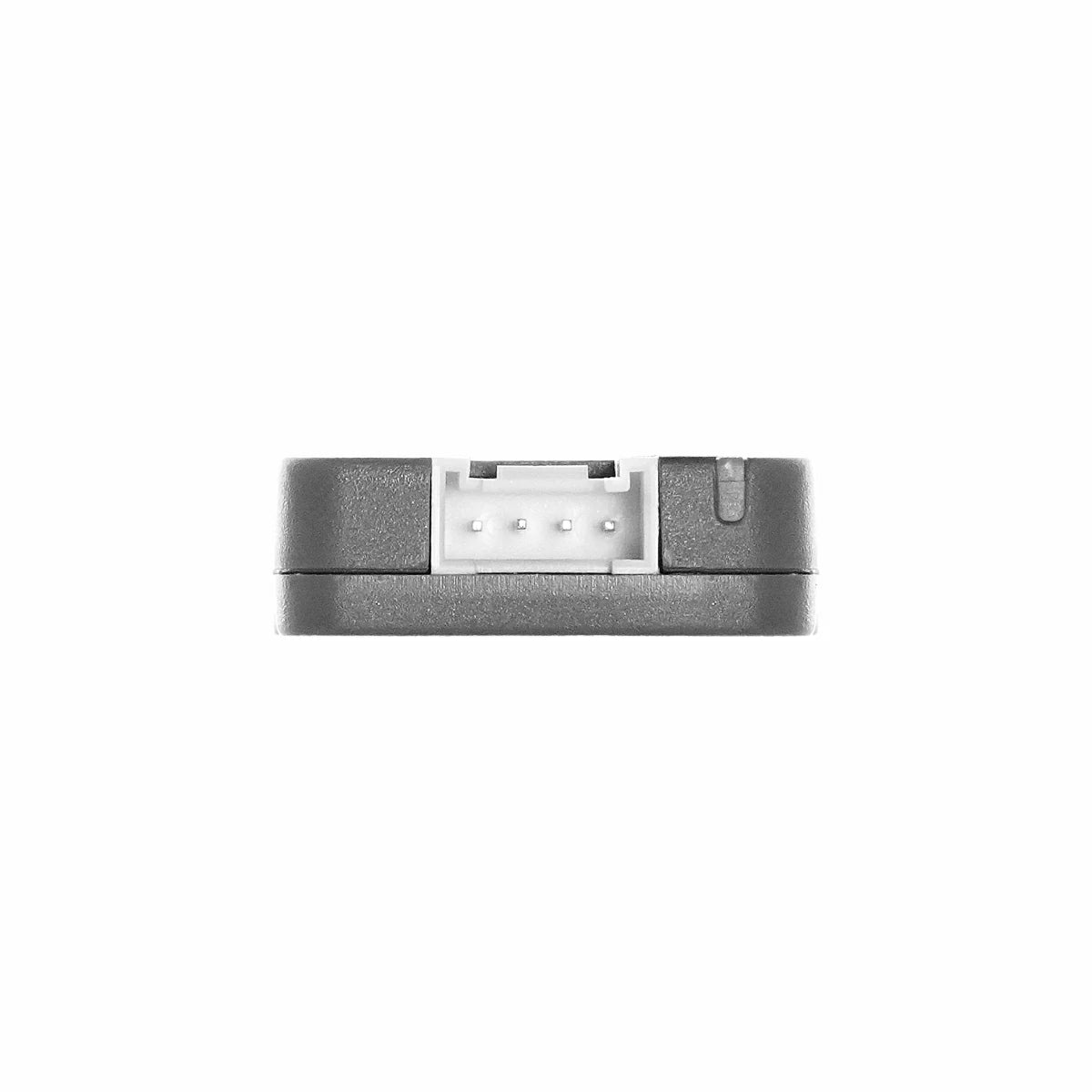

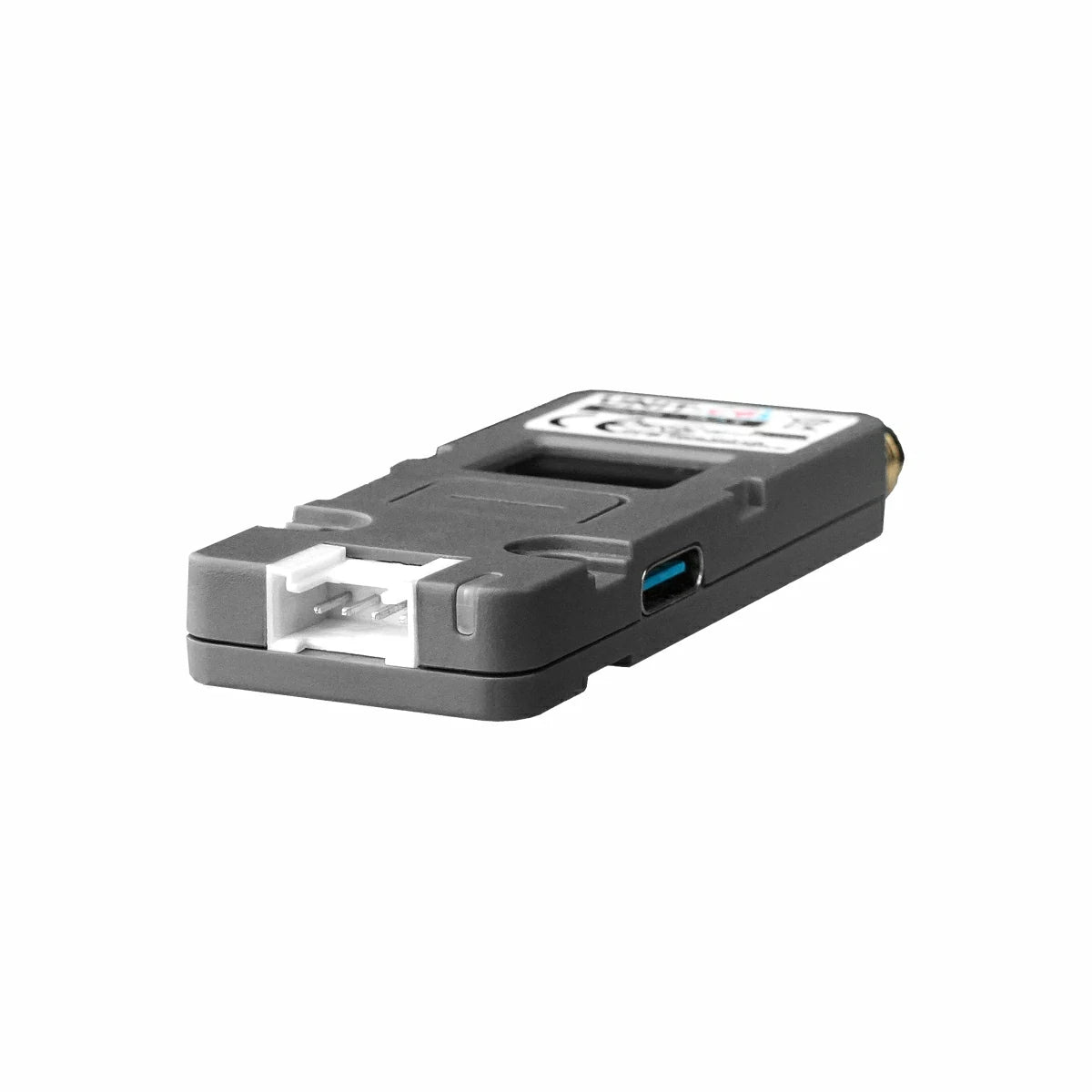

  • HY2.0-4P expansion interface
  • LEGO-compatible mounting holes

Includes

  • 1 x Unit C6L

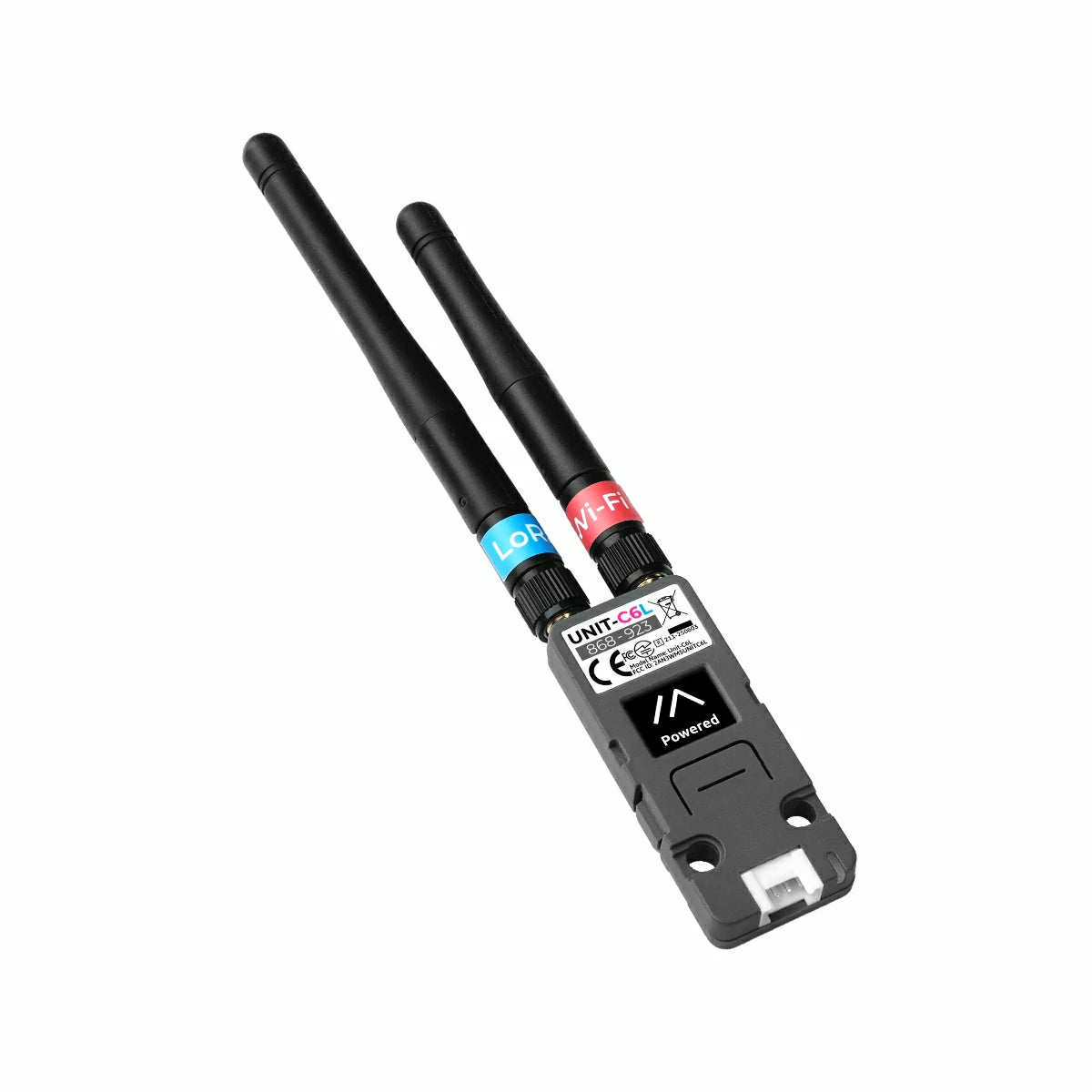

  • 1 x 2.4 GHz SMA whip antenna
  • 1 x 868 MHz SMA whip antenna
  • 1 x HY2.0-4P Grove Cable (20cm)

Applications

  • Smart agriculture
  • Industrial monitoring
  • Outdoor communication

Specifications

Specification Parameter
SoC ESP32-C6 (RISC-V 32-bit high-performance single-core processor 160MHz + RISC-V 32-bit low-power single-core processor 20 MHz)
Flash 16MB
Display SSD1306 0.66" OLED monochrome screen, resolution 64 x 48
LoRa SX1262
Antenna Specs Wi-Fi Antenna: length 84mm, SMA connector (female thread, female pin), operating frequency 2.4 GHz, gain 3dBi
LoRa Antenna: length 108mm, SMA connector (female thread, female pin), operating frequency 868 MHz, gain 3dBi
Max LoRa TX Power +22dBm
Power Consumption Sleep mode (HY2.0-4P powered): 696.86uA
Sleep mode (USB Type-C powered): 866.42uA
LoRa RX standby (USB Type-C powered): 85.18mA
LoRa max power continuous TX (USB Type-C powered): 80.02mA
LoRa RX Sensitivity -147 dBm (LoRa low data rate mode)
Power Input DC 5V (USB Type-C)
RGB LED 1x WS2812C
Product Size 62.0 x 24.0 x 8.0mm (excluding antenna)
Product Weight 13.6g (excluding antenna)
Package Size 102.0 x 43.0 x 11.5mm
Gross Weight 38.6g
